About MCP servers in Azure API Management

APPLIES TO: Basic | Basic v2 | Standard | Standard v2 | Premium | Premium v2

This article introduces features in Azure API Management that you can use to manage Model Context Protocol (MCP) servers. MCP servers allow large language models (LLMs) and AI agents to access external data sources, such as databases or APIs, through a standardized protocol.

With the proliferation of AI agents and large language models (LLMs), management of MCP servers is becoming increasingly important:

• Agents need secure, governed access to tools and resources
• Developers want to reuse existing APIs as agent tools
• Enterprises need observability, control, and scaling

Use API Management to securely expose and govern MCP servers and their backends for LLMs and AI agents like GitHub Copilot, ChatGPT, Claude, and more. API Management provides centralized control over MCP server authentication, authorization, and monitoring. It simplifies the management of MCP servers while helping to mitigate common security risks and ensuring observability, control, and scalability.

MCP concepts and architecture

AI agents are becoming widely adopted because of enhanced LLM capabilities. However, even the most advanced models face limitations because of their isolation from external data. Each new data source potentially requires custom implementations to extract, prepare, and make data accessible for the models.

The model context protocol (MCP) helps solve this problem. MCP is an open standard for connecting AI models and agents with external data sources such as local data sources (databases or computer files) or remote services (systems available over the internet, such as remote databases or APIs).

MCP follows a client-server architecture where a host application can connect to multiple servers. Whenever your MCP host or client needs a tool, it connects to the MCP server. The MCP server then connects to, for example, a database or an API. MCP hosts and servers connect with each other through the MCP protocol.

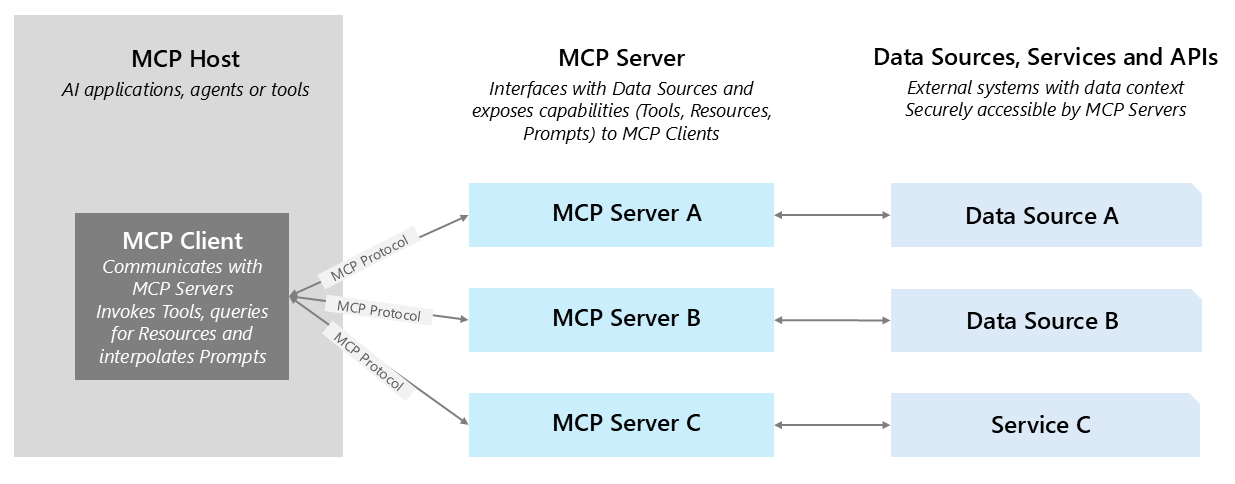

The following diagram illustrates the MCP architecture:

The architecture consists of the following components:

The MCP architecture is built on JSON-RPC 2.0 for messaging. Communication between clients and servers occurs over defined transport layers, and supports primarily two modes of operation:

• Remote MCP servers - Run as independent processes accessible over the internet using HTTP-based transports (like Streamable HTTP), enabling MCP clients to connect to external services and APIs hosted anywhere.

• Local MCP servers MCP clients use standard input/output as a local transport method to connect to MCP servers on the same machine.

MCP server endpoints

MCP provides the following transport types and typical endpoints for remote servers:

Expose MCP servers in API Management

Azure API Management supports the remote MCP server mode, using native features of API Management and capabilities of the AI gateway to manage MCP server endpoints.

In preview, API Management provides two built-in ways to expose MCP servers:

See the linked articles for step-by-step instructions and preview limitations.

Govern MCP servers

Configure one or more API Management policies to help manage the MCP server. Currently, policies are applied to all API operations exposed as tools in the MCP server and can be used to control access, authentication, and other aspects of the tools.

Configure policies such as the following:

• Rate limiting and quota enforcement - Limit the number of requests per time period to the MCP server's tools, and set usage quotas for clients or subscriptions.
• Authentication and authorization - Require and validate incoming requests using JSON web tokens (JWT) issued by Microsoft Entra ID or other identity providers for secure access.
• IP filtering - Restrict access to the MCP server's tools based on client IP addresses.
• Caching - Cache responses from the MCP server's tools to improve performance and reduce backend load.

Secure access to the MCP server

You can secure either or both inbound access to the MCP server (from an MCP client to API Management) and outbound access (from API Management to the MCP server backend). Apply one or more security measures depending on your backends and your organization's security posture.

For more information and examples, see Secure access to MCP servers.

Monitoring

To monitor MCP servers in Azure API Management, you can use API Management's built-in integration with Azure Monitor for gateway activity.

• Configure Azure Application Insights or Azure Monitor to capture MCP server requests, responses, and detailed diagnostics.
• Include correlation IDs in request headers to track requests across multiple systems and components.
• Configure trace policies for your MCP servers to add a custom trace into the request tracing output in the test console, Application Insights telemetries, or resource logs.

For more information, see Monitor API Management.

Discover MCP servers

Use Azure API Center to register and discover MCP servers in your organization.

• Azure API Center provides a centralized location for managing MCP servers, including servers exposed in API Management and servers hosted outside of API Management.

• Deploy the API Center portal to enable your users to discover and interact with MCP servers through a private, enterprise-ready MCP server registry.

Availability

In preview, MCP servers in API Management are available in the following service tiers:

• Classic tiers: Basic, Standard, Premium
• v2 tiers: Basic v2, Standard v2, Premium v2
