使用 ADO.NET 创建基本数据应用程序

2025-08-07

Note

此类 DataSet 和相关类是 2000 年代初的旧版 .NET Framework 技术，使应用程序能够在应用与数据库断开连接时处理内存中的数据。这些技术对于使用户能够修改数据并将更改保留回数据库的应用特别有用。尽管数据集是经过证实的成功技术，但新 .NET 应用程序的建议方法是使用 Entity Framework Core。 Entity Framework 提供了一种更自然的方式来将表格数据用作对象模型，并且具有更简单的编程接口。

创建作数据库中数据的应用程序时，通常会执行定义连接字符串、插入数据和运行存储过程等任务。按照本文的指导，你可以在基于数据的窗体 (FOD) Windows 窗体应用程序中使用 Visual C# 或 Visual Basic 及 ADO.NET 与数据库进行交互。所有 .NET 数据技术（包括数据集、LINQ（Language-Integrated 查询）到 SQL 和 Entity Framework，最终执行与本文所示步骤类似的步骤。

本文演示如何快速将数据从数据库中获取出来。如果应用程序需要以非琐碎的方式修改数据并更新数据库，请考虑使用 Entity Framework 和数据绑定。这样，用户界面控件就可以自动同步到基础数据中的更改。

若要访问本教程的完整代码，请参阅适用于 C# 和 Visual Basic 的 Visual Studio 文档 GitHub 存储库。

Important

为了简化代码，它不包括用于生产环境的异常处理。

Prerequisites

安装了“.NET 桌面开发”和“数据存储和处理”工作负载的 Visual Studio。若要安装它们，请打开 Visual Studio 安装程序，然后选择要修改的 Visual Studio 版本旁边的 “修改 ”。
SQL Server Express LocalDB。如果没有 SQL Server Express LocalDB，可以从 SQL Server 下载页安装它。

本文假定你熟悉 Visual Studio IDE 的基本功能。它还假设你可以创建 Windows 窗体应用程序、向项目添加窗体、向窗体添加按钮和其他控件、设置控件属性和代码简单事件。如果您对这些任务不熟悉，请在开始本演练之前，完成在 Visual Studio 中使用 C# 创建 Windows 窗体应用的教程或在 Visual Studio 中使用 Visual Basic 创建 Windows 窗体应用的教程。

设置示例数据库

按照以下步骤创建示例数据库：

在 Visual Studio 中，打开 服务器资源管理器 窗口。
右键单击 “数据连接 ”，然后选择“ 创建新的 SQL Server 数据库”。
对于 服务器名称，请输入 （localdb）\mssqllocaldb。
对于 “新建数据库名称”，请输入 Sales，然后选择 “确定”。

Visual Studio 在服务器资源管理器的数据连接节点下创建一个空的Sales数据库。
右键单击 “销售 数据连接”，然后选择“ 新建查询”。

此时会打开查询编辑器窗口。
将 Sales Transact-SQL 脚本复制到剪贴板。
将 T-SQL 脚本粘贴到查询编辑器窗口中，然后选择“ 执行”。

短时间后，查询将完成运行，并创建数据库对象。数据库包含两个表：客户和订单。这些表最初不包含任何数据，但在运行创建的应用程序时，可以添加数据。该数据库还包含五个基本存储过程。

创建窗体并添加控件

使用 Windows 窗体应用（.NET Framework） 模板创建 C# 或 Visual Basic 项目并将其命名为 SimpleDataApp。

Visual Studio 创建项目和多个文件，包括名为 Form1 的空 Windows 窗体。
在 解决方案资源管理器中，向项目添加两个 Windows 窗体，使其总共有三个窗体，并为其提供以下名称：
- Navigation
- NewCustomer
- FillOrCancel

对于每个窗体，请添加下图所示的文本框、按钮和其他控件。对于每个控件，设置表描述的属性。

Note

组框和标签控件增加了清晰度，但不在代码中使用。

导航窗体

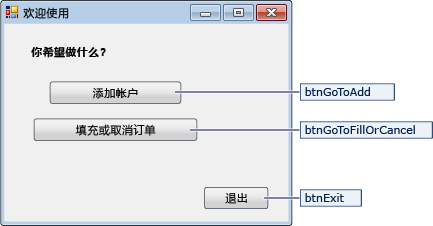

显示导航窗体详细信息的屏幕截图。

导航窗体的控件

控件文本	控件类型	控件属性
添加帐户	Button	名称 = btnGoToAdd
填写或取消订单	Button	Name = btnGoToFillOrCancel
Exit	Button	Name = btnExit

NewCustomer 窗体

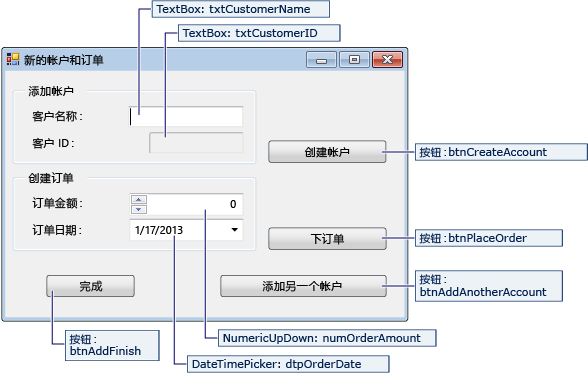

显示 NewCustomer 表单详细信息的屏幕截图。

NewCustomer 窗体的控件

标签/控件文本	控件类型	控件属性
客户名称	TextBox	Name = txtCustomerName
客户 ID	TextBox	Name = txtCustomerID 只读 = True
创建帐户	Button	Name = btnCreateAccount
订单金额	NumericUpdown	Name = numOrderAmount DecimalPlaces = 0 最大值 = 5000
订单日期	DateTimePicker	Name = dtpOrderDate 格式 = 短
下单	Button	Name = btnPlaceOrder
Finish	Button	Name = btnAddFinish
添加另一个帐户	Button	Name = btnAddAnotherAccount

FillOrCancel 窗体

显示 FillOrCancel 表单详细信息的屏幕截图。

FillOrCancel 窗体的控件

标签/控件文本	控件类型	控件属性
订单 ID	TextBox	Name = txtOrderID
查找订单	Button	Name = btnFindByOrderID
如果填写订单...	DateTimePicker	Name = dtpFillDate 格式 = 短
(None)	DataGridView	Name = dgvCustomerOrders 只读 = True RowHeadersVisible = False
取消订单	Button	Name = btnCancelOrder
填充顺序	Button	名称 = btnFillOrder
Finish	Button	Name = btnFinishUpdates

存储连接字符串

当应用程序尝试打开与数据库的连接时，应用程序必须有权访问连接字符串。为了避免需要在每个窗体上手动输入字符串，请将字符串存储在项目中 App.config 文件中。然后，创建一个方法，该方法在从应用程序中的任何窗体调用时返回字符串。

若要查找连接字符串，请执行以下命令：

在服务器资源管理器中，右键单击 “销售 数据连接”，然后选择“ 属性”。
找到 连接字符串 属性并将其字符串值复制到剪贴板。

若要在项目中存储连接字符串，请执行以下作：

在 解决方案资源管理器中，根据项目类型执行以下步骤之一：

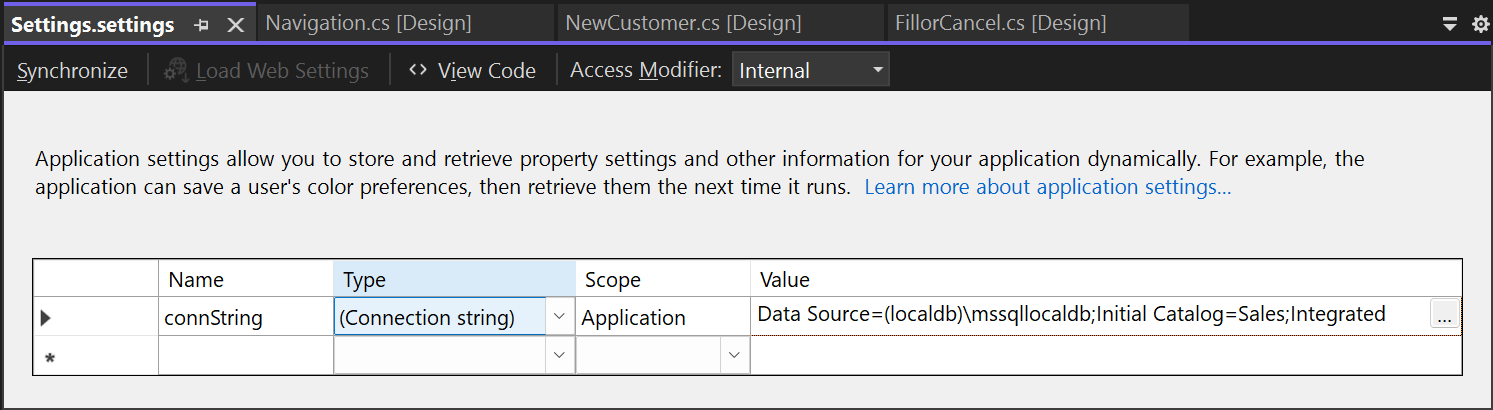

- 对于 C# 项目，展开项目下的 “属性” 节点，然后打开 Settings.settings 文件。
- 对于 Visual Basic 项目，选择“ 显示所有文件”，展开“ 我的项目 ”节点，然后打开 Settings.settings 文件。
在 “名称” 列中，输入 connString。
在类型列表中，选择“连接字符串”。
在范围列表中，选择 应用程序。
在值列中，输入连接字符串（没有任何外部引号），然后保存所做的更改。

Caution

在实际应用程序中，应安全地存储连接字符串，如连接字符串和配置文件中所述。为了获得最佳安全性，请使用不依赖于在连接字符串中存储密码的身份验证方法。例如，本地 SQL Server 数据库的 Windows 身份验证。有关详细信息，请参阅 “保存和编辑连接字符串”。

编写表单的代码

本部分简要概述了每个表格的作用。它还提供了相关代码，选择窗体上的按钮时就会定义基础逻辑。

运行应用程序时将打开导航窗体，其中包含以下按钮：

添加帐户：打开 NewCustomer 窗体。
填写或取消订单：打开 FillOrCancel 表单。
退出：关闭应用程序。

对于 C# 项目：

在 解决方案资源管理器中，打开 Program.cs。
将 Application.Run 行更改为： Application.Run(new Navigation());

对于 Visual Basic 项目：

在 解决方案资源管理器中，右键单击项目并选择 “属性”。
在项目设计器中，选择“应用程序”选项卡，然后在“启动对象”列表中选择“导航”。

若要创建空事件处理程序方法，请双击导航窗体上的三个按钮中的每一个。双击按钮会在设计器代码文件中添加自动生成的代码，这使按钮选择能够引发事件。

如果决定直接将代码复制并粘贴到代码文件中，而不是在设计器中使用双击作，请确保将事件处理程序设置为正确的方法：

在窗体代码文件的 “属性 ”窗口中，使用闪电工具栏按钮切换到 “事件 ”选项卡。
搜索 Click 属性并验证其值是否为正确的事件处理程序方法。

在 Navigation 窗体的代码页中，完成三个按钮选择事件处理程序的方法主体，如下面的代码所示。

/// <summary>
/// Opens the NewCustomer form as a dialog box,
/// which returns focus to the calling form when it is closed.
/// </summary>
private void btnGoToAdd_Click(object sender, EventArgs e)
{
    Form frm = new NewCustomer();
    frm.Show();
}

/// <summary>
/// Opens the FillorCancel form as a dialog box.
/// </summary>
private void btnGoToFillOrCancel_Click(object sender, EventArgs e)
{
    Form frm = new FillOrCancel();
    frm.ShowDialog();
}

/// <summary>
/// Closes the application (not just the Navigation form).
/// </summary>
private void btnExit_Click(object sender, EventArgs e)
{
    this.Close();
}

''' <summary>
''' Opens the NewCustomer form as a dialog box, which returns focus to the calling form when it closes.
''' </summary>
Private Sub btnGoToAdd_Click(sender As Object, e As EventArgs) Handles btnGoToAdd.Click
    Dim frm As Form = New NewCustomer()
    frm.Show()
End Sub

''' <summary>
''' Opens the FillOrCancel form as a dialog box.
''' </summary>
Private Sub btnGoToFillOrCancel_Click(sender As Object, e As EventArgs) Handles btnGoToFillOrCancel.Click
    Dim frm As Form = New FillOrCancel()
    frm.ShowDialog()
End Sub

''' <summary>
''' Closes the application (not just the navigation form).
''' </summary>
Private Sub btnExit_Click(sender As Object, e As EventArgs) Handles btnExit.Click
    Me.Close()
End Sub

NewCustomer 窗体

输入客户名称并选择“ 创建帐户 ”按钮时，NewCustomer 表单将创建一个客户帐户，SQL Server 将返回一个 IDENTITY 值作为新的客户 ID。然后，可以通过指定金额和订单日期并选择 “下单”按钮来为新帐户下订单。

为 NewCustomer 窗体创建自动生成的事件处理程序

双击四个按钮，为 NewCustomer 窗体上的每个按钮创建一个空的 Click 事件处理程序。双击这些按钮还会在设计器代码文件中添加自动生成的代码，使按钮选择能够引发事件。

为 NewCustomer 表单逻辑添加代码

若要完成 NewCustomer 表单逻辑，请执行以下步骤：

将 System.Data.SqlClient 命名空间引入范围，以便无需完全限定其成员的名称。
- C#
- VB
```
using System.Data.SqlClient;
```
```
Imports System.Data.SqlClient
```

向类添加一些变量和帮助程序方法。

// Storage for IDENTITY values returned from database.
private int parsedCustomerID;
private int orderID;

/// <summary>
/// Verifies that the customer name text box is not empty.
/// </summary>
private bool IsCustomerNameValid()
{
    if (txtCustomerName.Text == "")
    {
        MessageBox.Show("Please enter a name.");
        return false;
    }
    else
    {
        return true;
    }
}

/// <summary>
/// Verifies that a customer ID and order amount have been provided.
/// </summary>
private bool IsOrderDataValid()
{
    // Verify that CustomerID is present.
    if (txtCustomerID.Text == "")
    {
        MessageBox.Show("Please create customer account before placing order.");
        return false;
    }
    // Verify that Amount isn't 0.
    else if ((numOrderAmount.Value < 1))
    {
        MessageBox.Show("Please specify an order amount.");
        return false;
    }
    else
    {
        // Order can be submitted.
        return true;
    }
}

/// <summary>
/// Clears the form data.
/// </summary>
private void ClearForm()
{
    txtCustomerName.Clear();
    txtCustomerID.Clear();
    dtpOrderDate.Value = DateTime.Now;
    numOrderAmount.Value = 0;
    this.parsedCustomerID = 0;
}

' Storage for ID values returned from the database.
Private parsedCustomerID As Integer
Private orderID As Integer

''' <summary>
''' Verifies that the customer name text box is not empty.
''' </summary>
Private ReadOnly Property IsCustomerNameValid As Boolean
    Get
        If txtCustomerName.Text = "" Then
            MessageBox.Show("Please enter a name.")
            Return False
        Else
            Return True
        End If
    End Get
End Property

''' <summary>
''' Verifies the order data is valid.
''' </summary>
Private Function IsOrderDataValid() As Boolean

    ' Verify that CustomerID is present.
    If txtCustomerID.Text = "" Then
        MessageBox.Show("Please create a customer account before placing order.")
        Return False

        ' Verify that order amount isn't 0.
    ElseIf (numOrderAmount.Value < 1) Then
        MessageBox.Show("Please specify an order amount.")
        Return False
    Else
        ' Order can be submitted.
        Return True
    End If
End Function

''' <summary>
''' Clears values from controls.
''' </summary>
Private Sub ClearForm()
    txtCustomerName.Clear()
    txtCustomerID.Clear()
    dtpOrderDate.Value = DateTime.Now
    numOrderAmount.Value = 0
    Me.parsedCustomerID = 0
End Sub

完善四个按钮选择事件处理程序的方法体。

/// <summary>
/// Creates a new customer by calling the Sales.uspNewCustomer stored procedure.
/// </summary>
private void btnCreateAccount_Click(object sender, EventArgs e)
{
    if (IsCustomerNameValid())
    {
        // Create the connection.
        using (SqlConnection connection = new SqlConnection(Properties.Settings.Default.connString))
        {
            // Create a SqlCommand, and identify it as a stored procedure.
            using (SqlCommand sqlCommand = new SqlCommand("Sales.uspNewCustomer", connection))
            {
                sqlCommand.CommandType = CommandType.StoredProcedure;

                // Add input parameter for the stored procedure and specify what to use as its value.
                sqlCommand.Parameters.Add(new SqlParameter("@CustomerName", SqlDbType.NVarChar, 40));
                sqlCommand.Parameters["@CustomerName"].Value = txtCustomerName.Text;

                // Add the output parameter.
                sqlCommand.Parameters.Add(new SqlParameter("@CustomerID", SqlDbType.Int));
                sqlCommand.Parameters["@CustomerID"].Direction = ParameterDirection.Output;

                try
                {
                    connection.Open();

                    // Run the stored procedure.
                    sqlCommand.ExecuteNonQuery();

                    // Customer ID is an IDENTITY value from the database.
                    this.parsedCustomerID = (int)sqlCommand.Parameters["@CustomerID"].Value;

                    // Put the Customer ID value into the read-only text box.
                    this.txtCustomerID.Text = Convert.ToString(parsedCustomerID);
                }
                catch
                {
                    MessageBox.Show("Customer ID was not returned. Account could not be created.");
                }
                finally
                {
                    connection.Close();
                }
            }
        }
    }
}

/// <summary>
/// Calls the Sales.uspPlaceNewOrder stored procedure to place an order.
/// </summary>
private void btnPlaceOrder_Click(object sender, EventArgs e)
{
    // Ensure the required input is present.
    if (IsOrderDataValid())
    {
        // Create the connection.
        using (SqlConnection connection = new SqlConnection(Properties.Settings.Default.connString))
        {
            // Create SqlCommand and identify it as a stored procedure.
            using (SqlCommand sqlCommand = new SqlCommand("Sales.uspPlaceNewOrder", connection))
            {
                sqlCommand.CommandType = CommandType.StoredProcedure;

                // Add the @CustomerID input parameter, which was obtained from uspNewCustomer.
                sqlCommand.Parameters.Add(new SqlParameter("@CustomerID", SqlDbType.Int));
                sqlCommand.Parameters["@CustomerID"].Value = this.parsedCustomerID;

                // Add the @OrderDate input parameter.
                sqlCommand.Parameters.Add(new SqlParameter("@OrderDate", SqlDbType.DateTime, 8));
                sqlCommand.Parameters["@OrderDate"].Value = dtpOrderDate.Value;

                // Add the @Amount order amount input parameter.
                sqlCommand.Parameters.Add(new SqlParameter("@Amount", SqlDbType.Int));
                sqlCommand.Parameters["@Amount"].Value = numOrderAmount.Value;

                // Add the @Status order status input parameter.
                // For a new order, the status is always O (open).
                sqlCommand.Parameters.Add(new SqlParameter("@Status", SqlDbType.Char, 1));
                sqlCommand.Parameters["@Status"].Value = "O";

                // Add the return value for the stored procedure, which is  the order ID.
                sqlCommand.Parameters.Add(new SqlParameter("@RC", SqlDbType.Int));
                sqlCommand.Parameters["@RC"].Direction = ParameterDirection.ReturnValue;

                try
                {
                    //Open connection.
                    connection.Open();

                    // Run the stored procedure.
                    sqlCommand.ExecuteNonQuery();

                    // Display the order number.
                    this.orderID = (int)sqlCommand.Parameters["@RC"].Value;
                    MessageBox.Show("Order number " + this.orderID + " has been submitted.");
                }
                catch
                {
                    MessageBox.Show("Order could not be placed.");
                }
                finally
                {
                    connection.Close();
                }
            }
        }
    }
}

/// <summary>
/// Clears the form data so another new account can be created.
/// </summary>
private void btnAddAnotherAccount_Click(object sender, EventArgs e)
{
    this.ClearForm();
}

/// <summary>
/// Closes the form/dialog box.
/// </summary>
private void btnAddFinish_Click(object sender, EventArgs e)
{
    this.Close();
}

''' <summary>
''' Creates a new account by executing the Sales.uspNewCustomer
''' stored procedure on the database.
''' </summary>
Private Sub btnCreateAccount_Click(sender As Object, e As EventArgs) Handles btnCreateAccount.Click

    ' Ensure a customer name has been entered.
    If IsCustomerNameValid Then

        ' Create the SqlConnection object.
        Using connection As New SqlConnection(My.Settings.connString)

            ' Create a SqlCommand, and identify the command type as a stored procedure.
            Using sqlCommand As New SqlCommand("Sales.uspNewCustomer", connection)
                sqlCommand.CommandType = CommandType.StoredProcedure

                ' Add the customer name input parameter for the stored procedure.
                sqlCommand.Parameters.Add(New SqlParameter("@CustomerName", SqlDbType.NVarChar, 40))
                sqlCommand.Parameters("@CustomerName").Value = txtCustomerName.Text

                ' Add the customer ID output parameter.
                sqlCommand.Parameters.Add(New SqlParameter("@CustomerID", SqlDbType.Int))
                sqlCommand.Parameters("@CustomerID").Direction = ParameterDirection.Output

                Try
                    ' Open the connection.
                    connection.Open()

                    ' Run the stored procedure.
                    sqlCommand.ExecuteNonQuery()

                    ' Convert the Customer ID value to an Integer.
                    Me.parsedCustomerID = CInt(sqlCommand.Parameters("@CustomerID").Value)

                    ' Insert the customer ID into the corresponding text box.
                    Me.txtCustomerID.Text = Convert.ToString(parsedCustomerID)
                Catch
                    MessageBox.Show("Customer ID was not returned. Account could not be created.")
                Finally
                    ' Close the connection.
                    connection.Close()
                End Try
            End Using
        End Using
    End If
End Sub

''' <summary>
''' Places the order by executing the Sales.uspPlaceNewOrder
''' stored procedure on the database.
''' </summary>
Private Sub btnPlaceOrder_Click(sender As Object, e As EventArgs) Handles btnPlaceOrder.Click

    If IsOrderDataValid() Then

        ' Create the connection.
        Using connection As New SqlConnection(My.Settings.connString)

            ' Create SqlCommand and identify it as a stored procedure.
            Using sqlCommand As New SqlCommand("Sales.uspPlaceNewOrder", connection)
                sqlCommand.CommandType = CommandType.StoredProcedure

                ' Add the @CustomerID parameter, which was an output parameter from uspNewCustomer.
                sqlCommand.Parameters.Add(New SqlParameter("@CustomerID", SqlDbType.Int))
                sqlCommand.Parameters("@CustomerID").Value = Me.parsedCustomerID

                ' Add the @OrderDate parameter.
                sqlCommand.Parameters.Add(New SqlParameter("@OrderDate", SqlDbType.DateTime, 8))
                sqlCommand.Parameters("@OrderDate").Value = dtpOrderDate.Value

                ' Add the @Amount parameter.
                sqlCommand.Parameters.Add(New SqlParameter("@Amount", SqlDbType.Int))
                sqlCommand.Parameters("@Amount").Value = numOrderAmount.Value

                ' Add the @Status parameter. For a new order, the status is always O (open).
                sqlCommand.Parameters.Add(New SqlParameter("@Status", SqlDbType.[Char], 1))
                sqlCommand.Parameters("@Status").Value = "O"

                ' Add a return value parameter for the stored procedure, which is the orderID.
                sqlCommand.Parameters.Add(New SqlParameter("@RC", SqlDbType.Int))
                sqlCommand.Parameters("@RC").Direction = ParameterDirection.ReturnValue

                Try
                    ' Open connection.
                    connection.Open()

                    ' Run the stored procedure.
                    sqlCommand.ExecuteNonQuery()

                    ' Display the order number.
                    Me.orderID = CInt(sqlCommand.Parameters("@RC").Value)
                    MessageBox.Show("Order number " & (Me.orderID).ToString & " has been submitted.")
                Catch
                    ' A simple catch.
                    MessageBox.Show("Order could  not be placed.")
                Finally
                    ' Always close a connection after you finish using it,
                    ' so that it can be released to the connection pool.
                    connection.Close()
                End Try
            End Using
        End Using
    End If
End Sub

''' <summary>
''' Resets the form for another new account.
''' </summary>
Private Sub btnAddAnotherAccount_Click(sender As Object, e As EventArgs) Handles btnAddAnotherAccount.Click
    Me.ClearForm()
End Sub

''' <summary>
''' Closes the NewCustomer form and returns focus to the Navigation form.
''' </summary>
Private Sub btnAddFinish_Click(sender As Object, e As EventArgs) Handles btnAddFinish.Click
    Me.Close()
End Sub

FillOrCancel 窗体

FillOrCancel 窗体运行查询，以便在输入订单 ID 时返回订单，然后选择 “查找订单 ”按钮。返回的行显示在只读数据网格中。如果选择“ 取消订单 ”按钮，则可以将订单标记为已取消（X），或者如果选择 “填充顺序 ”按钮，则可以将订单标记为已填充（F）。如果再次选择 “查找订单 ”按钮，将显示更新后的行。

为 FillOrCancel 表单创建自动生成的事件处理程序

通过双击按钮，为 FillOrCancel 窗体上的四个按钮创建空的 Click 事件处理程序。双击这些按钮还会在设计器代码文件中添加自动生成的代码，使按钮选择能够引发事件。

添加适用于 FillOrCancel 窗体逻辑的代码

若要完成 FillOrCancel 表单逻辑，请执行以下步骤。

将以下两个命名空间引入范围，以便无需完全限定其成员的名称。

using System.Data.SqlClient;
using System.Text.RegularExpressions;

Imports System.Data.SqlClient
Imports System.Text.RegularExpressions

向类添加变量和帮助程序方法。

// Storage for the order ID value.
private int parsedOrderID;

/// <summary>
/// Verifies that an order ID is present and contains valid characters.
/// </summary>
private bool IsOrderIDValid()
{
    // Check for input in the Order ID text box.
    if (txtOrderID.Text == "")
    {
        MessageBox.Show("Please specify the Order ID.");
        return false;
    }

    // Check for characters other than integers.
    else if (Regex.IsMatch(txtOrderID.Text, @"^\D*$"))
    {
        // Show message and clear input.
        MessageBox.Show("Customer ID must contain only numbers.");
        txtOrderID.Clear();
        return false;
    }
    else
    {
        // Convert the text in the text box to an integer to send to the database.
        parsedOrderID = Int32.Parse(txtOrderID.Text);
        return true;
    }
}

' Storage for OrderID.
Private parsedOrderID As Integer

''' <summary>
''' Verifies that OrderID is valid.
''' </summary>
Private Function IsOrderIDValid() As Boolean

    ' Check for input in the Order ID text box.
    If txtOrderID.Text = "" Then
        MessageBox.Show("Please specify the Order ID.")
        Return False

        ' Check for characters other than integers.
    ElseIf Regex.IsMatch(txtOrderID.Text, "^\D*$") Then
        ' Show message and clear input.
        MessageBox.Show("Please specify integers only.")
        txtOrderID.Clear()
        Return False
    Else
        ' Convert the text in the text box to an integer to send to the database.
        parsedOrderID = Int32.Parse(txtOrderID.Text)
        Return True
    End If
End Function

完善四个按钮选择事件处理程序的方法体。

/// <summary>
/// Executes a t-SQL SELECT statement to obtain order data for a specified
/// order ID, then displays it in the DataGridView on the form.
/// </summary>
private void btnFindByOrderID_Click(object sender, EventArgs e)
{
    if (IsOrderIDValid())
    {
        using (SqlConnection connection = new SqlConnection(Properties.Settings.Default.connString))
        {
            // Define a t-SQL query string that has a parameter for orderID.
            const string sql = "SELECT * FROM Sales.Orders WHERE orderID = @orderID";

            // Create a SqlCommand object.
            using (SqlCommand sqlCommand = new SqlCommand(sql, connection))
            {
                // Define the @orderID parameter and set its value.
                sqlCommand.Parameters.Add(new SqlParameter("@orderID", SqlDbType.Int));
                sqlCommand.Parameters["@orderID"].Value = parsedOrderID;

                try
                {
                    connection.Open();

                    // Run the query by calling ExecuteReader().
                    using (SqlDataReader dataReader = sqlCommand.ExecuteReader())
                    {
                        // Create a data table to hold the retrieved data.
                        DataTable dataTable = new DataTable();

                        // Load the data from SqlDataReader into the data table.
                        dataTable.Load(dataReader);

                        // Display the data from the data table in the data grid view.
                        this.dgvCustomerOrders.DataSource = dataTable;

                        // Close the SqlDataReader.
                        dataReader.Close();
                    }
                }
                catch
                {
                    MessageBox.Show("The requested order could not be loaded into the form.");
                }
                finally
                {
                    // Close the connection.
                    connection.Close();
                }
            }
        }
    }
}

/// <summary>
/// Cancels an order by calling the Sales.uspCancelOrder
/// stored procedure on the database.
/// </summary>
private void btnCancelOrder_Click(object sender, EventArgs e)
{
    if (IsOrderIDValid())
    {
        // Create the connection.
        using (SqlConnection connection = new SqlConnection(Properties.Settings.Default.connString))
        {
            // Create the SqlCommand object and identify it as a stored procedure.
            using (SqlCommand sqlCommand = new SqlCommand("Sales.uspCancelOrder", connection))
            {
                sqlCommand.CommandType = CommandType.StoredProcedure;

                // Add the order ID input parameter for the stored procedure.
                sqlCommand.Parameters.Add(new SqlParameter("@orderID", SqlDbType.Int));
                sqlCommand.Parameters["@orderID"].Value = parsedOrderID;

                try
                {
                    // Open the connection.
                    connection.Open();

                    // Run the command to execute the stored procedure.
                    sqlCommand.ExecuteNonQuery();
                }
                catch
                {
                    MessageBox.Show("The cancel operation was not completed.");
                }
                finally
                {
                    // Close connection.
                    connection.Close();
                }
            }
        }
    }
}

/// <summary>
/// Fills an order by calling the Sales.uspFillOrder stored
/// procedure on the database.
/// </summary>
private void btnFillOrder_Click(object sender, EventArgs e)
{
    if (IsOrderIDValid())
    {
        // Create the connection.
        using (SqlConnection connection = new SqlConnection(Properties.Settings.Default.connString))
        {
            // Create command and identify it as a stored procedure.
            using (SqlCommand sqlCommand = new SqlCommand("Sales.uspFillOrder", connection))
            {
                sqlCommand.CommandType = CommandType.StoredProcedure;

                // Add the order ID input parameter for the stored procedure.
                sqlCommand.Parameters.Add(new SqlParameter("@orderID", SqlDbType.Int));
                sqlCommand.Parameters["@orderID"].Value = parsedOrderID;

                // Add the filled date input parameter for the stored procedure.
                sqlCommand.Parameters.Add(new SqlParameter("@FilledDate", SqlDbType.DateTime, 8));
                sqlCommand.Parameters["@FilledDate"].Value = dtpFillDate.Value;

                try
                {
                    connection.Open();

                    // Execute the stored procedure.
                    sqlCommand.ExecuteNonQuery();
                }
                catch
                {
                    MessageBox.Show("The fill operation was not completed.");
                }
                finally
                {
                    // Close the connection.
                    connection.Close();
                }
            }
        }
    }
}

/// <summary>
/// Closes the form.
/// </summary>
private void btnFinishUpdates_Click(object sender, EventArgs e)
{
    this.Close();
}

''' <summary>
''' Executes a t-SQL SELECT query on the database to
''' obtain order data for a specified order ID.
''' </summary>
Private Sub btnFindByOrderID_Click(sender As Object, e As EventArgs) Handles btnFindByOrderID.Click

    ' Prepare the connection and the command.
    If IsOrderIDValid() Then

        ' Create the connection.
        Using connection As New SqlConnection(My.Settings.connString)

            ' Define the query string that has a parameter for orderID.
            Const sql As String = "select * from Sales.Orders where orderID = @orderID"

            ' Create a SqlCommand object.
            Using sqlCommand As New SqlCommand(sql, connection)

                ' Define the @orderID parameter and its value.
                sqlCommand.Parameters.Add(New SqlParameter("@orderID", SqlDbType.Int))
                sqlCommand.Parameters("@orderID").Value = parsedOrderID

                Try
                    ' Open connection.
                    connection.Open()

                    ' Execute the query.
                    Dim dataReader As SqlDataReader = sqlCommand.ExecuteReader()

                    ' Create a data table to hold the retrieved data.
                    Dim dataTable As New DataTable()

                    ' Load the data from SqlDataReader into the data table.
                    dataTable.Load(dataReader)

                    ' Display the data from the data table in the data grid view.
                    Me.dgvCustomerOrders.DataSource = dataTable

                    ' Close the SqlDataReader.
                    dataReader.Close()
                Catch
                    MessageBox.Show("The requested order could not be loaded into the form.")
                Finally
                    ' Close the connection.
                    connection.Close()
                End Try
            End Using
        End Using
    End If
End Sub

''' <summary>
''' Fills an order by running the Sales.uspFillOrder stored procedure on the database.
''' </summary>
Private Sub btnFillOrder_Click(sender As Object, e As EventArgs) Handles btnFillOrder.Click

    ' Set up and run stored procedure only if OrderID is valid.
    If IsOrderIDValid() Then

        ' Create the connection.
        Using connection As New SqlConnection(My.Settings.connString)

            ' Create command and identify it as a stored procedure.
            Using sqlCommand As New SqlCommand("Sales.uspFillOrder", connection)

                sqlCommand.CommandType = CommandType.StoredProcedure

                ' Add input parameter for the stored procedure.
                sqlCommand.Parameters.Add(New SqlParameter("@orderID", SqlDbType.Int))
                sqlCommand.Parameters("@orderID").Value = parsedOrderID

                ' Add second input parameter.
                sqlCommand.Parameters.Add(New SqlParameter("@FilledDate", SqlDbType.DateTime, 8))
                sqlCommand.Parameters("@FilledDate").Value = dtpFillDate.Value

                Try
                    ' Open the connection.
                    connection.Open()

                    ' Run the SqlCommand.
                    sqlCommand.ExecuteNonQuery()
                Catch
                    ' A simple catch.
                    MessageBox.Show("The fill operation was not completed.")
                Finally
                    ' Close the connection.
                    connection.Close()
                End Try
            End Using
        End Using
    End If
End Sub

''' <summary>
''' Cancels an order by running the Sales.uspCancelOrder stored procedure on the database.
''' </summary>
Private Sub btnCancelOrder_Click(sender As Object, e As EventArgs) Handles btnCancelOrder.Click

    ' Set up and run the stored procedure only if OrderID is ready.
    If IsOrderIDValid() Then

        ' Create the connection.
        Using connection As New SqlConnection(My.Settings.connString)

            ' Create the command and identify it as a stored procedure.
            Using sqlCommand As New SqlCommand("Sales.uspCancelOrder", connection)
                sqlCommand.CommandType = CommandType.StoredProcedure

                ' Add input parameter for the stored procedure.
                sqlCommand.Parameters.Add(New SqlParameter("@orderID", SqlDbType.Int))
                sqlCommand.Parameters("@orderID").Value = parsedOrderID

                Try
                    ' Open the connection.
                    connection.Open()

                    ' Run the SqlCommand.
                    sqlCommand.ExecuteNonQuery()
                Catch
                    ' A simple catch.
                    MessageBox.Show("The cancel operation was not completed.")
                Finally
                    ' Close connection.
                    connection.Close()
                End Try
            End Using
        End Using
    End If
End Sub

''' <summary>
''' Closes the form and returns focus to the Navigation form.
''' </summary>
Private Sub btnFinishUpdates_Click(sender As Object, e As EventArgs) Handles btnFinishUpdates.Click
    Me.Close()
End Sub

测试应用程序

运行应用程序并尝试创建几个客户和订单，以验证一切是否按预期工作。

若要验证数据库是否随更改一起更新：

在服务器资源管理器中打开 “表” 节点。
右键单击 “客户 ”和 “订单” 节点，然后选择“ 显示表数据”。

用于 .NET 的 Visual Studio 数据工具
