Step 2: Create device metadata for your UWP device app

Important

Device metadata is deprecated and will be removed in a future release of Windows. For information about the replacement for this functionality, see Driver Package Container Metadata.

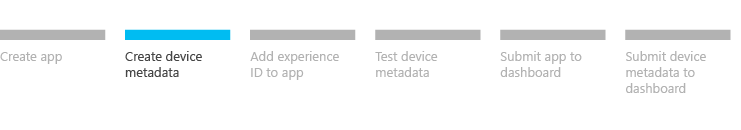

device app workflow, step 2.

This article describes how to use the Device Metadata Authoring Wizard to create new device metadata that associates your UWP device app with a device. The wizard can also create a StoreManifest.xml file that you might need to add to your app in the next step.

A UWP device app is a special UWP app that device manufacturers create to serve as a companion to their internal or peripheral device. By using device metadata, device apps can run privileged operations and automatically install when a device is plugged in. For more information about UWP device apps, see Meet UWP device apps.

This article is part of a step-by-step series. See Build a UWP device app step-by-step for the introduction.

Before you begin

To use the Device Metadata Authoring Wizard, you must install Microsoft Visual Studio Professional, Microsoft Visual Studio Ultimate, or the standalone SDK for Windows 8.1, before completing the steps in this article. Installing Microsoft Visual Studio Express for Windows installs a version of the SDK that doesn't include the wizard.

Create new device metadata

The Device Metadata Authoring Wizard is used to create new device metadata.

To create new device metadata

  1. Start the Device Metadata Authoring Wizard from %ProgramFiles(x86)%\Windows Kits\8.1\bin\x86, by double-clicking DeviceMetadataWizard.exe.

  2. Select New Device Metadata.

  3. On the Select the metadata package type page, select UWP device app metadata, and then select Next.

  4. On the Select the device categories page, select the device categories that should be assigned to your device. A device can belong to multiple device categories, but only one primary category can be assigned. Select Next.

  5. On the Specify the locales page, select at least one locale that should be associated with the device metadata package. You can also set a default locale that is used when a locale-specific package isn't available on the computer. Select Next.

  6. On the Describe the device page, enter the information that is shown to end users that plug in your device. A model name and manufacturer is required for each locale.

  7. On the Specify the hardware information page, add at least one hardware ID and one model ID. The hardware ID should include the vendor ID for your company. The model ID is a GUID and is the recommended way to associate device metadata with devices that support a model ID. Select Next.

  8. On the Specify UWP device app information page:

    • If you want to enable automatic installation for your device app, or extend the camera or printer experience (which requires automatic installation), enter the Microsoft Store app information in the UWP device app box. Select Import UWP app manifest file to automatically enter the Package name, Publisher name, and UWP app ID.

      Warning

      It's important to consider that the automatic installation feature doesn't provide a notification to the user when the app is installed. Some users find this experience confusing and frustrating, and give your app a bad rating.

    • If your app is registering for printer notifications, fill out the Notification handlers box. In Event ID, enter the name of the print event handler. In Event Asset, enter the name of the file where that code resides.

    • If you want to specify your app as a privileged app, enter that information in the Privileged application box. The privileged app designation lets a UWP device app perform device updates, such as firmware updates. It also lets OEMs and component suppliers develop apps for internal devices.

  9. When you're finished specifying any automatic installation and privileged app details, select Next

  10. On the Specify the Windows settings page, you can configure if the device is shown in Device Manager when disconnected and how the device should respond to an AutoPlay activation.

    If you want to specify an app to be the default AutoPlay handler for your device, select Use a UWP device app in the AutoPlay handler box. You can select any UWP app or UWP device app, but that app must handle the AutoPlay activation for your device and specify the corresponding experience ID in the app package manifest (as described in AutoPlay for UWP device apps).

    • Package name: In the app package manifest, the Name attribute of the Identity element.

    • Publisher name: In the app package manifest, the Publisher attribute of the Identity element.

    • App ID: In the app package manifest, the ID attribute of the Application element.

    • Verb: The identifier for the AutoPlay activation. Your app uses it to determine if the activation came from your device. You can use any value for the Verb setting, except for open, which is reserved.

    • AutoPlay event type: Leave as Device. In the device metadata, the wizard automatically specifies the experience ID associated with your UWP device app.

    If you want to let other apps act as AutoPlay handlers for your device, select Enable AutoPlay for registered apps.

    For more information about AutoPlay, see AutoPlay for UWP device apps.

  11. When you're ready to continue, select Next.

  12. On the Review the device metadata package page, make sure that all of the settings are correct. If you want this device metadata package to be available in the local metadata store, select the Copy the device metadata package to the metadata store on the local computer check box, and then select Save.

  13. When you're ready to submit your device metadata package, or if you need to edit it, you must use the .devicemanifest-ms file. The .devicemetadata-ms file should be used only to test device metadata locally.

Next step

Step 3: Add an experience ID to the app
