Quickstart: Use Docker with a React Single-page application in Visual Studio

With Visual Studio, you can easily build, debug, and run containerized ASP.NET Core apps, including those with client-side JavaScript such as React.js single-page application (SPA), and publish them to Azure Container Registry, Docker Hub, Azure App Service, or your own Container Registry. In this article, we publish to Azure Container Registry.

Prerequisites

• Docker Desktop
• Visual Studio 2019 with the Web Development, Azure Tools workload, and/or .NET Core cross-platform development workload installed
• .NET Core 3.1 Development Tools for development with .NET Core 3.1.
• To publish to Azure Container Registry, an Azure subscription. Sign up for a free trial.
• Node.js
• For Windows containers, Windows 10 version 1809 or later, to use the Docker images referenced in this article.

Installation and setup

For Docker installation, first review the information at Docker Desktop for Windows: What to know before you install. Next, install Docker Desktop.

Create a project and add Docker support

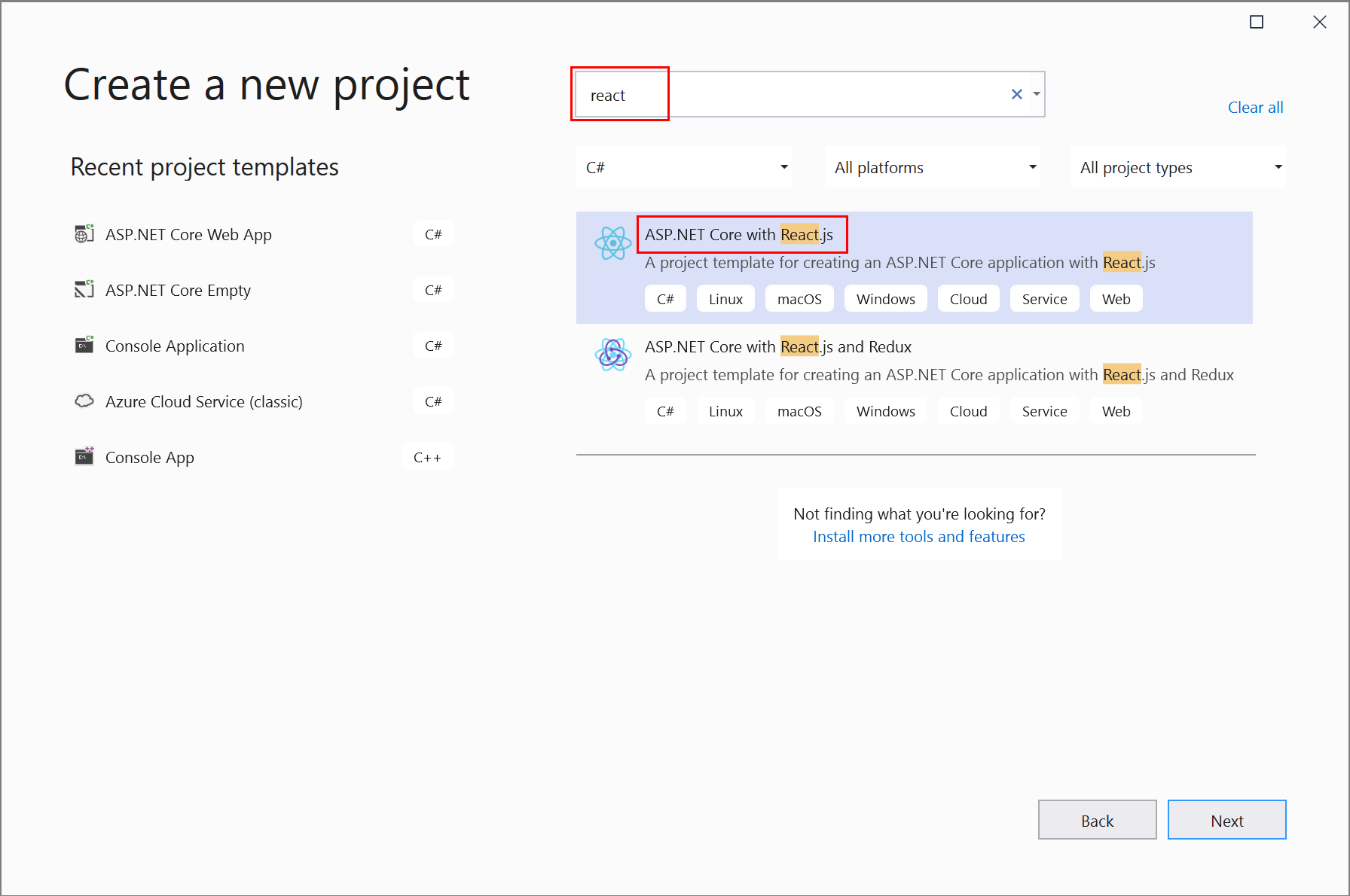

1. Create a new project using the ASP.NET Core with React.js template.

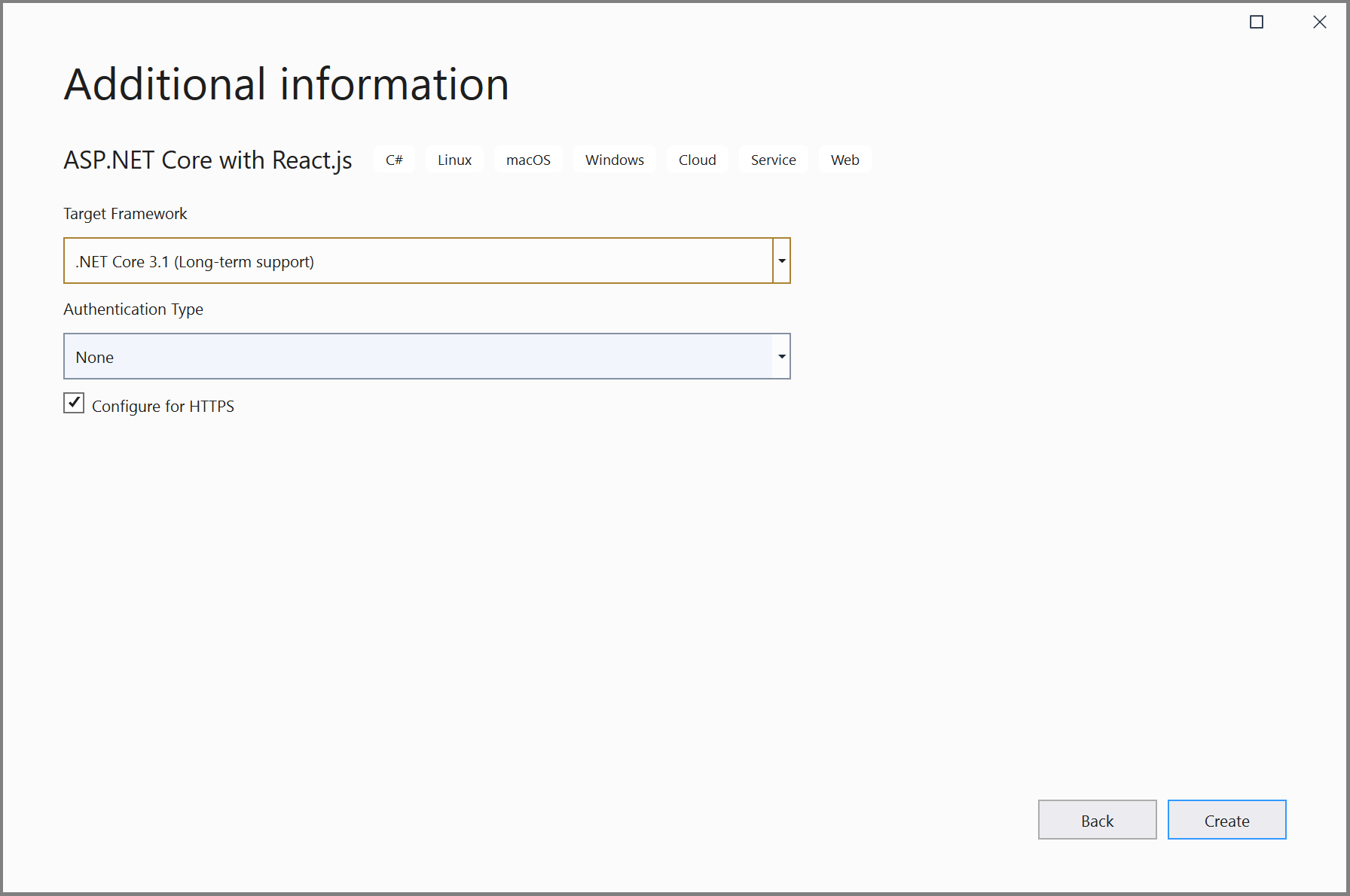

2. On the Additional information screen, you can't select Enable Docker Support, but don't worry, you can add that support later.

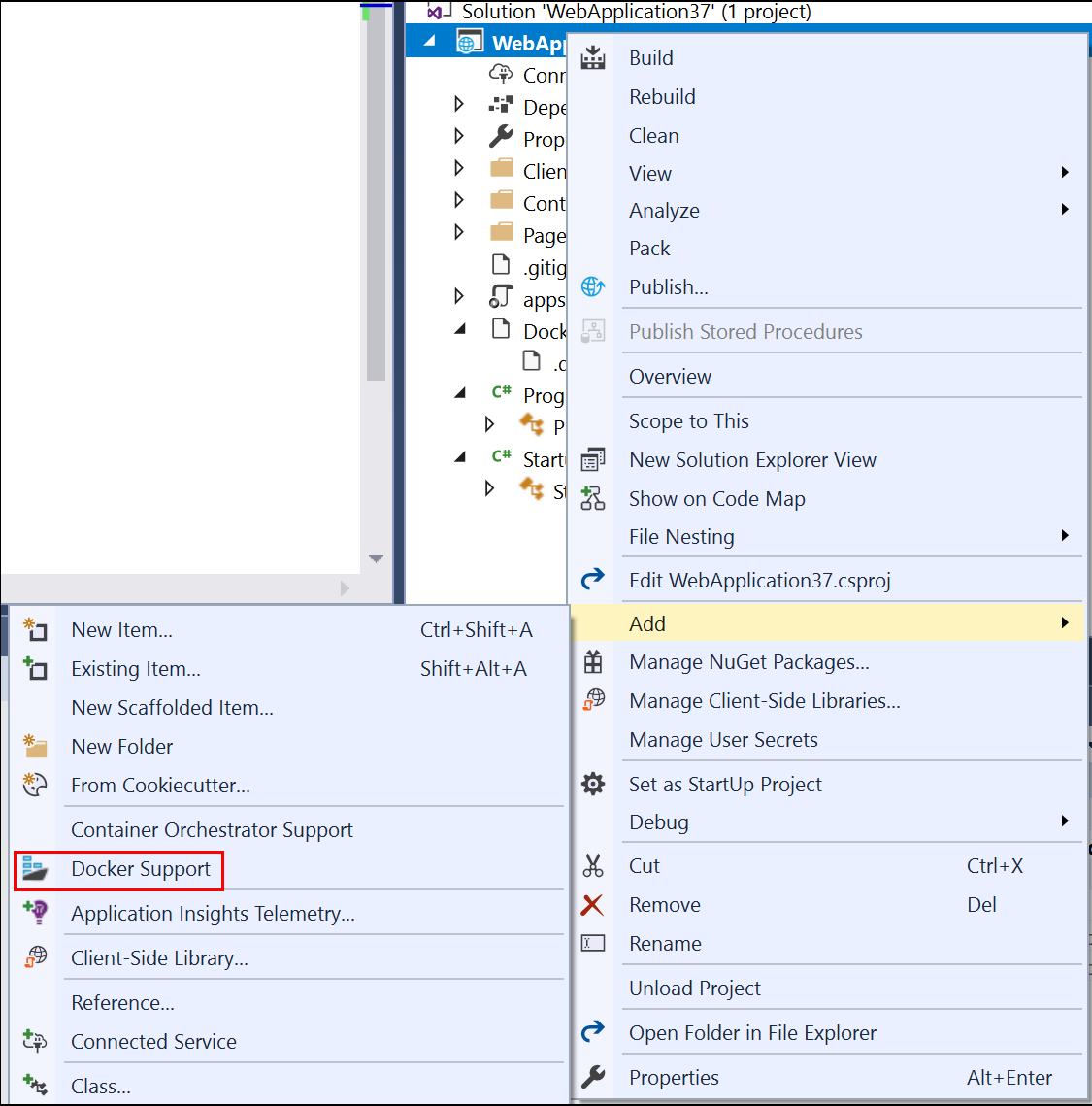

3. Right-click on the project node, and choose Add > Docker Support to add a Dockerfile to your project.



4. Select the container type.

The next step is different depending on whether you're using Linux containers or Windows containers.

Modify the Dockerfile (Linux containers)

A Dockerfile, the recipe for creating a final Docker image, is created in the project. Refer to Dockerfile reference for an understanding of the commands within it.

The default Dockerfile uses a base image to run the container, but when you want to also be able to run a Node.js application on it, you need to install Node.js, which means adding some installation commands in a couple of places in the Dockerfile. The installation commands require elevated permissions, since the changes affect the container's privileged system files and folders.

When the new project dialog's Configure for HTTPS checkbox is checked, the Dockerfile exposes two ports. One port is used for HTTP traffic; the other port is used for HTTPS. If the checkbox isn't checked, a single port (80) is exposed for HTTP traffic.

If you're targeting .NET 8 or later, the default Dockerfile that Visual Studio creates using the normal user account (look for the line USER app), but that account doesn't have the elevated permissions required to install Node.js. To account for this situation, do the following:

1. In the Dockerfile, delete the line USER app.
2. Change the ports that are exposed in the first section of the Dockerfile to port 80 is for HTTP requests and (if you chose to support HTTPS when you created the project) 443 for HTTPS requests.
3. Edit launchSettings.json to change the port references there to 80 and 443; replace 8080 with 80 for HTTP, and 8081 with 443 for HTTPS.

For all .NET versions, use the following steps to update the Dockerfile to install Node.js:

• Add the following lines to install curl, Node.js 14.x, and certain required Node libraries in the container. Be sure to add these lines both in the first section, to add the installation of the Node package manager npm.exe to the base image, as well as in the build section.

RUN apt-get update
RUN apt-get install -y curl
RUN apt-get install -y libpng-dev libjpeg-dev curl libxi6 build-essential libgl1-mesa-glx
RUN curl -sL https://deb.nodesource.com/setup_lts.x | bash -
RUN apt-get install -y nodejs

The Dockerfile should now look something like this:

#See https://aka.ms/containerfastmode to understand how Visual Studio uses this Dockerfile to build your images for faster debugging.

FROM mcr.microsoft.com/dotnet/aspnet:3.1 AS base
WORKDIR /app
EXPOSE 80
EXPOSE 443
RUN apt-get update
RUN apt-get install -y curl
RUN apt-get install -y libpng-dev libjpeg-dev curl libxi6 build-essential libgl1-mesa-glx
RUN curl -sL https://deb.nodesource.com/setup_lts.x | bash -
RUN apt-get install -y nodejs

FROM mcr.microsoft.com/dotnet/sdk:3.1 AS build
RUN apt-get update
RUN apt-get install -y curl
RUN apt-get install -y libpng-dev libjpeg-dev curl libxi6 build-essential libgl1-mesa-glx
RUN curl -sL https://deb.nodesource.com/setup_lts.x | bash -
RUN apt-get install -y nodejs
WORKDIR /src
COPY ["ProjectSPA1/ProjectSPA1.csproj", "ProjectSPA1/"]
RUN dotnet restore "ProjectSPA1/ProjectSPA1.csproj"
COPY . .
WORKDIR "/src/ProjectSPA1"
RUN dotnet build "ProjectSPA1.csproj" -c Release -o /app/build

FROM build AS publish
RUN dotnet publish "ProjectSPA1.csproj" -c Release -o /app/publish

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "ProjectSPA1.dll"]

The preceding Dockerfile is based on the mcr.microsoft.com/dotnet/aspnet image, and includes instructions for modifying the base image by building your project and adding it to the container.

Modify the Dockerfile (Windows containers)

Open the project file by double-clicking on the project node, and update the project file (*.csproj) by adding the following property as a child of the <PropertyGroup> element:

 <DockerfileFastModeStage>base</DockerfileFastModeStage>

Update the Dockerfile by adding the following lines. These lines will copy Node and `npm`` to the container.

1. Add # escape=` to the first line of the Dockerfile

2. Add the following lines before FROM ... base

   FROM mcr.microsoft.com/powershell AS downloadnodejs
   ENV NODE_VERSION=14.16.0
   SHELL ["pwsh", "-Command", "$ErrorActionPreference = 'Stop';$ProgressPreference='silentlyContinue';"]
   RUN Invoke-WebRequest -OutFile nodejs.zip -UseBasicParsing "https://nodejs.org/dist/v$($env:NODE_VERSION)/node-v$($env:NODE_VERSION)-win-x64.zip"; `
       Expand-Archive nodejs.zip -DestinationPath C:\; `
       Rename-Item "C:\node-v$($env:NODE_VERSION)-win-x64" c:\nodejs


3. Add the following line before and after FROM ... build

   COPY --from=downloadnodejs C:\nodejs\ C:\Windows\system32\


4. The complete Dockerfile should now look something like this:

   # escape=`
   #Depending on the operating system of the host machines(s) that will build or run the containers, the image specified in the FROM statement may need to be changed.
   #For more information, please see https://aka.ms/containercompat
   FROM mcr.microsoft.com/powershell AS downloadnodejs
   ENV NODE_VERSION=14.16.0
   SHELL ["pwsh", "-Command", "$ErrorActionPreference = 'Stop';$ProgressPreference='silentlyContinue';"]
   RUN Invoke-WebRequest -OutFile nodejs.zip -UseBasicParsing "https://nodejs.org/dist/v$($env:NODE_VERSION)/node-v$($env:NODE_VERSION)-win-x64.zip"; \
       Expand-Archive nodejs.zip -DestinationPath C:\; \
       Rename-Item "C:\node-v$($env:NODE_VERSION)-win-x64" c:\nodejs

   FROM mcr.microsoft.com/dotnet/core/aspnet:3.1 AS base
   WORKDIR /app
   EXPOSE 80
   EXPOSE 443
   COPY --from=downloadnodejs C:\\nodejs C:\\Windows\\system32

   FROM mcr.microsoft.com/dotnet/core/sdk:3.1 AS build
   COPY --from=downloadnodejs C:\\nodejs C:\\Windows\\system32
   WORKDIR /src
   COPY ["ProjectSPA1/ProjectSPA1.csproj", "ProjectSPA1/"]
   RUN dotnet restore "ProjectSPA1/ProjectSPA1.csproj"
   COPY . .
   WORKDIR "/src/ProjectSPA1"
   RUN dotnet build "ProjectSPA1.csproj" -c Release -o /app/build

   FROM build AS publish
   RUN dotnet publish "ProjectSPA1.csproj" -c Release -o /app/publish

   FROM base AS final
   WORKDIR /app
   COPY --from=publish /app/publish .
   ENTRYPOINT ["dotnet", "ProjectSPA1.dll"]


5. Update the .dockerignore file by removing the **/bin.

Debug

Select Docker from the debug dropdown list in the toolbar, and start debugging the app. You might see a message with a prompt about trusting a certificate; choose to trust the certificate to continue. The first time you build, Docker downloads the base images, so it might take a bit longer.

The Container Tools option in the Output window shows what actions are taking place. You should see the installation steps associated with npm.exe.

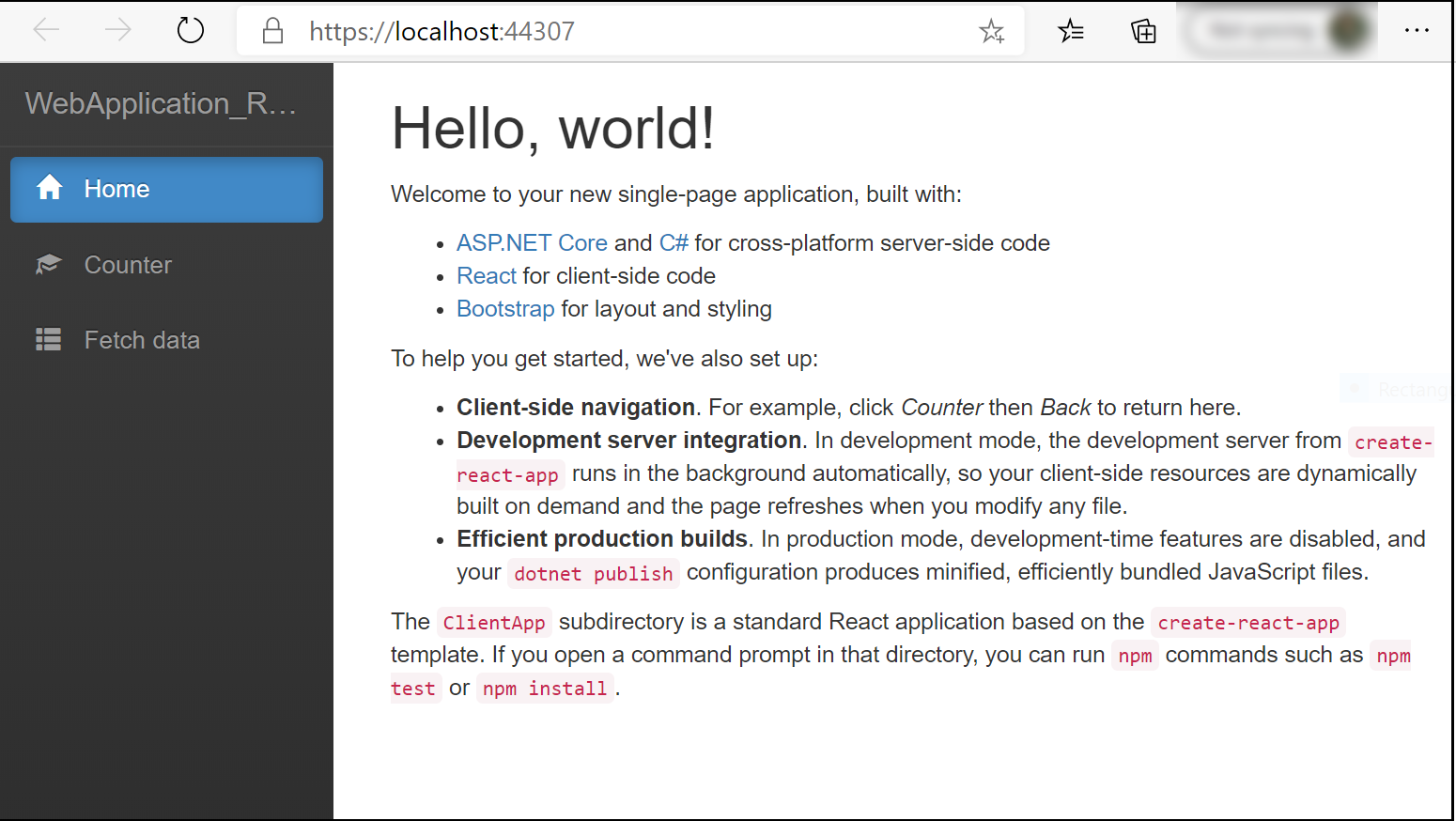

The browser shows the app's home page.

Containers window

Open the Containers tool window. You can find it on the menu under View > Other Windows > Containers, or press Ctrl+Q and start typing containers in the search box, then choose Containers window from the results. When the window comes up, dock it on the bottom under the editor pane.

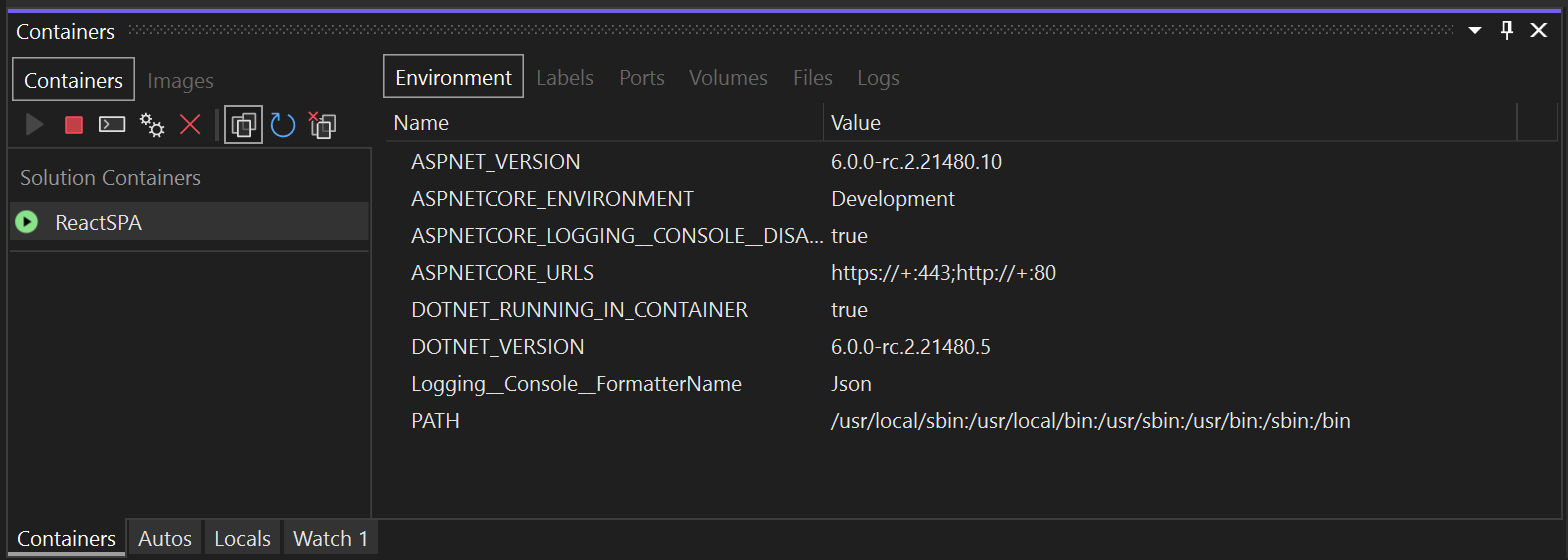

The Containers window shows the running containers and lets you view information about them. You can view the environment variables, labels, ports, volumes, the file system, and logs. The toolbar buttons let you create a terminal (shell prompt) inside the container, attach the debugger, or prune unused containers. See Use the Containers window.

Click on the Files tab, and expand the app folder to see your published application files.

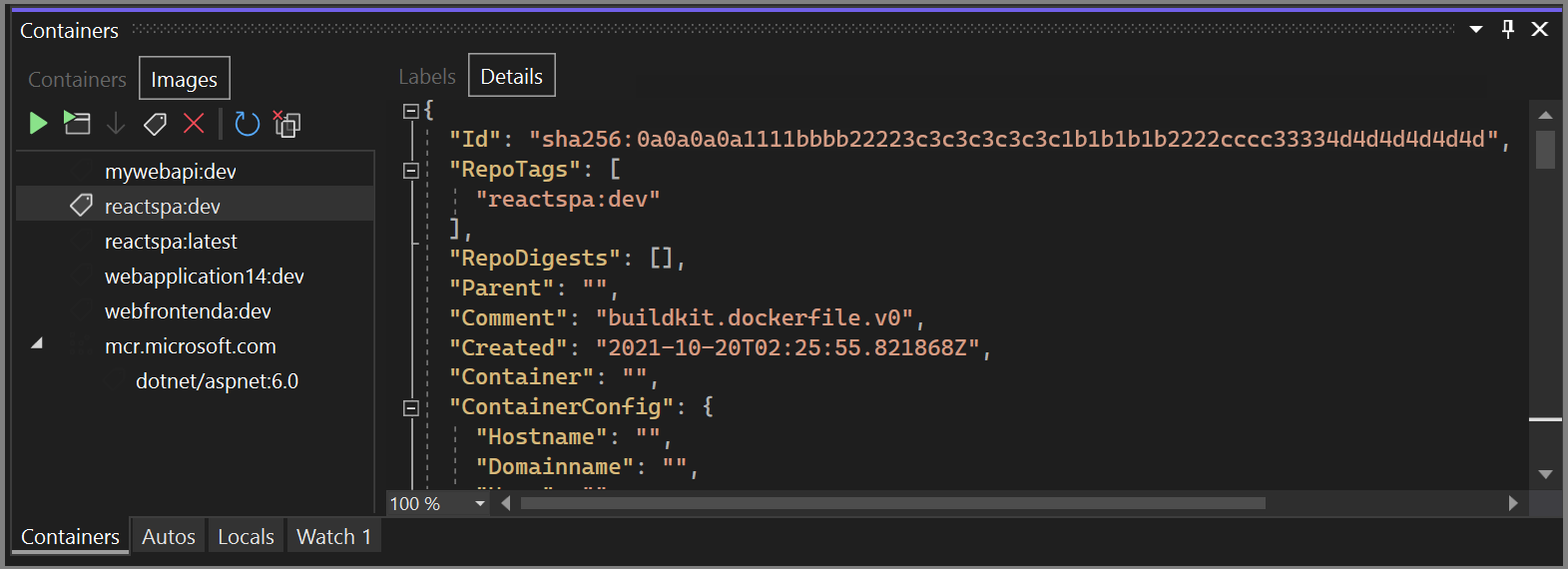

You can also view the images and inspect information about them. Choose the Images tab, locate the one for your project, and then choose the Details tab to view a json file that contains information about an image.

Publish Docker images

Once the develop and debug cycle of the app is completed, you can create a production image of the app.

1. Change the configuration dropdown list to Release and build the app.

2. Right-click your project in Solution Explorer and choose Publish.

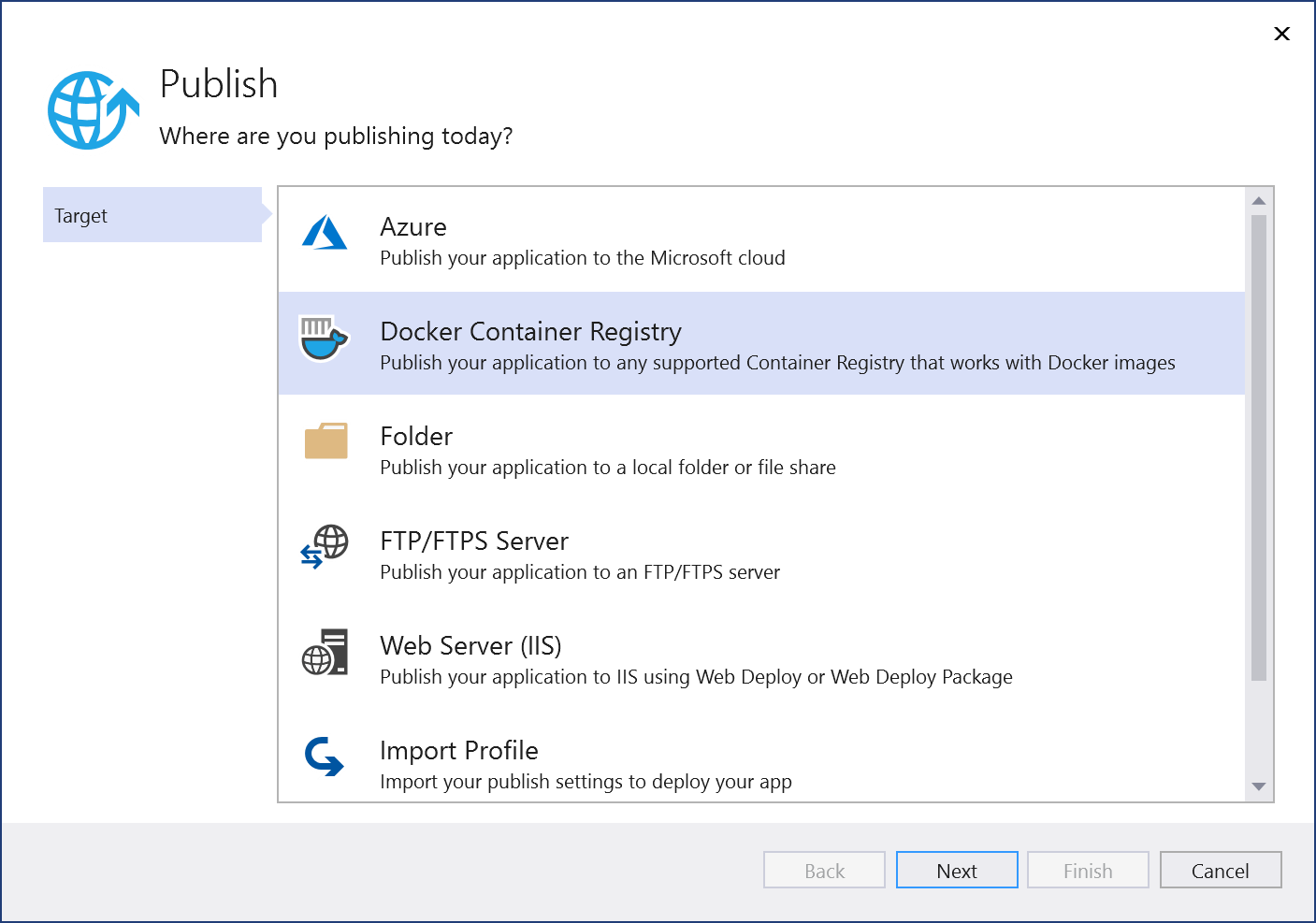

3. On the publish target dialog, select Docker Container Registry.

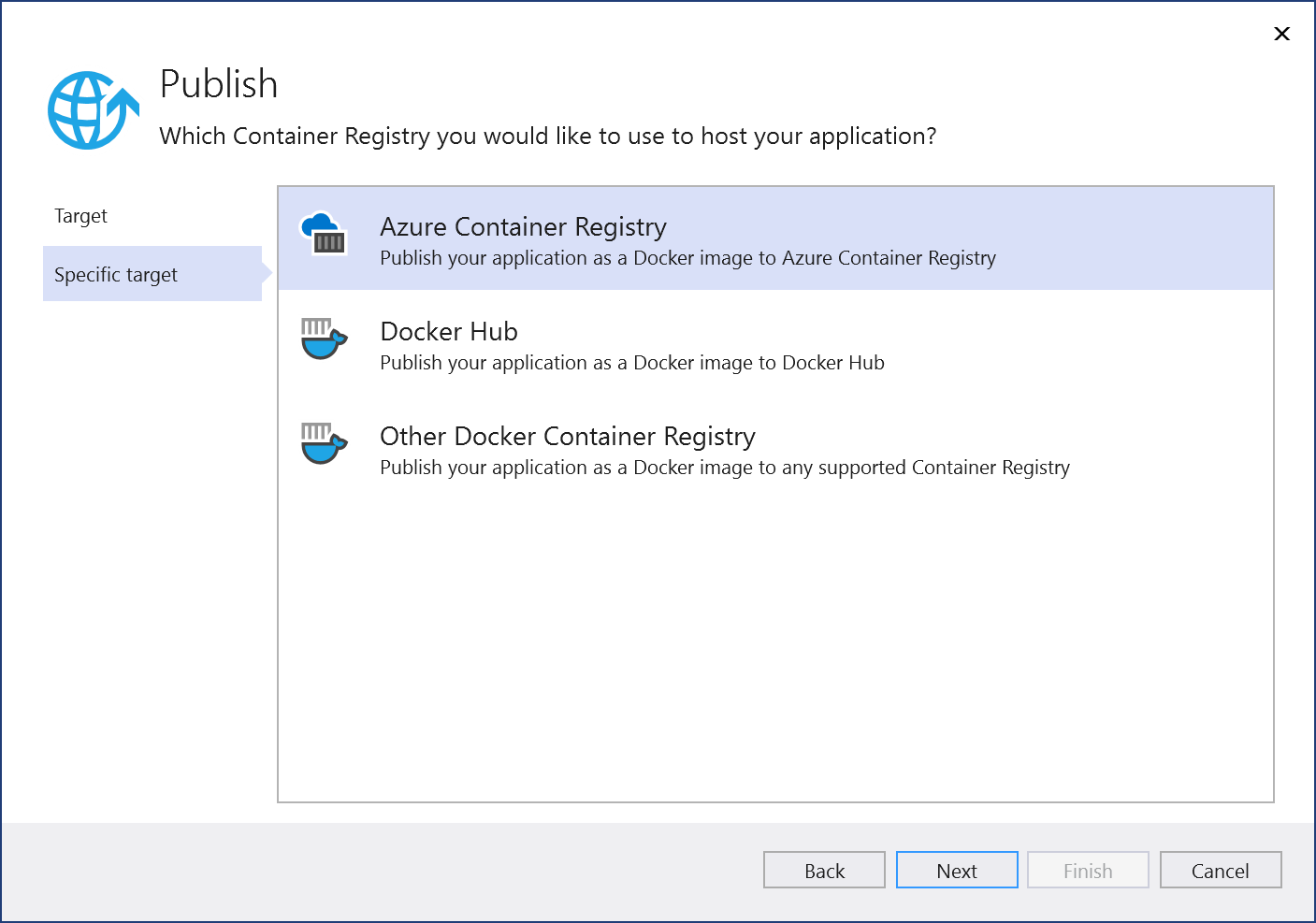

4. Next, choose Azure Container Registry.

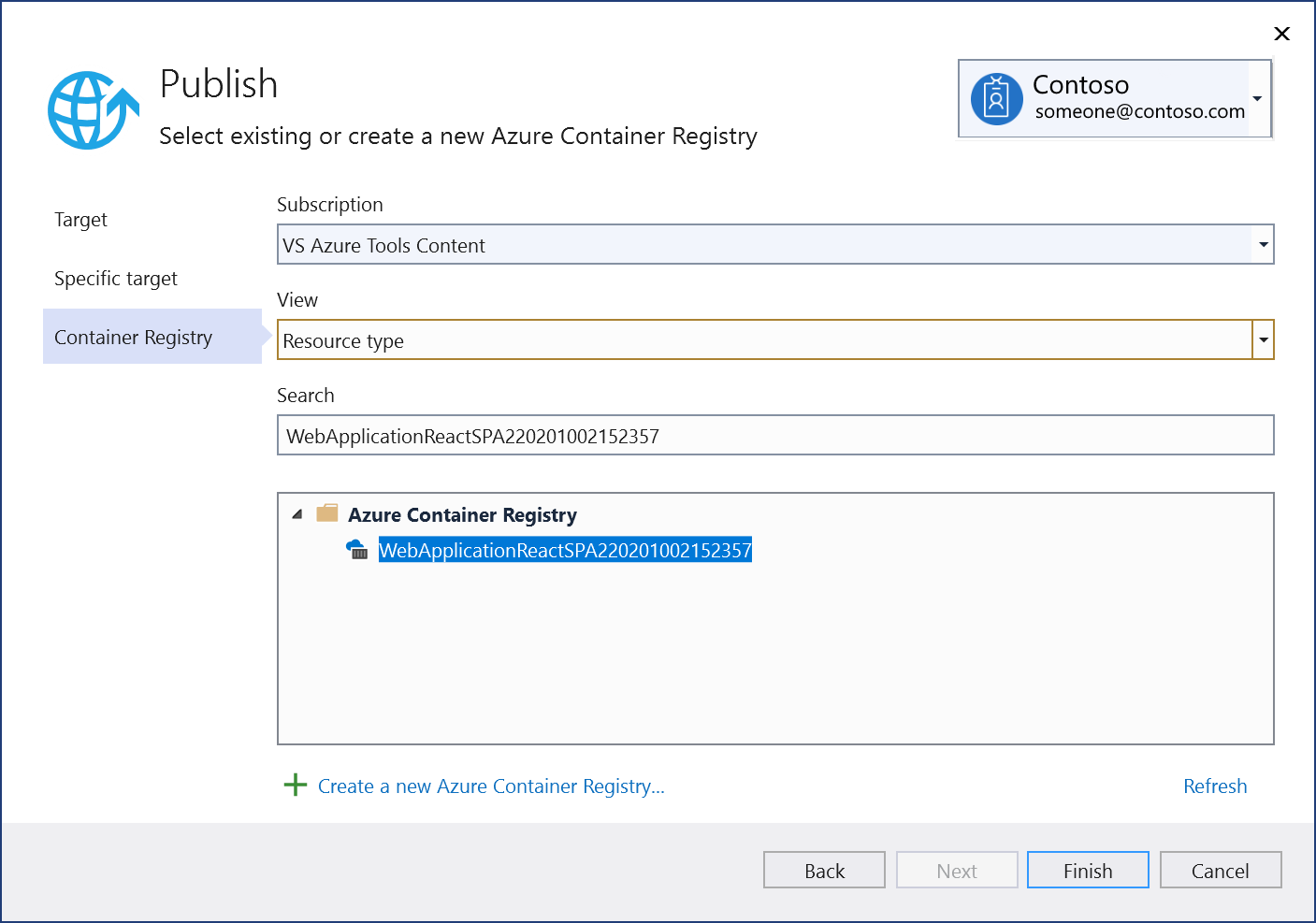

5. Choose Create a new Azure Container Registry.

6. Fill in your desired values in the Create new Azure Container Registry screen.

   Setting	Suggested value	Description
   DNS Prefix	Globally unique name	Name that uniquely identifies your container registry.
   Subscription	Choose your subscription	The Azure subscription to use.
   Resource Group	myResourceGroup	Name of the resource group in which to create your container registry. Choose New to create a new resource group.
   SKU	Standard	Service tier of the container registry
   Registry Location	A location close to you	Choose a Location in a region near you or near other services that use your container registry.



7. Select Create, and then select Finish.

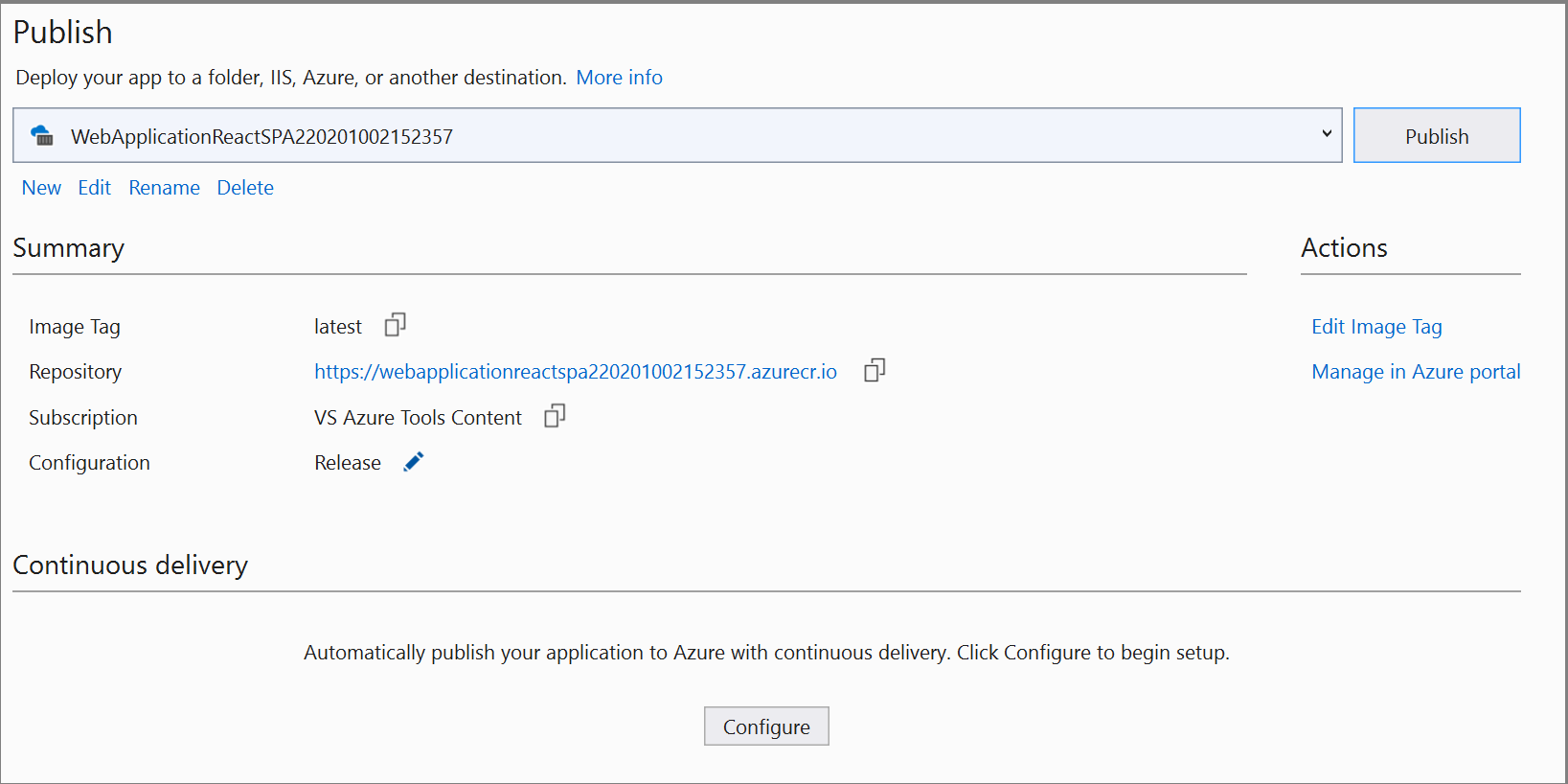

   When the publish process ends, you can review the publish settings, and edit them, when needed, or publish the image again using the Publish button.



   To start again using the Publish dialog, delete the publish profile by using the Delete link on this page, and then choose Publish again.

Next steps

You can now pull the container from the registry to any host capable of running Docker images, for example Azure Container Instances.
