Exercise - Create a SPFx Image Card ACE displaying image carousel

In this exercise, you'll create a SharePoint Framework (SPFx) Adaptive Card Extension (ACE) with the Image Card template that shows images taken by one of the cameras on the selected Mars rover.

Prerequisites

Developing ACEs for Viva Connections requires a Microsoft 365 tenant, SharePoint Online, and Viva Connections set up in your tenant. Use the following resources to prepare your tenant:

• Viva Connections enabled in the Microsoft 365 tenant
• SharePoint Framework: Set up your Microsoft 365 tenant

You also need the necessary developer tools installed on your workstation:

• Node.js - v16.*
• Gulp-cli - v2.3.*
• Yeoman - v4.3.*
• Yeoman Generator for SharePoint - v1.17.1
• Visual Studio Code

Create the SPFx project

Open a command prompt, move to a folder where you want to create the SPFx project. Then, run the SharePoint Yeoman generator by executing the following command:

yo @microsoft/sharepoint

Use the following to complete the prompt that's displayed:

• What is your solution name?: AceImageViewer
• Which type of client-side component to create?: Adaptive Card Extension
• Which template would you like to use?: Image Card Template
• What is your Adaptive Card Extension name?: AceImageViewer

After creating the project folders, the generator will automatically install all the dependency packages by running npm install. When npm finishes downloading all dependencies, open the project in Visual Studio Code.

Add public properties to ACE component

The ACE component you'll create in this exercise will retrieve and display images taken by a Mars rover using one of the NASA OpenAPI endpoints.

To call the API, we'll need to set three values:

• API key
• the Mars rover to retrieve photos for
• the Mars sol, a solar day on Mars, to retrieve the images for

All these will be public and configurable properties for on the ACE component.

Start by adding the properties to the ACE component.

1. Locate the ACE class in the file ./src/adaptiveCardExtensions/aceImageViewer/AceImageViewerAdaptiveCardExtension.ts and open it in VS Code.

2. Locate the IAceImageViewerAdaptiveCardExtensionProps interface and update it to contain the following properties:

   export interface IAceImageViewerAdaptiveCardExtensionProps {
     title: string;
     nasa_api_key: string;
     nasa_rover: string;
     mars_sol: number;
   }


Next, add the properties to the property pane:

1. Locate the class in the file ./src/adaptiveCardExtensions/aceImageViewer/AceImageViewerPropertyPane.ts and open it in VS Code.

2. Locate the import statement that imports the PropertyPaneTextField method. Add a listing to the PropertyPaneDropdown method to this import statement.

   import {
     IPropertyPaneConfiguration,
     PropertyPaneTextField,
     PropertyPaneDropdown    // << add
   } from '@microsoft/sp-property-pane';


3. Update the existing getPropertyPaneConfiguration() method to accept a single parameter that specifies the selected rover:

   public getPropertyPaneConfiguration(selectedRover: string = 'curiosity'): IPropertyPaneConfiguration { .. }


4. Add the following fields to the array of groupFields in the object returned in the getPropertyPaneConfiguration() method:

   PropertyPaneTextField('nasa_api_key', {
     label: 'NASA API key'
   }),
   PropertyPaneDropdown('nasa_rover', {
     label: 'NASA Mars rover',
     options: [
       { index: 0, key: 'curiosity', text: 'Curiosity' },
       { index: 1, key: 'opportunity', text: 'Opportunity' },
       { index: 2, key: 'spirit', text: 'Spirit' }
     ],
     selectedKey: selectedRover
   }),
   PropertyPaneTextField('mars_sol', {
     label: 'Display photos from Mars day (Sol)'
   })


Let's add a small enhancement to the property pane: the drop-down selector for the Mars rover should default to the currently selected rover. The signature of the getPropertyPaneConfiguration() method accepts an input parameter that we can use to set it:

1. Go back to the AceImageViewerAdaptiveCardExtension class and locate the getPropertyPaneConfiguration() method. Replace the existing return statement with the following:

   return this._deferredPropertyPane?.getPropertyPaneConfiguration(this.properties.nasa_rover);


Finally, add set some default values for the properties when the ACE component is added to the page:

1. Locate the ACE class in the file ./src/adaptiveCardExtensions/aceImageViewer/AceImageViewerAdaptiveCardExtension.manifest.json and open it in VS Code.

2. Add the following properties to the existing list of properties in the preconfiguredEntries.properties object:

   "nasa_api_key": "DEMO_KEY",
   "nasa_rover": "curiosity",
   "nasa_sol": 1000


Add NASA REST API service helper

Let's add a service to the project to handle all reading from the NASA REST OpenAPI.

Create a new file ./src/adaptiveCardExtensions/aceImageViewer/nasa.service.ts in the project and add the following code to it:

import { AdaptiveCardExtensionContext } from '@microsoft/sp-adaptive-card-extension-base';
import { HttpClient } from '@microsoft/sp-http';

export interface IMarsRoverCamera {
  id: number;
  name: string;
  rover_id: number;
  full_name: string;
}

export interface IMarsRoverVehicle {
  id: number;
  name: string;
  landing_date: Date;
  launch_date: Date;
  status: string;
}

export interface IMarsRoverPhoto {
  id: number;
  sol: number;
  camera: IMarsRoverCamera;
  rover: IMarsRoverVehicle;
  img_src: string;
  earth_date: Date;
}

export const fetchRoverPhotos = async (
  spContext: AdaptiveCardExtensionContext,
  apiKey: string,
  rover: string,
  mars_sol: number): Promise<IMarsRoverPhoto[]> => {
  const results: { photos: IMarsRoverPhoto[] } = await (
    await spContext.httpClient.get(
      `https://api.nasa.gov/mars-photos/api/v1/rovers/${rover}/photos?sol=${mars_sol}&page=1&api_key=${apiKey}`,
      HttpClient.configurations.v1
    )
  ).json();

  return Promise.resolve(results.photos);
}

Update the state of the ACE component

With the public properties and helper service created, let's now update the component's state that's used to display data in the component.

1. Locate the ACE class in the file ./src/adaptiveCardExtensions/aceImageViewer/AceImageViewerAdaptiveCardExtension.ts and open it in VS Code.

2. Add the following import statement after the existing import statements:

   import { isEmpty } from '@microsoft/sp-lodash-subset'
   import {
     fetchRoverPhotos,
     IMarsRoverPhoto
   } from './nasa.service';


3. Locate the IAceImageViewerAdaptiveCardExtensionState interface and update it to contain the following properties:

   export interface IAceImageViewerAdaptiveCardExtensionState {
     currentIndex: number;
     roverPhotos: IMarsRoverPhoto[];
   }


4. Next, update the onInit() method in the AceImageViewerAdaptiveCardExtension class to initialize these two properties to empty values:

   this.state = {
     currentIndex: 0,
     roverPhotos: []
   };


5. In the onInit(), add the following code to retrieve images from the NASA API if minimum properties are set. This should be placed immediately before the existing return Promise.resolve();

   if (!isEmpty(this.properties.nasa_api_key) &&
       !isEmpty(this.properties.nasa_rover) &&
       !isEmpty(this.properties.mars_sol)){
     this.setState({ roverPhotos: await fetchRoverPhotos(
       this.context,
       this.properties.nasa_api_key,
       this.properties.nasa_rover,
       this.properties.mars_sol)
     });
   }


6. The last statement uses the await keyword, so you need to add the async keyword to the onInit() method's declaration:

   public async onInit(): Promise<void> {


Let's handle one more scenario: if the user changes the selected nasa_rover or mars_sol in the property pane, we want to update the images in the state. Do this by adding the following code to the AceImageViewerAdaptiveCardExtension class. It will run when a property changes in the property pane:

protected onPropertyPaneFieldChanged(propertyPath: string, oldValue: any, newValue: any): void {
  if (propertyPath === 'nasa_rover' && newValue !== oldValue) {
    (async () => {
      this.setState({ roverPhotos: await fetchRoverPhotos(
        this.context,
        this.properties.nasa_api_key,
        newValue,
        this.properties.mars_sol)
      });
    })
  }

  if (propertyPath === 'mars_sol' && newValue !== oldValue) {
    (async () => {
      this.setState({ roverPhotos: await fetchRoverPhotos(
        this.context,
        this.properties.nasa_api_key,
        this.properties.nasa_rover,
        newValue)
      });
    })
  }
}

Update the CardView

Now that the component gets photos from the REST API and stores them in the state, you can update the rendering to display the photos. Start by updating the CardView.

1. Locate and open the ./src/adaptiveCardExtensions/aceImageViewer/cardView/CardView.ts file in VS Code.

2. Add a reference to the IActionArguments interface imported from the @microsoft/sp-adaptive-card-extension-base package:

   import {
     BaseImageCardView,
     IImageCardParameters,
     IExternalLinkCardAction,
     IQuickViewCardAction,
     ICardButton,
     IActionArguments  // << add
   } from '@microsoft/sp-adaptive-card-extension-base';


3. Next, update the buttons displayed on the CardView. The CardView can return zero, one, or two buttons. You want to show two buttons, previous and next buttons, when you aren't at the start or end of the collection of photos. Add this by replacing the contents of the cardButtons() accessor method with the following code:

   const cardButtons: ICardButton[] = [];

   if (this.state.currentIndex !== 0) {
     cardButtons.push(<ICardButton>{
       title: '<',
       id: '-1',
       action: {
         type: 'Submit',
         parameters: {}
       }
     });
   }
   if (this.state.currentIndex !== (this.state.roverPhotos.length - 1)) {
     cardButtons.push(<ICardButton>{
       title: '>',
       id: '1',
       action: {
         type: 'Submit',
         parameters: {}
       }
     });
   }

   return (cardButtons.length === 0)
     ? undefined
     : (cardButtons.length === 1)
       ? [cardButtons[0]]
       : [cardButtons[0], cardButtons[1]];


4. Next, replace the contents of the data() accessor method with the following code. This will return a default image of Mars with some instructions if either the rover or Mars sol isn't specified. Otherwise, it will show the current image:

   if (!this.properties.nasa_rover || !this.properties.mars_sol) {
     return {
       primaryText: `Select Mars rover and sol to display photos...`,
       imageUrl: 'https://upload.wikimedia.org/wikipedia/commons/thumb/0/0e/Tharsis_and_Valles_Marineris_-_Mars_Orbiter_Mission_%2830055660701%29.png/240px-Tharsis_and_Valles_Marineris_-_Mars_Orbiter_Mission_%2830055660701%29.png',
       imageAltText: `Select Mars rover and sol to display photos...`,
       title: this.properties.title
     }
   } else {
     const rover = `${this.properties.nasa_rover.substring(0, 1).toUpperCase()}${this.properties.nasa_rover.substring(1)}`;
     const roverImage = this.state.roverPhotos[this.state.currentIndex];
     if (roverImage) {
       return {
         primaryText: `Photos from the Mars rover ${rover} on sol ${this.properties.mars_sol}`,
         imageUrl: roverImage.img_src,
         imageAltText: `Image ${roverImage.id} taken on ${roverImage.earth_date} from ${rover}'s ${roverImage.camera.full_name} camera.`,
         title: this.properties.title
       };
     } else {
       return {
         primaryText: `Please refresh the page to reload the rover photos`,
         imageUrl: '',
         imageAltText: '',
         title: this.properties.title
       }
     }
   }


5. Next, replace the contents of the onCardSelection() accessor method with the following code. This will open our QuickView, that you'll update in a moment, when the card is selected.

   return {
     type: 'QuickView',
     parameters: {
       view: QUICK_VIEW_REGISTRY_ID
     }
   };


6. Next, implement the onAction() method by adding the following code to the CardView class. This will run whenever a submit action occurs in the CardView's implementation. Recall in the cardButtons() method, you set the id property on the buttons to a positive or negative number to navigate through the array of images:

   public onAction(action: IActionArguments): void {
     if (action.type !== 'Submit') { return; }

     let currentIndex = this.state.currentIndex;
     this.setState({ currentIndex: currentIndex + Number(action.id) });
   }


7. Finally, comment out or remove the following reference to the strings object:

   import * as strings from 'AceImageViewerAdaptiveCardExtensionStrings';


Update the QuickView

The last step before testing the ACE component is to update the QuickView. In this scenario, the QuickView will display more details about the current photo.

1. Locate and open the ./src/adaptiveCardExtensions/aceImageViewer/quickView/QuickView.ts file in VS Code.

2. Add the following import statement to the existing imports:

   import { IMarsRoverPhoto } from '../nasa.service';


3. Remove the existing IQuickViewData interface.

4. Replace all remaining references to IQuickViewData in the QuickView class with IMarsRoverPhoto.

5. Replace the contents of the data() accessor method with the following:

   return this.state.roverPhotos[this.state.currentIndex];


6. Finally, comment out or remove the following reference to the strings object:

   import * as strings from 'AceImageViewerAdaptiveCardExtensionStrings';


Now, update the Adaptive Card template:

1. Locate and open the ./src/adaptiveCardExtensions/aceImageViewer/quickView/template/QuickViewTemplate.json file in VS Code.

2. Replace the contents of the template with the following code:

   {
     "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
     "version": "1.5",
     "type": "AdaptiveCard",
     "body": [
       {
         "type": "Image",
         "url": "${img_src}"
       },
       {
         "type": "TextBlock",
         "text": "${rover.name} rover image #${id}",
         "horizontalAlignment": "Center"
       },
       {
         "type": "TextBlock",
         "text": "Photo Details",
         "spacing": "Medium",
         "separator": true,
         "size": "Large",
         "weight": "Bolder"
       },
       {
         "type": "FactSet",
         "facts": [
           {
             "title": "Rover:",
             "value": "${rover.name}"
           },
           {
             "title": "Camera:",
             "value": "${camera.full_name}"
           },
           {
             "title": "Date taken:",
             "value": "${earth_date} (sol ${sol})"
           }
         ]
       }
     ]
   }


Test the dynamic ACE

Let's test the ACE to see our image browser!

In the console, execute the following statement:

gulp serve --nobrowser

In a browser, navigate to the SharePoint hosted workbench in site where you want to test the ACE. For example, if the URL of the site is https://contoso.sharepoint.com/sites/MSLearningTeam, the URL for the hosted workbench is https://contoso.sharepoint.com/sites/MSLearningTeam/_layouts/15/workbench.aspx.

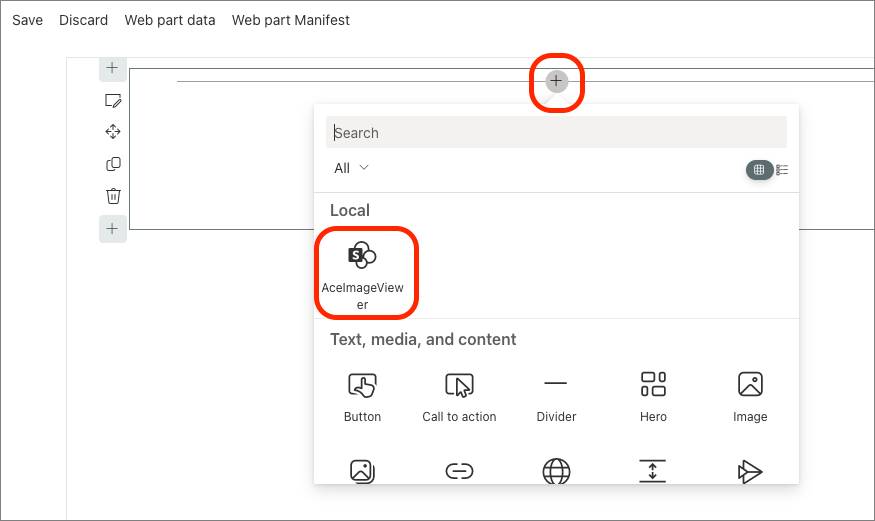

Select the + icon and then select the AceImageViewer from the toolbox:

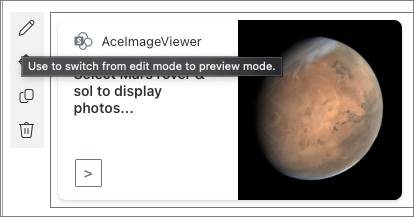

Notice the default experience for the component is using the image of Mars. That's because we don't have a Mars sol set:

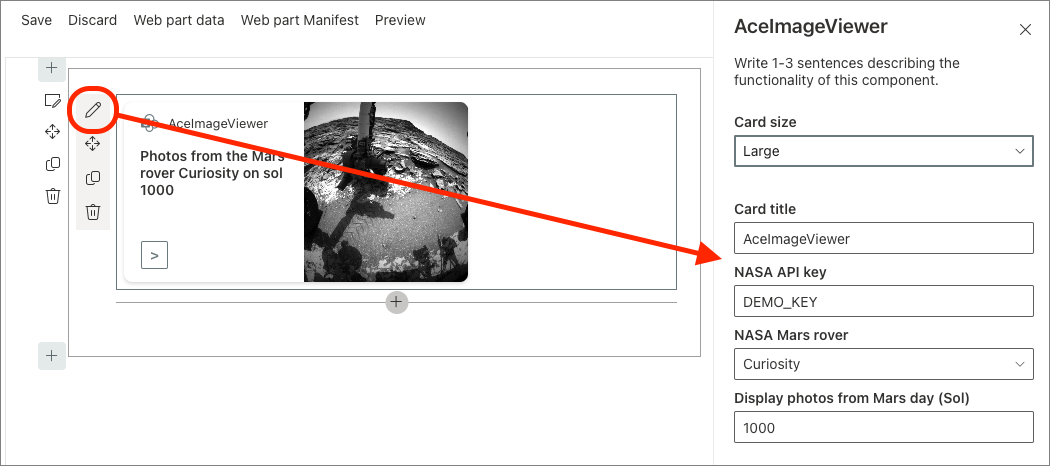

Just like a SPFx web part, you can hover the mouse over the ACE component and select the pencil icon to open the property pane:

Set the Mars sol to 1000 and close the property pane by selecting the X in the top-right corner, and then select the Preview link in the top-right corner of the top navigation of the page to put the page in display mode.

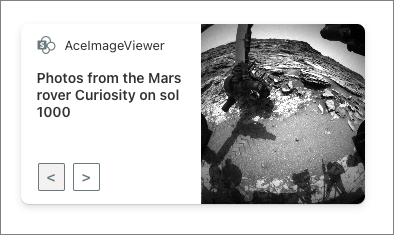

Use the provided buttons on the CardView to scroll through the images. A cropped version of the image is displayed in the Image Card's CardView

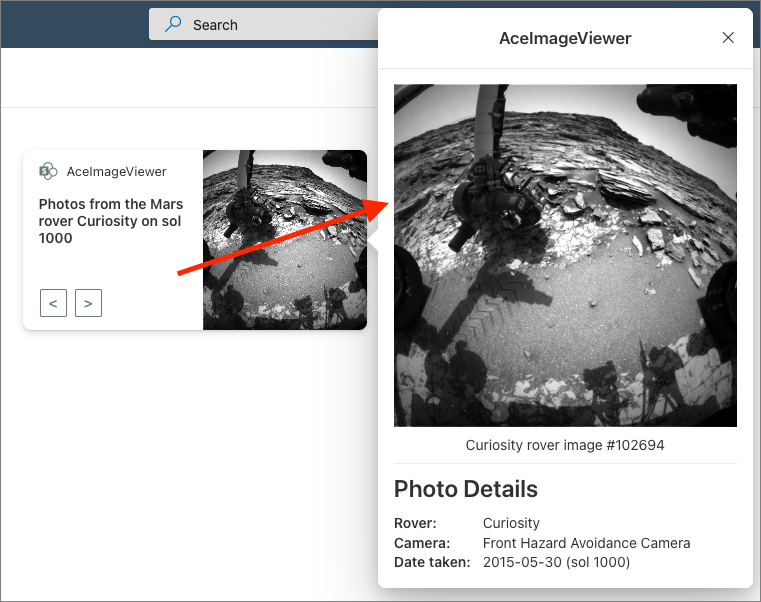

With your mouse, select anywhere on the card, without selecting either button. The QuickView will display the uncropped photo with more details about when it was taken:

In this exercise, you created a SharePoint Framework (SPFx) Adaptive Card Extension (ACE) with the Image Card template that showed images taken by one of the cameras on the selected Mars rover.
