Apply clustering techniques

Clustering allows you to identify a segment (cluster) of data that's similar to each other but dissimilar to the rest of the data. The process of clustering is different to that of grouping, which you learned about in the previous unit.

The Power BI clustering feature allows you to quickly find groups of similar data points in a subset of your data. It analyzes your semantic model to identify similarities and dissimilarities in the attribute values, and then it separates the data that has similarities into a subset of the data. These subsets of data are referred to as clusters.

For example, you might want to look for patterns in your sales data, such as the behavior of customers overall. You can segment customers into clusters according to their similarities, such as age or location.

Start by adding the scatter chart visualization to your report and then add the required fields to the visual. In this example, you add the Order Qty field to the A-axis, the Sales field to the Y-axis, and the Unit Price field to the Values.

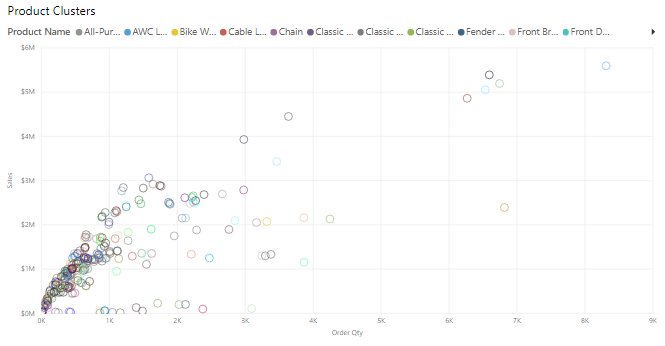

The following image shows considerable data in the scatter chart, so it's difficult to discern any natural groups.

To apply clustering to your scatter chart, select More options (…) in the upper-right corner of the visual, and then select Automatically find clusters.

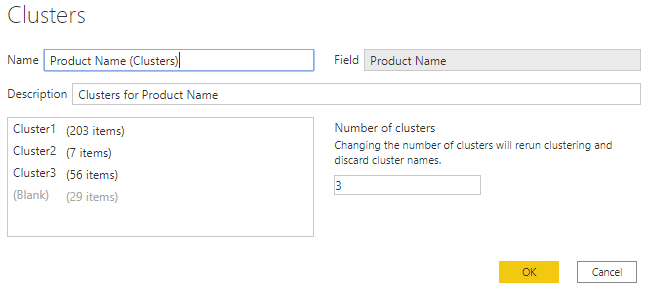

In the Clusters window, you can edit the default name, field, and description, if necessary. However, for this example, you want to change the number of clusters. The following image shows that the Number of clusters box is blank by default, which means that Power BI automatically finds the number of clusters that it determines as making the most sense with your data.

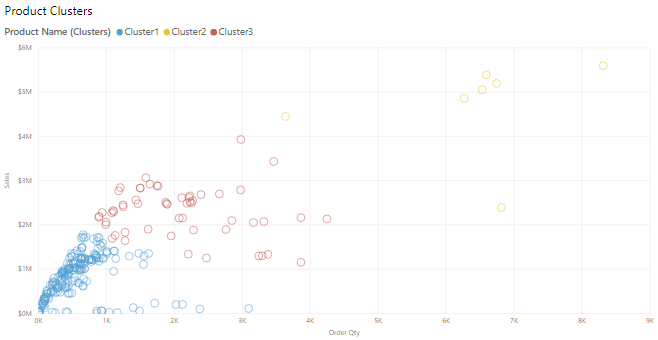

Enter the number of clusters that you want (3) into the box and then select OK. Power BI runs the clustering algorithm and creates a new categorical field that contains different cluster groups. Now, when you look at the visual, you can clearly see the clusters that are in your data and proceed to perform analysis on them.

The new cluster field is added to your scatter chart's Legend well, which you can now use as a source of cross-highlighting like any other Legend field. The new cluster field is added to the data model, and you can find it in the Data pane.

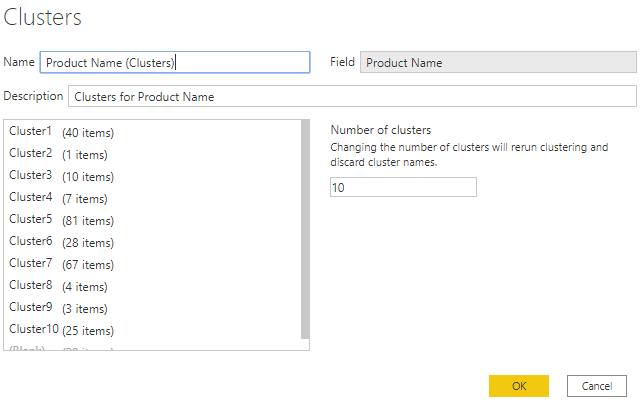

If you want to edit the cluster, right-click the cluster field and select Edit clusters.

In the preceding example, when you applied clustering to the scatter chart, you could only use two measures. If you want to find clusters by using more than two measures, you can use a table visual instead. In this case, add all the fields you want to use, and then run the clustering algorithm by using the same process.
