Exercise - configure custom router

Use the following instructions to configure the infrastructure for FRR and generate the default route:

az network vnet subnet create  -n <NVA-Subnet-name> -g <resource-group-name> --vnet-name <vnet-name>  --address-prefix 10.0.2.0/24

az network nic create -g <resource-group-name> --vnet-name <vnet-name>  --subnet <NVA-Subnet-name> -n <NVA-nic-name>

az vm availability-set create --name <nva-availability-set-name> --resource-group <resource-group-name> --location <your-preferred-azure-region>

az vm create --name <nva-vm-name>  --resource-group <resource-group-name>  --location <your-preferred-azure-region> --image OpenLogic:CentOS:8_5:8.5.2022012100 --size Standard_D1_v2        --availability-set <nva-availability-set-name>  --authentication-type password  --admin-username <vm-admin-user-name>  --admin-password <vm-admin-username-password> --storage-sku Standard_LRS  --nics <NVA-nic-name>

Configure FRR routing on the NVA

Now, you're going to configure the FRR software.

1. Update the routeServerSubnetPrefix and bgpNvaSubnetGateway variables in the following script.

   #
   # IP prefix of the RouteServerSubnet in the Firewall VNet.
   #
   routeServerSubnetPrefix="<azure-route-server-subnet-prefix>"

   #
   # The first IP address of the subnet to which the "eth0" device is attached.
   #
   bgpNvaSubnetGateway="<nva-azure-subnet-first-ip-address>"

   # Install FRR
   sudo dnf install frr -y

   # Configure FRR to run the bgpd daemon
   sudo sed -i 's/bgpd=no/bgpd=yes/g' /etc/frr/daemons
   sudo touch /etc/frr/bgpd.conf
   sudo chown frr /etc/frr/bgpd.conf
   sudo chmod 640 /etc/frr/bgpd.conf

   # Start FRR daemons
   sudo systemctl enable frr --now


   # Add static routes to ensure reachability for Route Servers (Route Server are not-directly-connected external BGP neighbours).

   # Please note that this configuration is transient and will be lost if the VM is rebooted.

   # On CentOS VMs, you can add these routes to /etc/sysconfig/network-scripts/route-eth<X> to make them persistent across reboots.

   sudo ip route add $routeServerSubnetPrefix via $bgpNvaSubnetGateway dev eth0


2. Copy the edited script from step 1.

3. Sign in to NVA VM shell.

4. Paste the copied script from clipboard as plaintext in the NVA shell (Ctrl-Shift-V).

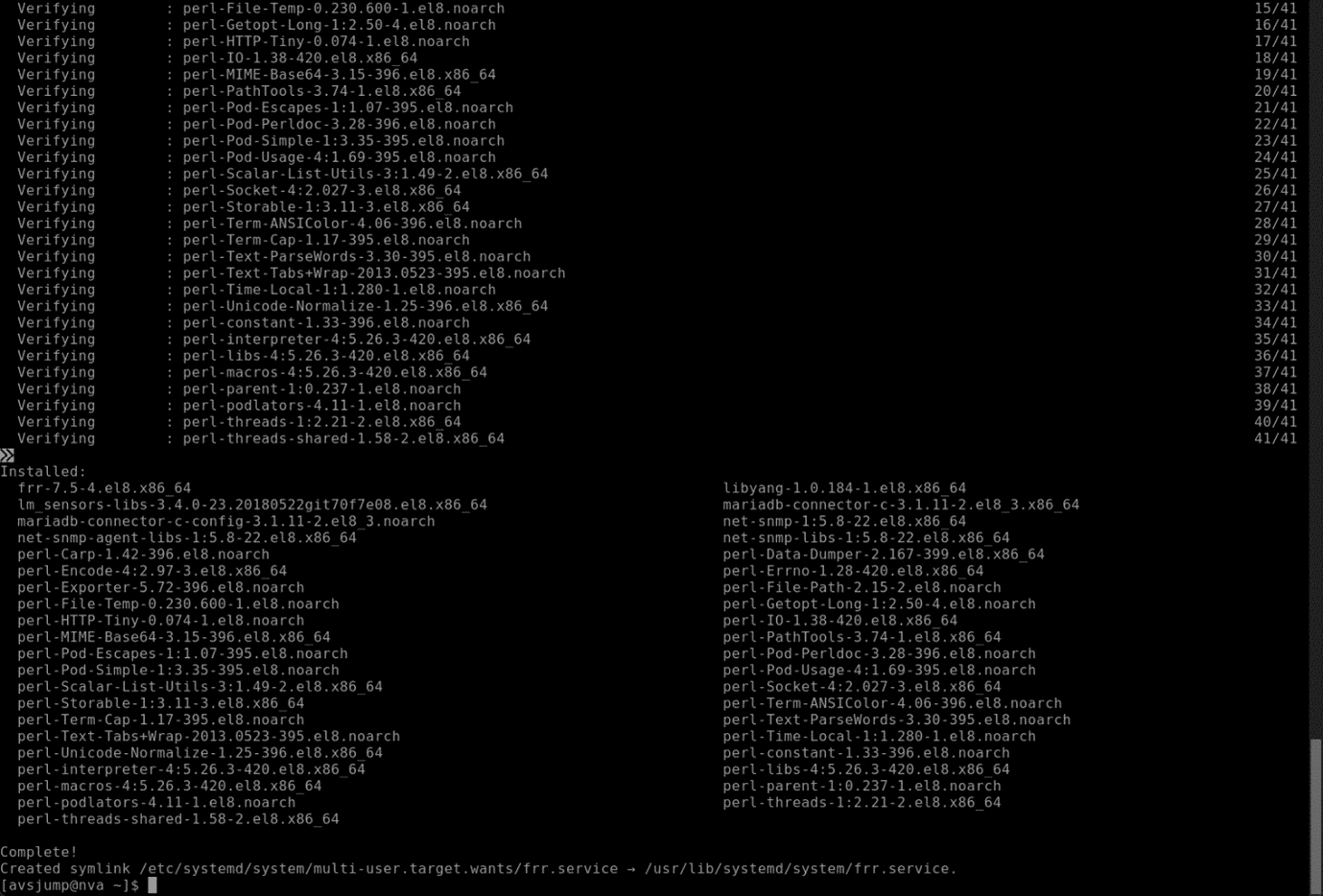

5. Run the script and wait until the script finishes in a minute or so.

6. Ensure no errors are reported after execution.

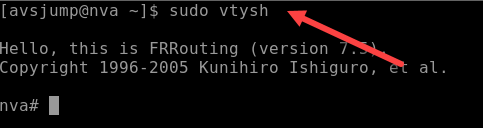

7. Run sudo vtysh

8. Ensure FRR is running, and its command shell started.



Configure BGP neighbor and default route for the NVA

This step configures the FRR NVA to have Azure Route Server as its BGP neighbor. A default route (0.0.0.0/0) is also added in the NVA.

1. Update the following variables in the script.

   1. <Firewall Private IP address>
   2. <IP address of Route Server instance #0>
   3. <IP address of Route Server instance #1>

   conf term
   !
   route-map SET-NEXT-HOP-FW permit 10
   set ip next-hop <Firewall Private IP address>
   exit
   !
   router bgp 65111
   no bgp ebgp-requires-policy
   neighbor <IP address of Route Server instance #0> remote-as 65515
   neighbor <IP address of Route Server instance #0> ebgp-multihop 2
   neighbor <IP address of Route Server instance #1> remote-as 65515
   neighbor <IP address of Route Server instance #1> ebgp-multihop 2
   network 0.0.0.0/0
   !
   address-family ipv4 unicast
     neighbor <IP address of Route Server instance #0> route-map SET-NEXT-HOP-FW out
     neighbor <IP address of Route Server instance #1> route-map SET-NEXT-HOP-FW out
   exit-address-family
   !
   exit
   !
   exit
   !
   write file
   !


2. Sign in to FRR shell.

3. Paste the script with updated variables.

4. Run show ip bgp to confirm that the NVA didn't learn routes except its own default route.

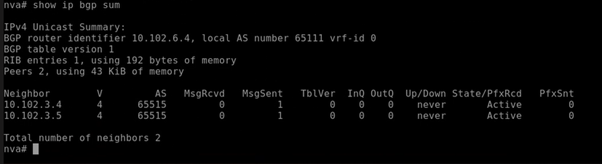

5. Run show ip bgp sum to confirm that the NVA didn't established BGP sessions.



Configure Peering with Azure Route Server

The following steps establish a BGP peer relationship between the FRR NVA and Azure Route Server.

1. Run the following commands on Azure CLI prompt:


    az network routeserver peering create  --name <nva-vm-name>  --peer-ip <private-ip-of-nva-vm-name>  --peer-asn <asn-value-other-than-65515-65520>  --routeserver <routeserver-name>  --resource-group <resource-group-name>`

    az network routeserver update --name <routeserver-name>  --resource-group <resource-group-name>   --allow-b2b-traffic true`


2. Sign in to FRR shell.

3. Run show ip bgp to confirm that the NVA learned routes from Azure Route Server.

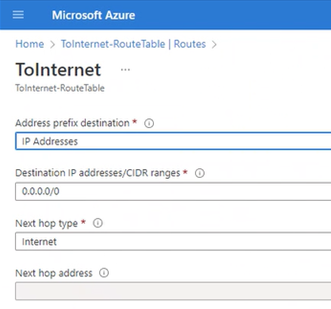

4. Ensure that Azure Firewall has direct internet connectivity by using Azure portal to inspect the Route Table associated with Azure Firewall's subnet.



At this point, you configured Azure VMware Solution private cloud to implement secure outbound internet connectivity. You deployed Azure Route Server for an effective route exchange between Azure VMware Solution private cloud and the NVA. You then deployed Azure Firewall as the exit point for all internet-bound traffic. This was followed-up by using FRR, a custom router that injects a default route with Azure Firewall as the next hop into Azure VMware Solution private cloud.

In the next unit, you'll learn how to implement fine-grained access controls in Azure Firewall, which allows/denies network traffic from Azure VMware Solution private cloud.
