Continuation Separator Mark.When the object is serialized out as xml, its qualified name is w:continuationSeparator.
Inheritance Hierarchy
System.Object
DocumentFormat.OpenXml.OpenXmlElement
DocumentFormat.OpenXml.OpenXmlLeafElement
DocumentFormat.OpenXml.Wordprocessing.EmptyType
DocumentFormat.OpenXml.Wordprocessing.ContinuationSeparatorMark
Namespace: DocumentFormat.OpenXml.Wordprocessing
Assembly: DocumentFormat.OpenXml (in DocumentFormat.OpenXml.dll)
Syntax
'Declaration
Public Class ContinuationSeparatorMark _
Inherits EmptyType
'Usage
Dim instance As ContinuationSeparatorMark
public class ContinuationSeparatorMark : EmptyType
Remarks
[ISO/IEC 29500-1 1st Edition]
17.11.1 continuationSeparator (Continuation Separator Mark)
This element specifies the presence of a continuation separator mark within the current run. A continuation separator mark is a horizontal line which spans the width of the main story's text extents.
[Note: The continuation separator mark is typically used within the context of continuation separator footnotes or endnotes. These footnote and endnote types define the footnote/endnote used to separate the contents of the main document story from continuation of footnotes or endnotes which began on a previous page. end note]

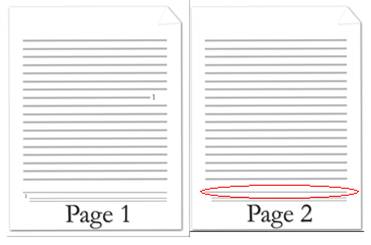

[Example: Consider the following two pages in a document, where some text is referenced by a footnote that extends to the next page (with the continuation separator circled in red):
.jpg "DocumentFormat.OpenXml.Wordprocessing.Continuation")
The line separating the document text from the footnote that is continued on the next page is represented by the following WordprocessingML:
<w:footnote w:type="continuationSeparator" w:id="1">
<w:p>
<w:r>
<w:continuationSeparator />
</w:r>
</w:p>
</w:footnote>
In this example, the footnote has a content which consists of a single continuationSeparator, which is displayed as a horizontal line across the text extents. end example]
Parent Elements |
|---|
r (§22.1.2.87); r (§17.3.2.25) |
[Note: The W3C XML Schema definition of this element’s content model (CT_Empty) is located in §A.1. end note]
© ISO/IEC29500: 2008.
Thread Safety
Any public static (Shared in Visual Basic) members of this type are thread safe. Any instance members are not guaranteed to be thread safe.
