Left and Right Margin for Frame.When the object is serialized out as xml, its qualified name is w:marW.
Inheritance Hierarchy
System.Object
DocumentFormat.OpenXml.OpenXmlElement
DocumentFormat.OpenXml.OpenXmlLeafElement
DocumentFormat.OpenXml.Wordprocessing.PixelsMeasureType
DocumentFormat.OpenXml.Wordprocessing.MarginWidth
Namespace: DocumentFormat.OpenXml.Wordprocessing
Assembly: DocumentFormat.OpenXml (in DocumentFormat.OpenXml.dll)
Syntax
'Declaration
Public Class MarginWidth _
Inherits PixelsMeasureType
'Usage
Dim instance As MarginWidth
public class MarginWidth : PixelsMeasureType
Remarks
[ISO/IEC 29500-1 1st Edition]
17.15.2.29 marW (Left and Right Margin for Frame)

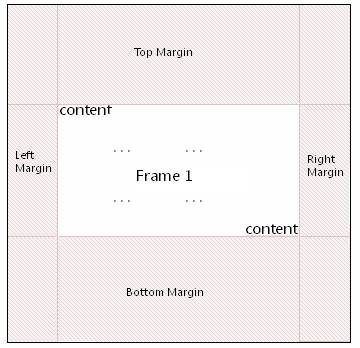

This element specifies the left and right margin height for a single frame in a frameset document, as follows:
.jpg "DocumentFormat.OpenXml.Wordprocessing.MarginWidth-")
This height is expressed in pixels.
If this element is omitted, then no left or right margin shall be used for this frame.
[Example: Consider a document that has a frame, where the frame's margins have been specified and is represented as the following WordprocessingML:
<w:frame> <w:marW w:val="294"/> </w:frame>
The marW element has a val attribute value of 294, which specifies that this frame has a left and right margin value of 294 pixels, resulting in 294 pixels of space between the content and the left and right margins of the frame. end example]
Parent Elements |
|---|
frame (§17.15.2.16) |
Attributes |
Description |
|---|---|
val (Measurement in Pixels) |
Specifies a value whose contents shall contain a positive whole number, whose contents consist of a positive measurement in pixels. The contents of this measurement shall be interpreted based on the context of the parent XML element. [Example: Consider an attribute value of 960 whose simple type is ST_PixelsMeasure. This attribute value specifies a value of 960 pixels. end example] The possible values for this attribute are defined by the ST_PixelsMeasure simple type (§17.18.67). |
[Note: The W3C XML Schema definition of this element’s content model (CT_PixelsMeasure) is located in §A.1. end note]
© ISO/IEC29500: 2008.
Thread Safety
Any public static (Shared in Visual Basic) members of this type are thread safe. Any instance members are not guaranteed to be thread safe.
