Intelligent cardiac triage and scheduling with Power Platform

CardioTriage-AI is a Power Platform-based AI solution designed to automate and enhance the triage process for cardiology patients by using AI Builder, Copilot Studio, and Microsoft 365 integrations. The solution aims to improve patient prioritization, reduce delays in treatment, optimize appointment scheduling, and support clinical decision making while ensuring data security and compliance.

For a demo and more information about the CardioTriage-AI solution, visit GitHub.

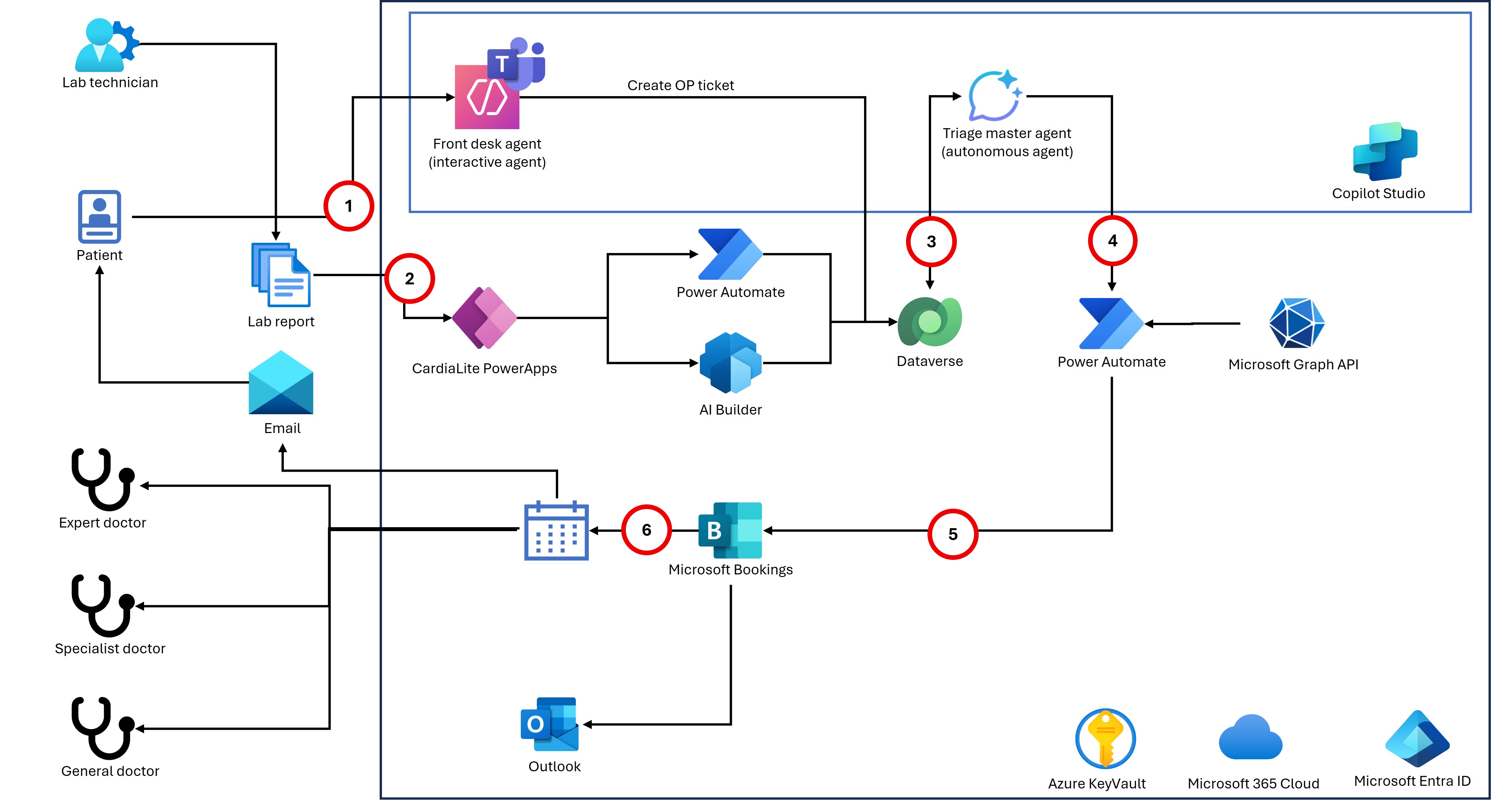

Architecture diagram

Workflow

This section outlines the step-by-step process followed in the CardioTriage-AI workflow.

1. Patient registration and check-in:
   • A front desk interactive agent (built using Microsoft Copilot Studio) guides the front desk staff or patient through registration.
   • At check-in, the agent generates an OutPatient (OP) ticket and records patient information in Microsoft Dataverse.
   • The triage process starts and creates a unique case identifier for tracking.
2. Lab report submission and data extraction:
   • A lab technician or patient uploads the diagnostic lab report through the CardiaLite Power Apps interface.
   • AI Builder automatically extracts relevant health metrics (like troponin levels and ECG values) using pre-trained form processing models.
   • The system validates and securely stores extracted values in Dataverse, updating the patient record in real time.
3. Autonomous triage trigger:
   • When the lab report is submitted successfully, a Power Automate flow starts automatically.
   • This flow activates the triage master agent, an autonomous AI agent designed using Copilot Studio, which starts the triage evaluation.
4. AI-powered data evaluation and triage decision making:
   • The triage master agent evaluates the patient's lab data by referencing the following:
     • Intelligent cardiac triage guidelines, to assess criticality and risk.
     • Intelligent clinic scheduling guidelines, to determine if a consultation is necessary and what expertise is required.
   • The agent optionally calls the Microsoft Graph API to get physician availability and contextual data (like prior appointments).
   • Based on the outcome, the case is categorized as critical, non-critical with follow-up, or monitor-only.
5. Automated appointment scheduling:
   • If a physician consultation is recommended, the system books an appointment using Microsoft Bookings, matching patient urgency with the relevant cardiologist's availability.
   • Booking details sync with Outlook calendars for both patients and doctors.
6. Real-time notifications:
   • Patients get immediate notifications of the triage outcome through Outlook email.
   • If a consultation is booked, the email includes the time, doctor name, and location or link.
   • If no immediate action is needed, the email provides personalized health tips or follow-up reminders.
   • The system logs all interactions and outcomes for transparency and auditing.

Components

The following components are used in the CardioTriage-AI solution.

Microsoft Power Platform

Power Apps: Power Apps is a user-friendly platform that provides a rapid development environment to build custom apps with minimal coding. It helps create intuitive, front-end interfaces that connect to different data sources. In a solution design such as this, Power Apps can be used to create easy-to-use applications for tasks like managing patient data or interacting with healthcare systems, all without requiring complex development skills.

Power Automate: Power Automate is a tool that helps automate repetitive tasks and workflows. It connects various services and apps to perform tasks automatically, saving time and reducing human error. In a technical solution such as this, Power Automate streamlines processes like scheduling patient appointments or syncing data across systems, making operations more efficient.

Microsoft Dataverse: Dataverse is a secure, scalable database solution that stores and organizes data from different sources. It's designed to handle large amounts of structured and unstructured data, making it easy to store and retrieve information in a consistent way. In a healthcare solution, use Dataverse to store patient records, appointment data, and other critical information, while ensuring that data is secure and easy to access.

AI Builder: AI Builder is a tool that lets you add artificial intelligence to your apps without needing deep technical knowledge. It helps build features like predictive analytics or automated insights. In a healthcare solution, use AI Builder to assess patient conditions, predict future health risks, or help staff quickly make data-driven decisions.

Agents

Agents are AI-powered assistants that help automate decision making and assist with tasks. In healthcare, these agents analyze patient data to provide real-time suggestions and assessments, improving decision-making accuracy. Agents help clinicians by offering AI-driven recommendations based on patient data, which makes appointment processes smoother and more efficient.

Learn about building intelligent conversational agents with Microsoft Copilot Studio.

Microsoft Bookings

Microsoft Bookings is a scheduling tool that makes it easier for patients to book appointments and for staff to manage their schedules. It helps optimize resources by providing an easy-to-use interface for managing appointments. Use Microsoft Bookings to simplify appointment management, so patients can easily schedule visits and staff effortlessly organize their time.

Microsoft Graph

Microsoft Graph is an API that gives access to a wide range of data from Microsoft 365 services, like calendars, emails, and tasks. Use Microsoft Graph to pull important data from services like patient schedules or staff calendars, ensuring timetables are in sync and up to date in real time.

App registration

Register apps in Microsoft Entra ID for secure access and authentication. Registering your application establishes a trust relationship between your app and the Microsoft identity platform and ensures that only authorized users or applications can access sensitive data. Use App registration to manage app security and ensure safe, seamless integration with services like Microsoft Graph and Power Apps. Learn more in Register an application in Microsoft Entra ID.

Azure Key Vault

Azure Key Vault is a service that securely stores sensitive data, such as passwords, API keys, and encryption keys. It helps keep your most important information safe while letting authorized apps or users access it when needed. Use Azure Key Vault to securely store secrets, such as database passwords or connection strings, ensuring protection and access only for the right people or systems.

Scenario details

This section describes the specific scenario, including the workflow, participants, and goals of the CardioTriage-AI solution.

Business problem

Cardiology departments in hospitals and clinics face challenges prioritizing and managing patients based on the severity of their cardiac conditions. Traditional triage processes are mostly manual and depend on the judgment of administrative staff or the availability of clinical resources. These challenges can cause:

• Delays in treating critical cases like myocardial infarctions or arrhythmias.
• Overbooking or under utilization of cardiologists due to inefficient scheduling.
• Increased cognitive load on healthcare staff, who handle data-intensive tasks like interpreting lab reports or managing appointments.
• Errors in triage and scheduling, which can have life-threatening repercussions in high-risk cardiac cases.

Hospitals and clinics need an intelligent, automated triage system that reduces manual work, improves risk assessment accuracy, and optimizes scheduling—especially in resource-constrained or high-volume healthcare environments.

Use case overview

CardioTriage-AI is a Power Platform-based AI solution designed to address these issues by using AI Builder, custom agents, Microsoft 365 integrations, and Azure services to:

• Automatically extract and analyze lab reports using AI Builder to remove manual data interpretation.
• Use an autonomous agent to assess condition severity and recommend specialist care based on:
  • Intelligent cardiac triage system documentation
  • Intelligent clinic scheduling guidelines
• Prioritize patients in real time and update triage queues dynamically.
• Streamline appointment scheduling using Microsoft Bookings to match critical cases to available specialists quickly.
• Trigger automated workflows using Power Automate to notify doctors, book slots, and update records.
• Securely manage patient data using Dataverse, Azure Key Vault, and private endpoints in Azure.

Business value and outcomes

CardioTriage-AI delivers measurable improvements in clinical outcomes and operational efficiency, including:

• Reduced treatment delays for critical cardiac patients by automating and accelerating triage decisions.
• Improved resource allocation by making sure doctors' time is used effectively based on the urgency of each case.
• Enhanced clinical decision support with explainable AI recommendations, reducing clinician cognitive load.
• Secure, compliant data handling with full auditability and adherence to privacy regulations.
• Decreased administrative overhead and fewer manual scheduling errors through automation and self-service interfaces.

Considerations

These considerations implement the pillars of Power Platform Well-Architected, a set of guiding tenets that improve the quality of a workload. Learn more in Microsoft Power Platform Well-Architected.

Reliability

• Automated recovery and error handling: Power Automate flows include error handling, retries, and parallel execution to prevent workflow failures. Try-catch-finally patterns are used where applicable.
• Reliable data backbone with Dataverse: CardioTriage-AI uses Microsoft Dataverse as its core data platform, benefiting from its 99.9% availability SLA (service level agreement), robust schema validation, and transactional integrity. Built-in backup and recovery mechanisms further enhance system reliability.
• Queued processing for scalability: Background processes like triage scoring and appointment scheduling use autonomous agents for scalability and reduced system load.

Security

• Azure Key Vault secures secrets like API tokens and database connection strings.
• Microsoft Entra ID and role-based access control (RBAC) manage authentication and authorization for all users, like doctors and front desk staff.
• Private endpoints ensure secure traffic routing within Microsoft's backbone network.
• The solution follows compliance standards relevant for healthcare, like HIPAA and GDPR, to ensure data privacy.

Operational Excellence

• Power Platform admin center is used to monitor and govern apps, flows, and usage metrics.
• Solutions are deployed using managed environments, enabling consistent ALM (application lifecycle management) practices.
• Monitoring via Power Platform telemetry, flow analytics, and alerts supports proactive maintenance and incident response.

Performance Efficiency

• Optimized workflows and logic: Power Automate flows are designed with minimal trigger conditions and efficient branching logic to reduce execution time, minimize system load, and ensure faster response times.
• Lightweight AI processing: Inbuilt AI Builder models are used to generate real-time triage decisions using minimal compute resources, balancing accuracy with processing efficiency.
• Efficient API usage with Microsoft Graph: Integration with Microsoft Graph API is carefully scoped to retrieve only the necessary data (for example, calendar availability), reducing overhead and improving API response performance.

Experience Optimization

• Power Apps UI is tailored for each persona (for example, doctors, lab technicians, front desk) to ensure role-specific experiences.
• Microsoft Bookings integration offers seamless appointment scheduling, reducing friction for both staff and patients.
• Agents enhance interactivity by enabling natural language-based interactions, improving ease of use for non-technical users.

Responsible AI

• Transparent and documented reasoning: The agent's decision making is based on clinically approved guideline documents, ensuring consistent, explainable, and evidence-based outputs. All AI actions are logged for traceability and auditability.
• Purpose-specific AI design: AI Builder is used for extracting patient lab report values (for example, biomarkers, ECG readings) from structured and unstructured data, reducing manual errors while preserving clinical accuracy.
• Human-in-the-loop oversight: Although decisions are AI-augmented, doctors and clinical staff remain in control and review AI-driven suggestions before any critical action (for example, patient triage or scheduling) is finalized.

Contributors

Microsoft maintains this article. These contributors wrote this article.

Principal authors:

• Abey Abraham, Power Platform Architect
• Ganesh Anandan, Copilot Lead

Related resources

• Power Platform Well-Architected
• Azure Private Link
• Microsoft AI principles

Next steps

For a demo video, more details about functionality, architecture, source code, and other resources, visit the CardioTriage-AI solution on GitHub.
