Customize the look and feel of an agent

2025-07-22

Your agent's canvas determines its look and feel. You can customize the canvas in two ways, depending on the complexity of the desired changes:

Customize the default canvas with JavaScript styling in the HTML code of the website where you deploy your agent. This approach is useful if you want to make small customizations without investing in code development.

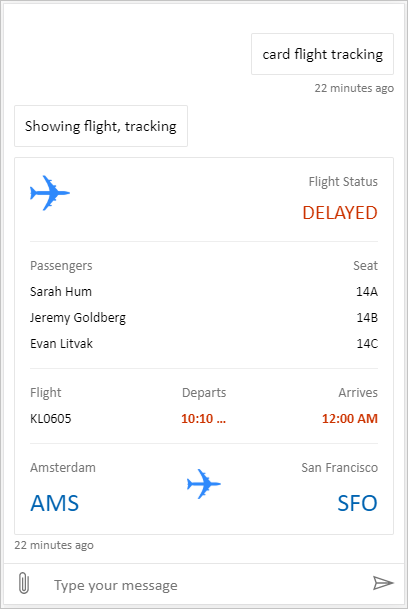

Use a custom canvas based on the Bot Framework Web Chat canvas. This approach requires extensive developer knowledge. It's useful for organizations that want an entirely custom experience.

You can also combine the customized canvas with configuring your agent to automatically start the conversation.

Lastly, you can change the name and icon of your agent directly from the portal.

After you publish an agent, your customers can use the agent's Web Chat canvas to interact with it.

Important

You can install and use the sample code included in this article only for use with Copilot Studio. The sample code is licensed "as is" and is excluded from any service level agreements or support services. You bear the risk of using it.

Microsoft gives no express warranties, guarantees, or conditions and excludes all implied warranties, including merchantability, fitness for a particular purpose, and non-infringement.

Important

After you update the icon for an agent, it might take up to 24 hours for the new icon to appear everywhere.
If your agent is connected to Omnichannel for Customer Service, its name is defined by the Display name property in the Azure portal registration.
If your agent is meant to be published to Teams, review the requirements for icons in the Microsoft Teams developer documentation.

Go to the Overview page for your agent.
Next to Details select Edit.
Change the agent's name and icon as desired.
Select Save.

Customize the default canvas (simple)

Configure how the chat canvas looks with some simple CSS and JavaScript styling options.

First, you need to configure where you're deploying your agent canvas.

Create and publish an agent.

Copy the following HTML code and save it to a file named index.html. Alternatively, copy and paste the code into the w3schools.com HTML try it editor.


<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
  <meta name="description" content="Contoso Web Chat Assistant" />
  <title>Contoso Sample Web Chat Test</title>
  <script src="https://cdn.botframework.com/botframework-webchat/latest/webchat.js"></script>
  <script>
    let webChatInstance = null;
    let directLineUrl = null;

    // Replace with your token endpoint
    const tokenEndpoint = "<YOUR TOKEN ENDPOINT>";
    const styleOptions = {"accent":"#0078D4","autoScrollSnapOnPage":true,"autoScrollSnapOnPageOffset":0,"avatarBorderRadius":"7%","avatarSize":31,"backgroundColor":"#e8e9eb","botAvatarBackgroundColor":"#ffffff00","botAvatarImage":"https://powercatexternal.blob.core.windows.net/creatorkit/Assets/ChatbotLogoBlue.png","botAvatarInitials":"B","bubbleAttachmentMaxWidth":480,"bubbleAttachmentMinWidth":250,"bubbleBackground":"#f0eded","bubbleBorderColor":"#f5f5f5","bubbleBorderRadius":41,"bubbleBorderStyle":"solid","bubbleBorderWidth":1,"bubbleFromUserBackground":"#ebefff","bubbleFromUserBorderColor":"#f5f5f5","bubbleFromUserBorderRadius":41,"bubbleFromUserBorderStyle":"solid","bubbleFromUserBorderWidth":1,"bubbleFromUserNubOffset":0,"bubbleFromUserNubSize":0,"bubbleFromUserTextColor":"#242424","bubbleImageHeight":10,"bubbleImageMaxHeight":240,"bubbleImageMinHeight":240,"bubbleMessageMaxWidth":480,"bubbleMessageMinWidth":120,"bubbleMinHeight":50,"bubbleNubOffset":0,"bubbleTextColor":"#242424","emojiSet":true,"fontSizeSmall":"70%","hideUploadButton":false,"messageActivityWordBreak":"break-word","monospaceFont":"Consolas","paddingRegular":10,"paddingWide":10,"primaryFont":null,"sendBoxBackground":"#e8e9eb","sendBoxBorderTop":"solid 1px #808080","sendBoxButtonColor":"#0078d4","sendBoxButtonColorOnHover":"#006cbe","sendBoxButtonShadeBorderRadius":40,"sendBoxButtonShadeColorOnHover":"","sendBoxHeight":60,"sendBoxPlaceholderColor":"#171616","sendBoxTextColor":"#2e2d2d","showAvatarInGroup":"status","spinnerAnimationHeight":16,"spinnerAnimationPadding":12,"spinnerAnimationWidth":16,"subtleColor":"#000000FF","suggestedActionBackgroundColor":"#006FC4FF","suggestedActionBackgroundColorOnHover":"#0078D4","suggestedActionBorderColor":"","suggestedActionBorderRadius":10,"suggestedActionBorderWidth":1,"suggestedActionLayout":"flow","suggestedActionTextColor":"#FFFFFFFF","typingAnimationBackgroundImage":"url('https://wpamelia.com/wp-content/uploads/2018/11/ezgif-2-6d0b072c3d3f.gif')","typingAnimationDuration":5000,"typingAnimationHeight":20,"typingAnimationWidth":64,"userAvatarBackgroundColor":"#222222","userAvatarImage":"https://avatars.githubusercontent.com/u/8174072?v=4&size=64","userAvatarInitials":"U"};
    const backgroundImage = "";
    document.addEventListener('DOMContentLoaded', () => {
      const root = document.documentElement;
      root.style.setProperty('--primary-color', createGradient(styleOptions.accent));
      root.style.setProperty('--header-textColor', styleOptions.suggestedActionTextColor);
      if (backgroundImage) {
        const webchatElement = document.getElementById('webchat');
        webchatElement.style.backgroundImage = `url(${backgroundImage})`;
        webchatElement.style.backgroundSize = 'cover';
        webchatElement.style.backgroundPosition = 'center';
        webchatElement.style.backgroundRepeat = 'no-repeat';
        const overlay = document.createElement('div');
        overlay.className = 'webchat-overlay';
        webchatElement.appendChild(overlay);
      }
    });
    function createGradient(baseColor) {
      const r = parseInt(baseColor.slice(1,3), 16);
      const g = parseInt(baseColor.slice(3,5), 16);
      const b = parseInt(baseColor.slice(5,7), 16);
      const lighterColor = `#${Math.min(255, r+30).toString(16).padStart(2,'0')}${Math.min(255, g+30).toString(16).padStart(2,'0')}${Math.min(255, b+30).toString(16).padStart(2,'0')}`;
      const darkerColor = `#${Math.max(0, r-30).toString(16).padStart(2,'0')}${Math.max(0, g-30).toString(16).padStart(2,'0')}${Math.max(0, b-30).toString(16).padStart(2,'0')}`;
      return `linear-gradient(135deg, ${lighterColor}, ${baseColor}, ${darkerColor})`;
    }
    const environmentEndPoint = tokenEndpoint.slice(
      0,
      tokenEndpoint.indexOf("/powervirtualagents")
    );
    const apiVersion = tokenEndpoint
      .slice(tokenEndpoint.indexOf("api-version"))
      .split("=")[1];
    const regionalChannelSettingsURL = `${environmentEndPoint}/powervirtualagents/regionalchannelsettings?api-version=${apiVersion}`;
    function showChat() {
      const popup = document.getElementById("chatbot-popup");
      const openButton = document.getElementById("open-chat");
      popup.classList.add("visible");
      openButton.classList.add("hidden");
    }
    function hideChat() {
      const popup = document.getElementById("chatbot-popup");
      const openButton = document.getElementById("open-chat");
      popup.classList.remove("visible");
      openButton.classList.remove("hidden");
    }
    function createCustomStore() {
      return window.WebChat.createStore(
        {},
        ({ dispatch }) =>
          (next) =>
          (action) => {
            if (action.type === "DIRECT_LINE/CONNECT_FULFILLED") {
              dispatch({
                type: "DIRECT_LINE/POST_ACTIVITY",
                meta: { method: "keyboard" },
                payload: {
                  activity: {
                    channelData: { postBack: true },
                    name: "startConversation",
                    type: "event",
                  },
                },
              });
            }
            return next(action);
          }
      );
    }
    async function restartConversation() {
      try {
        if (!directLineUrl) {
          console.error("DirectLine URL not initialized");
          return;
        }
        const response = await fetch(tokenEndpoint);
        const conversationInfo = await response.json();
        if (!conversationInfo.token) {
          throw new Error("Failed to get conversation token");
        }
        const newDirectLine = window.WebChat.createDirectLine({
          domain: `${directLineUrl}v3/directline`,
          token: conversationInfo.token,
        });
        const webchatElement = document.getElementById("webchat");
        webChatInstance = window.WebChat.renderWebChat(
          {
            directLine: newDirectLine,
            styleOptions,
            store: createCustomStore(),
          },
          webchatElement
        );
      } catch (err) {
        console.error("Failed to restart conversation:", err);
      }
    }
    async function initializeChat() {
      try {
        const response = await fetch(regionalChannelSettingsURL);
        const data = await response.json();
        directLineUrl = data.channelUrlsById.directline;
        if (!directLineUrl) {
          throw new Error("Failed to get DirectLine URL");
        }
        const conversationResponse = await fetch(tokenEndpoint);
        const conversationInfo = await conversationResponse.json();
        if (!conversationInfo.token) {
          throw new Error("Failed to get conversation token");
        }
        const directLine = window.WebChat.createDirectLine({
          domain: `${directLineUrl}v3/directline`,
          token: conversationInfo.token,
        });
        webChatInstance = window.WebChat.renderWebChat(
          {
            directLine,
            styleOptions,
            store: createCustomStore(),
          },
          document.getElementById("webchat")
        );
      } catch (err) {
        console.error("Failed to initialize chat:", err);
      }
    }
    initializeChat();
  </script>
  <style>
    :root {
      --primary-gradient: var(--primary-color);
      --chat-width: 450px;
      --chat-height: 520px;
      --header-height: 56px;
      --border-radius: 16px;
      --transition-speed: 0.3s;
    }
    * {
      margin: 0;
      padding: 0;
      box-sizing: border-box;
      font-family: system-ui, -apple-system, BlinkMacSystemFont, "Segoe UI",
        Roboto, sans-serif;
    }
    body {
      min-height: 100vh;
      background-color: #f3f4f6;
    }
    #chatbot-popup {
      display: none;
      position: fixed;
      bottom: 32px;
      right: 32px;
      width: var(--chat-width);
      height: var(--chat-height);
      background: white;
      border-radius: var(--border-radius);
      box-shadow: 0 18px 40px -5px rgba(0, 0, 0, 0.2),
        0 15px 20px -5px rgba(0, 0, 0, 0.1);
      overflow: hidden;
      opacity: 0;
      transform-origin: bottom right;
      transform: scale(0.95);
      transition: all var(--transition-speed) ease-in-out;
      z-index: 999;
    }
    #chatbot-popup.visible {
      display: block;
      opacity: 1;
      transform: scale(1);
    }
    #chatbot-header {
      background: var(--primary-color);
      padding: 16px 20px;
      height: var(--header-height);
      display: flex;
      justify-content: space-between;
      align-items: center;
      color: var(--header-textColor);
    }
    .header-title {
      display: flex;
      align-items: center;
      gap: 12px;
      font-size: 16px;
      font-weight: 500;
    }
    .header-buttons {
      display: flex;
      gap: 12px;
      align-items: center;
    }
    .icon-button {
      background: none;
      border: none;
      color: var(--header-textColor);
      cursor: pointer;
      padding: 8px;
      border-radius: 8px;
      display: flex;
      align-items: center;
      justify-content: center;
      transition: all 0.2s ease;
    }
    .icon-button:hover {
      color: var(--header-textColor);
      background: rgba(255, 255, 255, 0.1);
    }
    .icon-button:focus {
      outline: 2px solid rgba(255, 255, 255, 0.5);
      outline-offset: 2px;
    }
    #webchat {
      height: calc(100% - var(--header-height));
      background-color: #f9fafb;
      position: relative;
    }
    .webchat-overlay {
      position: absolute;
      top: 0;
      left: 0;
      right: 0;
      bottom: 0;
      background: rgba(255, 255, 255, 0.85);
      pointer-events: none;
      z-index: 1;
    }
    #webchat > div {
      position: relative;
      z-index: 2;
    }
    #webchat .webchat__basic-transcript__content {
      white-space: pre-wrap !important;
      word-break: break-word !important;
    }
    #webchat .webchat__bubble__content {
      padding: 8px 12px !important;
    }
    #webchat .webchat__bubble {
      max-width: 85% !important;
      margin: 8px !important;
    }
    #webchat .webchat__basic-transcript__content ul,
    #webchat .webchat__basic-transcript__content ol,
    #webchat .webchat__bubble__content ul,
    #webchat .webchat__bubble__content ol {
      padding-left: 24px !important;
      margin: 8px 0 !important;
      list-style-position: outside !important;
    }
    #webchat .webchat__basic-transcript__content li,
    #webchat .webchat__bubble__content li {
      margin: 4px 0 !important;
      padding-left: 4px !important;
    }
    #open-chat {
      position: fixed;
      bottom: 32px;
      right: 32px;
      width: 64px;
      height: 64px;
      border-radius: 50%;
      background: var(--primary-gradient);
      border: none;
      cursor: pointer;
      display: flex;
      align-items: center;
      justify-content: center;
      box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1);
      transition: all var(--transition-speed) ease-in-out;
      z-index: 998;
    }
    #open-chat.hidden {
      opacity: 0;
      transform: scale(0.95) translateY(10px);
      pointer-events: none;
    }
    #open-chat:hover {
      transform: translateY(-4px);
      box-shadow: 0 10px 15px -3px rgba(0, 0, 0, 0.1);
    }
    #open-chat:focus {
      outline: 3px solid rgba(79, 70, 229, 0.5);
      outline-offset: 2px;
    }
    #open-chat svg {
      width: 28px;
      height: 28px;
      color: white;
      transition: transform 0.2s ease;
    }
    .main-content {
      max-width: 1200px;
      margin: 0 auto;
      padding: 48px 24px;
    }
    .main-content h1 {
      font-size: 36px;
      color: #111827;
      text-align: center;
    }
    .main-content p {
      font-size: 18px;
      color: #4b5563;
      line-height: 1.6;
      margin-bottom: 48px;
      text-align: center;
      max-width: 800px;
      margin-left: auto;
      margin-right: auto;
    }
    .content-grid {
      display: grid;
      grid-template-columns: repeat(2, 1fr);
      gap: 32px;
      margin-bottom: 32px;
    }
    .content-box {
      background: linear-gradient(135deg, #e6e6e6, #c4c4c4, #9f9f9f);
      padding: 32px;
      border-radius: 12px;
      box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1),
                  0 2px 4px -1px rgba(0, 0, 0, 0.06);
      min-height: 300px;
      display: flex;
      flex-direction: column;
      justify-content: center;
      align-items: center;
      text-align: center;
      position: relative;
      overflow: hidden;
    }
    .content-box::before {
      content: '';
      position: absolute;
      top: 0;
      left: 0;
      right: 0;
      height: 4px;
    }
    .content-box.featured {
      grid-column: span 2;
      min-height: 350px;
      background: linear-gradient(135deg, #e6e6e6, #c4c4c4, #9f9f9f);
      color: #000000;
    }
    .content-box h2 {
      font-size: 24px;
      margin-bottom: 16px;
      position: relative;
    }
    .content-box p {
      font-size: 16px;
      color: #6b7280;
      margin-bottom: 0;
    }
    .content-box.featured p {
      color: #000000;
    }
    @media (max-width: 768px) {
      .content-grid {
        grid-template-columns: 1fr;
      }
      .content-box.featured {
        grid-column: span 1;
      }
      .main-content {
        padding: 24px 16px;
      }
      .main-content h1 {
        font-size: 28px;
      }
      #chatbot-popup {
        width: 100%;
        height: 100%;
        bottom: 0;
        right: 0;
        border-radius: 0;
      }
    }
  </style>
</head>
<body>
  <div class="main-content">
    <h1>Header</h1>
    <p>Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat.</p>
    <div class="content-grid">
      <div class="content-box featured">
        <h2>Featured Content</h2>
        <p>Primary content area with custom styling and gradient background</p>
      </div>
      <div class="content-box">
        <h2>Section One</h2>
        <p>Content box with minimal design</p>
      </div>
      <div class="content-box">
        <h2>Section Two</h2>
        <p>Another content section with consistent styling</p>
      </div>
    </div>
  </div>
  <div id="chatbot-popup" role="complementary" aria-label="Chat Assistant">
    <div id="chatbot-header">
      <div class="header-title">
        <svg
          class="chat-icon"
          width="24"
          height="24"
          viewBox="0 0 24 24"
          fill="none"
          stroke="currentColor"
          stroke-width="2"
          stroke-linecap="round"
          stroke-linejoin="round"
          aria-hidden="true"
        >
          <path
            d="M21 15a2 2 0 0 1-2 2H7l-4 4V5a2 2 0 0 1 2-2h14a2 2 0 0 1 2 2z"
          ></path>
        </svg>
        <span>Contoso Assistant</span>
      </div>
      <div class="header-buttons">
        <button
          class="icon-button"
          id="restart-button"
          onclick="restartConversation()"
          aria-label="Restart Conversation"
        >
          <svg
            width="20"
            height="20"
            viewBox="0 0 24 24"
            fill="none"
            stroke="currentColor"
            stroke-width="2"
            stroke-linecap="round"
            stroke-linejoin="round"
            aria-hidden="true"
          >
            <path
              d="M3 12a9 9 0 1 0 9-9 9.75 9.75 0 0 0-6.74 2.74L3 8"
            ></path>
            <path d="M3 3v5h5"></path>
          </svg>
        </button>
        <button
          class="icon-button"
          id="close-button"
          onclick="hideChat()"
          aria-label="Close Chat"
        >
          <svg
            width="20"
            height="20"
            viewBox="0 0 24 24"
            fill="none"
            stroke="currentColor"
            stroke-width="2"
            stroke-linecap="round"
            stroke-linejoin="round"
            aria-hidden="true"
          >
            <line x1="18" y1="6" x2="6" y2="18"></line>
            <line x1="6" y1="6" x2="18" y2="18"></line>
          </svg>
        </button>
      </div>
    </div>
    <div id="webchat" role="main"></div>
  </div>
  <button
    id="open-chat"
    onclick="showChat()"
    aria-label="Open Chat Assistant"
  >
    <svg
      viewBox="0 0 24 24"
      fill="none"
      stroke="currentColor"
      stroke-width="2"
      stroke-linecap="round"
      stroke-linejoin="round"
      aria-hidden="true"
    >
      <path
        d="M21 15a2 2 0 0 1-2 2H7l-4 4V5a2 2 0 0 1 2-2h14a2 2 0 0 1 2 2z"
      ></path>
    </svg>
  </button>
</body>
</html>

Retrieve the token endpoint for your agent.
In index.html, at the line const tokenEndpoint = "<YOUR TOKEN ENDPOINT>";, replace the placeholder with the token endpoint for your agent.
Open index.html using a modern browser (for example, Microsoft Edge) to open the agent in the custom canvas.
Test the agent to ensure you're receiving responses from it and that it's working correctly.

If you encounter problems, make sure you published your agent, and that the token endpoint is in the correct place. The token endpoint should be after the equals sign (=) at the line const tokenEndpoint = "<YOUR TOKEN ENDPOINT>";, and surrounded by double quotation marks (").

Retrieve the token endpoint for your agent

To customize your canvas, whether it's the default canvas or a custom one you connect to, you need the token endpoint for your agent.

In the navigation menu under Settings, select Channels.
Select Email. The configuration panel for this channel appears.
Next to Token Endpoint, select Copy.

Customize the agent icon, background color, and name

Once you get the customized canvas working with your agent, you can make changes to it.

You can use the JavaScript styleOptions options to configure many predefined styles.

See Web Chat customization for links to the defaultStyleOptions.js file and more information on what you can customize and how it will look.

Change the agent icon

Update the index.html file with the following sample code:

const styleOptions = {
  accent: '#00809d',
  botAvatarBackgroundColor: '#FFFFFF',
  botAvatarImage: 'https://learn.microsoft.com/azure/bot-service/v4sdk/media/logo_bot.svg',
  botAvatarInitials: 'BT',
  userAvatarImage: 'https://avatars.githubusercontent.com/u/661465'
};

Replace the agent and user avatar images with your company images.
If you don't have an image URL, you can use a Base64-encoded image string instead.

Change the background color

Update the index.html file with following sample code:

const styleOptions = {
  backgroundColor: 'lightgray'
};

Change backgroundColor to any color you wish. You can use standard CSS color names, RGB values, or HEX.

Change the agent name

Update the <h1> text in the index.html file with the following code:

<body>
  <div id="banner">
    <h1><img src="contosocopilot-teams.png"> Contoso agent name</h1>
  </div>

Change the text to whatever you want to call the agent. You can also insert an image, although you might need to style it to ensure it fits within the heading section.

Customize and host your chat canvas (advanced)

You can connect your Copilot Studio agent with a custom canvas that is hosted as a standalone web app. This option is best if you need to embed a customized iFrame across multiple web pages.

Note

Hosting a custom canvas requires software development. This guidance is intended for experienced IT professionals, such as IT admins or developers who have a good understanding of developer tools, utilities, and IDEs.

Pick a sample to customize

We recommend starting with one of these samples custom-built to work with Copilot Studio:

Full bundle is a custom canvas capable of showing all rich content from Copilot Studio. For example:
Location and file uploading is a custom canvas capable of getting a user's location and sending it to a Copilot Studio agent. For example:

Or you can pick from other sample Web Chat canvases provided by Bot Framework.

Customize canvas using styleSetOptions

As with customizing the default canvas, you can use styleSetOptions to customize the custom canvas. All customizable properties are listed in defaultStyleOptions.js. For more information on what you can customize and how it will look, see Web Chat customization.

Deploy your customized canvas

To host your custom canvas, deploy all files to a web app.
