Consume a Fabric Data Agent in Microsoft Copilot Studio (preview)

Microsoft Copilot Studio is a graphical, low-code platform for building custom AI agents that understand natural language, answer user inquiries, and perform actions such as automating tasks. These agents can then be deployed across channels such as Microsoft Teams, websites, and Microsoft 365 Copilot.

One of the ways to consume a Fabric data agent is by adding it to a custom AI agent in Microsoft Copilot Studio as a connected agent. This connected agents setup enables agent-to-agent collaboration, allowing the custom AI agent in Copilot Studio to securely access enterprise data through the Fabric data agent and ground its responses in organizational knowledge for improved accuracy, relevance, and context.

Important

This feature is in preview.

Prerequisites

  • Microsoft 365 Copilot license and a user license for each individual who will be building and managing custom agents.

How to add a Fabric data agent to the custom AI agent in Copilot Studio

  1. Navigate to Microsoft Copilot Studio and select your desired environment.

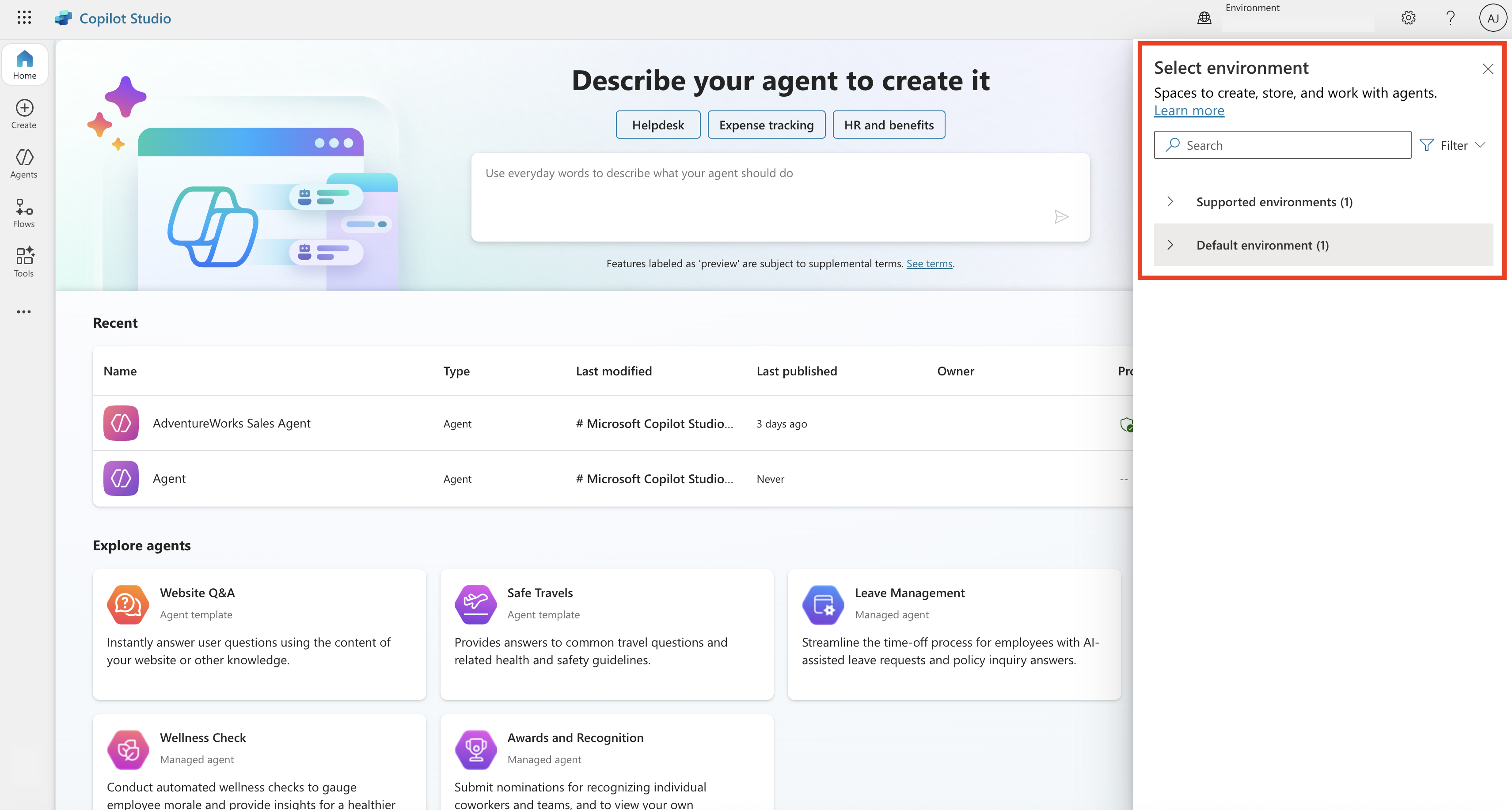

Screenshot showing the main select environment in copilot studio.

  1. Once you select desired environment, on the left pane, select Create, then select + New agent to start building your custom AI agent. If you already have a custom AI agent, you can skip steps 2 and 3.

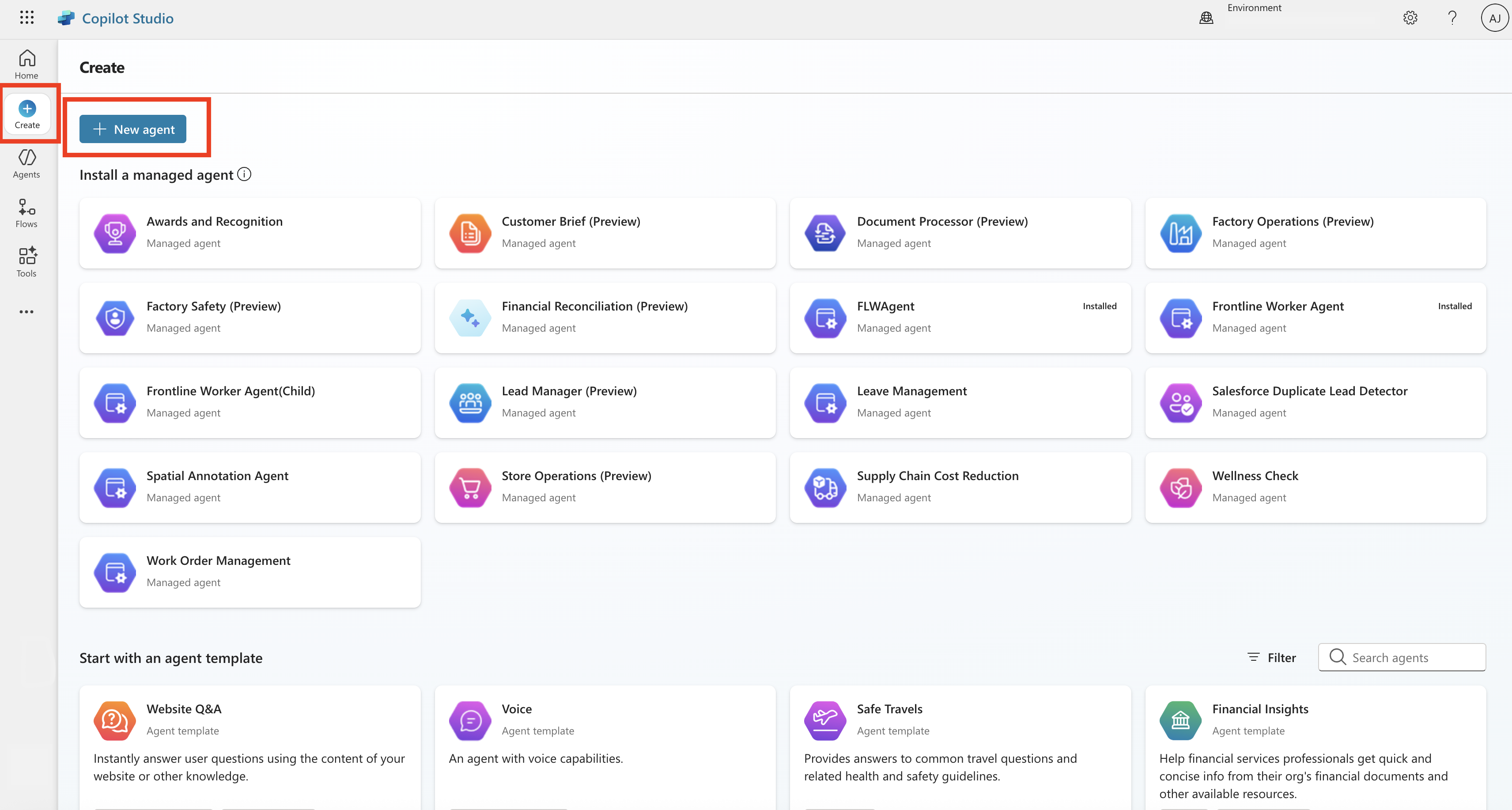

Screenshot showing the main page to create agent in copilot studio.

  1. Configure your agent by giving it a Name and Description that describes its purpose and role. Make sure to save your changes.

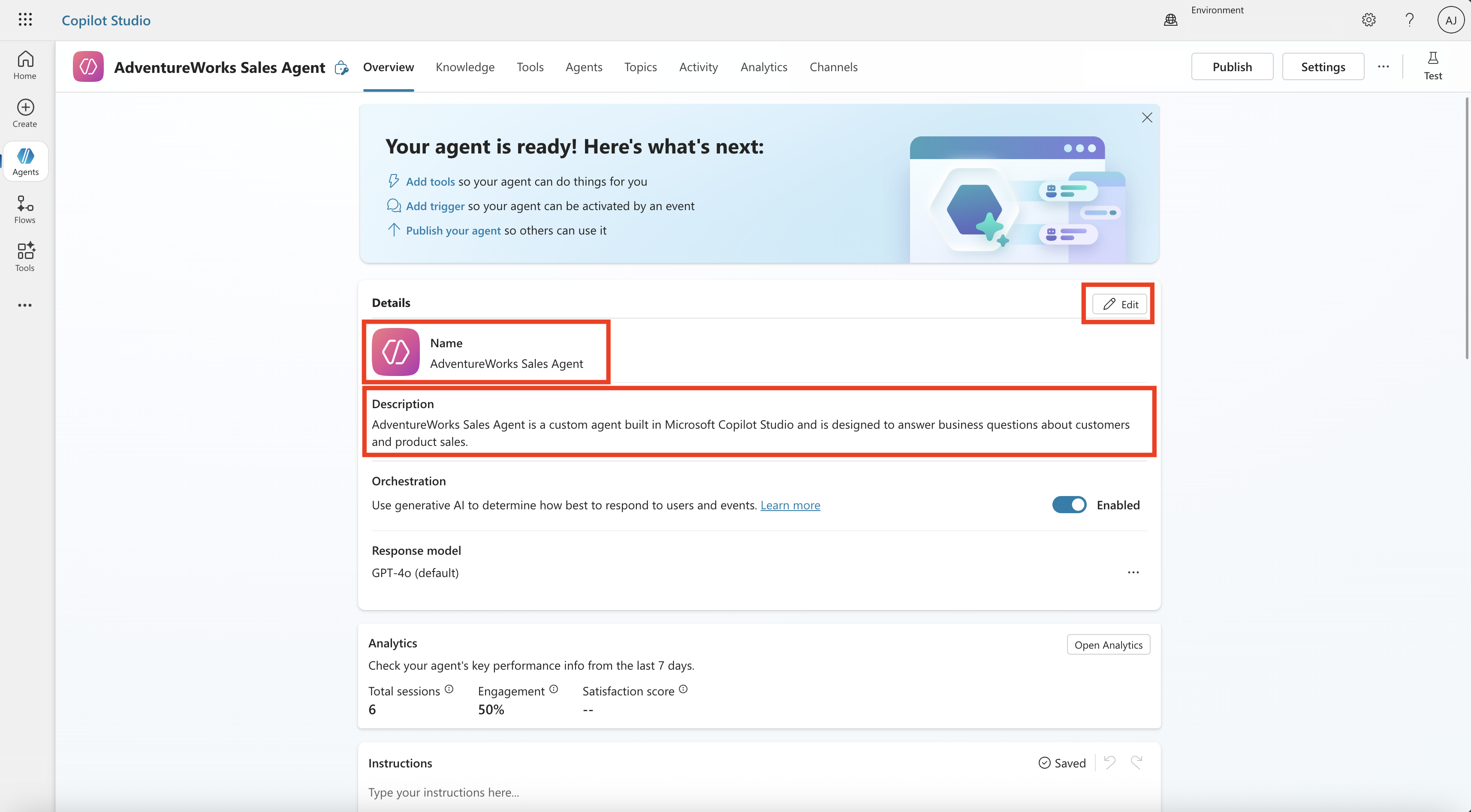

Screenshot showing to set up name and description for custom AI agent.

  1. Once you set the basic details, you can move forward by adding:

    • Knowledge sources such as SharePoint, public websites, or uploaded files.
    • Tools that enable the agent to perform specific tasks or access external systems.
    • Connections to other agents, allowing more complex scenarios where multiple agents collaborate.

  2. To add a Fabric data agent to your custom AI agent in Copilot Studio, navigate to Agents from the top pane and then select + Add to add agents to your custom AI agent.

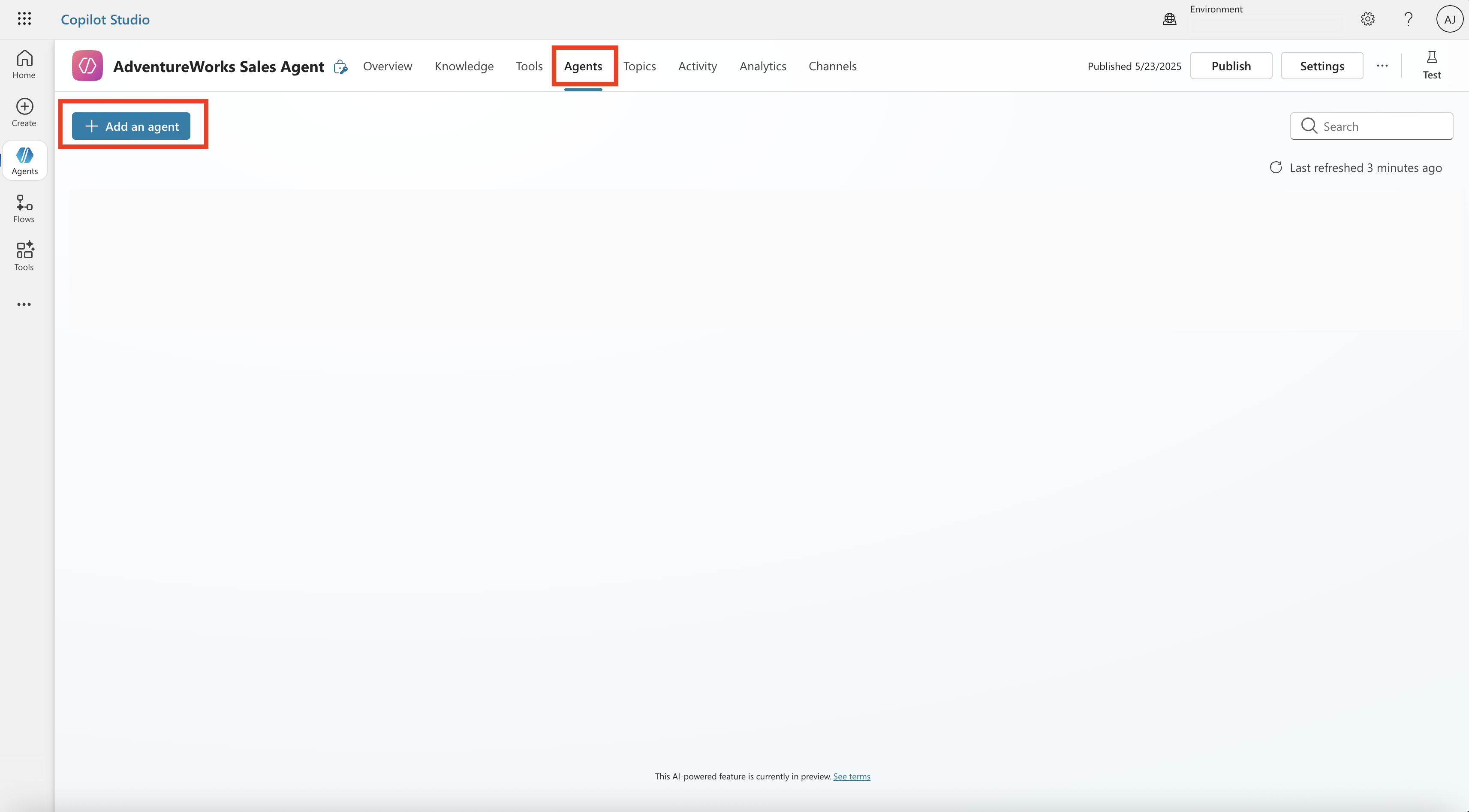

Screenshot showing the first step to add agents to Copilot Studio.

  1. Select Microsoft Fabric from the Choose how you want to extend your agent category.

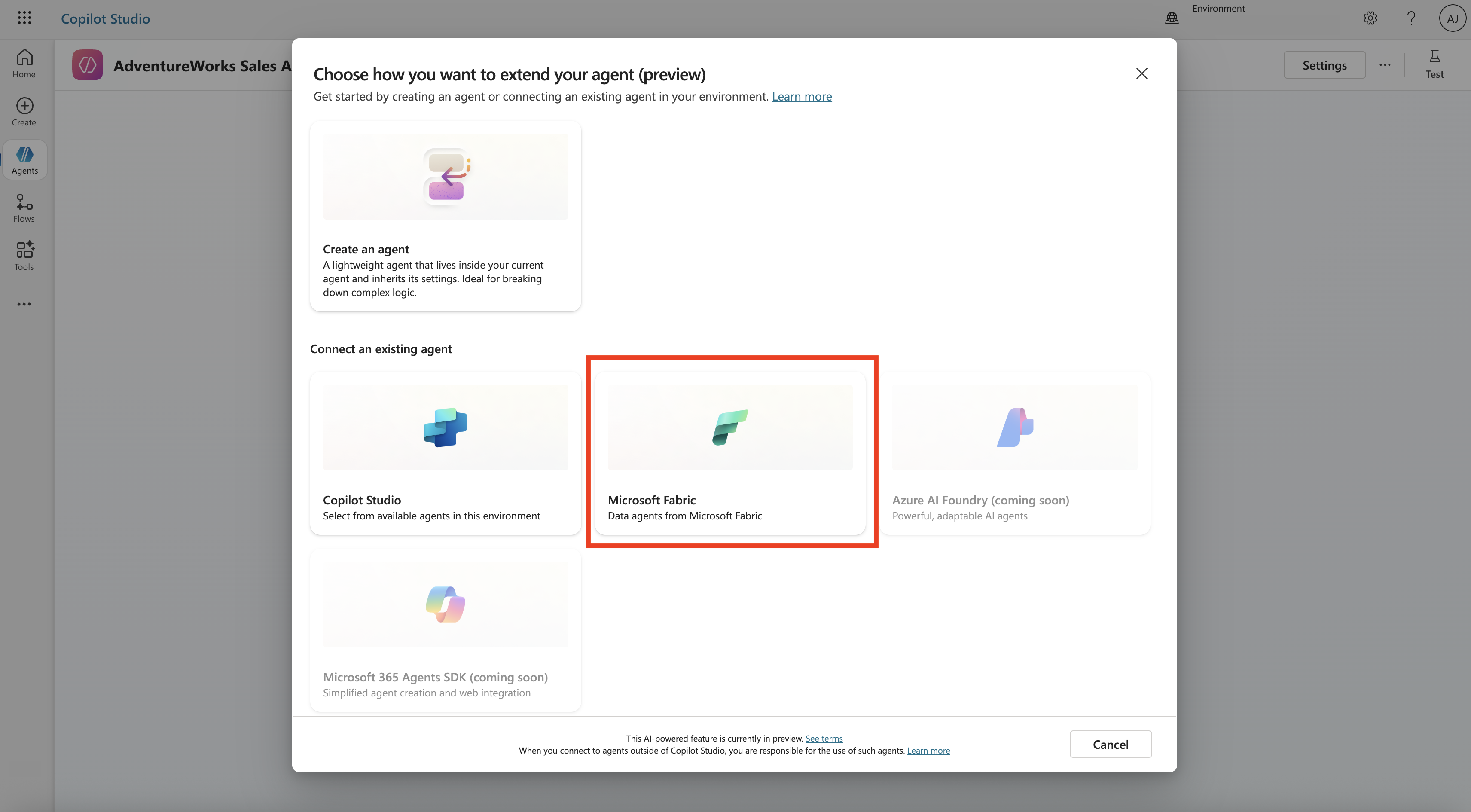

Screenshot showing the Fabric as connected agents category.

  1. If there is already a connection between Microsoft Fabric and the custom AI agent, you can select Next and move to next step. Otherwise, select the dropdown and select Create new connection to establish a connection between Microsoft Fabric and Copilot Studio.

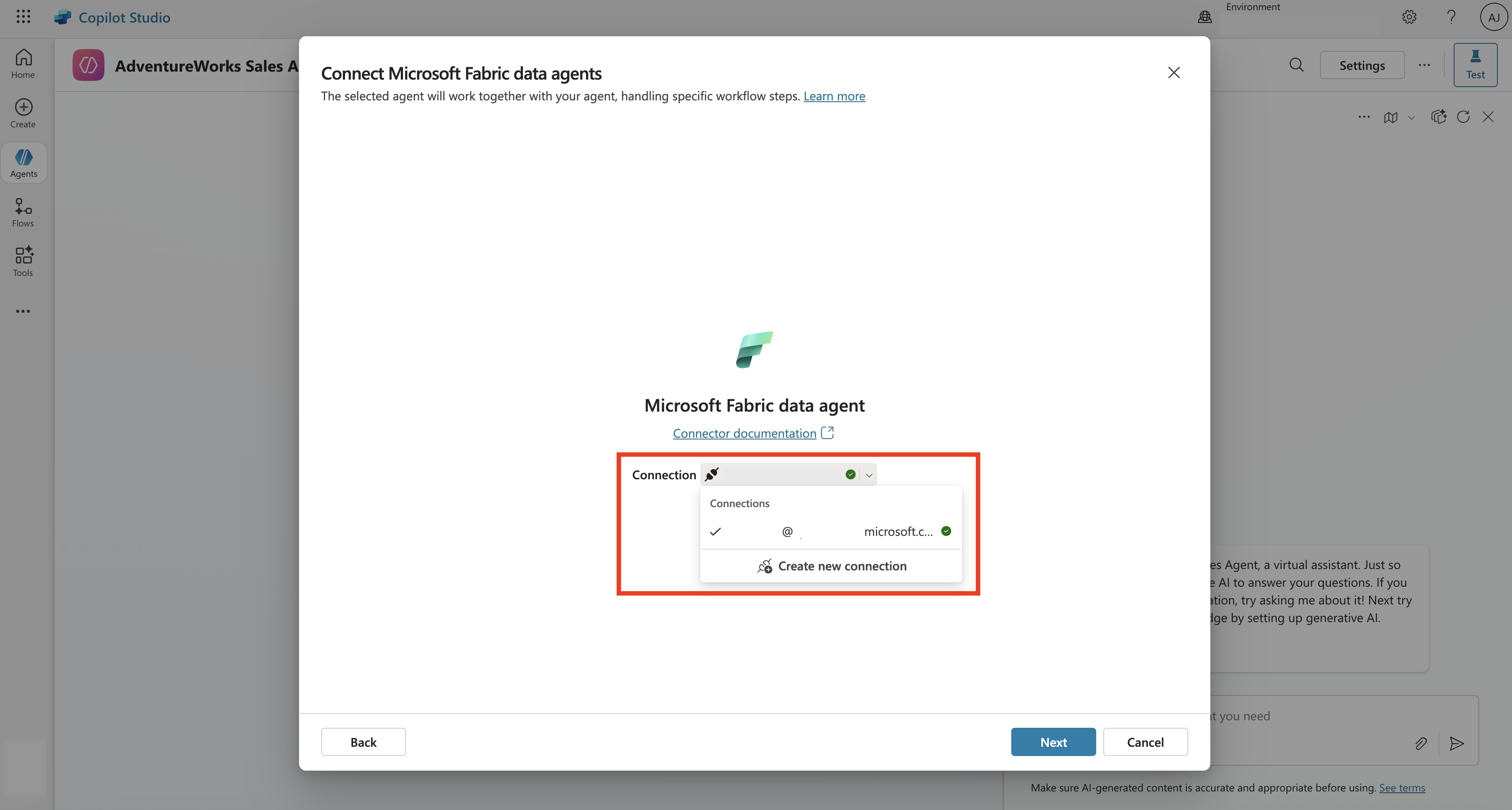

Screenshot showing to add the Fabric connector to Copilot Studio.

Note

Ensure to publish your Fabric data agent prior to adding to your custom AI agent in Copilot Studio. The Fabric data agent and Microsoft Copilot resources should be on the same tenant, and both Microsoft Fabric and Microsoft Copilot should be signed in with the same account.

  1. From the list of Fabric data agents you have access to, select the data agent that you want to connect to the custom AI agent in Copilot Studio and select Next. The selected data agent will work together with the custom AI agent to handle specific workflows.

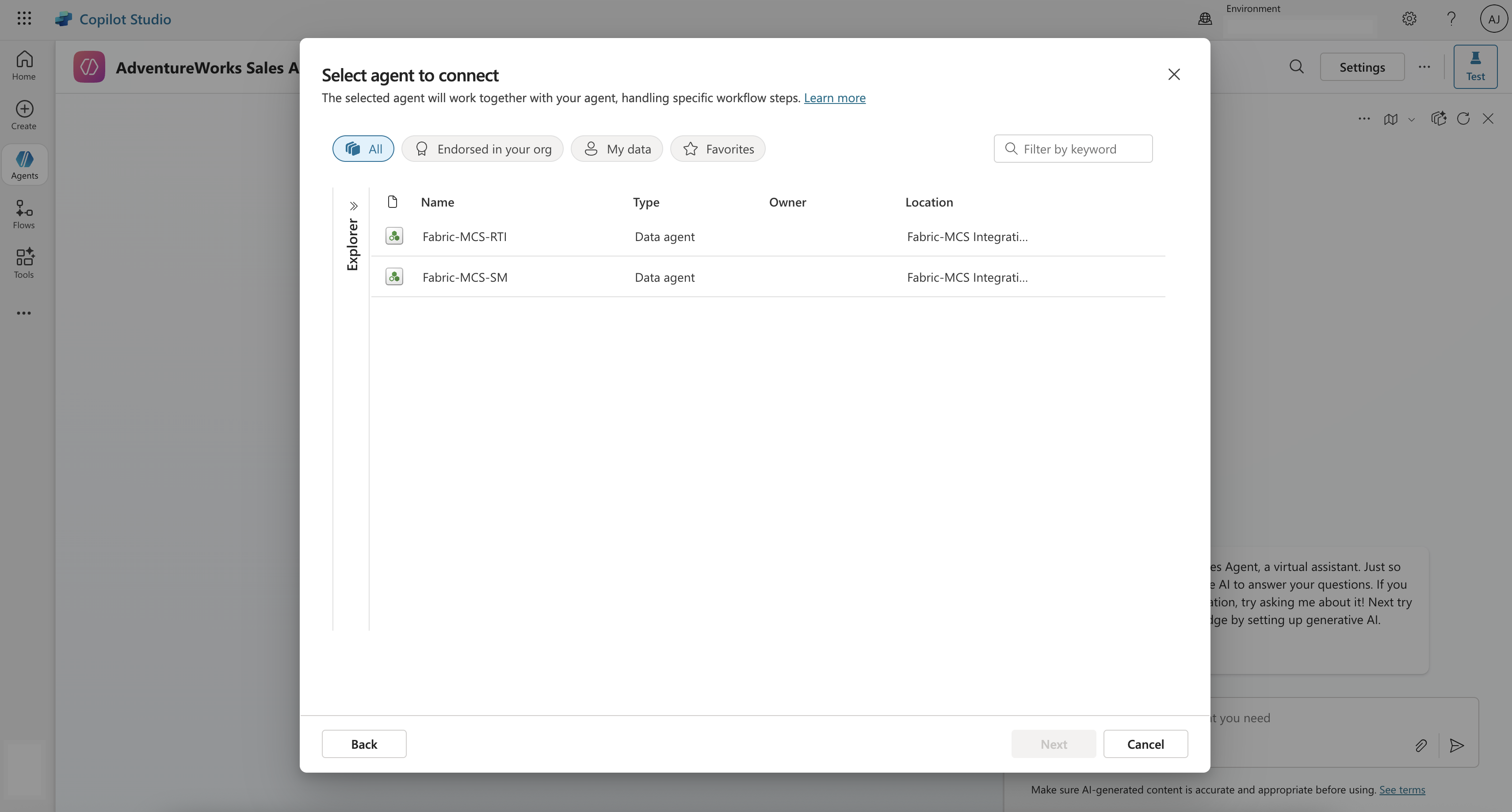

Screenshot showing the list of Fabric data agents.

  1. You can adjust the description for the Fabric data agent that you have selected and then select Add agent. This step will add the Fabric data agent to the custom AI agent in Microsoft Copilot Studio.

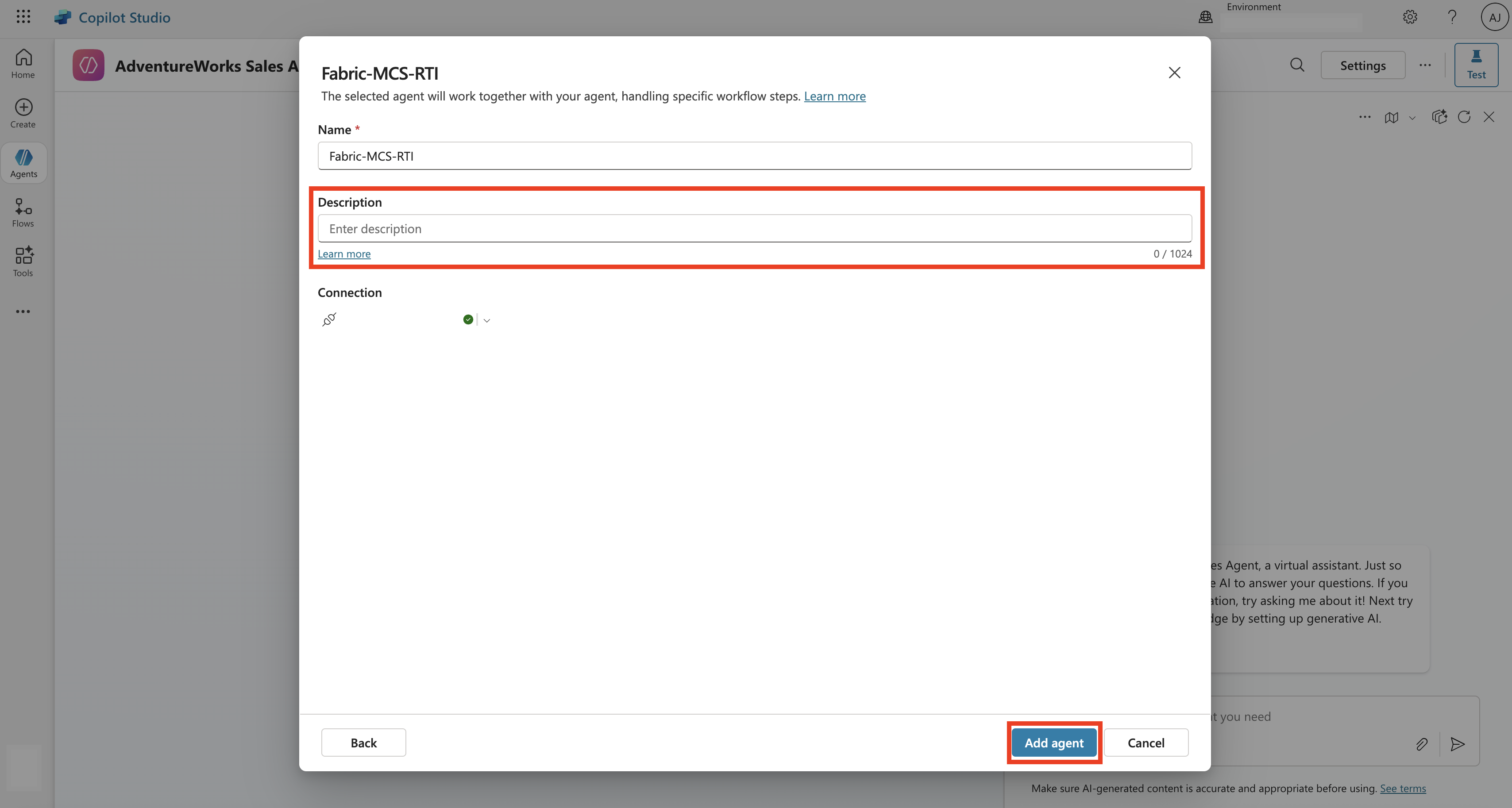

Screenshot showing the last step to add data agent to Copilot Studio.

  1. Once done, navigate back to the Agents from the top pane and you should see the Fabric data agent among the agents that are connected to the custom AI agent.

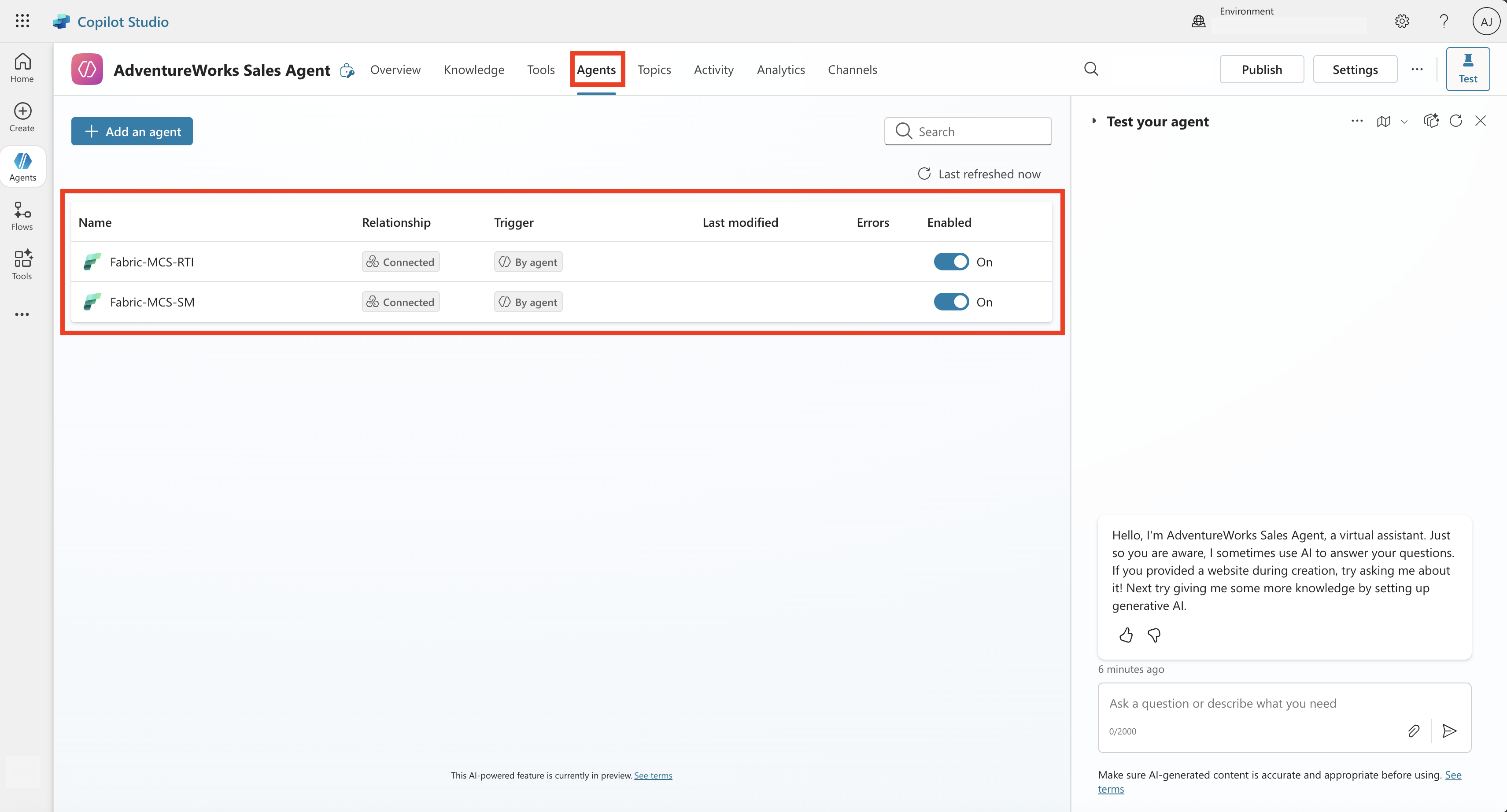

Screenshot showing the list of Fabric data agents added to Copilot Studio.

  1. Select the connected Fabric data agent. Under additional details, you can optionally decide the authentication of the Fabric data agent to be the User authentication or Agent author authentication. If you select User authentication as the authentication, you need to ensure that users have access to the Fabric data agent and its underlying data sources.

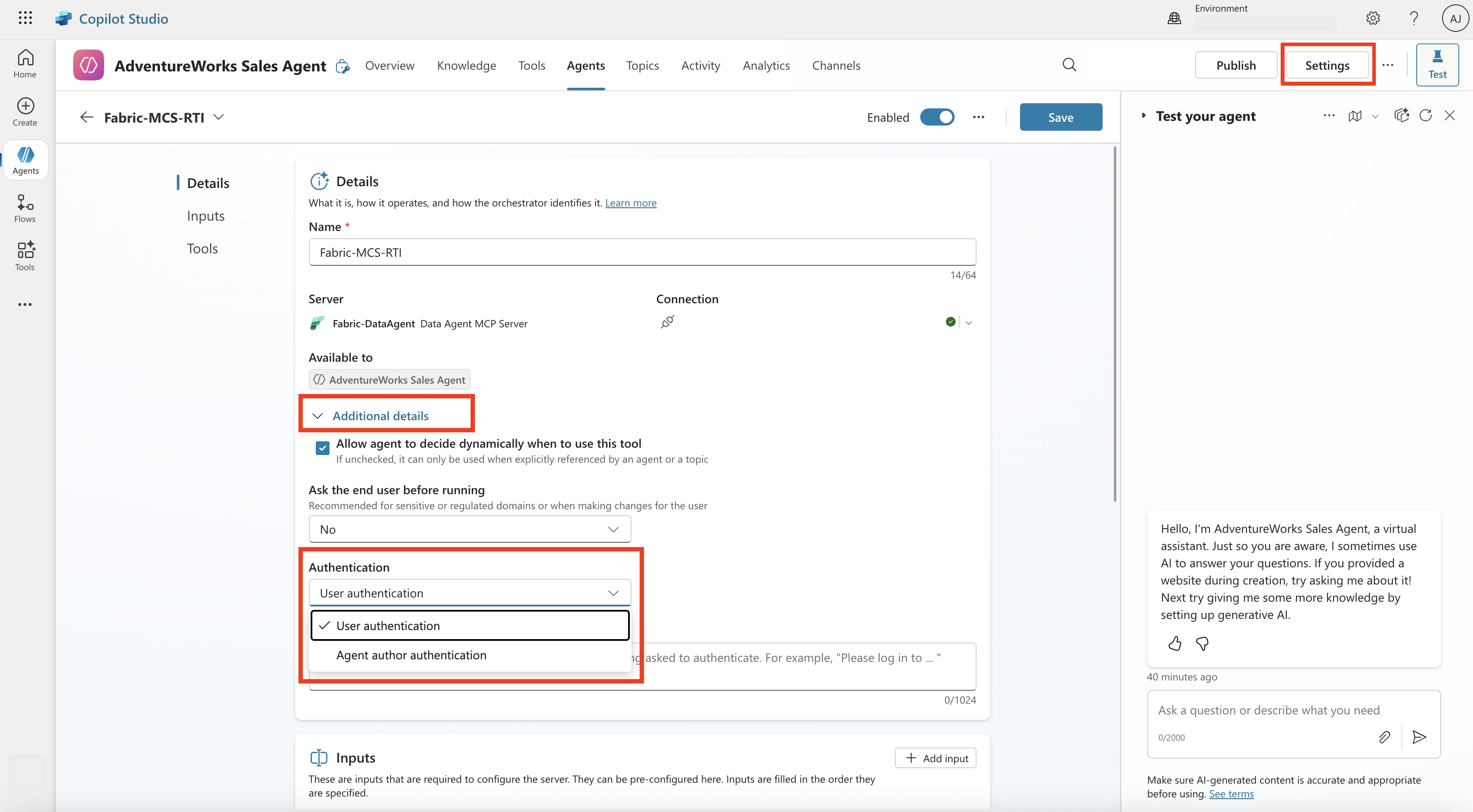

Screenshot showing the authentication for Fabric data agent in MCS.

  1. To further enhance the responsiveness of your custom AI agent, you can define how the agent responds to users through adding topics and trigger phrases.

  2. You could use the built-in test chat pane on the right to ask questions and get answers. This helps you to validate the performance of the custom AI agent to ensure it invokes the connected Fabric data agents to get answers and further fine-tune its behavior.

  3. Ensure that you have enabled generative AI orchestration. To do this, select Settings that is located on the top of the chat pane and under Orchestration, select the first one.

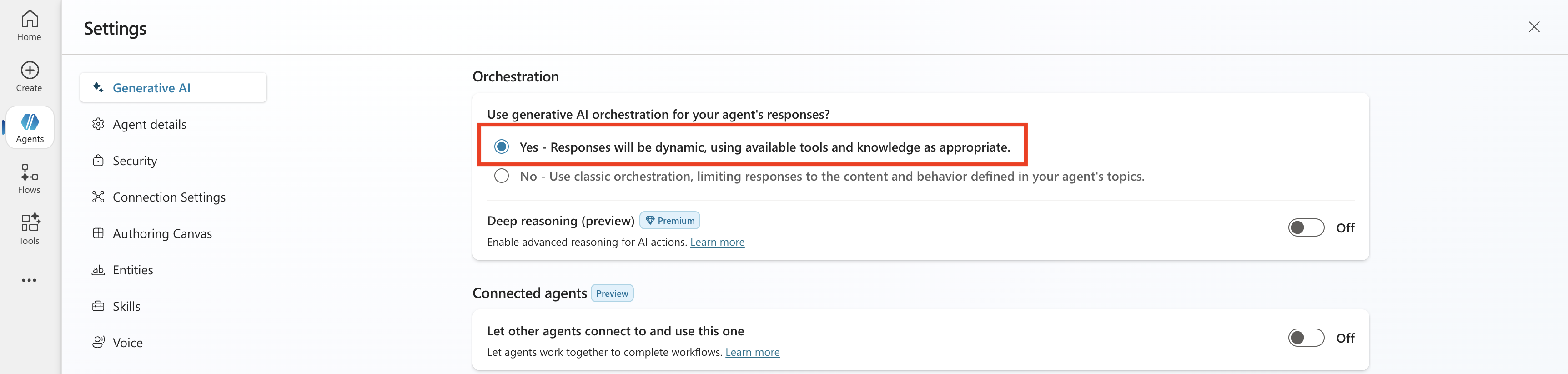

Screenshot showing the agent setting in MCS.

  1. You can publish the custom AI agent and then navigate to the Channels to select your desired consumption channel.

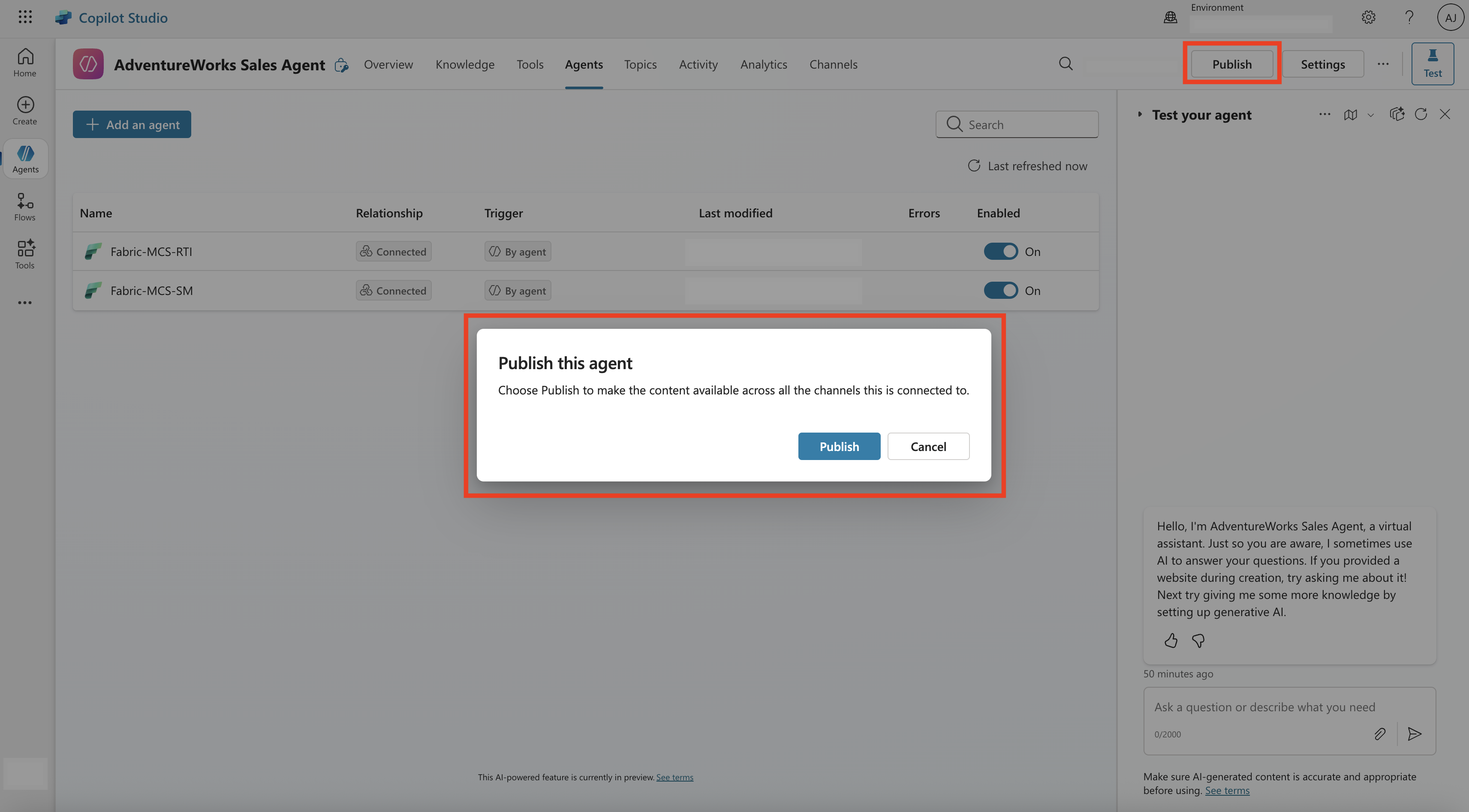

Screenshot showing to publish custom agent in MCS.

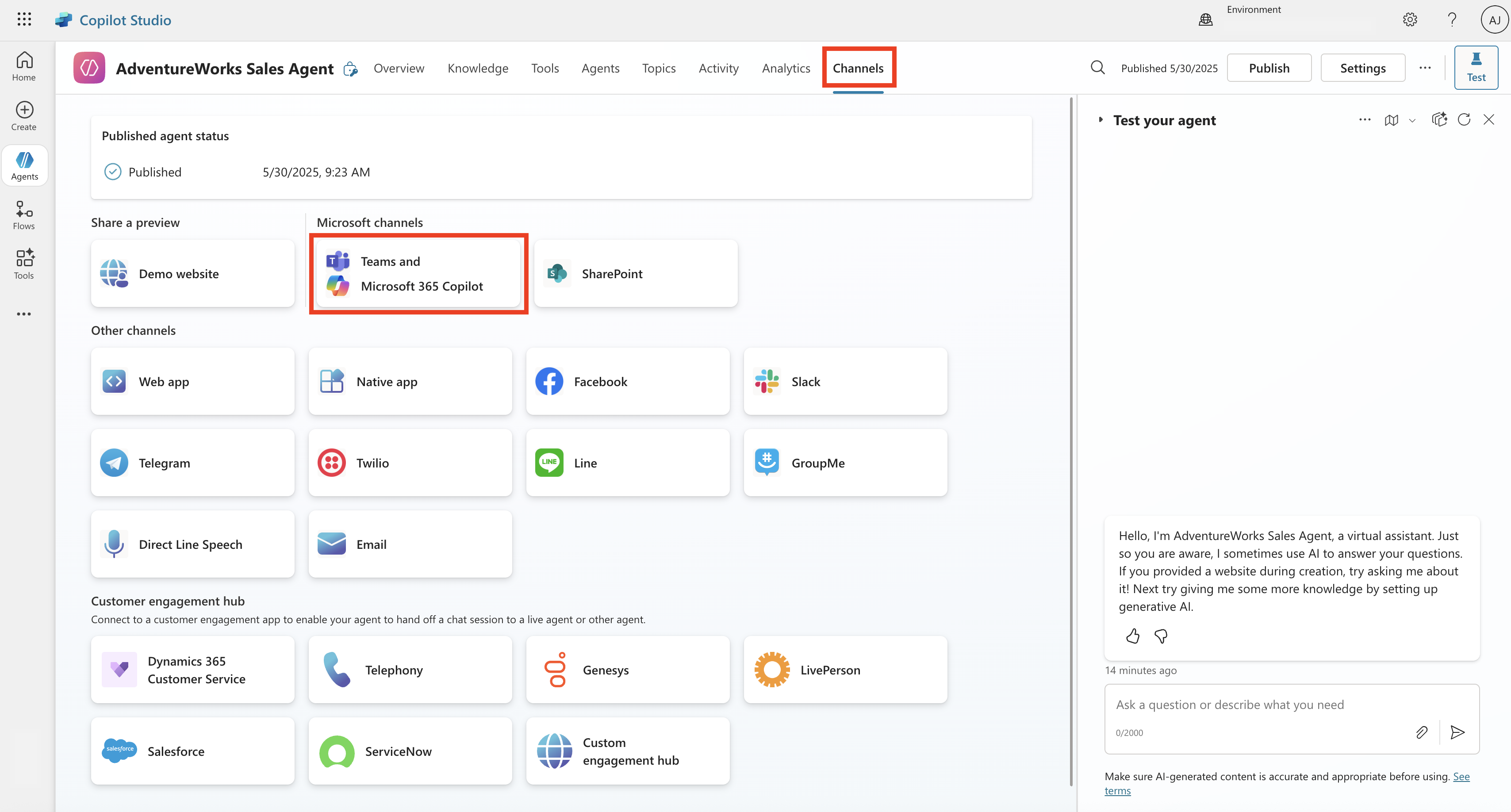

Screenshot showing the list of channel to which you can publish from Copilot Studio.

Note

The ability to use the custom agent with connected Fabric data agent is not currently supported in Microsoft 365 Copilot.

  1. To publish to Teams, select Teams and Microsoft 365 Copilot from the list of channels. This opens the window on left, select Add channel to enable this channel. Once done, the See agent in Teams will be active. You can select it which will prompt you to Microsoft Teams.

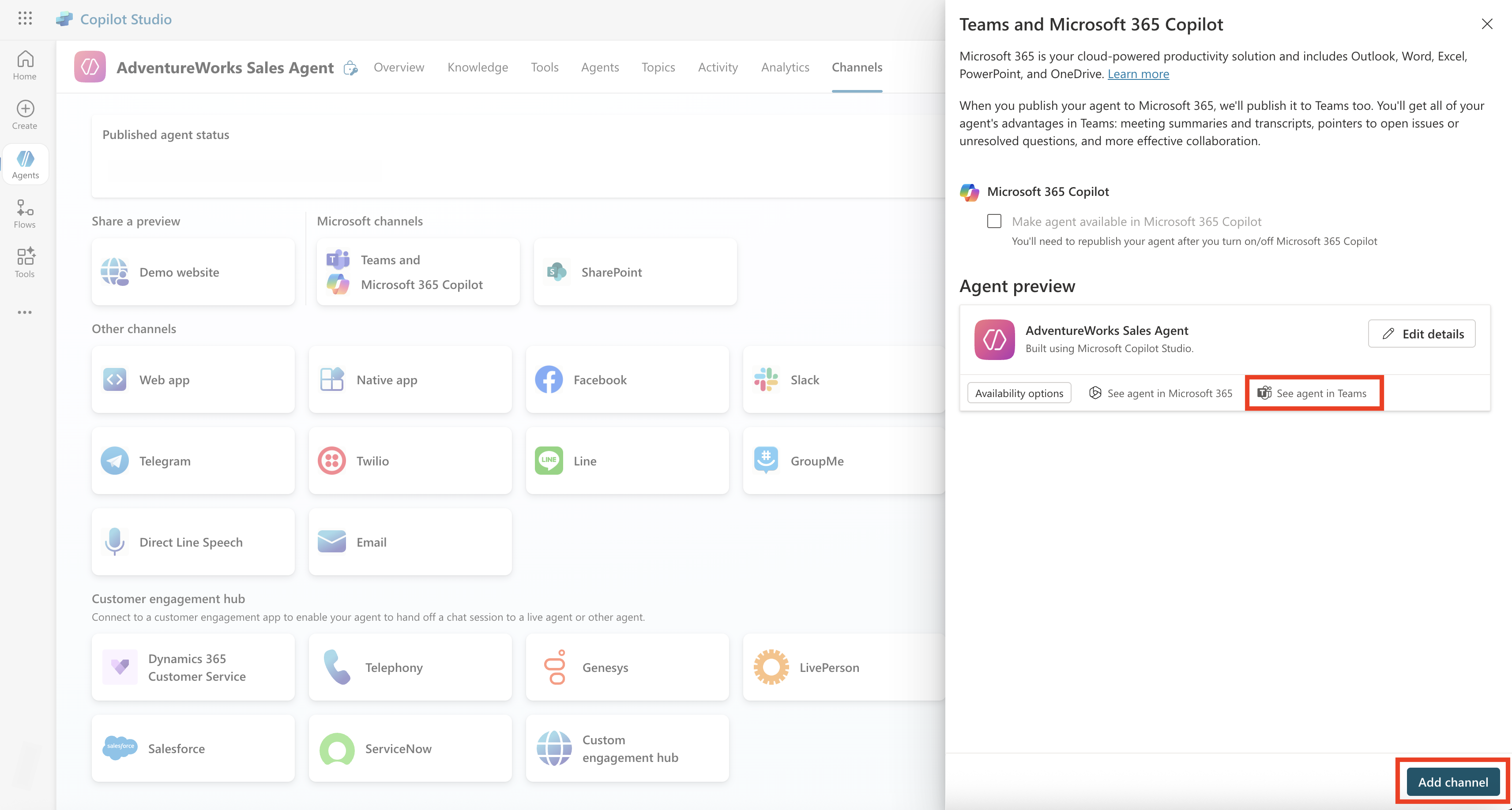

Screenshot showing the publish process to Teams.

  1. This will then launch Microsoft Teams where you will be able to ask questions from the custom AI agent and get answers.
