Virtual network TAP

2025-07-29

Azure virtual network TAP (Terminal Access Point) allows you to continuously stream your virtual machine network traffic to a network packet collector or analytics tool. The collector or analytics tool is provided by a network virtual appliance partner. For a list of partner solutions that are validated to work with virtual network TAP, see partner solutions.

Important

Virtual network TAP is now in public preview in select Azure regions. For more information, see the Supported Region section in this article.

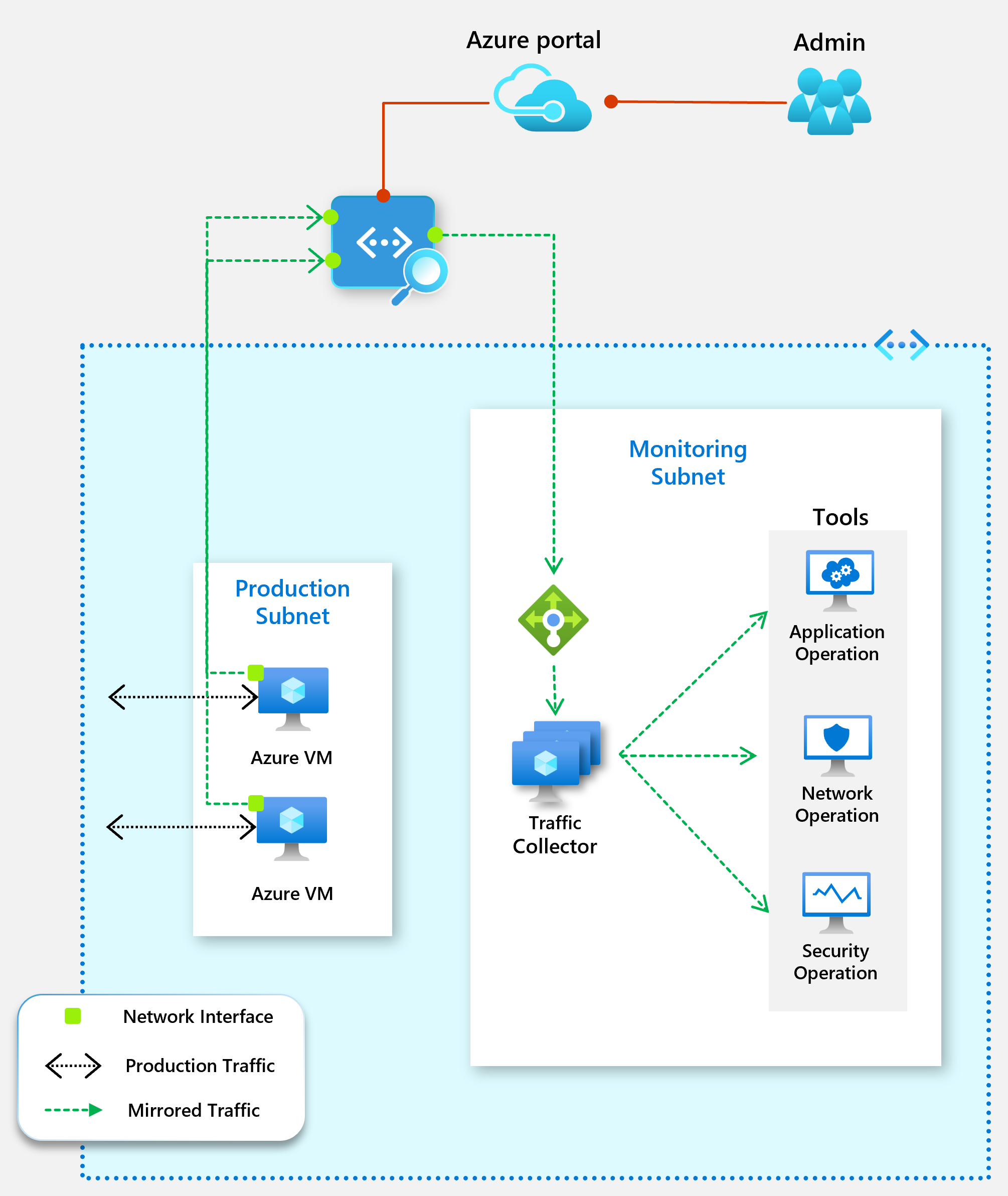

The following diagram shows how virtual network TAP works. You can add a TAP configuration on a network interface that is attached to a virtual machine deployed in your virtual network. The destination is a virtual network IP address in the same virtual network as the monitored network interface or a peered virtual network. The collector solution for virtual network TAP can be deployed behind an Azure Internal Load balancer for high availability.

Prerequisites

You must have one or more virtual machines created with Azure Resource Manager, and a partner solution for aggregating the TAP traffic in the same Azure region. If you don't have a partner solution in your virtual network, see partner solutions to deploy one.

You can use the same virtual network TAP resource to aggregate traffic from multiple network interfaces in the same or different subscriptions. If the monitored network interfaces are in different subscriptions, the subscriptions must be associated to the same Microsoft Entra tenant. Additionally, the monitored network interfaces, and the destination endpoint for aggregating the TAP traffic can be in peered virtual networks in the same region. If you're using this deployment model, ensure that the virtual network peering is enabled before you configure virtual network TAP.

Permissions

The accounts you use to apply TAP configuration on network interfaces must be assigned to the network contributor role or a custom role that is assigned as the necessary actions from the following table:

Action	Name
Microsoft.Network/virtualNetworkTaps/*	Required to create, update, read, and delete a virtual network TAP resource
Microsoft.Network/networkInterfaces/read	Required to read the network interface resource on which the TAP is configured
Microsoft.Network/tapConfigurations/*	Required to create, update, read, and delete the TAP configuration on a network interface

Public preview limitations

Please note, limitations tagged with [Temporary] will be resolved at GA.

Adding a source:

Virtual network TAP only supports virtual machine's (VM) network interface as a mirroring source.
[Temporary] v6 VM SKU aren't supported as a source.
[Temporary] Before adding a VM as a source, you must first deploy a virtual network TAP resource and then STOP (deallocate) and START the source VM. This is required only once for any VM that will be added as a source. If not done, you will get an erorr stating the NIC is not on fastpath.

Other Limitations

Virtual network TAP supports Load Balancer or VM's network interface as a destination resource for mirrored traffic.
[Temporary] Virtual network doesn't support Live Migration. Live Migration will be disabled for VMs set as a source.
[Temporary] VMs behind a Standard Load Balancer with Floating IP enabled can't be set as a mirroring source.
VMs behind Basic Load Balancer can't be set as a mirroring source. Basic Load Balancer is being deprecated.
Virtual network doesn't support mirroring of inbound Private Link Service traffic.
VMs in a virtual network with encryption enabled can't be set as mirroring source.
Virtual network TAP doesn't support IPv6.
[Temporary] When a VM is added or removed as a source, the VM might experience network downtime (up to 60 seconds).

Supported Regions

Asia East
US West Central

Coming soon

UK South
US East
