Upgrade existing Azure Gen1 VMs to Trusted launch

2025-07-31

Applies to: ✔️ Linux VM ✔️ Windows VM ✔️ Generation 1 VM

Azure Virtual Machines supports upgrading Generation 1 virtual machines (VM) to Generation 2 by upgrading to the Trusted launch security type.

Trusted launch is a way to enable foundational compute security on Azure Generation 2 VMs and protects against advanced and persistent attack techniques like boot kits and rootkits. It does so by combining infrastructure technologies like Secure Boot, virtual Trusted Platform Module (vTPM), and boot integrity monitoring on your VM.

Note

Support for Upgrade of Gen1 VMs to Gen2 without enabling Trusted launch is not supported.

Prerequisites

Azure VM is configured with:
- Trusted launch supported size family.
- Trusted launch supported operating system (OS) version (excluding Windows Server 2016, Debian, Azure Linux). For custom OS images or disks, the base image should be Trusted launch capable.
Azure VM isn't using features currently not supported with Trusted launch.
Azure Backup, if enabled, for VMs should be configured with the Enhanced Backup policy. The Trusted launch security type can't be enabled for VMs configured with Standard policy backup protection.
- Existing Azure VM backup can be migrated from the Standard to the Enhanced policy. Follow the steps in Migrate Azure VM backups from Standard to Enhanced policy.
Upgrade a test Gen1 VM to Trusted launch and determine if any changes are required to meet the prerequisites before you upgrade Gen1 VMs associated with production workloads to Trusted launch.
Disable any Windows OS volume encryption including BitLocker before upgrade if enabled. All Windows OS volume encryptions should be re-enabled post successful upgrade. This action isn't required for data disks or Linux OS volume.

Unsupported Gen1 VM configurations

Gen1 to Trusted launch VM upgrade is NOT supported if Gen1 VM is configured with:

Operating system: Windows Server 2016, Azure Linux, Debian, and any other operating system not listed under Trusted launch supported operating system (OS) version. For Windows Server 2016 only, workaround is to update the Guest OS to Windows Server 2019 or 2022.
VM size: Gen1 VM configured with VM size not listed under Trusted launch supported size families. As workaround, update the VM size to Trusted launch supported VM size family.
Azure Backup: Gen1 VM configured with Azure Backup using Standard policy. As workaround, migrate Gen1 VM backups from Standard to Enhanced policy.
BitLocker or equivalent encryption: Windows Gen1 VM guest OS volume is encrypted using BitLocker or equivalent encryption technology. As workaround, disable Windows OS volume encryption before upgrade and re-enable post successful completion of Trusted launch upgrade.

Best practices

Important

VM once upgraded to Trusted launch can't be rolled back to Gen1 configuration. It has to be fully recovered using Backup taken before upgrade.

Take full backup OR Create restore points for Azure VMs associated with production workloads before you enable the Trusted launch security type. You can use the backup OR restore points to re-create the disks and VM with the previous Gen1 configuration well-known state.
Review known issues and roll-back steps before executing Trusted launch upgrade.
You won't be able to extend Windows OS disk system volume after MBR to GPT conversion as part of upgrade. Recommendation is to extend system volume for future before upgrading to Trusted launch.
Windows OS disk volume should be defragmented using command Defrag C: /U /V. Defragmentation of OS volume reduces the risk of MBR (Master boot record) to GPT (GUID partition table) conversion failure by freeing up end of partitions. Refer to defrag.

Update Guest OS volume

Generation 2 VMs requires guest OS volume with following configurations:

GPT Disk layout: Guest OS volume of Gen1 VMs is mostly set to MBR and requires to be updated to GPT
EFI system partition: Guest OS volume of Gen1 VMs mostly doesn't include this partition.

Complete the update of OS volume with required configuration before upgrading Azure Gen1 VM to Trusted launch.

Important

Upgrade a test Gen1 VM to Trusted launch and determine if any changes are required to meet the prerequisites before you upgrade Gen1 VMs associated with production workloads to Trusted launch.

Windows
Linux

Using in-built MBR2GPT.exe utility, you can enable GPT disk layout AND add EFI system partition required for Gen2 upgrade.

Caution

You won't be able to extend Windows OS disk system volume after MBR to GPT conversion. Recommendation is to extend system volume for future before executing the upgrade.

Note

Windows Server 2016 doesn't support MBR2GPT.exe. Workaround is to update the Guest OS to Windows Server 2019 or 2022 and followed by MBR to GPT conversion. Refer to In-place upgrade for VMs running Windows Server in Azure.

Remotely connect (using RDP or command-line) to Gen1 Windows VM for executing conversion.
Run command MBR2GPT /validate /allowFullOS and ensure Disk layout validation completes successfully. Do not proceed if the Disk layout validation fails. Refer to Known issues for list of common causes and associated resolution for failure. For more information and troubleshooting, see MBR2GPT troubleshooting.

Run command MBR2GPT /convert /allowFullOS to execute MBR to GPT conversion. Sample successful output:

If conversion is successful the disk can only be booted in GPT mode.
These changes cannot be undone!

MBR2GPT: Attempting to convert disk 0
MBR2GPT: Retrieving layout of disk
MBR2GPT: Validating layout, disk sector size is: 512 bytes
MBR2GPT: Trying to shrink the OS partition
MBR2GPT: Creating the EFI system partition
MBR2GPT: Installing the new boot files
MBR2GPT: Performing the layout conversion
MBR2GPT: Migrating default boot entry
MBR2GPT: Adding recovery boot entry
MBR2GPT: Fixing drive letter mapping
MBR2GPT: Conversion completed successfully
MBR2GPT: Before the new system can boot properly you need to switch the firmware to boot to UEFI mode!

Important

Upgrade of existing Azure Gen1 Linux VMs to Trusted launch is only supported for VMs created using supported OS images published in Azure Marketplace (excluding Debian, Azure Linux).

Azure Gen1 Linux VMs created using endorsed distros (Canonical, RHEL, SUSE) images published in Azure Marketplace don't require any change in Guest OS volume. That is, they already have GPT disk layout and EFI system partition configured. For other Azure Gen1 Linux VMs requiring this upgrade support including Azure Linux & Debian, submit registration at Linux Gen1 to Trusted launch upgrade support.

Validate Guest OS volume readiness for Trusted launch upgrade with following commands. DO NOT proceed with Trusted launch upgrade if any of the validation step fails.

SSH or remotely connect to Gen1 Linux VM for executing validation commands.
Identify boot device and store in variable.
bootDevice=$(echo "/dev/$(sudo lsblk -no pkname $(sudo df /boot | awk 'NR==2 {print $1}'))")
Check disk type of boot device. Output of command should return gpt.
sudo blkid $bootDevice -o value -s PTTYPE
Validate if EFI system partition is available on boot volume. Output of command should return specific partition like \dev\sda3.
sudo fdisk -l $bootDevice | grep EFI | awk '{print $1}'
Validate EFI mountpoint is configured. Output of command should return /boot/efi present in /etc/fstab
sudo grep -qs '/boot/efi' /etc/fstab && echo '/boot/efi present in /etc/fstab' || echo '/boot/efi missing in /etc/fstab'

Upgrade Gen1 VM to Trusted launch

Note

vTPM is enabled by default.
Secure boot isn't enabled by default. We strongly recommend that you enable Secure Boot, if you aren't using custom unsigned kernel or drivers. Secure Boot preserves boot integrity and enables foundational security for VMs.

Make sure that you install the latest Azure PowerShell and are signed in to an Azure account with Connect-AzAccount.

Follow the steps to upgrade existing Gen1 VM to Gen2 and enable Trusted launch by using Azure PowerShell.

Connect-AzAccount -SubscriptionId 00000000-0000-0000-0000-000000000000

Deallocate the VM.

Stop-AzVM -ResourceGroupName myResourceGroup -Name myVm

Enable Trusted launch by setting -SecurityType to TrustedLaunch.

Get-AzVM -ResourceGroupName myResourceGroup -VMName myVm `
    | Update-AzVM -SecurityType TrustedLaunch `
        -EnableSecureBoot $true -EnableVtpm $true

Validate securityProfile in the updated VM configuration.

# Following command output should be `TrustedLaunch`

(Get-AzVM -ResourceGroupName myResourceGroup -VMName myVm `
    | Select-Object -Property SecurityProfile `
        -ExpandProperty SecurityProfile).SecurityProfile.SecurityType

# Following command output should return `SecureBoot` and `vTPM` settings
(Get-AzVM -ResourceGroupName myResourceGroup -VMName myVm `
    | Select-Object -Property SecurityProfile `
        -ExpandProperty SecurityProfile).SecurityProfile.Uefisettings

Start the VM.

Start-AzVM -ResourceGroupName myResourceGroup -Name myVm

Start the upgraded Trusted launch VM. Verify that you can sign in to the VM by using either RDP (for Windows VMs) or SSH (for Linux VMs).

Follow the steps to upgrade existing Gen1 VM to Gen2 and enable Trusted launch by using the Azure CLI.

Make sure that you install the latest Azure CLI and are signed in to an Azure account with az login.

az login

az account set --subscription 00000000-0000-0000-0000-000000000000

Deallocate the VM.

az vm deallocate \
   --resource-group myResourceGroup --name myVm

Enable Trusted launch by setting --security-type to TrustedLaunch.

az vm update \
    --resource-group myResourceGroup --name myVm \
    --security-type TrustedLaunch \
    --enable-secure-boot true --enable-vtpm true

Validate the output of the previous command. Ensure that the securityProfile configuration is returned with the command output.

{
  "securityProfile": {
    "securityType": "TrustedLaunch",
    "uefiSettings": {
      "secureBootEnabled": true,
      "vTpmEnabled": true
    }
  }
}

Start the VM.

az vm start \
    --resource-group myResourceGroup --name myVm

Start the upgraded Trusted launch VM. Verify that you can sign in to the VM by using either RDP (for Windows VMs) or SSH (for Linux VMs).

Follow the steps to enable Trusted launch on an existing Azure Generation 2 VM by using an ARM template.

An Azure Resource Manager template is a JavaScript Object Notation (JSON) file that defines the infrastructure and configuration for your project. The template uses declarative syntax. You describe your intended deployment without writing the sequence of programming commands to create the deployment.

Review the template.

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "vmsToUpgrade": {
            "type": "object",
            "metadata": {
                "description": "Specifies the list of Azure virtual machines to be upgraded to Trusted launch."
            }
        },
        "vTpmEnabled": {
            "type": "bool",
            "defaultValue": true,
            "metadata": {
                "description": "Specifies whether vTPM should be enabled on the virtual machine."
            }
        }
    },
    "resources": [
        {
            "type": "Microsoft.Compute/virtualMachines",
            "apiVersion": "2022-11-01",
            "name": "[parameters('vmsToUpgrade').virtualMachines[copyIndex()].vmName]",
            "location": "[parameters('vmsToUpgrade').virtualMachines[copyIndex()].location]",
            "properties": {
                "securityProfile": {
                    "uefiSettings": {
                        "secureBootEnabled": "[parameters('vmsToUpgrade').virtualMachines[copyIndex()].secureBootEnabled]",
                        "vTpmEnabled": "[parameters('vTpmEnabled')]"
                    },
                    "securityType": "TrustedLaunch"
                }
            },
            "copy": {
                "name": "vmCopy",
                "count": "[length(parameters('vmsToUpgrade').virtualMachines)]"
            }
        }
    ]
}

Edit the parameters JSON file with VMs to be updated with the TrustedLaunch security type.

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "vmsToUpgrade": {
            "value": {
                "virtualMachines": [
                    {
                        "vmName": "myVm01",
                        "location": "westus3",
                        "secureBootEnabled": true
                    },
                    {
                        "vmName": "myVm02",
                        "location": "westus3",
                        "secureBootEnabled": true
                    }
                ]
            }
        }
    }
}

Parameter file definition

Property	Description of property	Example template value
vmName	Name of Azure VM.	`myVm`
location	Location of Azure VM.	`westus3`
secureBootEnabled	Enable Secure Boot with the Trusted launch security type.	`true`

Deallocate all Azure VMs to be updated.

Stop-AzVM -ResourceGroupName myResourceGroup -Name myVm01

Run the ARM template deployment.

$resourceGroupName = "myResourceGroup"
$parameterFile = "folderPathToFile\parameters.json"
$templateFile = "folderPathToFile\template.json"

New-AzResourceGroupDeployment `
    -ResourceGroupName $resourceGroupName `
    -TemplateFile $templateFile -TemplateParameterFile $parameterFile

Screenshot that shows the Trusted launch properties of the VM.

Start the upgraded Trusted launch VM. Verify that you can sign in to the VM by using either RDP (for Windows VMs) or SSH (for Linux VMs).

Roll back

Azure VM once upgraded to Trusted launch can't be rolled back to Gen1 configuration. You can disable Trusted launch to roll-back VM from Trusted launch to Gen2 (Non-Trusted launch) configuration.

Use the Backup or Restore point of Gen1 VM taken before upgrade and restore entire VM along with disks to roll back fully to Gen1 VM.

Known issues

VM image reference doesn't change post Trusted launch upgrade

Post upgrade of Azure Gen1 VM to Trusted launch, the image reference still reflects source as Gen1 OS image. Image reference not updated is a known limitation.

This limitation does not impacts the VM or hosted application functionality post Trusted launch upgrade. Following VM operations are impacted due to disconnect between image reference and running OS:

Guest patching: For Server OS, Automatic guest patching installs updates based on the image reference of VM.
Reimage: Reimaging VM using Gen1 image reference post Trusted launch upgrade will cause VM boot failure.

Windows 11 boot fails after Trusted launch upgrade of Windows 10 VM

Windows 10 Gen1 VM is successfully upgraded to Trusted launch followed by successful Windows 11 in-place upgrade. However, the Windows 11 boot fails after Azure VM is stopped and started with error shown.

Resolution: This issue is fixed with 24H2 build version 26100.2314 and 23H2 build version 22631.5624.

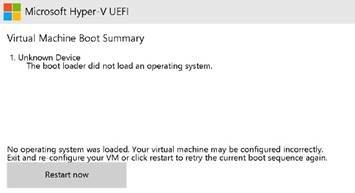

Screenshot that shows boot failure of Azure Windows VM.

[Windows] MBR to GPT conversion fails with error Cannot find room for the EFI system partition

This error occurs for one of following reason:

There's no free space available on the system volume
System volume is corrupted. You can validate by trying to Shrink Volume by few MBs under Disk Management console. Use command chkdsk C:/v/f to repair system volume.
Virtual Disk service isn't running or unable to communicate successfully. Service startup type should be set to Manual.
Optimize Drives service isn't running or unable to communicate successfully. Service startup type should be set to Manual.
System volume disk is already configured with four MBR partitions (maximum supported by MBR disk layout). You need to delete one of the partitions to make room for EFI system partition.
1. Run ReAgentc /info to identify partition actively used by Recovery. Example: Windows RE location: \\?\GLOBALROOT\device\harddisk0\partition4\Recovery\WindowsRE
2. Run PowerShell cmdlet Get-Partition -DiskNumber 0 to identify current partitions which are configured.
3. Run PowerShell cmdlet Remove-Partition -DiskNumber 0 -PartitionNumber X to remove any extra Recovery partition not actively used by Recovery service as identified in Step 1.

[Windows] MBR to GPT failed to update ReAgent.xml

For certain Windows OS versions like Windows 10, MBR2GPT generates pass-through error MBR2GPT: Failed to update ReAgent.xml, please try to manually disable and enable WinRE.

The warning indicates that MBR2GPT.exe was unable to update Recovery partition GUID in C:\Windows\System32\Recovery\ReAgent.xml. This issue shouldn't cause issue with Guest OS functionality or further upgrade operations like Windows 11 Upgrade to succeed or Windows 11 to work properly post Upgrade. ReAgent.xml is updated with correct GUID post Windows 11 upgrade, that is, if you don’t take any action between MBR2GPT conversion & Windows 11 upgrade, the GUID value in ReAgent.xml is synced with Windows recovery configuration.

To manually fix The warning, you can disable and re-enable WinRE post MBR2GPT conversion or post Gen1 to Trusted launch upgrade before Windows 11 upgrade using listed steps, these steps forces sync the WinRE GUID in ReAgent.xml

Complete Gen1 -> Trusted launch upgrade.
Run reagentc /disable
Run reagentc /enable
Run reagentc /info
Open C:\Windows\System32\Recovery\ReAgent.xml and validate BCD GUID in xml file is matching the output from Step 4.

[Windows] D Drive assigned to System Reserved Post upgrade

Temporary storage Drive letter assignment 'D' is changed to 'E' with previous letter assigned to System Reserved post-upgrade of Gen1 VM. Execute below steps manually post-upgrade to work around the issue:

After the upgrade check the disks on the server, if system reserved partition has the letter D, do the following actions:

Reconfigure pagefile from D: to C:
Reboot the VM
Remove letter D: from the partition
Reboot the VM to show the temporary storage disk with D: letter

Frequently asked questions

What if there is Generation 1 VMs, that doesn't fit the prerequisites for Trusted launch?

For a Generation 1 VM that doesn't meet the prerequisites to upgrade to Trusted launch, look how to fulfill the prerequisites. For example, If using a virtual machine size not supported, look for an equivalent Trusted launch supported size that supports Trusted launch.

Why is upgrade to Generation 2 only (without Trusted launch) not supported?

Trusted launch enables foundational compute security on Azure Generation 2 VMs with no extra cost associated. Also, Trusted launch VMs are majorly on parity with Generation 2 VMs. Hence, there's no added benefit for upgrading only to Generation 2 VM without enabling Trusted launch.

Refer to Deploy Trusted launch virtual machines for enabling Trusted launch on new virtual machine & scale set deployments.
Refer to boot integrity monitoring for enabling boot integrity monitoring and monitor the health of the VM by using Microsoft Defender for Cloud.
Learn more about Trusted launch and review frequently asked questions.

Share via

Upgrade existing Azure Gen1 VMs to Trusted launch

Prerequisites

Unsupported Gen1 VM configurations

Best practices

Update Guest OS volume

Upgrade Gen1 VM to Trusted launch

Roll back

Known issues

VM image reference doesn't change post Trusted launch upgrade

Windows 11 boot fails after Trusted launch upgrade of Windows 10 VM

[Windows] MBR to GPT conversion fails with error Cannot find room for the EFI system partition

[Windows] MBR to GPT failed to update ReAgent.xml

[Windows] D Drive assigned to System Reserved Post upgrade

Frequently asked questions

Related content

Feedback

Additional resources
