Service Connector simplifies the process of connecting Azure services together. When you use Service Connector to create a connection, Service Connector configures the authentication between these Azure services.
Service Connector uses Azure's role-based access control (RBAC) authorization system that provides access management to Azure resources.
This article provides a summary of the roles assigned by Service Connector by default, and explains how to choose a different role.
Built-in roles
By default, when you select an authentication type from this list, Service Connector assigns the managed identity the roles listed in the table that follows.
- System-assigned managed identity
- User-assigned managed identity
- Workload identity
- Service principal
| Target services | Built-in roles | Description | ID |
|---|---|---|---|
| Azure Cosmos DB | DocumentDB Account Contributor | Can manage Azure Cosmos DB accounts. Azure Cosmos DB is formerly known as DocumentDB. | 5bd9cd88-fe45-4216-938b-f97437e15450 |
| Azure Key Vault | Key Vault Secrets User | Read secret contents. Only works for key vaults that use the 'Azure role-based access control' permission model. | 4633458b-17de-408a-b874-0445c86b69e6 |
| Key Vault Certificate User | Read certificate contents. Only works for key vaults that use the 'Azure role-based access control' permission model. | db79e9a7-68ee-4b58-9aeb-b90e7c24fcba | |
| Azure Blob Storage | Storage Blob Data Contributor | Read, write, and delete Azure Storage containers and blobs. | ba92f5b4-2d11-453d-a403-e96b0029c9fe |
| Azure Storage Queue | Storage Queue Data Contributor | Read, write, and delete Azure Storage queues and queue messages. | 974c5e8b-45b9-4653-ba55-5f855dd0fb88 |
| Azure Storage Table | Storage Table Data Contributor | Read, write, and delete access to Azure Storage tables and entities. | 0a9a7e1f-b9d0-4cc4-a60d-0319b160aaa3 |
| Azure Event Hubs | Azure Event Hubs Data Receiver | Allows receive access to Azure Event Hubs resources. | a638d3c7-ab3a-418d-83e6-5f17a39d4fde |
| Azure Event Hubs Data Sender | Allows send access to Azure Event Hubs resources. | 2b629674-e913-4c01-ae53-ef4638d8f975 | |
| Azure App Configuration | App Configuration Data Reader | Allows read access to App Configuration data. | 516239f1-63e1-4d78-a4de-a74fb236a071 |
| Azure Service Bus | Service Bus Data Receiver | Allows for receive access to Azure Service Bus resources. | 4f6d3b9b-027b-4f4c-9142-0e5a2a2247e0 |
| Service Bus Data Sender | Allows for send access to Azure Service Bus resources. | 69a216fc-b8fb-44d8-bc22-1f3c2cd27a39 | |
| Azure SignalR | SignalR Service Owner | Full access to Azure SignalR Service REST APIs. | 7e4f1700-ea5a-4f59-8f37-079cfe29dce3 |
| Azure WebPubSub | SignalR/Web PubSub Contributor | Create, Read, Update, and Delete SignalR service resources. | 8cf5e20a-e4b2-4e9d-b3a1-5ceb692c2761 |
| Azure OpenAI Service | Cognitive Services OpenAI Contributor | Full access including the ability to fine-tune, deploy, and generate text. | a001fd3d-188f-4b5d-821b-7da978bf7442 |
| Azure Cognitive Service | Cognitive Services User | Lets you read and list keys of Cognitive Services. | a97b65f3-24c7-4388-baec-2e87135dc908 |
For more information about these roles, see Azure built-in roles.
Role customization

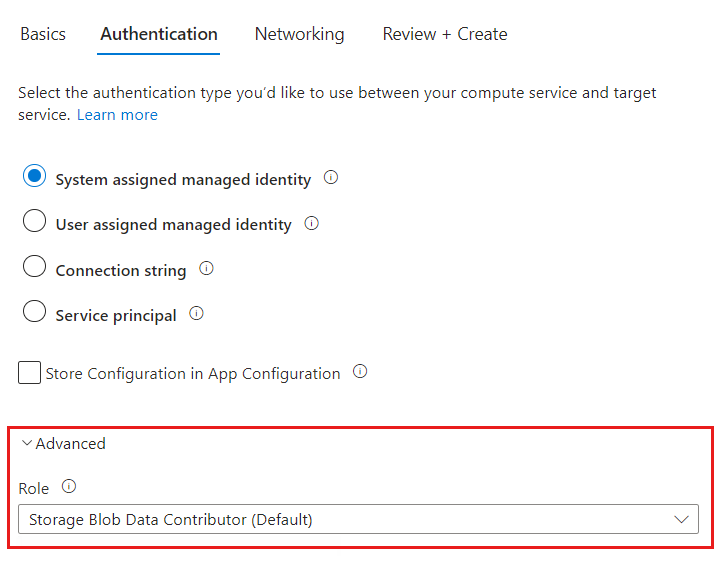

When you create a new connection in Service connector, you can choose roles other than the default ones. Choose roles in the Azure portal in the Service Connector menu. In the Authentication tab, select Advanced > Role.
