Tutorial: Log network traffic to and from a virtual network using the Azure portal

Virtual network flow logging is a feature of Azure Network Watcher that allows you to log information about IP traffic flowing through an Azure virtual network. For more information about virtual network flow logging, see Virtual network flow logs.

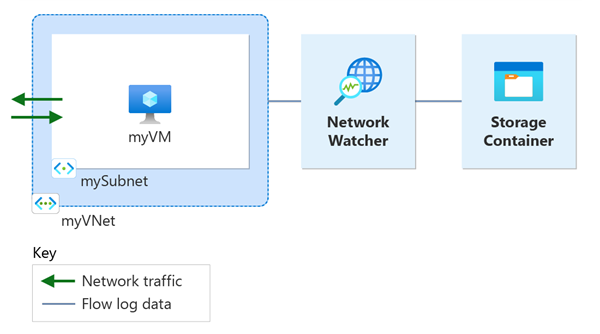

This tutorial helps you use VNet flow logs to log a virtual machine's network traffic that flows through the virtual network.

In this tutorial, you learn how to:

Prerequisites

• An Azure account with an active subscription. If you don't have one, create a free account before you begin.

Create a virtual network

In this section, you create myVNet virtual network with one subnet for the virtual machine.

1. Sign in to the Azure portal.

2. In the search box at the top of the portal, enter virtual networks. Select Virtual networks from the search results.



3. Select + Create. In Create virtual network, enter or select the following values in the Basics tab:

   Setting	Value
   Project details
   Subscription	Select your Azure subscription.
   Resource Group	Select Create new. Enter myResourceGroup in Name. Select OK.
   Instance details
   Name	Enter myVNet.
   Region	Select (US) East US.

4. Select Review + create.

5. Review the settings, and then select Create.

Create a virtual machine

In this section, you create myVM virtual machine.

1. In the search box at the top of the portal, enter virtual machines. Select Virtual machines from the search results.

2. Select + Create and then select Virtual machine.

3. In Create a virtual machine, enter or select the following values in the Basics tab:

   Setting	Value
   Project Details
   Subscription	Select your Azure subscription.
   Resource Group	Select myResourceGroup.
   Instance details
   Virtual machine name	Enter myVM.
   Region	Select (US) East US.
   Availability Options	Select No infrastructure redundancy required.
   Security type	Select Standard.
   Image	Select the image that you prefer. This tutorial uses Windows Server 2022 Datacenter: Azure Edition - x64 Gen2.
   Size	Choose a VM size or leave the default setting.
   Administrator account
   Username	Enter a username.
   Password	Enter a password.
   Confirm password	Reenter password.

4. Select the Networking tab, or select Next: Disks, then Next: Networking.

5. In the Networking tab, select the following values:

   Setting	Value
   Network interface
   Virtual network	Select myVNet.
   Subnet	Select mySubnet.
   Public IP	Select (new) myVM-ip.
   NIC network security group	Select Basic.
   Public inbound ports	Select Allow selected ports.
   Select inbound ports	Select RDP (3389).

   Caution

   Leaving the RDP port open to the internet is only recommended for testing. For production environments, it's recommended to restrict access to the RDP port to a specific IP address or range of IP addresses. You can also block internet access to the RDP port and use Azure Bastion to securely connect to your virtual machine from the Azure portal.

6. Select Review + create.

7. Review the settings, and then select Create.

8. Once the deployment is complete, select Go to resource to go to the Overview page of myVM.

9. Select Connect then select RDP.

10. Select Download RDP File and open the downloaded file.

11. Select Connect and then enter the username and password that you created in the previous steps. Accept the certificate if prompted.

Register Insights provider

Flow logging requires the Microsoft.Insights provider. To check its status, follow these steps:

1. In the search box at the top of the portal, enter subscriptions. Select Subscriptions from the search results.

2. Select the Azure subscription that you want to enable the provider for in Subscriptions.

3. Under Settings, select Resource providers.

4. Enter insight in the filter box.

5. Confirm the status of the provider displayed is Registered. If the status is NotRegistered, select the Microsoft.Insights provider then select Register.



Create a storage account

In this section, you create a storage account to use it to store the flow logs.

1. In the search box at the top of the portal, enter storage accounts. Select Storage accounts from the search results.

2. Select + Create. In Create a storage account, enter or select the following values in the Basics tab:

   Setting	Value
   Project details
   Subscription	Select your Azure subscription.
   Resource Group	Select myResourceGroup.
   Instance details
   Storage account name	Enter a unique name. This tutorial uses nwteststorageaccount.
   Region	Select (US) East US. The storage account must be in the same region as the virtual machine and its network security group.
   Primary service	Select Azure Blob Storage or Azure Data Lake Storage Gen 2.
   Performance	Select Standard. Flow logs only support Standard-tier storage accounts.
   Redundancy	Select the redundancy you prefer. This tutorial uses Locally-redundant storage (LRS).

3. Select the Review tab or select the Review button at the bottom.

4. Review the settings, and then select Create.

Create a flow log

In this section, you create a virtual network flow log that's saved into the storage account created previously in the tutorial.

1. In the search box at the top of the portal, enter network watcher. Select Network Watcher from the search results.

2. Under Logs, select Flow logs.

3. In Network Watcher | Flow logs, select + Create or Create flow log blue button.

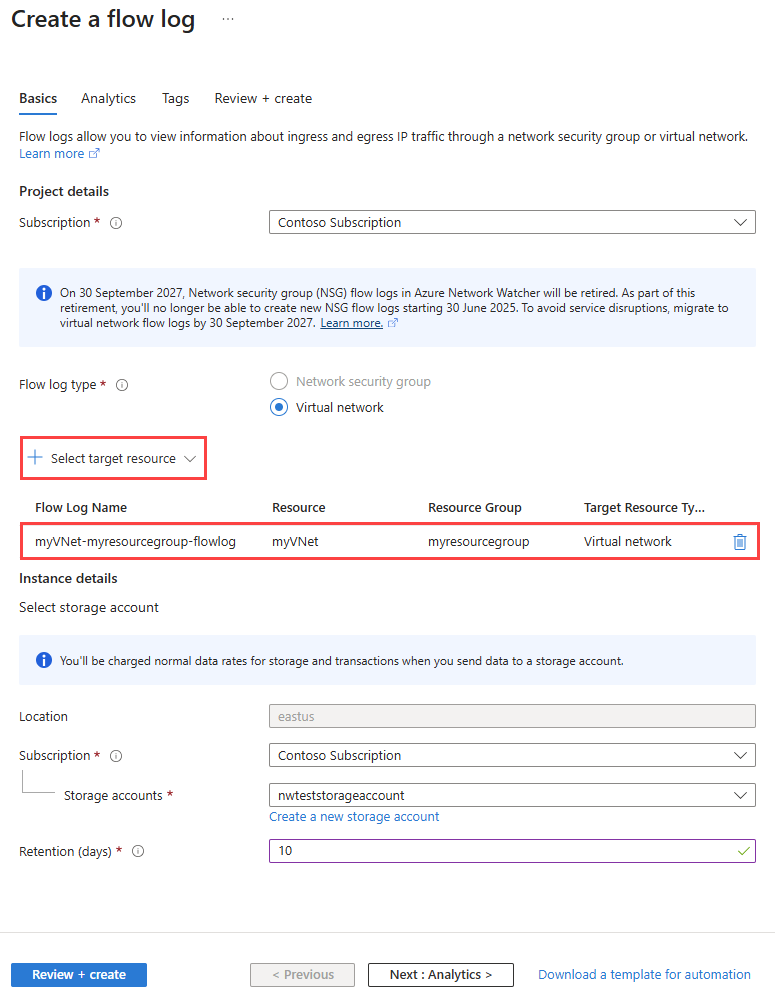

4. Enter or select the following values in Create a flow log:

   Setting	Value
   Project details
   Subscription	Select the Azure subscription of your network security group that you want to log.
   Flow log type	Select Virtual network.
   Virtual Network	Select + Select target resource. In Select virtual network, select myVNet. Then, select Confirm selection.
   Flow Log Name	Leave the default of myVNet-myresourcegroup-flowlog.
   Instance details
   Subscription	Select the Azure subscription of your storage account.
   Storage accounts	Select the storage account you created in the previous steps.
   Retention (days)	Enter 10 to retain the flow logs data in the storage account for 10 days. To keep the flow logs data in the storage account forever (until you delete it), enter 0. For information about storage pricing, see Azure Storage pricing.



   Note

   The Azure portal creates virtual network flow logs in the NetworkWatcherRG resource group.

5. Select Review + create.

6. Review the settings, and then select Create.

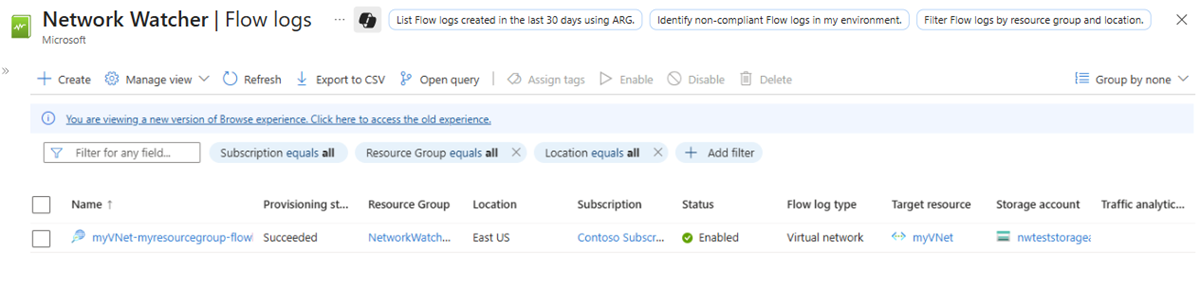

7. Once the deployment is complete, select Go to resource to confirm the flow log created and listed in the Flow logs page.



8. Go back to your RDP session with myVM virtual machine.

9. Open Microsoft Edge and go to www.bing.com.

Download the flow log

In this section, you go to the storage account you previously selected and download the flow log created in the previous section.

1. In the search box at the top of the portal, enter storage accounts. Select Storage accounts from the search results.

2. Select nwteststorageaccount or the storage account you previously created and selected to store the logs.

3. Under Data storage, select Containers.

4. Select the insights-logs-flowlogflowevent container.

5. In the container, navigate the folder hierarchy until you get to the PT1H.json file that you want to download. Virtual network flow log files follow the following path::

   https://{storageAccountName}.blob.core.windows.net/insights-logs-flowlogflowevent/flowLogResourceID=/{subscriptionID}_NETWORKWATCHERRG/NETWORKWATCHER_{Region}_{ResourceName}-{ResourceGroupName}-FLOWLOGS/y={year}/m={month}/d={day}/h={hour}/m=00/macAddress={macAddress}/PT1H.json

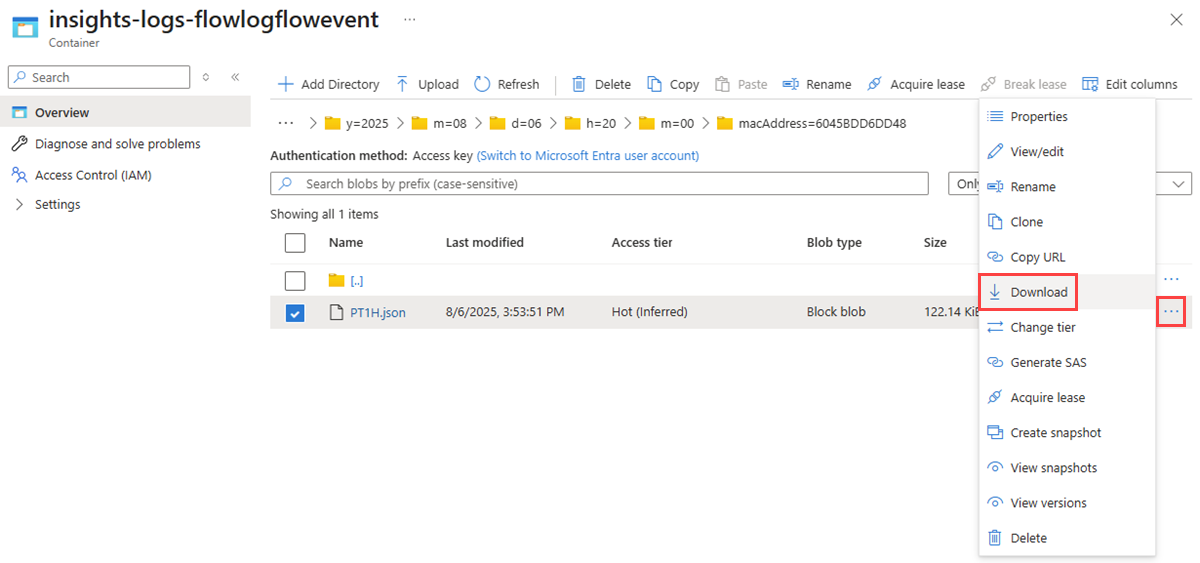

6. Select the ellipsis ... to the right of the PT1H.json file, then select Download.



View the flow log

Open the downloaded PT1H.json file using a text editor of your choice. The following example is a section taken from the downloaded PT1H.json file, which shows a flow processed by the rule DefaultRule_AllowInternetOutBound.

{
    "time": "2025-08-06T20:39:33.3186341Z",
    "flowLogGUID": "00000000-0000-0000-0000-000000000000",
    "macAddress": "6045BDD6DD48",
    "category": "FlowLogFlowEvent",
    "resourceId": "/SUBSCRIPTIONS/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e//RESOURCEGROUPS/NETWORKWATCHERRG/PROVIDERS/MICROSOFT.NETWORK/NETWORKWATCHERS/NETWORKWATCHER_EASTUS/FLOWLOGS/MYVNET-MYRESOURCEGROUP-FLOWLOG",
	"flowLogVersion": 4,
    "operationName": "FlowLogFlowEvent",
    "flowRecords": {
        "flows": [
            {
				"aclID": "00000000-0000-0000-0000-000000000000",
				"flowGroups": [
					{
                        "rule": "DefaultRule_AllowInternetOutBound",
                        "flowTuples": [
                            "1754512773,10.0.0.4,13.107.21.200,49982,443,6,O,C,NX,7,1158,12,8143"
                        ]
                    }
                ]
            }
        ]
    }
}

The comma-separated information for flowTuples is as follows:

Clean up resources

When no longer needed, delete myResourceGroup resource group and all of the resources it contains:

1. In the search box at the top of the portal, enter myResourceGroup. Select myResourceGroup from the search results.

2. Select Delete resource group.

3. In Delete a resource group, enter myResourceGroup, and then select Delete.

4. Select Delete to confirm the deletion of the resource group and all its resources.
