Tutorial: Secure your virtual hub using Azure PowerShell

In this tutorial, you create a Virtual WAN instance with a Virtual Hub in one region, and you deploy an Azure Firewall in the Virtual Hub to secure connectivity. In this example, you demonstrate secure connectivity between Virtual Networks. Traffic between virtual networks and site-to-site, point-to-site, or ExpressRoute branches are supported by Virtual Secure Hub as well.

In this tutorial, you learn how to:

Prerequisites

• If you don't have an Azure subscription, create a free account before you begin.

• PowerShell 7 or higher

  This tutorial requires that you run Azure PowerShell locally on PowerShell 7 or higher. To install PowerShell 7, see Migrating from Windows PowerShell 5.1 to PowerShell 7.

• "Az.Network" module version must be 4.17.0 or higher.

Sign in to Azure

Connect-AzAccount
Select-AzSubscription -Subscription "<sub name>"

Initial Virtual WAN deployment

To begin, you need to set variables and create the resource group, the virtual WAN instance, and the virtual hub:

# Variable definition
$RG = "vwan-rg"
$Location = "westeurope"
$VwanName = "vwan"
$HubName =  "hub1"
$FirewallTier = "Standard" # or "Premium"

# Create Resource Group, Virtual WAN and Virtual Hub using the New-AzVirtualWan and New-AzVirtualHub cmdlets
New-AzResourceGroup -Name $RG -Location $Location
$Vwan = New-AzVirtualWan -Name $VwanName -ResourceGroupName $RG -Location $Location -AllowVnetToVnetTraffic -AllowBranchToBranchTraffic -VirtualWANType "Standard"
$Hub = New-AzVirtualHub -Name $HubName -ResourceGroupName $RG -VirtualWan $Vwan -Location $Location -AddressPrefix "192.168.1.0/24" -Sku "Standard"

• Create two virtual networks and connect them to the hub as spokes using the New-AzVirtualHubVnetConnection cmdlet. The virtual networks are created with the address prefixes 10.1.1.0/24 and 10.1.2.0/24.

# Create Virtual Network
$Spoke1 = New-AzVirtualNetwork -Name "spoke1" -ResourceGroupName $RG -Location $Location -AddressPrefix "10.1.1.0/24"
$Spoke2 = New-AzVirtualNetwork -Name "spoke2" -ResourceGroupName $RG -Location $Location -AddressPrefix "10.1.2.0/24"
# Connect Virtual Network to Virtual WAN
$Spoke1Connection = New-AzVirtualHubVnetConnection -ResourceGroupName $RG -ParentResourceName  $HubName -Name "spoke1" -RemoteVirtualNetwork $Spoke1 -EnableInternetSecurityFlag $True
$Spoke2Connection = New-AzVirtualHubVnetConnection -ResourceGroupName $RG -ParentResourceName  $HubName -Name "spoke2" -RemoteVirtualNetwork $Spoke2 -EnableInternetSecurityFlag $True

At this stage, your Virtual WAN is fully operational and provides any-to-any connectivity. To secure this environment, deploy an Azure Firewall in each Virtual Hub. You can centrally manage these firewalls using Firewall Policies.

In this example, you'll also create a firewall policy to manage the Azure Firewall instance in the Virtual WAN hub using the New-AzFirewallPolicy cmdlet. The Azure Firewall will be deployed in the hub using the New-AzFirewall cmdlet.

# New Firewall Policy
$FWPolicy = New-AzFirewallPolicy -Name "VwanFwPolicy" -ResourceGroupName $RG -Location $Location
# New Firewall Public IP
$AzFWPIPs = New-AzFirewallHubPublicIpAddress -Count 1
$AzFWHubIPs = New-AzFirewallHubIpAddress -PublicIP $AzFWPIPs
# New Firewall
$AzFW = New-AzFirewall -Name "azfw1" -ResourceGroupName $RG -Location $Location `
            -VirtualHubId $Hub.Id -FirewallPolicyId $FWPolicy.Id `
            -SkuName "AZFW_Hub" -HubIPAddress $AzFWHubIPs `
            -SkuTier $FirewallTier

Enabling logging from Azure Firewall to Azure Monitor is optional. In this example, you use firewall logs to verify that traffic is passing through the firewall. First, create a Log Analytics workspace to store the logs. Then, use the Set-AzDiagnosticSetting cmdlet to configure diagnostic settings and send the logs to the workspace.

# Optionally, enable logging of Azure Firewall to Azure Monitor
$LogWSName = "vwan-" + (Get-Random -Maximum 99999) + "-" + $RG
$LogWS = New-AzOperationalInsightsWorkspace -Location $Location -Name $LogWSName -Sku Standard -ResourceGroupName $RG
Set-AzDiagnosticSetting -ResourceId $AzFW.Id -Enabled $True -Category AzureFirewallApplicationRule, AzureFirewallNetworkRule -WorkspaceId $LogWS.ResourceId

Deploy Azure Firewall and configure custom routing

Now you have an Azure Firewall in the hub, but you still need to modify routing so the Virtual WAN sends the traffic from the virtual networks and from the branches through the firewall. You do this in two steps:

1. Configure all virtual network connections (and branch connections if there were any) to propagate to the None Route Table. The effect of this configuration is that other virtual networks and branches won't learn their prefixes, and so has no routing to reach them.
2. Now you can insert static routes in the Default Route Table (where all virtual networks and branches are associated by default), so that all traffic is sent to the Azure Firewall.

Begin by configuring your virtual network connections to propagate to the None Route Table. This step ensures that the virtual networks do not learn each other's address prefixes, preventing direct communication between them. As a result, all inter-virtual network traffic must pass through the Azure Firewall.

To do this, use the Get-AzVhubRouteTable cmdlet to retrieve the None Route Table, and then update each virtual network connection's routing configuration with the Update-AzVirtualHubVnetConnection cmdlet.

# Configure Virtual Network connections in hub to propagate to None
$VnetRoutingConfig = $Spoke1Connection.RoutingConfiguration    # We take $Spoke1Connection as baseline for the future vnet config, all vnets will have an identical config
$NoneRT = Get-AzVhubRouteTable -ResourceGroupName $RG -HubName $HubName -Name "noneRouteTable"
$NewPropRT = @{}
$NewPropRT.Add('Id', $NoneRT.Id)
$PropRTList = @()
$PropRTList += $NewPropRT
$VnetRoutingConfig.PropagatedRouteTables.Ids = $PropRTList
$VnetRoutingConfig.PropagatedRouteTables.Labels = @()
$Spoke1Connection = Update-AzVirtualHubVnetConnection -ResourceGroupName $RG -ParentResourceName  $HubName -Name "spoke1" -RoutingConfiguration $VnetRoutingConfig
$Spoke2Connection = Update-AzVirtualHubVnetConnection -ResourceGroupName $RG -ParentResourceName  $HubName -Name "spoke2" -RoutingConfiguration $VnetRoutingConfig

Next, proceed to the second step: adding static routes to the Default route table. The following example uses the default configuration that Azure Firewall Manager applies when securing connectivity in a Virtual WAN. You can customize the list of prefixes in the static route as needed by using the New-AzVHubRoute cmdlet. In this example, all traffic is routed through the Azure Firewall, which is the recommended default.

# Create static routes in default Route table
$AzFWId = $(Get-AzVirtualHub -ResourceGroupName $RG -name  $HubName).AzureFirewall.Id
$AzFWRoute = New-AzVHubRoute -Name "all_traffic" -Destination @("0.0.0.0/0", "10.0.0.0/8", "172.16.0.0/12", "192.168.0.0/16") -DestinationType "CIDR" -NextHop $AzFWId -NextHopType "ResourceId"
$DefaultRT = Update-AzVHubRouteTable -Name "defaultRouteTable" -ResourceGroupName $RG -VirtualHubName  $HubName -Route @($AzFWRoute)

Enabling routing intent

If you want to send inter-hub and inter-region traffic via Azure Firewall deployed in the Virtual WAN hub, you can instead enable the routing intent feature. For more information on routing intent, see Routing Intent documentation.

# Get the Azure Firewall resource ID
$AzFWId = $(Get-AzVirtualHub -ResourceGroupName <thname> -name  $HubName).AzureFirewall.Id

# Create routing policy and routing intent
$policy1 = New-AzRoutingPolicy -Name "PrivateTraffic" -Destination @("PrivateTraffic") -NextHop $firewall.Id
$policy2 = New-AzRoutingPolicy -Name "PublicTraffic" -Destination @("Internet") -NextHop $firewall.Id
New-AzRoutingIntent -ResourceGroupName "<rgname>" -VirtualHubName "<hubname>" -Name "hubRoutingIntent" -RoutingPolicy @($policy1, $policy2)
If your Virtual WAN uses non-RFC1918 address prefixes (for example, `40.0.0.0/24` in a virtual network or on-premises), you should add an extra route to the `defaultRouteTable` after completing the routing intent configuration. Name this route **private_traffic**. If you use a different name, the route will work as expected, but the configuration will not be reflected in the Azure portal.

```azurepowershell-interactive
# Get the defaultRouteTable
$defaultRouteTable = Get-AzVHubRouteTable -ResourceGroupName routingIntent-Demo -HubName wus_hub1 -Name defaultRouteTable

# Get the routes automatically created by routing intent. If private routing policy is enabled, this is the route named _policy_PrivateTraffic. If internet routing policy is enabled, this is the route named _policy_InternetTraffic.
$privatepolicyroute = $defaultRouteTable.Routes[1]


# Create new route named private_traffic for non-RFC1918 prefixes
$private_traffic = New-AzVHubRoute -Name "private-traffic" -Destination @("30.0.0.0/24") -DestinationType "CIDR" -NextHop $AzFWId -NextHopType ResourceId

# Create new routes for route table
$newroutes = @($privatepolicyroute, $private_traffic)

# Update route table
Update-AzVHubRouteTable -ResourceGroupName <rgname> -ParentResourceName <hubname> -Name defaultRouteTable -Route $newroutes

Test connectivity

Now that your secure hub is fully operational, you can test connectivity by deploying a virtual machine in each spoke virtual network connected to the hub:

# Create VMs in spokes for testing
$VMLocalAdminUser = "lab-user"
$VMLocalAdminSecurePassword = ConvertTo-SecureString -AsPlainText -Force
$VMCredential = New-Object System.Management.Automation.PSCredential ($VMLocalAdminUser, $VMLocalAdminSecurePassword);
$VMSize = "Standard_B2ms"
# Spoke1
$Spoke1 = Get-AzVirtualNetwork -ResourceGroupName $RG -Name "spoke1"
Add-AzVirtualNetworkSubnetConfig -Name "vm" -VirtualNetwork $Spoke1 -AddressPrefix "10.1.1.0/26"
$Spoke1 | Set-AzVirtualNetwork
$VM1 = New-AzVM -Name "spoke1-vm" -ResourceGroupName $RG -Location $Location `
            -Image "UbuntuLTS" -credential $VMCredential `
            -VirtualNetworkName "spoke1" -SubnetName "vm" -PublicIpAddressName "spoke1-pip"
$NIC1 = Get-AzNetworkInterface -ResourceId $($VM1.NetworkProfile.NetworkInterfaces[0].Id)
$Spoke1VMPrivateIP = $NIC1.IpConfigurations[0].PrivateIpAddress
$Spoke1VMPIP = $(Get-AzPublicIpAddress -ResourceGroupName $RG -Name "spoke1-pip")
# Spoke2
$Spoke2 = Get-AzVirtualNetwork -ResourceGroupName $RG -Name "spoke2"
Add-AzVirtualNetworkSubnetConfig -Name "vm" -VirtualNetwork $Spoke2 -AddressPrefix "10.1.2.0/26"
$Spoke2 | Set-AzVirtualNetwork
$VM2 = New-AzVM -Name "spoke2-vm" -ResourceGroupName $RG -Location $Location `
            -Image "UbuntuLTS" -credential $VMCredential `
            -VirtualNetworkName "spoke2" -SubnetName "vm" -PublicIpAddressName "spoke2-pip"
$NIC2 = Get-AzNetworkInterface -ResourceId $($VM2.NetworkProfile.NetworkInterfaces[0].Id)
$Spoke2VMPrivateIP = $NIC2.IpConfigurations[0].PrivateIpAddress
$Spoke2VMPIP = $(Get-AzPublicIpAddress -ResourceGroupName $RG -Name "spoke2-pip")

By default, the firewall policy blocks all traffic. To allow access to your test virtual machines, you must configure DNAT (Destination Network Address Translation) rules. These rules will enable you to connect to the VMs through the Azure Firewall's public IP address:

# Adding DNAT rules for virtual machines in the spokes
$AzFWPublicAddress = $AzFW.HubIPAddresses.PublicIPs.Addresses[0].Address
$NATRuleSpoke1 = New-AzFirewallPolicyNatRule -Name "Spoke1SSH" -Protocol "TCP" `
        -SourceAddress "*" -DestinationAddress $AzFWPublicAddress -DestinationPort 10001 `
        -TranslatedAddress $Spoke1VMPrivateIP -TranslatedPort 22
$NATRuleSpoke2 = New-AzFirewallPolicyNatRule -Name "Spoke2SSH" -Protocol "TCP" `
        -SourceAddress "*" -DestinationAddress $AzFWPublicAddress -DestinationPort 10002 `
        -TranslatedAddress $Spoke2VMPrivateIP -TranslatedPort 22
$NATCollection = New-AzFirewallPolicyNatRuleCollection -Name "SSH" -Priority 100 `
        -Rule @($NATRuleSpoke1, $NATRuleSpoke2) -ActionType "Dnat"
$NATGroup = New-AzFirewallPolicyRuleCollectionGroup -Name "NAT" -Priority 100 -RuleCollection $NATCollection -FirewallPolicyObject $FWPolicy

Next, configure example rules for your firewall policy. First, create a network rule to allow SSH traffic between the virtual networks. Then, add an application rule to permit Internet access only to the Fully Qualified Domain Name (FQDN) ifconfig.co, which returns the source IP address seen in the HTTP request:

# Add Network Rule
$SSHRule = New-AzFirewallPolicyNetworkRule -Name PermitSSH -Protocol TCP `
        -SourceAddress "10.0.0.0/8" -DestinationAddress "10.0.0.0/8" -DestinationPort 22
$NetCollection = New-AzFirewallPolicyFilterRuleCollection -Name "Management" -Priority 100 -ActionType Allow -Rule $SSHRule
$NetGroup = New-AzFirewallPolicyRuleCollectionGroup -Name "Management" -Priority 200 -RuleCollection $NetCollection -FirewallPolicyObject $FWPolicy
# Add Application Rule
$ifconfigRule = New-AzFirewallPolicyApplicationRule -Name PermitIfconfig -SourceAddress "10.0.0.0/8" -TargetFqdn "ifconfig.co" -Protocol "http:80","https:443"
$AppCollection = New-AzFirewallPolicyFilterRuleCollection -Name "TargetURLs" -Priority 300 -ActionType Allow -Rule $ifconfigRule
$NetGroup = New-AzFirewallPolicyRuleCollectionGroup -Name "TargetURLs" -Priority 300 -RuleCollection $AppCollection -FirewallPolicyObject $FWPolicy

Before sending any traffic, check the effective routes for each virtual machine. The route tables should show the prefixes learned from the Virtual WAN (0.0.0.0/0 and RFC1918 ranges), but should not include the address prefix of the other spoke virtual network.

# Check effective routes in the VM NIC in spoke 1
# Note that 10.1.2.0/24 (the prefix for spoke2) should not appear
Get-AzEffectiveRouteTable -ResourceGroupName $RG -NetworkInterfaceName $NIC1.Name | ft
# Check effective routes in the VM NIC in spoke 2
# Note that 10.1.1.0/24 (the prefix for spoke1) should not appear
Get-AzEffectiveRouteTable -ResourceGroupName $RG -NetworkInterfaceName $NIC2.Name | ft

Generate traffic from one virtual machine to the other and verify that it is filtered by Azure Firewall. Use SSH to connect to the virtual machines—accept the SSH fingerprint and enter the password you set during VM creation. In this example, you will:

• Send five ICMP echo requests (pings) from the VM in spoke1 to the VM in spoke2.
• Attempt a TCP connection on port 22 using the nc (netcat) utility with the -vz flags, which checks connectivity without sending data.

You should observe that the ping requests fail (blocked by the firewall), while the TCP connection on port 22 succeeds, as allowed by the previously configured network rule.

# Connect to one VM and ping the other. It should not work, because the firewall should drop the traffic, since no rule for ICMP is configured
ssh $AzFWPublicAddress -p 10001 -l $VMLocalAdminUser "ping $Spoke2VMPrivateIP -c 5"
# Connect to one VM and send a TCP request on port 22 to the other. It should work, because the firewall is configured to allow SSH traffic (port 22)
ssh $AzFWPublicAddress -p 10001 -l $VMLocalAdminUser "nc -vz $Spoke2VMPrivateIP 22"

You can also test Internet access through the firewall. HTTP requests using the curl utility to the allowed FQDN (ifconfig.co) should succeed, while requests to other destinations (such as bing.com) should be blocked by the firewall policy:

# This HTTP request should succeed, since it is allowed in an app rule in the AzFW, and return the public IP of the FW
ssh $AzFWPublicAddress -p 10001 -l $VMLocalAdminUser "curl -s4 ifconfig.co"
# This HTTP request should fail, since the FQDN bing.com is not in any app rule in the firewall policy
ssh $AzFWPublicAddress -p 10001 -l $VMLocalAdminUser "curl -s4 bing.com"

To confirm that the firewall is dropping packets as expected, review the logs sent to Azure Monitor. Since Azure Firewall is configured to send diagnostic logs to Azure Monitor, you can use Kusto Query Language (KQL) to query and analyze the relevant log entries:

# Getting Azure Firewall network rule Logs
$LogWS = Get-AzOperationalInsightsWorkspace -ResourceGroupName $RG
$LogQuery = 'AzureDiagnostics
| where Category == "AzureFirewallNetworkRule"
| where TimeGenerated >= ago(5m)
| parse msg_s with Protocol " request from " SourceIP ":" SourcePortInt:int " to " TargetIP ":" TargetPortInt:int *
| parse msg_s with * ". Action: " Action1a
| parse msg_s with * " was " Action1b " to " NatDestination
| parse msg_s with Protocol2 " request from " SourceIP2 " to " TargetIP2 ". Action: " Action2
| extend SourcePort = tostring(SourcePortInt),TargetPort = tostring(TargetPortInt)
| extend Action = case(Action1a == "", case(Action1b == "",Action2,Action1b), Action1a),Protocol = case(Protocol == "", Protocol2, Protocol),SourceIP = case(SourceIP == "", SourceIP2, SourceIP),TargetIP = case(TargetIP == "", TargetIP2, TargetIP),SourcePort = case(SourcePort == "", "N/A", SourcePort),TargetPort = case(TargetPort == "", "N/A", TargetPort),NatDestination = case(NatDestination == "", "N/A", NatDestination)
| project TimeGenerated, Protocol, SourceIP,SourcePort,TargetIP,TargetPort,Action, NatDestination, Resource
| take 25 '
$(Invoke-AzOperationalInsightsQuery -Workspace $LogWS -Query $LogQuery).Results | ft

In the previous command you should see different entries:

• Your SSH connection being DNAT'ed
• Dropped ICMP packets between the VMs in the spokes (10.1.1.4 and 10.1.2.4)
• Allowed SSH connections between the VMs in the spokes

Here a sample output produced by the command above:

TimeGenerated            Protocol    SourceIP       SourcePort TargetIP      TargetPort Action  NatDestination Resource
-------------            --------    --------       ---------- --------      ---------- ------  -------------- --------
2020-10-04T20:53:02.41Z  TCP         109.125.122.99 62281      51.105.224.44 10001      DNAT'ed 10.1.1.4:22    AZFW1
2020-10-04T20:53:07.045Z TCP         10.1.1.4       35932      10.1.2.4      22         Allow   N/A            AZFW1
2020-10-04T20:53:50.119Z TCP         109.125.122.99 62293      51.105.224.44 10001      DNAT'ed 10.1.2.4:22    AZFW1
2020-10-04T20:52:47.475Z TCP         109.125.122.99 62273      51.105.224.44 10001      DNAT'ed 10.1.2.4:22    AZFW1
2020-10-04T20:51:04.682Z TCP         109.125.122.99 62200      51.105.224.44 10001      DNAT'ed 10.1.2.4:22    AZFW1
2020-10-04T20:51:17.031Z ICMP Type=8 10.1.1.4       N/A        10.1.2.4      N/A        Deny    N/A            AZFW1
2020-10-04T20:51:18.049Z ICMP Type=8 10.1.1.4       N/A        10.1.2.4      N/A        Deny    N/A            AZFW1
2020-10-04T20:51:19.075Z ICMP Type=8 10.1.1.4       N/A        10.1.2.4      N/A        Deny    N/A            AZFW1
2020-10-04T20:51:20.097Z ICMP Type=8 10.1.1.4       N/A        10.1.2.4      N/A        Deny    N/A            AZFW1
2020-10-04T20:51:21.121Z ICMP Type=8 10.1.1.4       N/A        10.1.2.4      N/A        Deny    N/A            AZFW1
2020-10-04T20:52:52.356Z TCP         10.1.1.4       53748      10.1.2.4      22         Allow   N/A            AZFW1

If you want to see the logs for the application rules (describing allowed and denied HTTP connections) or change the way that the logs are displayed, you can try with other KQL queries. You can find some examples in Azure Monitor logs for Azure Firewall.

To clean up the test environment, delete the resource group and all associated resources by using the Remove-AzResourceGroup cmdlet. This will remove the Virtual WAN, Virtual Hub, Azure Firewall, and any other resources created during this tutorial.

# Delete resource group and all contained resources
Remove-AzResourceGroup -Name $RG

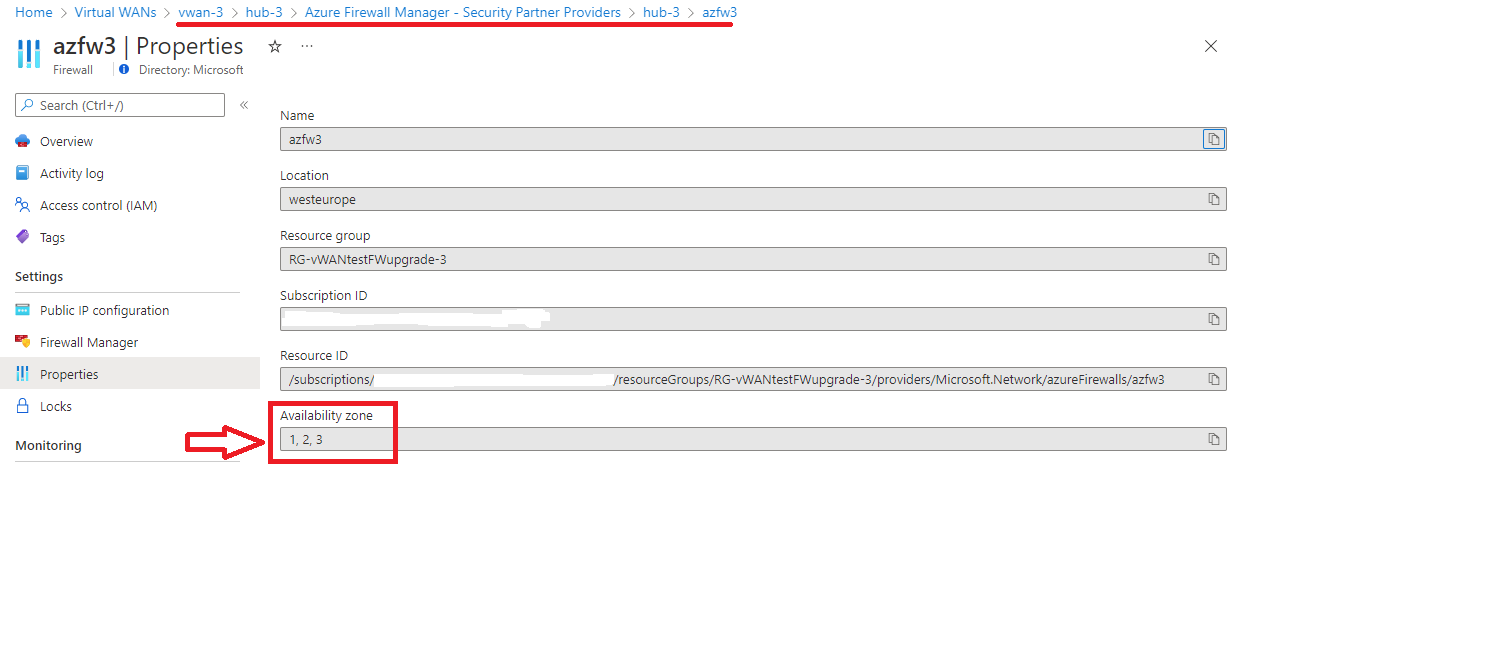

Deploy a new Azure Firewall with availability zones to an existing hub

The previous steps showed how to use Azure PowerShell to create a new Azure Virtual WAN Hub and secure it with Azure Firewall. You can also secure an existing Azure Virtual WAN Hub using a similar script-based approach. While Firewall Manager can convert a hub to a Secured Hub, it does not support deploying Azure Firewall across availability zones through the portal. To deploy Azure Firewall in all three availability zones, use the following PowerShell script to convert your existing Virtual WAN Hub to a Secured Hub.

# Variable definition
$RG = "vwan-rg"
$Location = "westeurope"
$VwanName = "vwan"
$HubName =  "hub1"
$FirewallName = "azfw1"
$FirewallTier = "Standard" # or "Premium"
$FirewallPolicyName = "VwanFwPolicy"

# Get references to vWAN and vWAN Hub to convert #
$Vwan = Get-AzVirtualWan -ResourceGroupName $RG -Name $VwanName
$Hub = Get-AzVirtualHub -ResourceGroupName  $RG -Name $HubName

# Create a new Firewall Policy #
$FWPolicy = New-AzFirewallPolicy -Name $FirewallPolicyName -ResourceGroupName $RG -Location $Location

# Create a new Firewall Public IP #
$AzFWPIPs = New-AzFirewallHubPublicIpAddress -Count 1
$AzFWHubIPs = New-AzFirewallHubIpAddress -PublicIP $AzFWPIPs

# Create Firewall instance #
$AzFW = New-AzFirewall -Name $FirewallName -ResourceGroupName $RG -Location $Location `
            -VirtualHubId $Hub.Id -FirewallPolicyId $FWPolicy.Id `
            -SkuName "AZFW_Hub" -HubIPAddress $AzFWHubIPs `
            -SkuTier $FirewallTier `
            -Zone 1,2,3

After you run this script, availability zones should appear in the secured hub properties as shown in the following screenshot:

After deploying Azure Firewall, you must complete the configuration steps outlined in the earlier Deploy Azure Firewall and configure custom routing section to ensure proper routing and security.

Next steps
