Publish events to Azure Event Grid custom topics using access keys

This article provides guidance on how to publish events to Azure Event Grid custom topics using access keys. You learn about the required endpoint format, authentication headers, event schema, and how to send sample events.

The Service Level Agreement (SLA) only applies to posts that match the expected format.

Endpoint

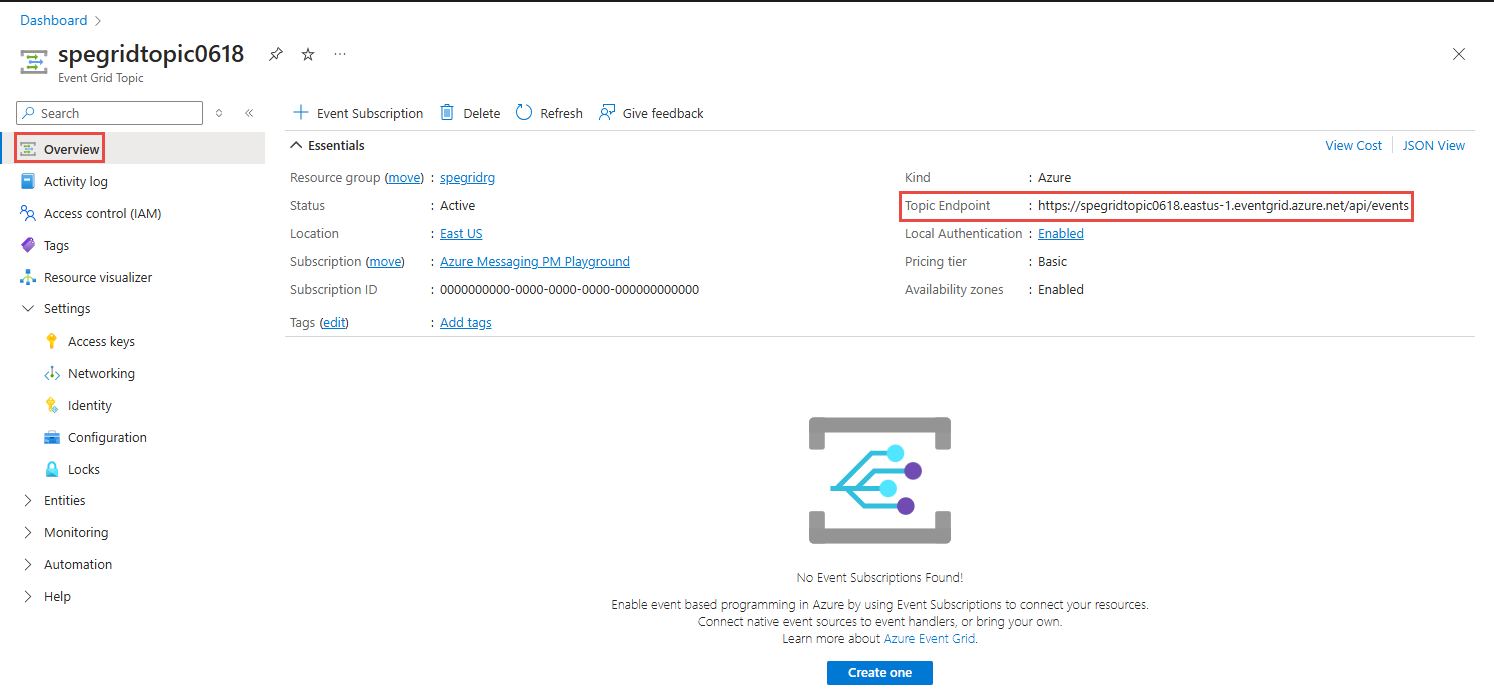

To publish events to a custom topic, send an HTTP POST request using the following URI format: https://<topic-endpoint>?api-version=2018-01-01. For example, a valid URI is: https://exampletopic.westus2-1.eventgrid.azure.net/api/events?api-version=2018-01-01. To get the endpoint for a custom topic, use Azure portal, Azure CLI, or Azure PowerShell.

az eventgrid topic show --name <topic-name> -g <topic-resource-group> --query "endpoint"

(Get-AzEventGridTopic -ResourceGroupName <topic-resource-group> -Name <topic-name>).Endpoint

Header

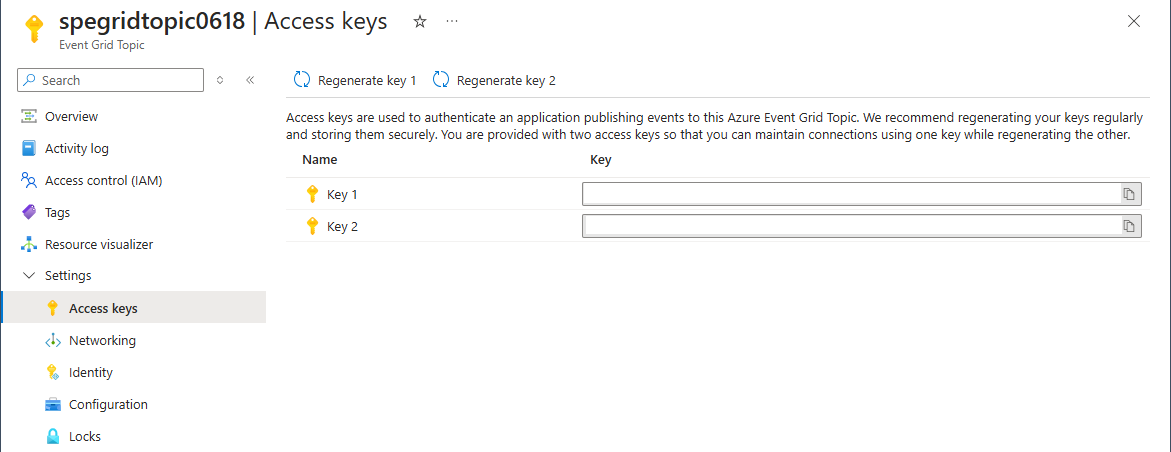

In the request, include a header value named aeg-sas-key that contains a key for authentication. For example, a valid header value is aeg-sas-key: xxxxxxxxxxxxxxxxxxxxxxx. To get the key for a custom topic using Azure CLI, use:

az eventgrid topic key list --name <topic-name> -g <topic-resource-group> --query "key1"

(Get-AzEventGridTopicKey -ResourceGroupName <topic-resource-group> -Name <topic-name>).Key1

Event data schema for custom topics

For custom topics, the top-level data contains the same fields as standard resource-defined events. One of those properties is a data property that contains properties unique to the custom topic. As an event publisher, you determine properties for that data object. Here's the schema:

[
  {
    "id": string,
    "eventType": string,
    "subject": string,
    "eventTime": string-in-date-time-format,
    "data":{
      object-unique-to-each-publisher
    },
    "dataVersion": string
  }
]

For a description of these properties, see Azure Event Grid event schema. When a client sends events to an Event Grid topic, the array can have a total size of up to 1 MB. The maximum allowed size for an event is also 1 MB. Events over 64 KB are charged in 64-KB increments. When a client receives events in a batch, the maximum allowed number of events is 5,000 per batch.

For example, a valid event data schema is:

[{
  "id": "1807",
  "eventType": "recordInserted",
  "subject": "myapp/vehicles/motorcycles",
  "eventTime": "2017-08-10T21:03:07+00:00",
  "data": {
    "make": "Ducati",
    "model": "Monster"
  },
  "dataVersion": "1.0"
}]

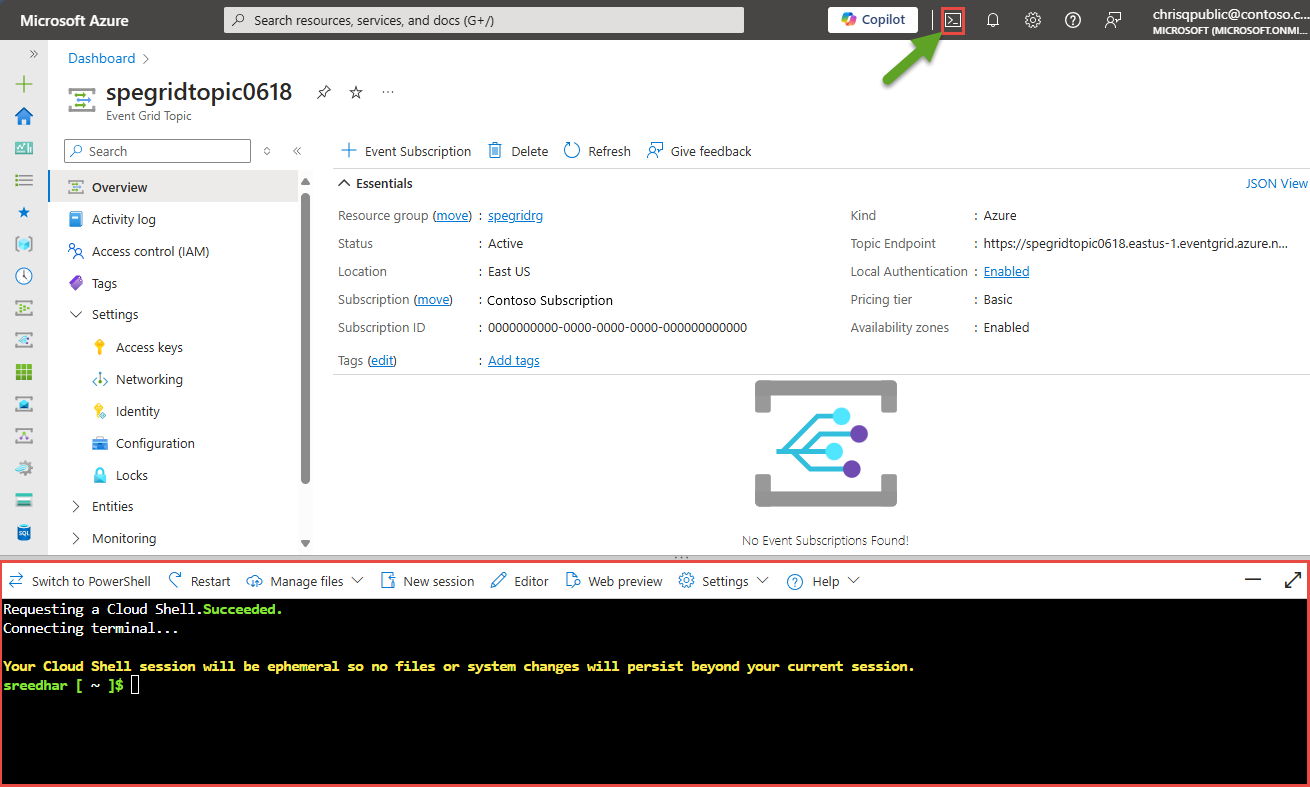

Send a sample event

This section shows how to send a sample event to the custom topic.

endpoint=$(az eventgrid topic show --name <topic name> -g <resource group name> --query "endpoint" --output tsv)

key=$(az eventgrid topic key list --name <topic name> -g <resource group name> --query "key1" --output tsv)

event='[ {"id": "'"$RANDOM"'", "eventType": "recordInserted", "subject": "myapp/vehicles/motorcycles", "eventTime": "'`date +%Y-%m-%dT%H:%M:%S%z`'", "data":{ "make": "Ducati", "model": "Monster"},"dataVersion": "1.0"} ]'

curl -X POST -H "aeg-sas-key: $key" -d "$event" $endpoint

$resourceGroupName = "<resource group name>"
$topicName = "<topic name>"

$endpoint = (Get-AzEventGridTopic -ResourceGroupName $resourceGroupName -Name $topicName).Endpoint

$keys = Get-AzEventGridTopicKey -ResourceGroupName $resourceGroupName -Name $topicName

$eventID = Get-Random 99999
#Date format should be SortableDateTimePattern (ISO 8601)
$eventDate = Get-Date -Format s

#Construct body using Hashtable
$htbody = @{
    id= $eventID
    eventType="recordInserted"
    subject="myapp/vehicles/motorcycles"
    eventTime= $eventDate
    data= @{
        make="Ducati"
        model="Monster"
    }
    dataVersion="1.0"
}

#Use ConvertTo-Json to convert event body from Hashtable to JSON Object
#Append square brackets to the converted JSON payload since they are expected in the event's JSON payload syntax
$body = "["+(ConvertTo-Json $htbody)+"]"

Invoke-WebRequest -Uri $endpoint -Method POST -Body $body -Headers @{"aeg-sas-key" = $keys.Key1}

Response

After posting to the topic endpoint, you receive a response. The response is a standard HTTP response code. Some common responses are:

For errors, the message body has the following format:

{
    "error": {
        "code": "<HTTP status code>",
        "message": "<description>",
        "details": [{
            "code": "<HTTP status code>",
            "message": "<description>"
    }]
  }
}
