Use Azure DevOps OAuth 2.0

Azure DevOps Services

This article explains how Azure DevOps OAuth 2.0 works for existing applications and provides guidance for maintaining and migrating your apps.

Overview

Azure DevOps OAuth 2.0 allows applications to access Azure DevOps resources on behalf of users. While this service is deprecated, existing applications continue to function until 2026.

Migration recommendation: Start planning your migration to Microsoft Entra ID OAuth to ensure continued service and access to enhanced security features.

Prerequisites

Before working with Azure DevOps OAuth applications:

Working with existing Azure DevOps OAuth apps

1. Manage your existing app registration

For existing applications, you can view and manage your app settings:

1. Go to your Visual Studio profile to access your app registrations.

2. Review your configured scopes and ensure they match your application's needs.

3. Verify your callback URL configuration and update if necessary.



4. Plan your migration timeline to Microsoft Entra ID OAuth before the 2026 deprecation deadline.

2. Authorize your app

The authorization flow remains the same for existing Azure DevOps OAuth apps:

1. Direct users to the authorization URL with your app parameters:

   https://app.vssps.visualstudio.com/oauth2/authorize
           ?client_id={app ID}
           &response_type=Assertion
           &state={state}
           &scope={scope}
           &redirect_uri={callback URL}


   Parameter	Type	Description
   client_id	GUID	The ID assigned to your app when it was registered
   response_type	string	Must be Assertion
   state	string	A generated string value that correlates the callback with its authorization request
   scope	string	Space-separated scopes registered with the app. See available scopes
   redirect_uri	URL	Callback URL for your app. Must exactly match the URL registered with the app

   Example authorization URL:

   https://app.vssps.visualstudio.com/oauth2/authorize
           ?client_id=00001111-aaaa-2222-bbbb-3333cccc4444
           &response_type=Assertion
           &state=User1
           &scope=vso.work%20vso.code_write
           &redirect_uri=https://fabrikam.azurewebsites.net/myapp/oauth-callback


   After user authorization, Azure DevOps redirects to your callback URL with the authorization code:

   https://fabrikam.azurewebsites.net/myapp/oauth-callback
           ?code={authorization code}
           &state=User1


3. Exchange authorization code for access token

Use the authorization code to request an access token and refresh token:

Request details

URL

POST https://app.vssps.visualstudio.com/oauth2/token

Headers

Content-Type: application/x-www-form-urlencoded

Request body

client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer&client_assertion={0}&grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer&assertion={1}&redirect_uri={2}

Parameter substitution:

• {0}: URL-encoded client secret from app registration
• {1}: URL-encoded authorization code from callback
• {2}: Callback URL registered with the app

C# implementation example

public string GenerateRequestPostData(string appSecret, string authCode, string callbackUrl)
{
   return String.Format("client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer&client_assertion={0}&grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer&assertion={1}&redirect_uri={2}",
               HttpUtility.UrlEncode(appSecret),
               HttpUtility.UrlEncode(authCode),
               callbackUrl
        );
}

Response

{
    "access_token": "{ access token for the user }",
    "token_type": "{ type of token }",
    "expires_in": "{ time in seconds that the token remains valid }",
    "refresh_token": "{ refresh token to use to acquire a new access token }"
}

4. Use the access token

Include the access token as a Bearer token in your API requests:

Authorization header format:

Authorization: Bearer {access_token}

Example API request:

GET https://dev.azure.com/myaccount/myproject/_apis/build-release/builds?api-version=3.0
Authorization: Bearer {access_token}

5. Refresh expired access tokens

When access tokens expire, use the refresh token to get a new access token:

Request:

POST https://app.vssps.visualstudio.com/oauth2/token
Content-Type: application/x-www-form-urlencoded
Content-Length: 1654

client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer&client_assertion={0}&grant_type=refresh_token&assertion={1}&redirect_uri={2}

Parameter substitution:

• {0}: URL-encoded client secret
• {1}: URL-encoded refresh token
• {2}: Callback URL registered with the app

Response:

{
    "access_token": "{ new access token }",
    "token_type": "{ type of token }",
    "expires_in": "{ time in seconds that the token remains valid }",
    "refresh_token": "{ new refresh token }"
}

Code samples

You can find working examples in our Azure DevOps authentication samples repository.

Managing app secrets

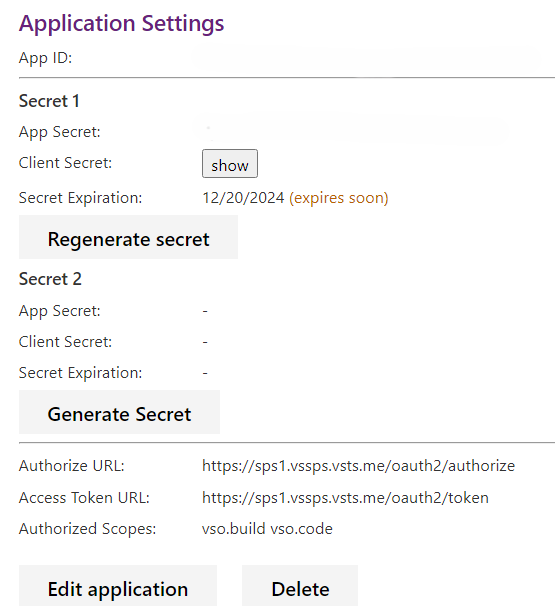

Azure DevOps OAuth apps support dual secrets to enable zero-downtime rotation:

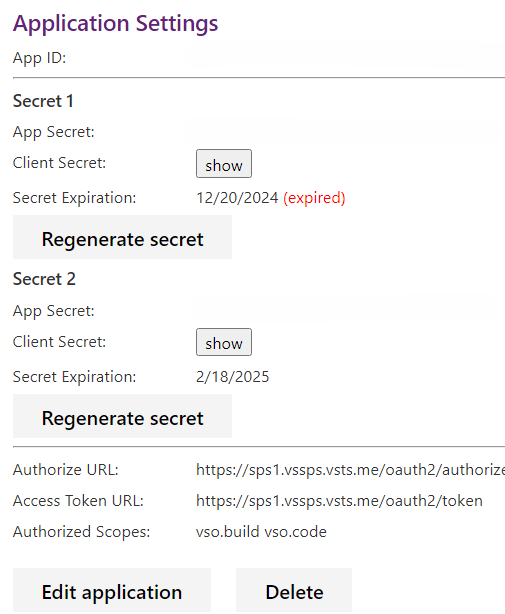

Rotate secrets

1. Generate a new secret in your Visual Studio profile or via the Registration Secret APIs.

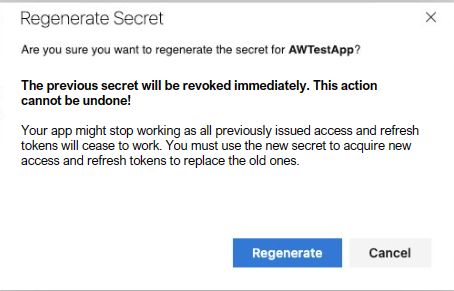

2. Confirm the action in the modal dialog.



3. Update your application to use the new secret before the old one expires.

4. Test the new secret thoroughly before the old secret expires.

5. Repeat the process when the new secret approaches expiration.

Emergency secret revocation

If a secret is compromised:

1. Immediately regenerate the secret in your profile.
2. Update your application with the new secret.
3. Monitor for unauthorized access in your application logs.

Delete your app

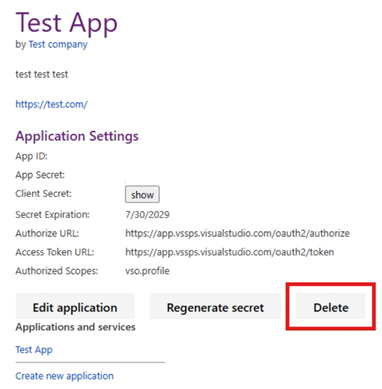

To delete an Azure DevOps OAuth app:

1. Go to your Visual Studio profile.

2. Select the correct tenant from the dropdown menu.

3. Find your app under Applications and services.

4. Select Delete on the application registration page.



5. Confirm the deletion in the modal dialog.

After deletion, the app and all its tokens immediately stop working.

Migration planning

Migration checklist

• [ ] Review Microsoft Entra ID OAuth documentation
• [ ] Identify all apps using Azure DevOps OAuth in your organization
• [ ] Plan migration timeline allowing adequate testing time
• [ ] Update application architecture to support Microsoft Entra ID OAuth
• [ ] Test migration in a nonproduction environment
• [ ] Communicate changes to users and stakeholders
• [ ] Complete migration before 2026 deadline

Migration benefits

Enhanced security features:

• Multifactor authentication support
• Conditional Access policies
• Advanced threat protection
• Enterprise identity integration

Better developer experience:

• Modern authentication libraries (MSAL)
• Consistent identity platform across Microsoft services
• Better token management and caching

Long-term support:

• Continued investment and feature development
• Enterprise compliance and governance features

Frequently asked questions

Q: Can I still create new Azure DevOps OAuth apps?

A: No. New app registrations stopped in April 2025. Use Microsoft Entra ID OAuth for new applications.

Q: When will my existing Azure DevOps OAuth app stop working?

A: Existing apps continue to function until Azure DevOps OAuth is fully deprecated in 2026. Plan your migration well before this deadline.

Q: Can I use OAuth with mobile applications?

A: Azure DevOps OAuth only supports the web server flow and requires secure storage of client secrets, making it unsuitable for mobile apps. Microsoft Entra ID OAuth provides better mobile app support.

Q: What should I do if I get an HTTP 400 error when requesting tokens?

A: Common causes include:

• Incorrect Content-Type header (should be application/x-www-form-urlencoded)
• Malformed request body parameters
• Invalid or expired authorization code
• Mismatched callback URL

Q: Why do I get HTTP 401 errors with OAuth tokens but not with PATs?

A: Check if your organization administrator disabled Third-party application access via OAuth at: https://dev.azure.com/{your-org-name}/_settings/organizationPolicy

When disabled, OAuth authorization flows work, but API calls return TF400813: The user "<GUID>" is not authorized to access this resource.

Q: Can I use localhost for testing?

A: Yes. Azure DevOps OAuth supports https://localhost callback URLs for local development and testing.

Q: How do I handle authorization denials and revocations?

A: Implement proper error handling for:

• Authorization denial: No authorization code is returned in the callback
• Revoked authorization: API calls return 401 errors; re-request authorization from the user

Q: What's the difference between Azure DevOps OAuth and Microsoft Entra ID OAuth?

A:

• Azure DevOps OAuth: Deprecated, Azure DevOps-specific, limited security features
• Microsoft Entra ID OAuth: Modern, enterprise-grade, enhanced security, long-term support
