Self-serve minimum TLS version enforcement in Azure Cosmos DB

APPLIES TO: NoSQL MongoDB Cassandra Gremlin Table

This article discusses how to enforce a minimum version of the Transport Layer Security (TLS) protocol for your Cosmos DB account, using a self-service API.

How minimum TLS version enforcement works in Azure Cosmos DB

The multitenant nature of Cosmos DB requires the service to meet the access and security needs of every user. To achieve this, Cosmos DB enforces minimum TLS protocols at the application layer, and not at lower layers in the network stack where TLS operates. This enforcement occurs on any authenticated request to a specific database account, according to the settings set on that account by the customer.

The minimum service-wide accepted version is TLS 1.2. This selection can be changed on a per-account basis, as discussed in the following section.

How to set the minimum TLS version for my Cosmos DB database account

Starting with version 2022-11-15 of the Azure Cosmos DB Resource Provider API, a new property is exposed for every Cosmos DB database account, called minimalTlsVersion. It accepts the following value:

• Tls12 for setting the minimum version to TLS 1.2

The default value for new accounts is Tls12.

Set minimum TLS protocol using the Azure portal

This self-serve feature is available in the Azure portal while creating and editing an account. Azure Cosmos DB accounts enforce the TLS 1.2 protocol. However, Azure Cosmos DB also supports the following TLS protocols depending on the API kind selected.

• MongoDB: TLS 1.2
• Cassandra: TLS 1.2
• Table, SQL and Graph: TLS 1.2

Steps to set minimum TLS protocol while creating an account

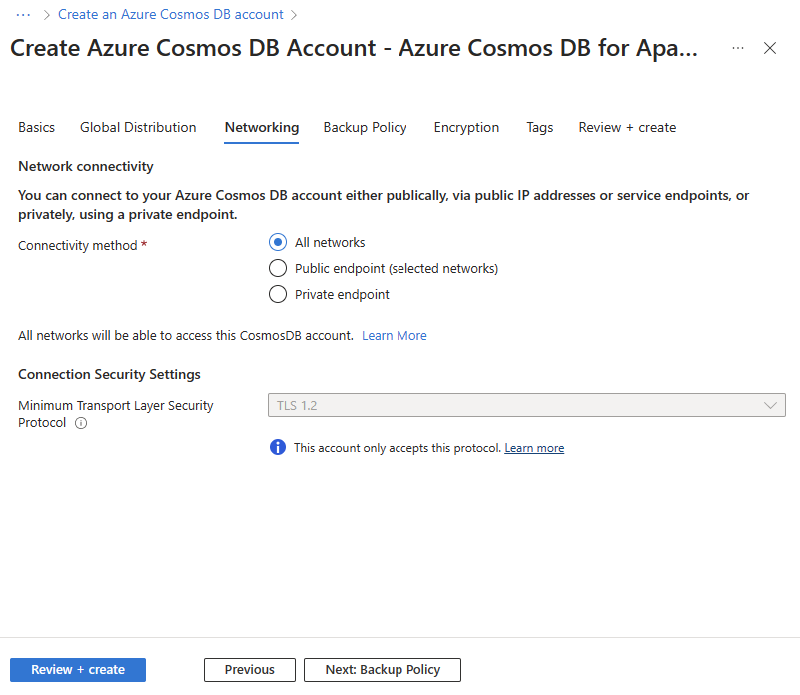

If you're using an API Kind that only supports TLS 1.2, you'll notice in the Networking tab that the TLS protocol disabled.

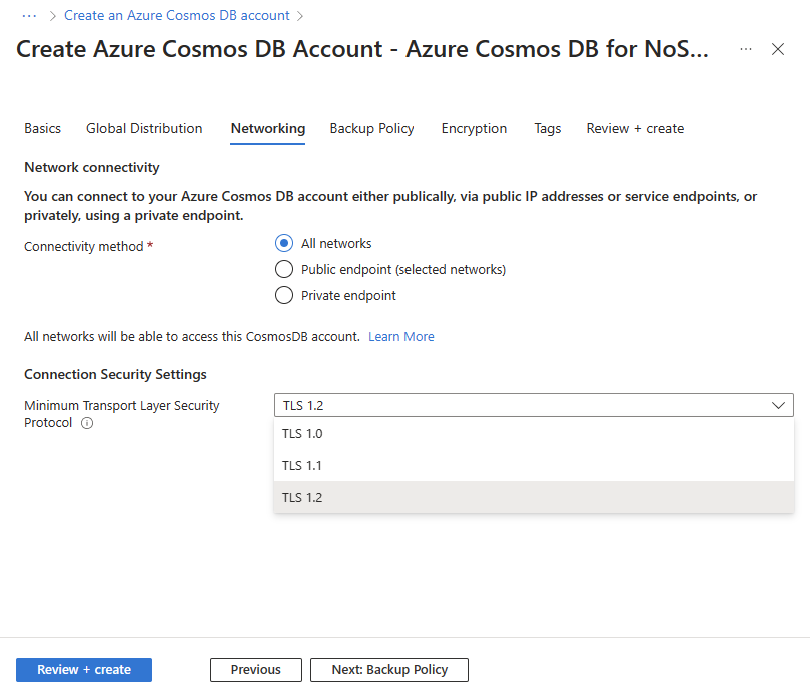

If you're using an API Kind that accepts multiple TLS protocols, then you can navigate to the Networking tab and the Minimum Transport Layer Security Protocol option is available. You can change the selected protocol by just clicking on the dropdown and selecting the desired protocol.

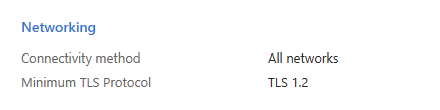

After setting up your account, you can review in the Review + create tab, under Networking, that the selected TLS Protocol is set as you specified.

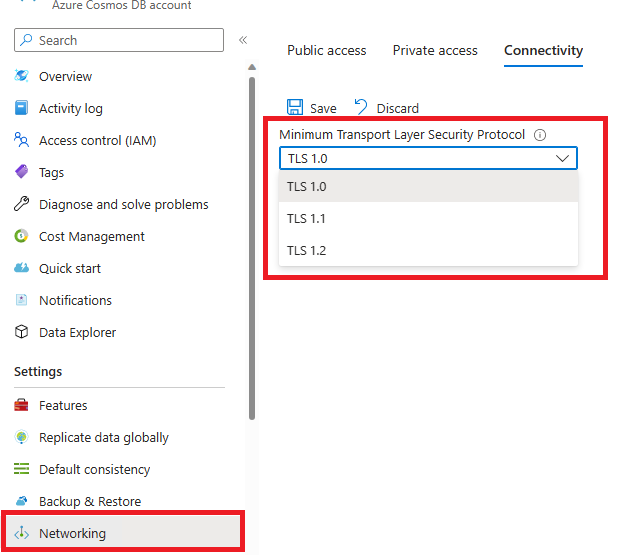

Steps to set the minimum TLS protocol while editing an account

1. Navigate to your Azure Cosmos DB account on the Azure portal.

2. Select Networking from the sidebar menu, then select the Connectivity tab.

3. You'll find the Minimum Transport Layer Security Protocol option. If you're using an API Kind that only supports TLS 1.2, you'll notice this option disabled. Otherwise, you can select the desired TLS Protocol by just clicking on it.

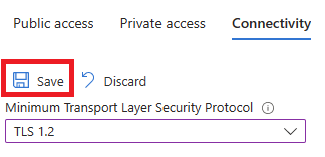

4. Select Save once you changed the TLS protocol.

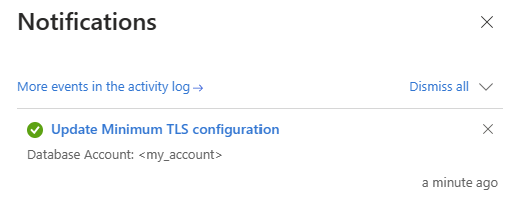

5. Once it's saved, you'll receive a success notification. Still, this change can take up to 15 minutes to take effect after the configuration update is completed.



Set via Azure CLI

To set using Azure CLI, use the command:

rg="myresourcegroup"
dbName="mycosmosdbaccount"
minimalTlsVersion="Tls12"
az cosmosdb update -n $dbName -g $rg --minimal-tls-version $minimalTlsVersion

Set via Azure PowerShell

To set using Azure PowerShell, use the command:

$minimalTlsVersion = "Tls12"
Update-AzCosmosDBAccount -ResourceGroupName myresourcegroup -Name mycosmosdbaccount -MinimalTlsVersion $minimalTlsVersion

Set via ARM template

To set this property using an ARM template, update your existing template or export a new template for your current deployment, then add "minimalTlsVersion" to the properties for the databaseAccounts resources, with the desired minimum TLS version value. The following example shows a basic Azure Resource Manager template with this property setting, using a parameter.

{
    {
      "type": "Microsoft.DocumentDB/databaseAccounts",
      "name": "mycosmosdbaccount",
      "apiVersion": "2022-11-15",
      "location": "[parameters('location')]",
      "kind": "GlobalDocumentDB",
      "properties": {
        "consistencyPolicy": {
          "defaultConsistencyLevel": "[parameters('defaultConsistencyLevel')]",
          "maxStalenessPrefix": 1,
          "maxIntervalInSeconds": 5
        },
        "locations": [
          {
            "locationName": "[parameters('location')]",
            "failoverPriority": 0
          }
        ],
        "locations": "[variable('locations')]",
        "databaseAccountOfferType": "Standard",
        "minimalTlsVersion": "[parameters('minimalTlsVersion')]",
      }
    }
}

For new accounts

You can create accounts with the minimalTlsVersion property set by using the preceding ARM template, or by using Azure CLI or Azure PowerShell:

az cosmosdb create --name <CosmosDBAccountName> \
  --resource-group <ResourceGroupName> \
  --kind GlobalDocumentDB \
  --locations regionName=<Region> \
  --minimal-tls-version "Tls12"

New-AzCosmosDBAccount `
  -ResourceGroupName "<YourResourceGroupName>" `
  -Name "<YourCosmosDBAccountName>" `
  -Location "<AzureRegion>" `
  -Kind GlobalDocumentDB `
  -EnableAutomaticFailover $true `
  -MinimalTlsVersion "Tls12"

How to verify minimum TLS version enforcement

Because Cosmos DB enforces the minimum TLS version at the application layer, conventional TLS scanners that check whether handshakes are accepted by the service for a specific TLS version are unreliable to test enforcement in Cosmos DB. To verify enforcement, refer to the official open-source cosmos-tls-scanner tool.

You can also get the current value of the minimalTlsVersion property by using Azure CLI or Azure PowerShell.

Get current value via Azure CLI

To get the current value of the property using Azure CLI, run the command:

subId=$(az account show --query id -o tsv)
rg="myresourcegroup"
dbName="mycosmosdbaccount"
az rest --uri "/subscriptions/$subId/resourceGroups/$rg/providers/Microsoft.DocumentDB/databaseAccounts/$dbName?api-version=2022-11-15" --method GET

Get current value via Azure PowerShell

To get the current value of the property using Azure PowerShell, run the command:

Get-AzCosmosDBAccount -ResourceGroupName myresourcegroup -Name mycosmosdbaccount
