Scaling and configuring Azure Cosmos DB for MongoDB vCore cluster

Azure Cosmos DB for MongoDB vCore provides seamless scalability and in-region high availability (HA). This document serves as a quick guide for developers who want to learn how to scale and configure their clusters.

Prerequisites

• An existing Azure Cosmos DB for MongoDB vCore cluster.
  • If you don't have an Azure subscription, create an account for free.
  • If you have an existing Azure subscription, create a new Azure Cosmos DB for MongoDB vCore cluster.

Navigate to the scale section

To change the configuration of your cluster, use the Scale section of the Azure Cosmos DB for MongoDB vCore cluster page in the Azure portal. The portal includes real-time costs for these changes.

1. Sign in to the Azure portal.

2. Navigate to the existing Azure Cosmos DB for MongoDB vCore cluster page.

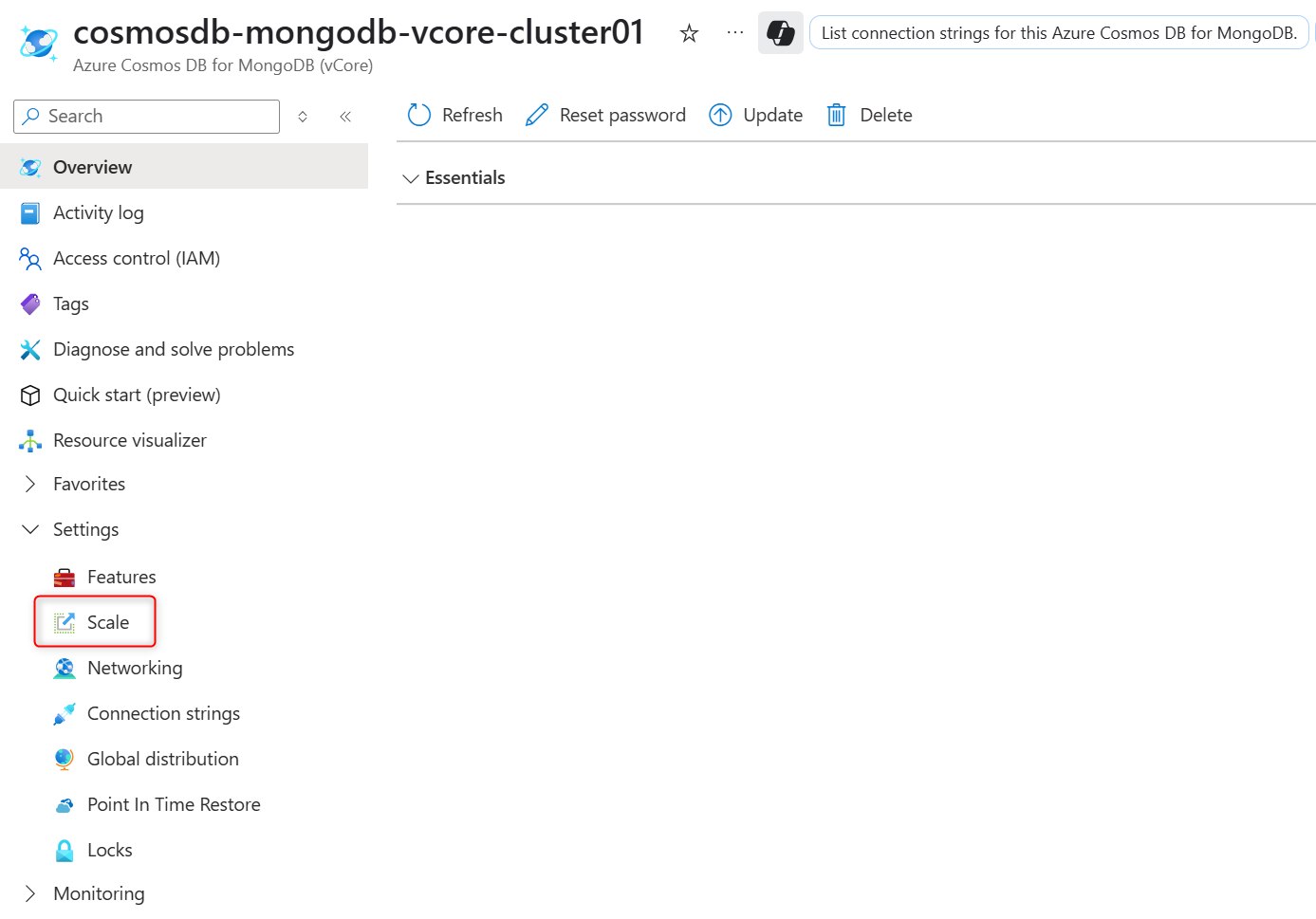

3. From the Azure Cosmos DB for MongoDB vCore cluster page, in the Settings section select the Scale navigation menu option.

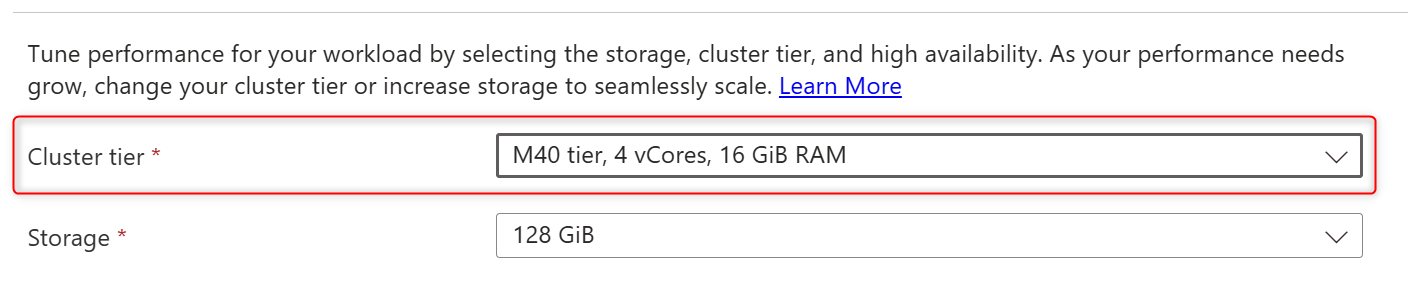

Scale cluster compute

The cluster tier you select influences the amount of vCores and RAM assigned to your cluster. You can change the cluster tier to suit your needs at any time without downtime. For example, you can increase from M50 to M60 or decrease M50 to M40 using the Azure portal.

1. To change the cluster tier, select the new tier from the drop-down menu.



   Note

   Downgrade from regular compute tier to a burstable tier isn't supported.

2. Select Save to persist your change.

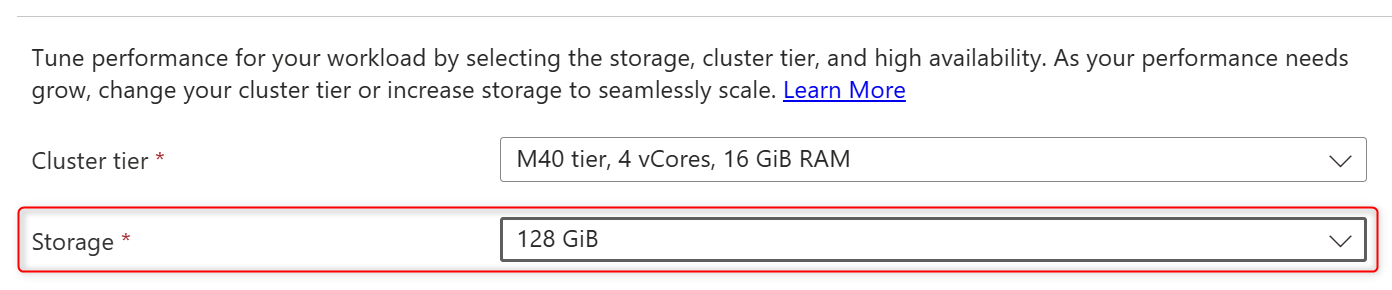

Increase storage size

You can increase the storage size to give your database more room to grow. For example, you can increase the storage from 128 GiB to 256 GiB.

1. To increase the storage size, select the new size from the drop-down menu.



   Note

   This change is performed live to the cluster without downtime. Also, storage size can only be increased, not decreased.

2. Select Save to persist your change.

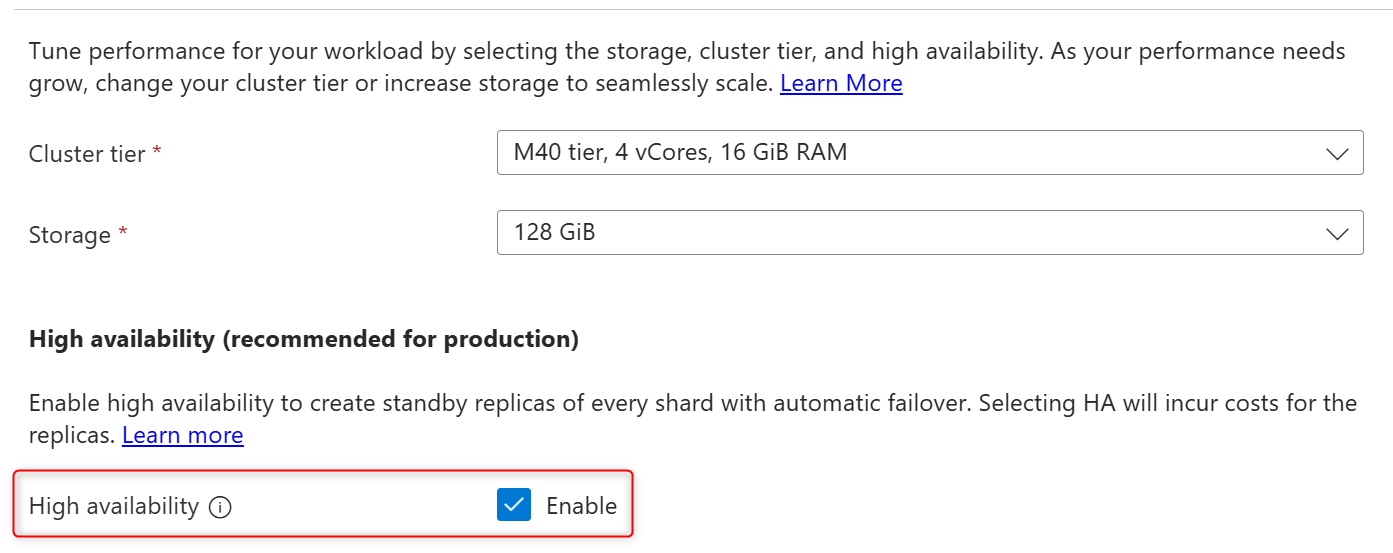

Enable or disable high availability

You can enable or disable in-region high availability (HA) to suit your needs. In-region HA avoids database downtime by maintaining replica shards of every primary shard in a cluster. If a primary shard goes down, incoming connections are automatically redirected to its replica shard, ensuring that there's minimal downtime.

1. To enable or disable in-region HA, toggle the checkbox option.



2. Select Save to persist your change.

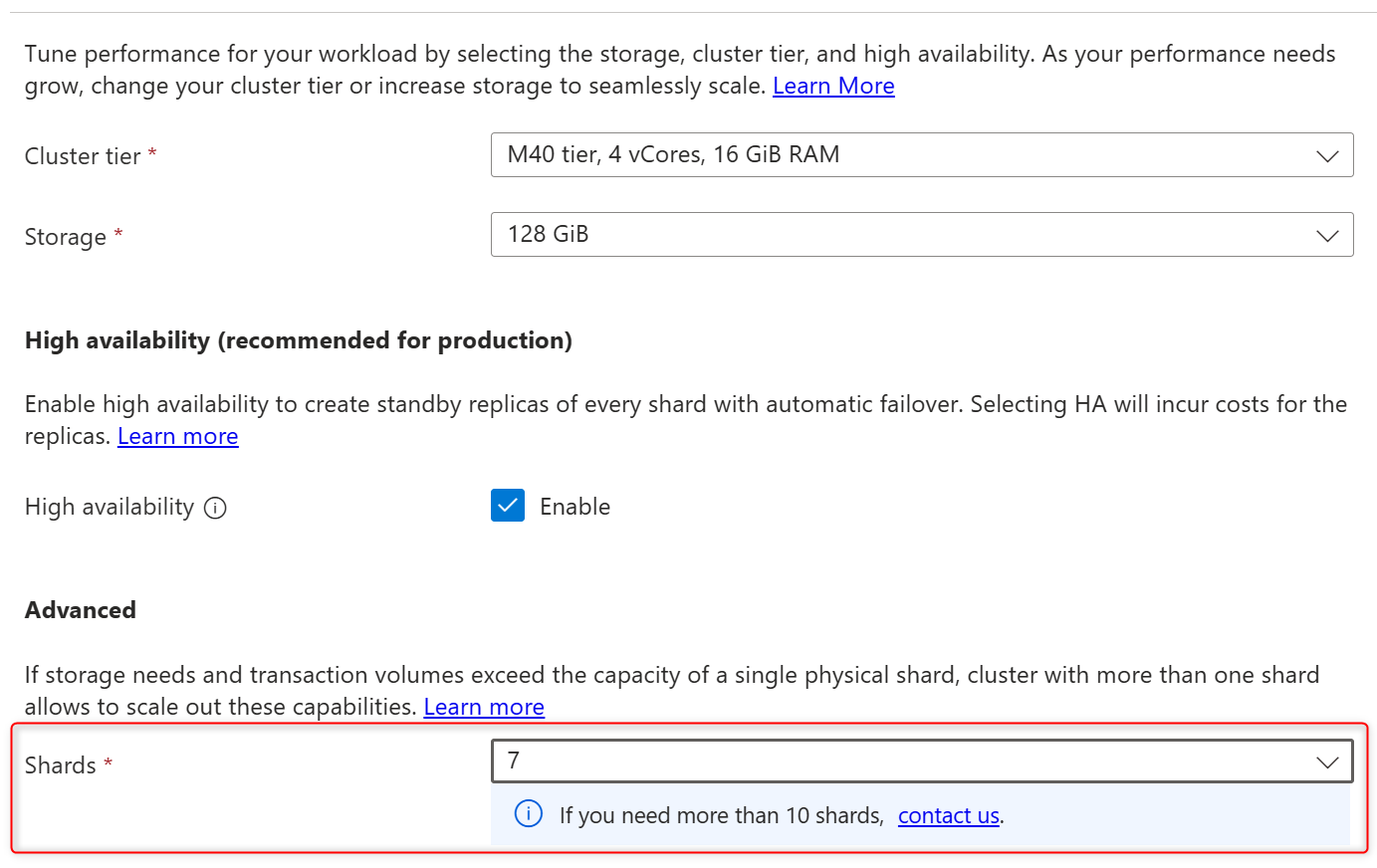

Increase the number of physical shards

When a database grows beyond the capacity of a single physical shard cluster, you can either increase the storage size or add more physical shards. After a new physical shard is added to the cluster, you must perform a cluster rebalancing operation to redistribute data across the shards. Each physical shard in a cluster always has the same compute and storage configuration.

1. To add physical shards, select new shard count from the list.



2. Select Save to persist your change.

If you need more than 10 physical shards on your cluster, open an Azure support request.

Rebalance data

After a physical shard is added to a cluster, or if multishard cluster has uneven storage usage across its physical shards, data rebalancing redistributes data between shards without any downtime.

In preview, data rebalancing needs to be enabled on cluster:

1. In the Azure portal, open cluster properties.
2. Under Settings on the Features page, select Rebalancer for multishard clusters.
3. In the Rebalancer for multishard clusters panel, select Enable.

To initiate data rebalancing, connect to the cluster using a management tool such as the Mongo shell.

1. Start the rebalancer with the sh.startBalancer() command.

2. Check the rebalancer status using sh.isBalancerRunning().

3. Stop the rebalancer with the sh.stopBalancer() command.

Next steps

In this guide, we showed that scaling and configuring your Cosmos DB for MongoDB vCore cluster in the Azure portal is a straightforward process. The Azure portal includes the ability to adjust the cluster tier, increase storage size, enable or disable high availability, and add physical shards without any downtime.

• Compute and storage options
• Check out sharding fundamentals
