Tutorial: Build a person directory

A person directory provides a structured approach to storing face data for recognition tasks. It allows you to add individual faces, search for visually similar faces, and create person profiles. You can associate faces with these profiles and match new face images to known individuals. This setup supports both flexible face matching and identity recognition across images and videos.

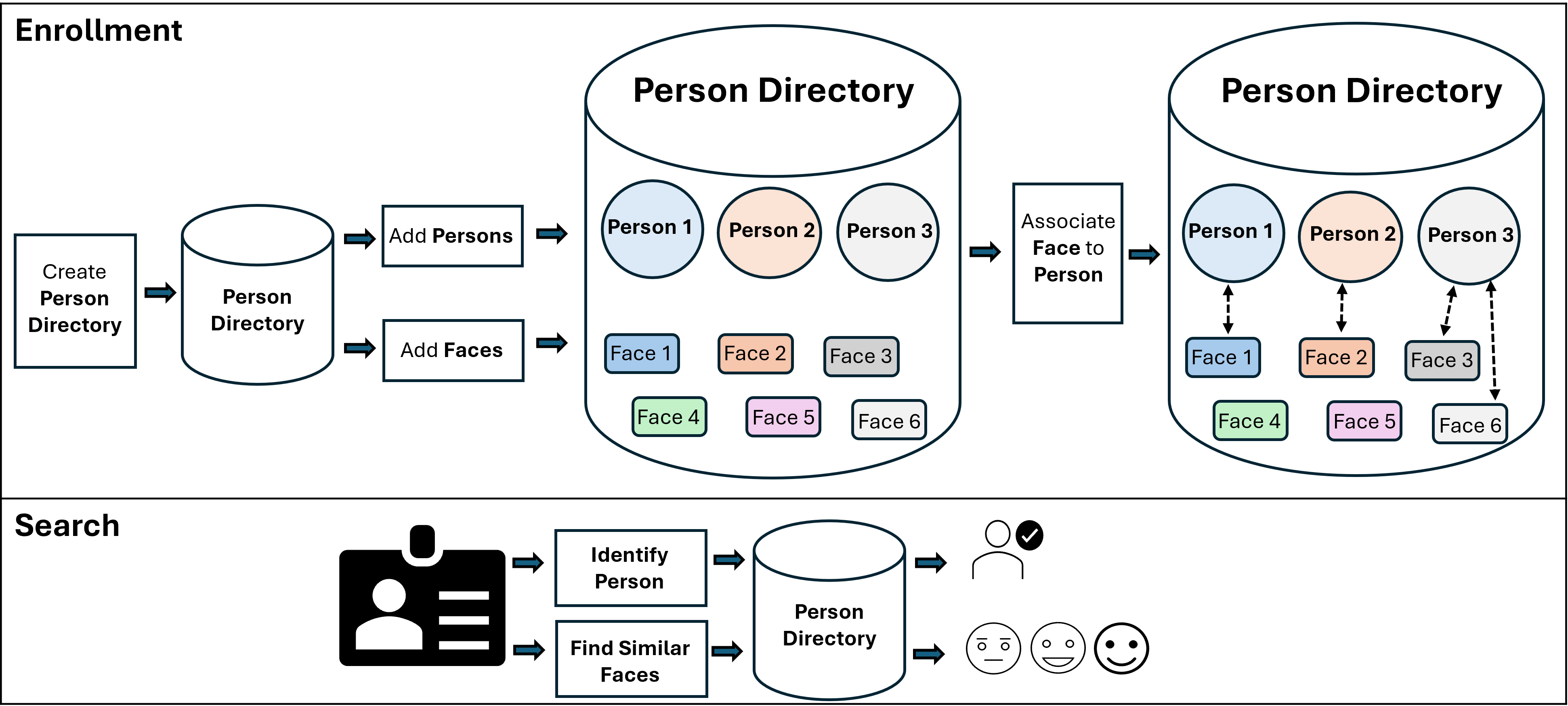

Diagram illustrating the processes of enrollment and search in a person directory.

Data storage recommendation

For secure and scalable access, we recommend storing all face images in Azure Blob Storage. When making API calls, ensure that the face URLs reference these stored images in Blob Storage.

Enrollment

Enrollment involves the following steps:

  1. Create an empty person directory
  2. Add persons
  3. Add faces and associate with a person

Create an empty person directory

To create a new person directory, send a PUT request to the API endpoint. This directory serves as the container for storing faces and associated persons.

PUT {endpoint}/contentunderstanding/personDirectories/{personDirectoryId}?api-version=2025-05-01-preview
Content-Type: application/json

{
  "description": "A brief description of the directory",
  "tags": {
    "project": "example-project",
    "owner": "team-name"
  }
}
  • personDirectoryId: A unique, user-defined identifier for the directory within the resource.
  • description: (Optional) A short description of the directory's purpose.
  • tags: (Optional) Key-value pairs to help organize and manage the directory.

The API creates the directory and returns a confirmation response.

200 OK

{
  "personDirectoryId": "{personDirectoryId}",
  "description": "A brief description of the directory",
  "createdAt": "2025-05-01T18:46:36.051Z",
  "lastModifiedAt": "2025-05-01T18:46:36.051Z",
  "tags": {
    "project": "example-project",
    "owner": "team-name"
  },
  "personCount": 0,
  "faceCount": 0
}

Add persons

To recognize or manage individuals, you need to create a person profile. Once created, you can associate faces with this person.

POST {endpoint}/contentunderstanding/personDirectories/{personDirectoryId}/persons?api-version=2025-05-01-preview
Content-Type: application/json

{
  "tags": {
    "name": "Alice",
    "employeeId": "E12345"
  }
}
  • personDirectoryId: The unique identifier of the directory created in Step 1.
  • tags: Key-value pairs to describe the person, such as their name or age.

The API returns a personId that uniquely identifies the created person.

200 OK

{
  "personId": "4f66b612-e57d-4d17-9ef7-b951aea2cf0f",
  "tags": {
    "name": "Alice",
    "employeeId": "E12345"
  }
}

Add faces and associate with a person

You can add a face to the directory and optionally associate it with an existing person. The API supports both image URLs and base64-encoded image data.

POST {endpoint}/contentunderstanding/personDirectories/{personDirectoryId}/faces?api-version=2025-05-01-preview
Content-Type: application/json

{
  "faceSource": {
    "url": "https://mystorageaccount.blob.core.windows.net/container/face.jpg",
    // "data": "<base64 data>",
    "imageReferenceId": "face.jpg",
    "targetBoundingBox": {
      "left": 33,
      "top": 73,
      "width": 262,
      "height": 324
    }
  },
  "qualityThreshold": "medium",
  "personId": "{personId}"
}
  • personDirectoryId: The unique identifier of the person directory created in Step 1.
  • faceSource: Specifies the face image.
    • url: The file path of the image stored in Azure Blob Storage.
    • data: Base64-encoded image data as optional alternative to url.
    • imageReferenceId: (Optional) A user-defined identifier for the image. This identifier can be helpful for tracking the image's origin or for mapping it to other data.
    • targetBoundingBox: (Optional) Approximate location of the face in the image. If omitted, the API detects and uses the largest face.
  • qualityThreshold: (Optional) Filters face quality (low, medium, or high). The default is medium, meaning only medium or high-quality faces are stored. Lower quality faces are rejected.
  • personId: (Optional) The personId of an existing person to associate the face with.

The API returns a faceId that uniquely identifies the created face with the detected boundingBox of the face.

{
  "faceId": "{faceId}",
  "personId": "{personId}",
  "imageReferenceId": "face.jpg",
  "boundingBox": {
    "left": 30,
    "top": 78,
    "width": 251,
    "height": 309
  }
}

After creating your person directory and adding face images with optional person associations, you can perform two key tasks:

  1. Identify a person: Match a face image against enrolled persons in the directory and determine the most likely identity.
  2. Find similar faces: Search for visually similar faces across all stored face entries in the directory.

These capabilities enable robust face recognition and similarity matching for various applications.

Identify a person

Identify the most likely person matches by comparing the input face against enrolled persons in the directory.

POST {endpoint}/contentunderstanding/personDirectory/{personDirectoryId}/persons:identify?api-version=2025-05-01-preview
Content-Type: application/json

{
  "faceSource": {
    "url": "https://mystorageaccount.blob.core.windows.net/container/unknown.jpg",
    "targetBoundingBox": { ... }
  },
  "maxPersonCandidates": 1
}
  • faceSource.url: The URL of the input face image stored in Azure Blob Storage.
  • faceSource.targetBoundingBox: (Optional) The approximate bounding box of the face in the image. If omitted, the API detects the largest face.
  • maxPersonCandidates: (Optional) The maximum number of person candidates to return. Default is 1.

The API returns the detected bounding box of the face along with the top person candidates.

{
  "detectedFace": {
    "boundingBox": { ... }
  },
  "personCandidates": [
    {
      "personId": "{personId1}",
      "tags": {
        "name": "Alice",
        "employeeId": "E12345"
      },
      "confidence": 0.92
    }
  ]
}
  • detectedFace.boundingBox: The bounding box of the detected face in the input image.
  • personCandidates: A list of potential matches, each with a personId, associated tags, and a confidence score indicating the likelihood of a match.

Find similar faces

Find visually similar faces from all stored face entries in the directory.

POST {endpoint}/personDirectory/{personDirectoryId}/faces:find?api-version=2025-05-01-preview
Content-Type: application/json

{
  "faceSource": {
    "url": "https://mystorageaccount.blob.core.windows.net/container/target.jpg",
    "targetBoundingBox": { ... }
  },
  "maxSimilarFaces": 10
}
  • faceSource.url: The URL of the input face image stored in Azure Blob Storage.
  • faceSource.targetBoundingBox: (Optional) The approximate bounding box of the face in the image. If omitted, the API detects the largest face.
  • maxSimilarFaces: (Optional) The maximum number of similar faces to return. Defaults to 1000, with a maximum limit of 1000.

The API returns the detected bounding box of the face along with the most similar faces from the directory.

{
  "detectedFace": {
    "boundingBox": { ... }
  },
  "similarFaces": [
    {
      "faceId": "{faceId}",
      "boundingBox": { ... },
      "confidence": 0.92,
      "imageReferenceId": "face.jpg"
    }
  ]
}
  • detectedFace.boundingBox: The bounding box of the detected face in the input image.
  • similarFaces: A list of similar faces, each with a faceId, boundingBox, confidence score, and an imageReferenceId indicating the source image.

Next steps

Explore how to identify individuals in video content using the Azure AI Content Understanding video solutions (preview).
