How to use the OpenAPI spec tool

1. Go to the Azure AI Foundry portal. in the Agents screen or Agent playground, select your agent.

2. Scroll down the Setup pane to action. Then select Add.



3. Select OpenAPI 3.0 specified tool.

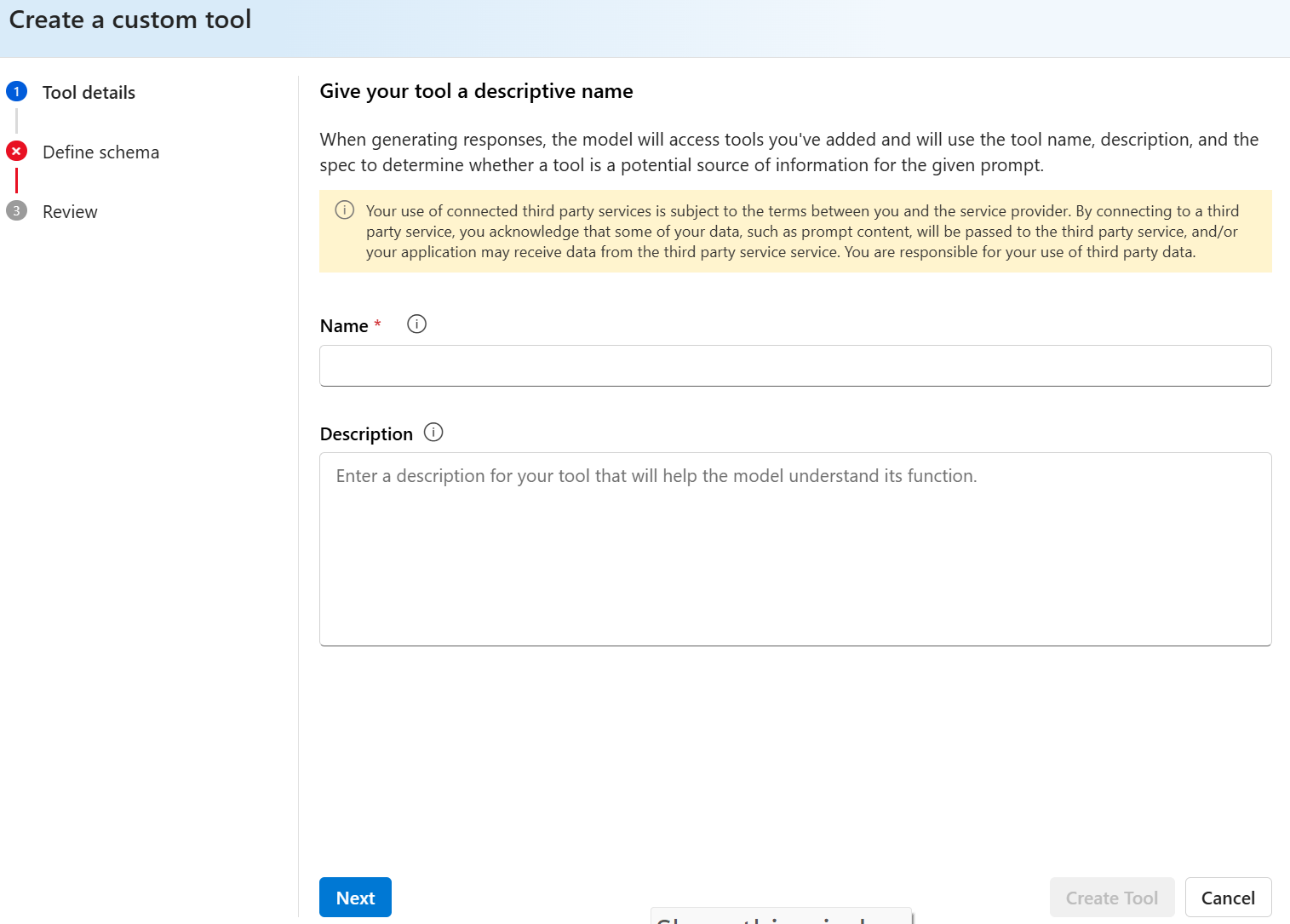

4. Give your tool a name (required) and a description (optional). The description will be used by the model to decide when and how to use the tool.



5. Select Next and select your authentication method.

   1. If you choose connection, you need to select the custom connection with an API key.
   2. If you choose managed identity, you need to input the audience to get your token which is the authentication scope. Make sure you have already set up authentication and role assignment as described in the OpenAPI tool overview. An example of an audience might be https://cognitiveservices.azure.com/ to connect to Azure AI Services, once proper setup has been performed.

6. Copy and paste your OpenAPI specification in the text box.

7. Review and add the tool to your agent.

Initialization

The code begins by setting up the necessary imports and initializing the AI Project client:

# Import necessary libraries
import os
import jsonref
from azure.ai.projects import AIProjectClient
from azure.identity import DefaultAzureCredential
# import the folloing
from azure.ai.agents.models import OpenApiTool, OpenApiAnonymousAuthDetails
# use the following for connection auth
# from azure.ai.agents.models import OpenApiTool, OpenApiConnectionAuthDetails, OpenApiConnectionSecurityScheme
# use the following for managed identity auth
# from azure.ai.agents.models import OpenApiTool, OpenApiManagedAuthDetails, OpenApiManagedSecurityScheme

endpoint = os.environ["PROJECT_ENDPOINT"]
model_deployment_name = os.environ["MODEL_DEPLOYMENT_NAME"]
# Initialize the project client using the endpoint and default credentials
with AIProjectClient(
    endpoint=endpoint,
    credential=DefaultAzureCredential(exclude_interactive_browser_credential=False),
) as project_client:

Tool setup

Similarly, the OpenAPI specification is loaded from weather.json. An anonymous authentication object (OpenApiAnonymousAuthDetails) is created, as this specific API doesn't require authentication in this example. You can find an example OpenAPI spec on GitHub.

    # Load the OpenAPI specification for the weather service from a local JSON file
    with open(os.path.join(os.path.dirname(__file__), "weather.json"), "r") as f:
         openapi_weather = jsonref.loads(f.read())

    # Create Auth object for the OpenApiTool (note: using anonymous auth here; connection or managed identity requires additional setup)
    auth = OpenApiAnonymousAuthDetails()
    # for connection setup
    # auth = OpenApiConnectionAuthDetails(security_scheme=OpenApiConnectionSecurityScheme(connection_id=os.environ["CONNECTION_ID"]))
    # for managed identity set up
    # auth = OpenApiManagedAuthDetails(security_scheme=OpenApiManagedSecurityScheme(audience="https://your_identity_scope.com"))

    # Initialize the main OpenAPI tool definition for weather
    openapi_tool = OpenApiTool(
        name="get_weather", spec=openapi_weather, description="Retrieve weather information for a location", auth=auth
    )

Agent Creation

An agent is created using the project_client.agents.create_agent method.

    # Create an agent configured with the combined OpenAPI tool definitions
    agent = project_client.agents.create_agent(
        model=os.environ["MODEL_DEPLOYMENT_NAME"],
        name="my-agent",
        instructions="You are a helpful agent",
        tools=openapi_tool.definitions,
    )
    print(f"Created agent, ID: {agent.id}")

Thread Management

Create the thread and add the initial user message.

    # Create a new conversation thread for the interaction
    thread = project_client.agents.threads.create()
    print(f"Created thread, ID: {thread.id}")

    # Create the initial user message in the thread
    message = project_client.agents.messages.create(
        thread_id=thread.id,
        role="user",
        content="What's the weather in Seattle?",
    )
    print(f"Created message, ID: {message.id}")

Create a run and check the output

Create the run, check the output, and examine what tools were called during the run.

    # Create and automatically process the run, handling tool calls internally
    run = project_client.agents.runs.create_and_process(thread_id=thread.id, agent_id=agent.id)
    print(f"Run finished with status: {run.status}")

    if run.status == "failed":
        print(f"Run failed: {run.last_error}")

    # Retrieve the steps taken during the run for analysis
    run_steps = project_client.agents.run_steps.list(thread_id=thread.id, run_id=run.id)

    # Loop through each step to display information
    for step in run_steps:
        print(f"Step {step['id']} status: {step['status']}")

        tool_calls = step.get("step_details", {}).get("tool_calls", [])
        for call in tool_calls:
            print(f"  Tool Call ID: {call.get('id')}")
            print(f"  Type: {call.get('type')}")
            function_details = call.get("function", {})
            if function_details:
                print(f"  Function name: {function_details.get('name')}")
                print(f" function output: {function_details.get('output')}")

        print()

Cleanup

After the interaction is complete, the script performs cleanup by deleting the created agent resource using agents_client.delete_agent() to avoid leaving unused resources. It also fetches and prints the entire message history from the thread using agents_client.messages.list() for review or logging.

        # Delete the agent resource to clean up
        project_client.agents.delete_agent(agent.id)
        print("Deleted agent")

        # Fetch and log all messages exchanged during the conversation thread
        messages = project_client.agents.messages.list(thread_id=thread.id)
        for msg in messages:
            print(f"Message ID: {msg.id}, Role: {msg.role}, Content: {msg.content}")

Create a project client

Create a client object that contains the endpoint for connecting to your AI project and other resources.

const { AgentsClient, isOutputOfType, ToolUtility } = require("@azure/ai-agents");
const { delay } = require("@azure/core-util");
const { DefaultAzureCredential } = require("@azure/identity");
const fs = require("fs");
require("dotenv/config");

const projectEndpoint = process.env["PROJECT_ENDPOINT"];

// Create an Azure AI Client
const client = new AgentsClient(projectEndpoint, new DefaultAzureCredential());

Read in the OpenAPI spec

You can find an example OpenAPI spec on GitHub.

// Read in OpenApi spec
const filePath = "./data/weatherOpenApi.json";
const openApiSpec = JSON.parse(fs.readFileSync(filePath, "utf-8"));

// Define OpenApi function
const openApiFunction = {
name: "getWeather",
spec: openApiSpec,
description: "Retrieve weather information for a location",
auth: {
    type: "anonymous",
},
default_params: ["format"], // optional
};

Create an agent and enable the OpenAPI tool

// Create OpenApi tool
const openApiTool = ToolUtility.createOpenApiTool(openApiFunction);

// Create agent with OpenApi tool
const agent = await client.createAgent(modelDeploymentName, {
name: "myAgent",
instructions: "You are a helpful agent",
tools: [openApiTool.definition],
});
console.log(`Created agent, agent ID: ${agent.id}`);

Create a thread

// Create a thread
const thread = await client.threads.create();
console.log(`Created thread, thread ID: ${thread.id}`);

// Create a message
const message = await client.messages.create(thread.id, "user", "What's the weather in Seattle?");
console.log(`Created message, message ID: ${message.id}`);

Create a run and check the output

// Create and execute a run
let run = await client.runs.create(thread.id, agent.id);
while (run.status === "queued" || run.status === "in_progress") {
await delay(1000);
run = await client.runs.get(thread.id, run.id);
}
if (run.status === "failed") {
// Check if you got "Rate limit is exceeded.", then you want to get more quota
console.log(`Run failed: ${run.lastError}`);
}
console.log(`Run finished with status: ${run.status}`);

// Get most recent message from the assistant
const messagesIterator = client.messages.list(thread.id);
const messages = [];
for await (const m of messagesIterator) {
messages.push(m);
}
const assistantMessage = messages.find((msg) => msg.role === "assistant");
if (assistantMessage) {
const textContent = assistantMessage.content.find((content) => isOutputOfType(content, "text"));
if (textContent) {
    console.log(`Last message: ${textContent.text.value}`);
}
}
// Delete the agent once done
await client.deleteAgent(agent.id);
console.log(`Deleted agent, agent ID: ${agent.id}`);

Configure client and OpenAPI tool

First, retrieve configuration details and create a PersistentAgentsClient, then define the OpenApiToolDefinition using the OpenAPI specification. You can find an example OpenAPI spec on GitHub.

using Azure;
using Azure.AI.Agents.Persistent;
using Azure.Identity;
using Microsoft.Extensions.Configuration;

IConfigurationRoot configuration = new ConfigurationBuilder()
    .SetBasePath(AppContext.BaseDirectory)
    .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true)
    .Build();

var projectEndpoint = configuration["ProjectEndpoint"];
var modelDeploymentName = configuration["ModelDeploymentName"];
var openApiSpec = configuration["OpenApiSpec"];
PersistentAgentsClient client = new(projectEndpoint, new DefaultAzureCredential());

BinaryData spec = BinaryData.FromBytes(File.ReadAllBytes(openApiSpec));

// Using anonymous auth for this example
OpenApiAnonymousAuthDetails openApiAnonAuth = new();

// Define the OpenAPI tool
OpenApiToolDefinition openApiToolDef = new(
    name: "get_weather",
    description: "Retrieve weather information for a location",
    spec: spec,
    openApiAuthentication: openApiAnonAuth,
    defaultParams: ["format"]
);

Create an agent

Next, create a PersistentAgent with the necessary model deployment, name, instructions, and the previously defined OpenAPI tool.

PersistentAgent agent = client.Administration.CreateAgent(
    model: modelDeploymentName,
    name: "Open API Tool Calling Agent",
    instructions: "You are a helpful agent.",
    tools: [openApiToolDef]
);

Create thread, message, and run

Create a PersistentAgentThread for the conversation, add a user message to it, and then create a ThreadRun to process the message, waiting for its completion.

PersistentAgentThread thread = client.Threads.CreateThread();

client.Messages.CreateMessage(
    thread.Id,
    MessageRole.User,
    "What's the weather in Seattle?");

ThreadRun run = client.Runs.CreateRun(
    thread.Id,
    agent.Id);

// Poll for the run's completion status
do
{
    Thread.Sleep(TimeSpan.FromMilliseconds(500));
    run = client.Runs.GetRun(thread.Id, run.Id);
}
while (run.Status == RunStatus.Queued
    || run.Status == RunStatus.InProgress
    || run.Status == RunStatus.RequiresAction);

Display conversation messages

Retrieve and print all messages from the thread to the console in chronological order to display the conversation flow.

Pageable<PersistentThreadMessage> messages = client.Messages.GetMessages(
    threadId: thread.Id,
    order: ListSortOrder.Ascending);

foreach (PersistentThreadMessage threadMessage in messages)
{
    foreach (MessageContent content in threadMessage.ContentItems)
    {
        switch (content)
        {
            case MessageTextContent textItem:
                Console.WriteLine($"[{threadMessage.Role}]: {textItem.Text}");
                break;
        }
    }

Clean up resources

Finally, delete the created PersistentAgentThread and PersistentAgent to clean up the resources used in this example.

client.Threads.DeleteThread(thread.Id);
client.Administration.DeleteAgent(agent.Id);

Follow the REST API Quickstart to set the right values for the environment variables AGENT_TOKEN, AZURE_AI_FOUNDRY_PROJECT_ENDPOINT and API_VERSION.

Create the OpenAPI Spec tool definition, agent, and thread

You might want to store the OpenAPI specification in another file and import the content to initialize the tool. This example is using anonymous as the authentication type. You can find an example OpenAPI spec on GitHub.

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/assistants?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "instructions": "You are a weather bot. Use the provided functions to answer questions about the weather.",
    "model": "gpt-4o",
    "tools": [{
        "type": "openapi",
        "openapi": {
          "name": "weatherapp",
          "description": "Tool to get weather data",
          "auth": {
            "type": "anonymous"
          },
          "spec": {
            "openapi": "3.1.0",
            "info": {
                "title": "get weather data",
                "description": "Retrieves current weather data for a location.",
                "version": "v1.0.0"
            },
            "servers": [{
                "url": "https://wttr.in"
            }],
            "auth": [],
            "paths": {
                "/{location}": {
                    "get": {
                        "description": "Get weather information for a specific location",
                        "operationId": "GetCurrentWeather",
                        "parameters": [
                        {
                            "name": "location",
                            "in": "path",
                            "description": "City or location to retrieve the weather for",
                            "required": true,
                            "schema": {
                            "type": "string"
                            }
                        },
                        {
                            "name": "format",
                            "in": "query",
                            "description": "Format in which to return data. Always use 3.",
                            "required": true,
                            "schema": {
                            "type": "integer",
                            "default": 3
                            }
                        }
                        ],
                        "responses": {
                        "200": {
                            "description": "Successful response",
                            "content": {
                            "text/plain": {
                                "schema": {
                                "type": "string"
                                }
                            }
                            }
                        },
                        "404": {
                            "description": "Location not found"
                        }
                        },
                        "deprecated": false
                    }
                }
            },
            "components": {
                "schemes": { }
            }
            }
        }
    }]
    }'

Create a run and check the output

Create a run and observe that the model uses the OpenAPI Spec tool to provide a response to the user's question.

Create a thread

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d ''

Add a user question to the thread

curl curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/messages?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
      "role": "user",
      "content": "What is the weather in Seattle?"
    }'

Run the thread

curl --request POST \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/runs?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "assistant_id": "asst_abc123",
  }'

Retrieve the status of the run

curl --request GET \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/runs/run_abc123?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN"

Retrieve the agent response

curl --request GET \
  --url $AZURE_AI_FOUNDRY_PROJECT_ENDPOINT/threads/thread_abc123/messages?api-version=$API_VERSION \
  -H "Authorization: Bearer $AGENT_TOKEN"

Example code

The following example code uses an example OpenAPI function in a file named weather_openapi.json. You can find the function definition on GitHub.

package com.example.agents;

import com.azure.ai.agents.persistent.MessagesClient;
import com.azure.ai.agents.persistent.PersistentAgentsAdministrationClient;
import com.azure.ai.agents.persistent.PersistentAgentsClient;
import com.azure.ai.agents.persistent.PersistentAgentsClientBuilder;
import com.azure.ai.agents.persistent.RunsClient;
import com.azure.ai.agents.persistent.ThreadsClient;
import com.azure.ai.agents.persistent.models.CreateAgentOptions;
import com.azure.ai.agents.persistent.models.CreateRunOptions;
import com.azure.ai.agents.persistent.models.MessageImageFileContent;
import com.azure.ai.agents.persistent.models.MessageRole;
import com.azure.ai.agents.persistent.models.MessageTextContent;
import com.azure.ai.agents.persistent.models.OpenApiAnonymousAuthDetails;
import com.azure.ai.agents.persistent.models.OpenApiFunctionDefinition;
import com.azure.ai.agents.persistent.models.OpenApiToolDefinition;
import com.azure.ai.agents.persistent.models.PersistentAgent;
import com.azure.ai.agents.persistent.models.PersistentAgentThread;
import com.azure.ai.agents.persistent.models.RunStatus;
import com.azure.ai.agents.persistent.models.ThreadMessage;
import com.azure.ai.agents.persistent.models.ThreadRun;
import com.azure.ai.agents.persistent.models.MessageContent;
import com.azure.core.http.rest.PagedIterable;
import com.azure.core.util.BinaryData;
import com.azure.identity.DefaultAzureCredentialBuilder;
import com.azure.json.JsonProviders;
import com.azure.json.JsonReader;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.net.URISyntaxException;
import java.net.URL;
import java.nio.file.Files;
import java.nio.file.Path;
import java.util.Arrays;

public class AgentExample {

    public static void main(String[] args) throws IOException, URISyntaxException {

        // variables for authenticating requests to the agent service
        String projectEndpoint = System.getenv("PROJECT_ENDPOINT");
        String modelName = System.getenv("MODEL_DEPLOYMENT_NAME");

        PersistentAgentsClientBuilder clientBuilder = new PersistentAgentsClientBuilder().endpoint(projectEndpoint)
            .credential(new DefaultAzureCredentialBuilder().build());
        PersistentAgentsClient agentsClient = clientBuilder.buildClient();
        PersistentAgentsAdministrationClient administrationClient = agentsClient.getPersistentAgentsAdministrationClient();
        ThreadsClient threadsClient = agentsClient.getThreadsClient();
        MessagesClient messagesClient = agentsClient.getMessagesClient();
        RunsClient runsClient = agentsClient.getRunsClient();

        Path filePath = getFile("weather_openapi.json");
        JsonReader reader = JsonProviders.createReader(Files.readAllBytes(filePath));

        OpenApiAnonymousAuthDetails oaiAuth = new OpenApiAnonymousAuthDetails();
        OpenApiToolDefinition openApiTool = new OpenApiToolDefinition(new OpenApiFunctionDefinition(
            "openapitool",
            reader.getNullable(nonNullReader -> BinaryData.fromObject(nonNullReader.readUntyped())),
            oaiAuth
        ));

        String agentName = "openAPI_example";
        CreateAgentOptions createAgentOptions = new CreateAgentOptions(modelName)
            .setName(agentName)
            .setInstructions("You are a helpful agent")
            .setTools(Arrays.asList(openApiTool));
        PersistentAgent agent = administrationClient.createAgent(createAgentOptions);

        PersistentAgentThread thread = threadsClient.createThread();
        ThreadMessage createdMessage = messagesClient.createMessage(
            thread.getId(),
            MessageRole.USER,
            "What's the weather in seattle?");

        try {
            //run agent
            CreateRunOptions createRunOptions = new CreateRunOptions(thread.getId(), agent.getId())
                .setAdditionalInstructions("");
            ThreadRun threadRun = runsClient.createRun(createRunOptions);

            waitForRunCompletion(thread.getId(), threadRun, runsClient);
            printRunMessages(messagesClient, thread.getId());
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        } finally {
            //cleanup
            threadsClient.deleteThread(thread.getId());
            administrationClient.deleteAgent(agent.getId());
        }
    }

    private static Path getFile(String fileName) throws FileNotFoundException, URISyntaxException {
        URL resource = AgentExample.class.getClassLoader().getResource(fileName);
        if (resource == null) {
            throw new FileNotFoundException("File not found");
        }
        File file = new File(resource.toURI());
        return file.toPath();
    }

    // A helper function to print messages from the agent
    public static void printRunMessages(MessagesClient messagesClient, String threadId) {

        PagedIterable<ThreadMessage> runMessages = messagesClient.listMessages(threadId);
        for (ThreadMessage message : runMessages) {
            System.out.print(String.format("%1$s - %2$s : ", message.getCreatedAt(), message.getRole()));
            for (MessageContent contentItem : message.getContent()) {
                if (contentItem instanceof MessageTextContent) {
                    System.out.print((((MessageTextContent) contentItem).getText().getValue()));
                } else if (contentItem instanceof MessageImageFileContent) {
                    String imageFileId = (((MessageImageFileContent) contentItem).getImageFile().getFileId());
                    System.out.print("Image from ID: " + imageFileId);
                }
                System.out.println();
            }
        }
    }

    // a helper function to wait until a run has completed running
    public static void waitForRunCompletion(String threadId, ThreadRun threadRun, RunsClient runsClient)
        throws InterruptedException {

        do {
            Thread.sleep(500);
            threadRun = runsClient.getRun(threadId, threadRun.getId());
        }
        while (
            threadRun.getStatus() == RunStatus.QUEUED
                || threadRun.getStatus() == RunStatus.IN_PROGRESS
                || threadRun.getStatus() == RunStatus.REQUIRES_ACTION);

        if (threadRun.getStatus() == RunStatus.FAILED) {
            System.out.println(threadRun.getLastError().getMessage());
        }
    }
}
