SharePoint online: Get all workflows from tenant using PowerShell CSOM and PnP

2024-01-17

Introduction

In this tutorial, we will learn about how we can get consolidated workflow reports from the SharePoint Online tenant using PowerShell CSOM and PnP PowerShell. This script will scan through all the sites in a tenant and will export all workflows associated with the lists into a CSV file.

Workflows report from SharePoint Online using PowerShell CSOM & PnP

Using the below PowerShell CSOM & PnP code, we can get all workflows from the SharePoint Online tenant:

Import-Module Microsoft.Online.SharePoint.PowerShell -DisableNameChecking
#Load SharePoint CSOM Assemblies
 #Add-Type -Path "C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\16\ISAPI\Microsoft.SharePoint.Client.dll"
 #Add-Type -Path "C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\16\ISAPI\Microsoft.SharePoint.Client.Runtime.dll"
 cls
 $fileName = "Tenant_workflow_Report"  #'yyyyMMddhhmm   yyyyMMdd
 $enddate = (Get-Date).tostring("yyyyMMddhhmmss")
 #$filename =  $enddate + '_VMReport.doc'
 $logFileName = $fileName +"_"+ $enddate+"_Log.txt"
 $invocation = (Get-Variable MyInvocation).Value
 $directoryPath = Split-Path $invocation.MyCommand.Path

   $directoryPathForLog=$directoryPath+"\"+"LogFiles"
   if(!(Test-Path -path $directoryPathForLog))
 {
 New-Item -ItemType directory -Path $directoryPathForLog
 #Write-Host "Please Provide Proper Log Path" -ForegroundColor Red
 }

#$logPath = $directoryPath + "\" + $logFileName
$logPath = $directoryPathForLog + "\" + $logFileName
$isLogFileCreated = $False

#DLL location
$directoryPathForDLL=$directoryPath+"\"+"Dependency Files"
if(!(Test-Path -path $directoryPathForDLL))
 {
 New-Item -ItemType directory -Path $directoryPathForDLL
 #Write-Host "Please Provide Proper Log Path" -ForegroundColor Red
 }

#DLL location

$clientDLL=$directoryPathForDLL+"\"+"Microsoft.SharePoint.Client.dll"
$clientDLLRuntime=$directoryPathForDLL+"\"+"Microsoft.SharePoint.Client.dll"

Add-Type -Path $clientDLL
Add-Type -Path $clientDLLRuntime

#File Download location
$directoryPathForFileDownloadLocation=$directoryPath+"\"+"Download Workflow Details"
if(!(Test-Path -path $directoryPathForFileDownloadLocation))
 {
 New-Item -ItemType directory -Path $directoryPathForFileDownloadLocation
 #Write-Host "Please Provide Proper Log Path" -ForegroundColor Red
 }

#File Download location

function Write-Log([string]$logMsg)
{
 if(!$isLogFileCreated){
 Write-Host "Creating Log File..."
 if(!(Test-Path -path $directoryPath))
 {
 Write-Host "Please Provide Proper Log Path"  -ForegroundColor Red
 }
 else
 {
 $script:isLogFileCreated = $True
 Write-Host "Log File ($logFileName) Created..."
 [string]$logMessage = [System.String]::Format("[$(Get-Date)] - {0}", $logMsg)
 Add-Content -Path $logPath -Value $logMessage
 }
 }
 else
 {
 [string]$logMessage = [System.String]::Format("[$(Get-Date)] - {0}", $logMsg)
 Add-Content -Path $logPath -Value $logMessage
 }
}
#Object array to hold workflow details.
$WorkflowDetailsForSPOSite=@()
#The below function will read all workflows from a site and return the array output.
Function Get-WorkflowAssociationsDeatilsForEachSiteInTenant()
{
 param
 (
 [Parameter(Mandatory=$true)] [string] $SPOSiteURL,
 [Parameter(Mandatory=$true)] [string] $UserName,
 [Parameter(Mandatory=$true)] [string] $Password
 )
 Try
 {
 $securePassword= $Password | ConvertTo-SecureString -AsPlainText -Force
 #Setup the Context
 $context = New-Object Microsoft.SharePoint.Client.ClientContext($SPOSiteURL)
 $context.Credentials = New-Object Microsoft.SharePoint.Client.SharePointOnlineCredentials($UserName, $securePassword)

 $web = $context.Web
 $context.Load($web)
 $context.Load($web.Webs)

 $context.executeQuery()
 #Check if any subsite is available on the site.
 if ($web.Webs.Count -ne 0)
 {
 foreach ($subweb in $web.Webs)
 {
 Get-WorkflowAssociationsDeatilsForEachSiteInTenant -SPOSiteURL $subweb.url -UserName $userName -Password $password
 }
 }

 #Loading all lists for the particular site.
 $context.Load($web.Lists)
 $context.ExecuteQuery()

 foreach($list in  $web.Lists)
   {
 $context.Load($list.WorkflowAssociations)
 $context.ExecuteQuery()

 foreach($wfAssociation in  $list.WorkflowAssociations)
   {
 if($wfAssociation.name -notlike "*Previous Version*")
 {
 $row=new-object PSObject
 add-Member -inputObject $row -memberType NoteProperty -name "Site Title" -Value $web.Title
 add-Member -inputObject $row -memberType NoteProperty -name "Site URL" -Value $web.Url
 add-Member -inputObject $row -memberType NoteProperty -name "List Title" -Value $list.Title
 add-Member -inputObject $row -memberType NoteProperty -name "Workflow Name"  -Value $wfAssociation.Name
 add-Member -inputObject $row -memberType NoteProperty -name "Workflow Type"  -Value "SharePoint List"
 $WorkflowDetailsForSPOSite+=$row
 }
 }
 }
 return $WorkflowDetailsForSPOSite


 }
 catch
 {
 write-host "Error: $($_.Exception.Message)"  -foregroundcolor Red
 $ErrorMessage = $_.Exception.Message +"in exporting workflow details!:"
 Write-Host $ErrorMessage -BackgroundColor Red
 Write-Log $ErrorMessage

 }
}

#Parameters
#$siteURL="https://globalsharepoint2019.sharepoint.com/sites/ModernTeamSiteTestByPnP"
$adminUrl = "https://globalsharepoint2019-admin.sharepoint.com/"
$downloadLocation=$directoryPathForFileDownloadLocation +"\"+ "SPOTenantWorkflowReport.csv"
$userName = "YourSPOUserName"
$password = "YourSPOPassWord"
$securePassword= $password | ConvertTo-SecureString -AsPlainText -Force

#Parameters ends here.

$SecurePassword = $Password | ConvertTo-SecureString -AsPlainText -Force
$Credentials = New-Object -TypeName System.Management.Automation.PSCredential -argumentlist $userName, $SecurePassword
#Import-Module Microsoft.Online.SharePoint.PowerShell -DisableNameChecking
#Retrieve all site collection infos
#Connect-SPOService -Url $AdminUrl -Credential $Credentials
#$sites = Get-SPOSite
Connect-PnPOnline -Url $adminUrl -Credentials $Credentials
$allTenantSites=Get-PnPTenantSite
#Get-WorkflowAssociationsDeatilsForEachSiteInTenant -SPOSiteURL $siteURL -UserName $userName -Password $password | Export-Csv $downloadLocation
if($allTenantSites.Count -gt 0)
{
 $finalWorkflowReport =foreach($oneSite in  $allTenantSites)
 {
 Get-WorkflowAssociationsDeatilsForEachSiteInTenant -SPOSiteURL $oneSite.URL -UserName $userName -Password $password
 }
 $finalWorkflowReport | Export-Csv $downloadLocation -NoTypeInformation
 }
Write-host "All workflows have been exported Successfully from the SharePoint Online Tenant." -BackgroundColor Green

Key notes about the above code

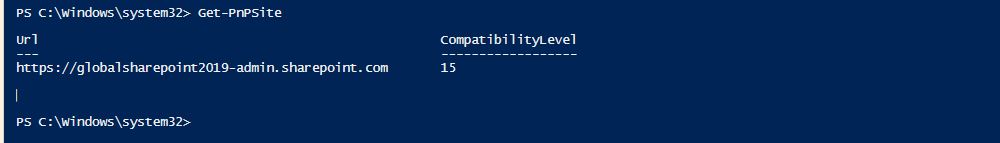

We must use the “Get-PnPTenantSite” to get all sites from the tenant, the other command “Get-PnPSite“, if we use this, it will give only the tenant admin site URL, like below.

Similarly, in order to get all sites from the tenant, we can use the “Get-SPOSite” command as well. However, if you have .net framework mismatch version installed in your PowerShell – this command will not work, we will get an error like "Connect-SPOService : Method not found: ‘!!0[] System.Array.Empty()‘"

If we use the above code as is this will export all workflows from the tenant. However, if we want to export all workflows from a particular site we can comment the foreach loop and just we need to call the function "Get-WorkflowAssociationsDeatilsForEachSiteInTenant" as below:

Get-WorkflowAssociationsDeatilsForEachSiteInTenant -SPOSiteURL $siteURL -UserName $userName -Password $password | Export-Csv $downloadLocation

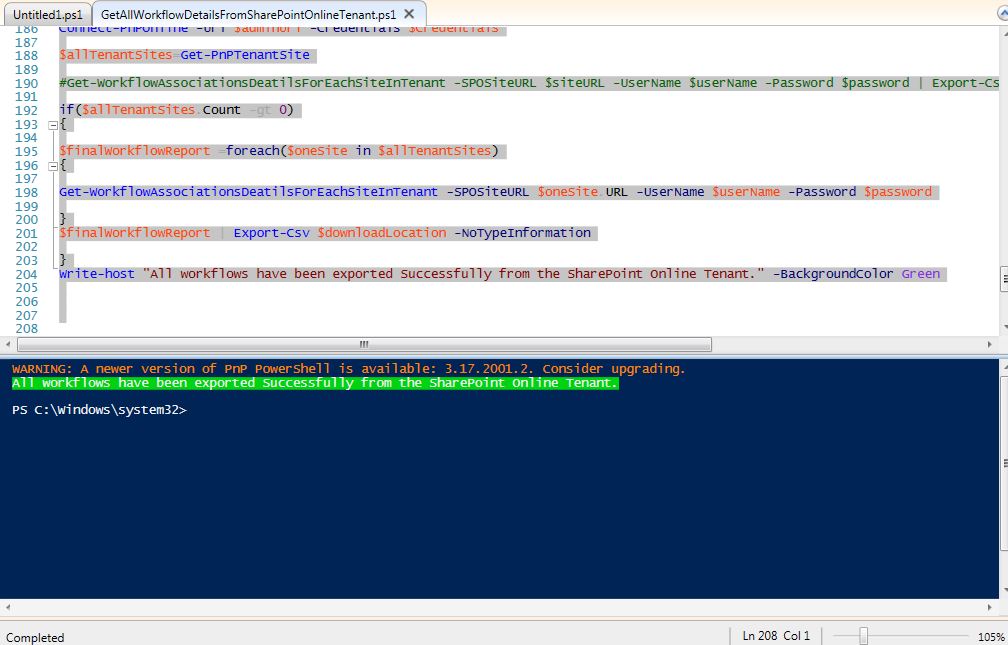

Now, let’s execute the above script.

After the successful execution of the script, a CSV file with the name of "SPOTenantWorkflowReport.csv" will be created in the script location directory – however, you can change the download location to your desired location.

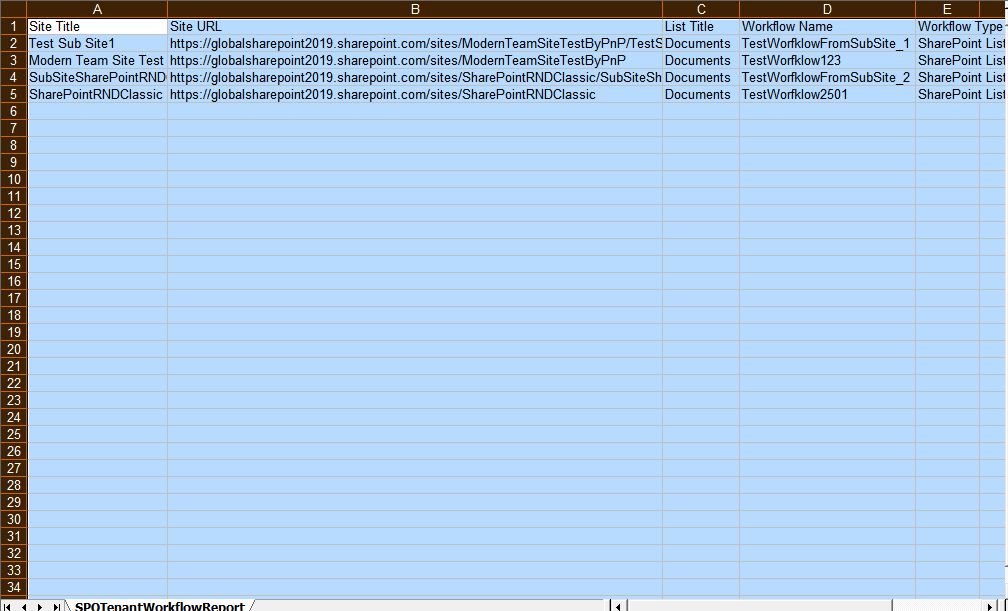

Now, let’s look at all workflows exported as CSV reports.

We can see in the CSV report, all workflows from the SharePoint Online tenant have been exported.

Prerequisites to execute the above script

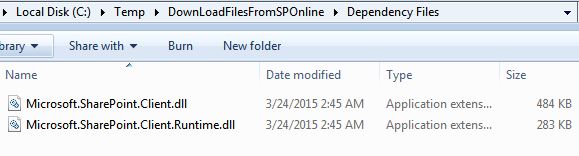

We need to place the below two DLLs in your script directory "Dependency Files" folder as like below:

Install PnP PowerShell

To install the "SharePointPnPPowerShellOnline" we need to run the below PowerShell command which will install PowerShell Package Management and then install the PowerShell Modules from the PowerShell Gallery.

(New-Object Net.WebClient).DownloadString('https://raw.githubusercontent.com/sharepoint/PnP-PowerShell/master/Samples/Modules.Install/Install-SharePointPnPPowerShell.ps1')

Change the value of the variables in the parameters section like below.

#Parameters
#$siteURL="https://globalsharepoint2019.sharepoint.com/sites/ModernTeamSiteTestByPnP"
$adminUrl = "Your SPO Admin URL Like - https://globalsharepoint2019-admin.sharepoint.com/"
$downloadLocation=$directoryPathForFileDownloadLocation +"\"+ "SPOTenantWorkflowReport.csv"
$userName = "YourSPOUserName"
$password = "YourSPOPassWord"
$securePassword= $password | ConvertTo-SecureString -AsPlainText -Force
#Parameters ends here.

Summary: what we had here?

In this article, we have learned how we can generate a workflow consolidated report from SharePoint Online tenant using the PowerShell CSOM and PnP.

Download

The above code can be downloaded from here.
