Let's imagine how we'd draw an arc in Small Basic.
Assume the center of the arc is at x = 200, y = 300, and the start angle a1 = -30 and the end angle = -60.
In mathematics, the y axis goes up. But in the Small Basic GraphicsWindow, the y axis goes down. So the sine of the angle becomes the opposite.

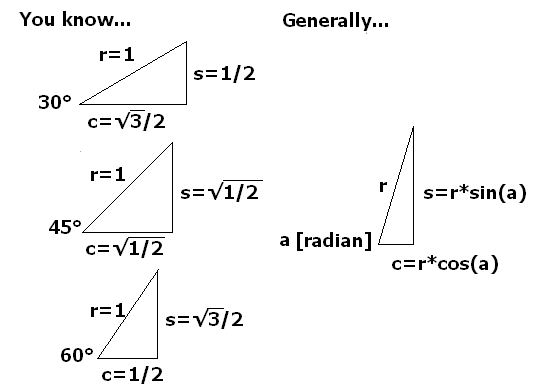

If you don't need to use trigonometric functions, you can use only 0, 30, 45, 60, 90, ...[degrees]. Between these angles you can calculate height s from width c of the triangle while three edges of triangle r, c, s (like in picture below) have this relationship: r2 = s2 + c2.
But for any angle, use trigonometric functions (sin, cos):
Be careful; the trigonometric functions need [radian] but [degree] for Small Basic language.
You can use Math.GetRadians(degree) to convert from [degree] to [radian].

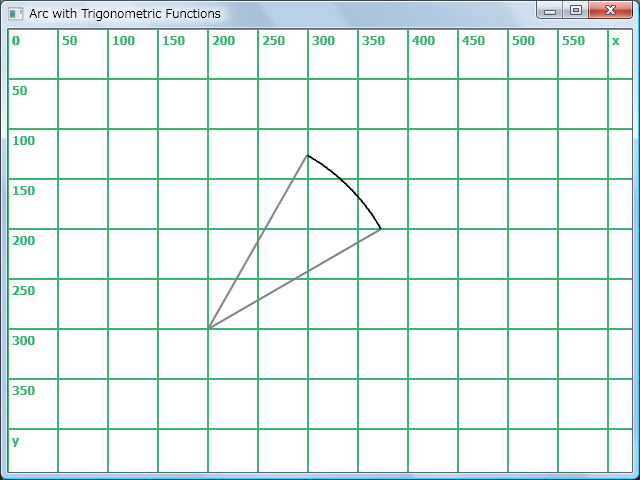

The following sample code shows how not to use or how to use trigonometric functions (sin, cos) for drawing arc.
gw = GraphicsWindow.Width
gh = GraphicsWindow.Height
DrawGrid()
x = 200
y = 300
r = 200
DrawArcwoTrigo()
Program.Delay(3000)
GraphicsWindow.Clear()
DrawGrid()
a1 = -30
a2 = -60
DrawArcwTrigo()
Sub DrawArcwoTrigo ' draw arc without trigonometric functions
GraphicsWindow.Title = "Arc without Trigonometric Functions"
c1 = r * Math.SquareRoot(3) / 2 ' a1 = -30
c2 = r / 2 ' a2 = -60
r2 = Math.Power(r, 2)
For c = c1 To c2 Step -1
s = Math.SquareRoot(r2 - Math.Power(c, 2))
x2 = x + c
y2 = y - s
If c = c1 Then
GraphicsWindow.PenColor = "Gray"
GraphicsWindow.DrawLine(x, y, x2, y2)
Else
GraphicsWindow.PenColor = "Black"
GraphicsWindow.DrawLine(x1, y1, x2, y2)
EndIf
If c - 1 < c2 Then
GraphicsWindow.PenColor = "Gray"
GraphicsWindow.DrawLine(x, y, x2, y2)
EndIf
x1 = x2
y1 = y2
EndFor
EndSub
Sub DrawArcwTrigo ' draw arc with trigonometric functions
GraphicsWindow.Title = "Arc with Trigonometric Functions"
For a = a1 To a2 Step -0.3
x2 = x + r * Math.Cos(Math.GetRadians(a))
y2 = y + r * Math.Sin(Math.GetRadians(a))
If a = a1 Then
GraphicsWindow.PenColor = "Gray"
GraphicsWindow.DrawLine(x, y, x2, y2)
Else
GraphicsWindow.PenColor = "Black"
GraphicsWindow.DrawLine(x1, y1, x2, y2)
EndIf
If a - 0.3 < a2 Then
GraphicsWindow.PenColor = "Gray"
GraphicsWindow.DrawLine(x, y, x2, y2)
EndIf
x1 = x2
y1 = y2
EndFor
EndSub
Sub DrawGrid
GraphicsWindow.PenColor = "MediumSeaGreen"
GraphicsWindow.BrushColor = "MediumSeaGreen"
For _x = 0 To gw Step 50
GraphicsWindow.DrawLine(_x, 0, _x, gh)
If gw - 50 < _x Then
GraphicsWindow.DrawText(_x + 4, 4, "x")
Else
GraphicsWindow.DrawText(_x + 4, 4, _x)
EndIf
EndFor
For _y = 0 To gh Step 50
GraphicsWindow.DrawLine(0, _y, gw, _y)
If gh - 50 < _y Then
GraphicsWindow.DrawText(4, _y + 4, "y")
Else
GraphicsWindow.DrawText(4, _y + 4, _y)
EndIf
EndFor
EndSub
