Automation account runbook PS runtime 7.4 - hybrid worker not working

Question

Automation account runbook PS runtime 7.4 - hybrid worker not working

Charles Thivierge 4,176

Hello!

I have an Automation Account and i have created a PS 7.4 runtime environment.

I have added the package i'm using, Pnp.Powershell and a custom package.

When i try to run the runbook using Azure, it works, but when i try to run using an Hybrid Worker, the job stay in "Queued" for several minutes then it get "Suspended"

In the event log (Microsoft-SMA) of the HW VM, i get the following event

Event ID 7001 - SandboxEncounteredException

[jobAction=Activate] [exceptionMessage=System.InvalidOperationException: Runbook type 'PowerShellV2' not supported.

What could cause this issue ?

The hybrid worker is a Windows Server 2019 with Powershell 7.5.2 installed with all required az modules as well as the custom.

Any hints ?

4 answers

Your answer

Answer 1

Charles Thivierge 4,176

Ok... i was able to get this working...

Here's what i've done...

I have created and published another runbook using the default PS 7.2 runtime environment.
I have upgraded the runtime of my runbook to my "custom PS 7.4" runtime environment
On the hybrid worker, i have added the environment variable "POWERSHELL_7_4_PATH" with the value "C:\Program Files\PowerShell\7"

This worked.

What i have also found is that Automation Account does not Support PS 7.4 so far. So if you create a runbook using a custom PS 7.4 runtime environment and then you switch to the "old experience", if you look in the runbooks, you will notice that the runbook you have created will be in runtime 5.1.

Thanks all

hth

Kendal Friesen 6 Reputation points

2025-08-06T21:11:39.12+00:00

Pure. Genius. Great job! Worked for me. Thanks @Charles Thivierge !

Answer 2

Jose Benjamin Solis Nolasco 4,906

@Charles Thivierge I hope you are doing well,

You're trying to run a PowerShell 7.4 (PowerShell V2 runtime) runbook on a Hybrid Worker, but classic Hybrid Workers currently do not support the PowerShell V2 runtime (7.x) — only PowerShell 5.1 (Windows PowerShell).

This is why you're seeing:

Runbook type 'PowerShellV2' not supported Event ID 7001 - SandboxEncounteredException

Microsoft is moving to a new extension-based hybrid worker model that does support PowerShell 7.x runbooks.

Here's how to set it up:

Requirements:

VM must be Azure Arc–enabled or an Azure VM.

Azure Connected Machine Agent must be installed (for Arc).

Use the Automation Hybrid Worker Extension.

Microsoft Docs:https://learn.microsoft.com/en-us/azure/automation/automation-hybrid-runbook-worker-v2-deploy

😊 If my answer helped you resolve your issue, please consider marking it as the correct answer. This helps others in the community find solutions more easily. Thanks!

Charles Thivierge 4,176 Reputation points

2025-08-05T13:53:14.7933333+00:00

Hi @Jose Benjamin Solis Nolasco

Thanks for your answer. Actually, the hybrid worker is a Azure VM in the same subscription as the Automation account. Also, the VM has the hybrid worker extension "Microsoft.Azure.Automation.HybridWorker.HybridWorkerForWindows" version 1.3.63.

Is there another extension that i should use ?

Jose Benjamin Solis Nolasco 4,906

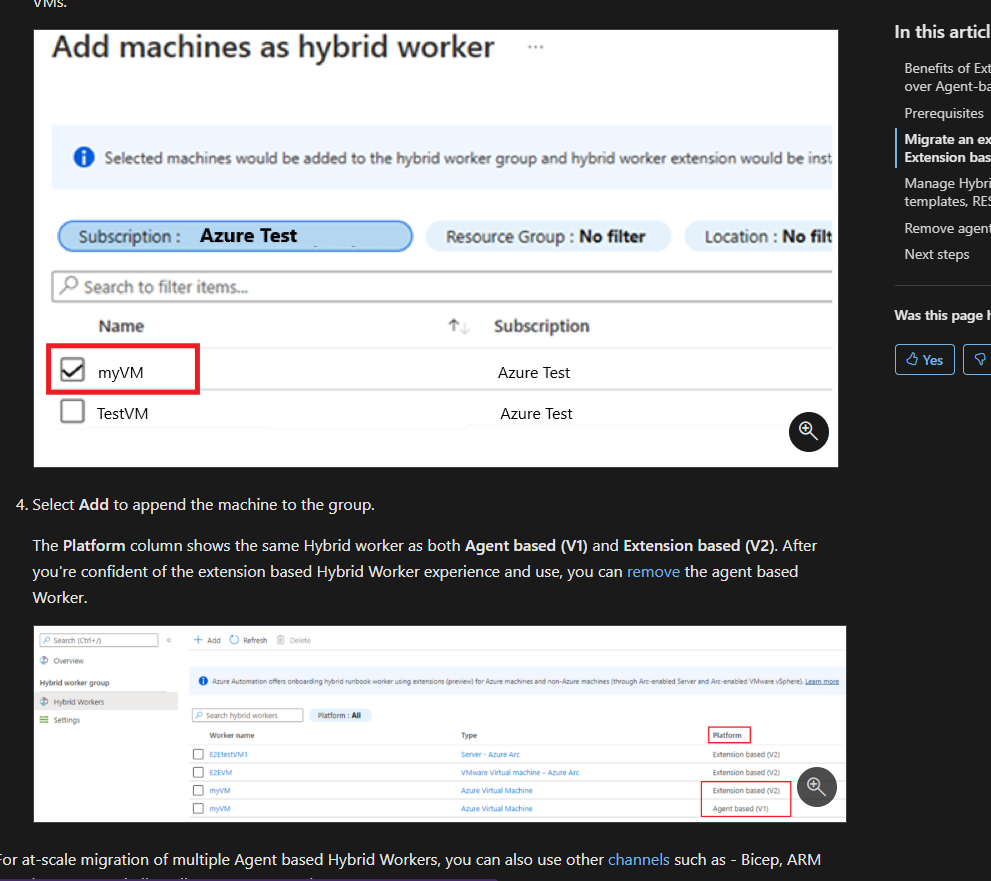

Yes you have to move from the classic model to the the newer version Hybrid Worker v2 https://learn.microsoft.com/en-us/azure/automation/automation-hrw-run-runbooks?tabs=sa-mi

To run PowerShell 7.x (V2) runbooks on a hybrid worker, you must migrate to the new Hybrid Runbook Worker (v2), which is based on Azure Arc / extension-based deployment.

https://learn.microsoft.com/en-us/azure/automation/migrate-existing-agent-based-hybrid-worker-to-extension-based-workers?tabs=bicep-file%2Cwin-hrw {EB4D594E-2E7D-4AB7-96A6-5A7D5AE62BD8}

This uses a different agent model (not the legacy Automation Hybrid Worker extension).

What You Need to Do

Remove the old hybrid worker extension (HybridWorkerForWindows) from the VM (if not needed for PS 5.1 runbooks).

Ensure the VM is Azure Arc–enabled
If your VM is native Azure, you don’t need full Arc, but you still must register it for extension-based hybrid worker.

Register the correct provider
```

   Register-AzResourceProvider -ProviderNamespace Microsoft.HybridCompute
```
Install the new hybrid worker extension
Follow the official deployment guide for the extension-based hybrid worker, which supports PowerShell 7.x and Python 3: 🔗 Azure Automation Extension-based Hybrid Worker (V2) Deploy runbooks with the supported runtime stack: PowerShell V2 (7.x)
```
  Python 3
```

Confirm It's Working

Once the extension is deployed:

In Azure Portal → Automation Account → Hybrid Workers (Preview)

You should see your VM listed under Extension-based workers, not just Classic.

Try re-running your PowerShell 7.4 runbook now — it should no longer queue/suspend.

Summary

Feature	Classic Hybrid Worker	Extension-Based Hybrid Worker (v2)
PowerShell 7+ Support	Not Supported	Supported
Python 3 Support	No	Yes
VM Requirements	Azure or Arc-enabled	Azure or Arc-enabled
Agent Model	Microsoft.Automation extension	Azure Connected Machine Agent

Kendal Friesen 6 Reputation points

2025-08-06T15:23:51.24+00:00

This is my settings @Jose Benjamin Solis Nolasco - it is extension based, azure arc, I have set the system variable, have powershell 7.4 installed and it still will not run the 7.4 runbook.

Worker nameTypePlatformRegistration timeLast seen tim****ee-ze ArcExtension basedServer - Azure ArcExtension based (V2)

Answer 3

Charles Thivierge 4,176

Thanks for quick reply,

In the hybrid worker group, i only have 1 hybrid worker which is an azure vm with extension based v2.

Also, the VM was a fresh install without any other version of the hybrid worker extension or agent based. The first setup was using extension based v2.

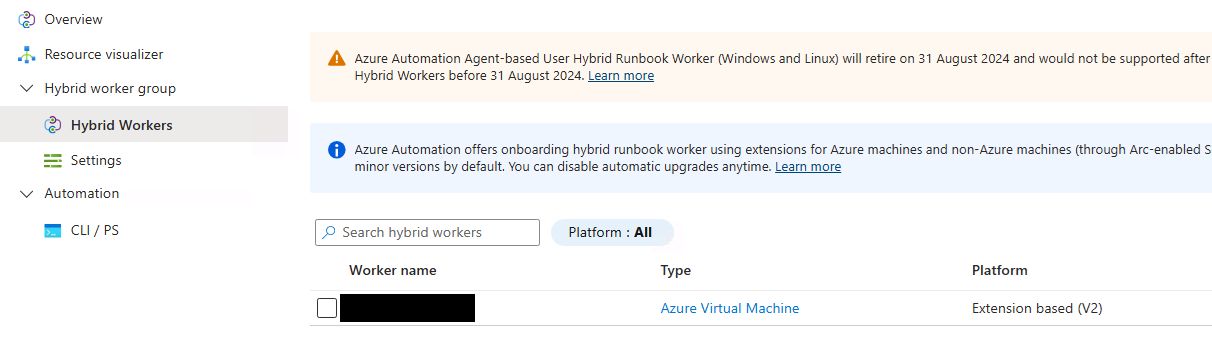

User's image

I also have added the variable "POWERSHELL_7_4_PATH" that point to "C:\Program Files\PowerShell\7" and restarted the VM but it still having the same error message

Jose Benjamin Solis Nolasco 4,906 Reputation points

2025-08-05T18:29:43.21+00:00
Run this command

Get-AzConnectedMachineExtension -MachineName "<VMName>" -ResourceGroupName "<RGName>" | Where-Object Name -like "*HybridWorker*"

You should see something like:

Name: HybridWorkerExtension

Publisher: Microsoft.Azure.Automation.HybridWorker

ProvisioningState: Succeeded

If not registered properly or shows errors — uninstall and re-install the extension.

Question regarding this I also have added the variable "POWERSHELL_7_4_PATH" that point to "C:\Program Files\PowerShell\7" and restarted the VM but it still having the same error message

Are you using 7.5 or 7.4 PS?

Make sure that PowerShell 7.4 is properly installed on the worker, and not just 7.5 (you mentioned 7.5.2 earlier).

Check this:

Get-Command pwsh | Select-Object Source, Version

And ensure that C:\Program Files\PowerShell\7 contains pwsh.exe.

If 7.5.x is installed but your runbook expects 7.4 specifically, it may fail silently — try either downgrading to 7.4 or rebuilding the runtime in the automation account to match installed version.

4. Verify the Runtime in Automation Account Matches the VM

Make sure your runbook runtime environment in the Automation Account matches the version and type:

Go to Automation Account > Runbook

Check:

Runtime Version: PowerShell 7.x

Runtime Environment: Is the environment set to use 7.4?

If using a custom environment, verify it matches PowerShell 7.4 exactly.

I hope this time it helps let me know the outcome of those commands

Answer 4

I'm having the exact same experience.... I have been able to get my runbook to run twice on 7.4... and I have no clue why it ran successfully... as then it stops working and throws that error as mentioned in intial post.

My system variable is
powershell_7_4_path C:\Program Files\PowerShell\7\pwsh.exe

I have tried with and without the pwsh.exe in the path.
C:\Program Files\PowerShell\7
C:\Program Files\PowerShell\7\pwsh.exe - This is when I think it worked... but then it didn't work on repeated tries.

My extension is on latest version. 1.3.63

I'm using a custom environment for 7.4. My runbook will run against azure... just not on hybrid worker.

I'm using 7.4 - we did have 7.5 but uninstalled it and installed 7.4
