Raw Input report rate is so low
나느
41
Reputation points
Hello.
I'm trying to scan some keyboard input, and it works but the polling rate is so low. The hidclass.sys driver seemed to aggregate some input packets while I don't want to do that. Is there a way to make the HID driver have high polling rate (at least about 1000 Hz)? It might be a Windows settings I guess
Here's the code and result:
#include <windows.h>
#include <iostream>
#include <thread>
LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam);
void RawInputThread() {
// Register window class
const wchar_t CLASS_NAME[] = L"RawInputWindowClass";
WNDCLASS wc = {};
wc.lpfnWndProc = WndProc;
wc.hInstance = GetModuleHandle(nullptr);
wc.lpszClassName = CLASS_NAME;
RegisterClass(&wc);
// Create a message-only window
HWND hwnd = CreateWindowEx(
0, CLASS_NAME, L"RawInputHiddenWindow",
0, 0, 0, 0, 0,
HWND_MESSAGE, nullptr, GetModuleHandle(nullptr), nullptr);
if (!hwnd) {
std::cerr << "Failed to create window\n";
return;
}
// Register for raw input from the mouse
RAWINPUTDEVICE rid;
rid.usUsagePage = 0x01; // Generic Desktop Controls
rid.usUsage = 0x02; // Mouse
rid.dwFlags = RIDEV_INPUTSINK; // Receive input even when not in focus
rid.hwndTarget = hwnd;
if (!RegisterRawInputDevices(&rid, 1, sizeof(rid))) {
std::cerr << "Failed to register raw input\n";
return;
}
// Message loop
MSG msg = {};
while (GetMessage(&msg, nullptr, WM_INPUT, WM_INPUT) > 0) {
TranslateMessage(&msg);
DispatchMessage(&msg);
}
}
UINT64 then = 0;
LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam) {
if (msg == WM_INPUT) {
UINT dwSize = 0;
GetRawInputData((HRAWINPUT)lParam, RID_INPUT, nullptr, &dwSize, sizeof(RAWINPUTHEADER));
BYTE* lpb = new BYTE[dwSize];
if (GetRawInputData((HRAWINPUT)lParam, RID_INPUT, lpb, &dwSize, sizeof(RAWINPUTHEADER)) == dwSize) {
RAWINPUT* raw = (RAWINPUT*)lpb;
if (raw->header.dwType == RIM_TYPEMOUSE) {
LONG x = raw->data.mouse.lLastX;
LONG y = raw->data.mouse.lLastY;
std::cout << "Mouse move: X=" << x << " Y=" << y << " " << _Query_perf_counter() - then << "\n";
then = _Query_perf_counter();
}
}
delete[] lpb;
return 0;
}
return DefWindowProc(hwnd, msg, wParam, lParam);
}
int main() {
std::thread t(RawInputThread);
t.detach();
std::cout << "Mouse raw input thread running. Press Enter to exit.\n";
std::cin.get();
return 0;
}

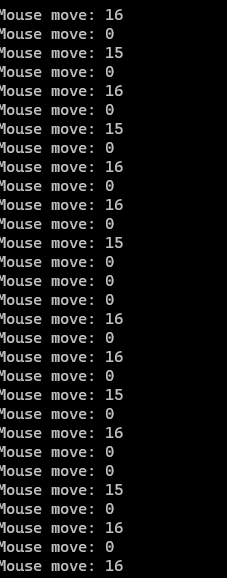

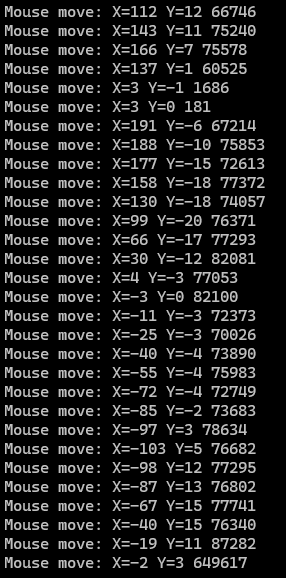

(The value after X and Y is QueryPerformanceCounter()
Ticks with 10 MHz frequency, and it indicates about 7-8 ms)
Right before asking I changed the code to bypass Windows message loop and use GetRawInputBuffer()
function, still not resolving the problem
