Issues installing Admin Console on Arc servers

Question

Issues installing Admin Console on Arc servers

Bryan Buck 20

I am getting an error when trying to install the Admin console on the servers I have added to the Azure Arc. Here is the error: Failed to install extension

{"stack":"AjaxError: ajaxExtended call failed\n at n.t (https://portal.azure.com/Content/Dynamic/5dbNfwB5-dDR.js:27:815)\n%5Cn) at new n (https://portal.azure.com/Content/Dynamic/51Jq2ebuzhQq.js:1:46

Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-09T14:58:45.7633333+00:00
Hello Bryan,

DNS Rebinding Protection

This error can be triggered if your network or firewall blocks DNS lookups for localhost or internal IPs.

Fix: If you're using pfSense or similar firewalls, allow DNS rebinding for the affected servers

Missing RBAC Role

Ensure the Arc-enabled server has the Windows Admin Center Administrator Login role assigned.

You can check this in Azure Portal > Access Control (IAM) on the server resource.

Extension Installation Timeout or Portal Bug

Sometimes the portal fails due to transient issues or script errors.

Fix: Try installing the extension via Azure CLI:

az connectedmachine extension create \ --machine-name <your-arc-server-name> \ --resource-group <your-resource-group> \ --name WindowsAdminCenter \ --extension-type WindowsAdminCenter \ --location <region>

Browser Cache or Portal Script Errors

The error stack trace references dynamic JS files from the portal.

Fix: Try:

Clearing browser cache.

Using a different browser.

Accessing the portal in incognito mode.

Reference Link:

https://blog.sonnes.cloud/azure-arc-windows-admin-center-cant-connect-with-error-couldnt-get-server-data-ajax-error/

https://learn.microsoft.com/en-us/azure/azure-arc/servers/troubleshoot-vm-extensions

Please let me know if you face any challenge here, I can help you to resolve this issue further

If the comment was helpful, please click "Upvote"
Bryan Buck 20 Reputation points

2025-07-09T15:23:42.91+00:00

I tried installing via the Azure CLI but apparently it can now only be installed via the portal?
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-09T15:32:26.12+00:00

Hello Bryan,

I have reached out to you in a private message

Thankyou
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-15T06:02:24.7366667+00:00

Hello Bryan,

I have reached out to you in a private message

Thankyou

Accepted answer

0 additional answers

Your answer

Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-09T14:58:45.7633333+00:00

Hello Bryan,

DNS Rebinding Protection

This error can be triggered if your network or firewall blocks DNS lookups for localhost or internal IPs.

Fix: If you're using pfSense or similar firewalls, allow DNS rebinding for the affected servers

Missing RBAC Role

Ensure the Arc-enabled server has the Windows Admin Center Administrator Login role assigned.

You can check this in Azure Portal > Access Control (IAM) on the server resource.

Extension Installation Timeout or Portal Bug

Sometimes the portal fails due to transient issues or script errors.

Fix: Try installing the extension via Azure CLI:

az connectedmachine extension create \ --machine-name <your-arc-server-name> \ --resource-group <your-resource-group> \ --name WindowsAdminCenter \ --extension-type WindowsAdminCenter \ --location <region>

Browser Cache or Portal Script Errors

The error stack trace references dynamic JS files from the portal.

Fix: Try:

Clearing browser cache.

Using a different browser.

Accessing the portal in incognito mode.

Reference Link:

https://blog.sonnes.cloud/azure-arc-windows-admin-center-cant-connect-with-error-couldnt-get-server-data-ajax-error/

https://learn.microsoft.com/en-us/azure/azure-arc/servers/troubleshoot-vm-extensions

Please let me know if you face any challenge here, I can help you to resolve this issue further

If the comment was helpful, please click "Upvote"
Bryan Buck 20 Reputation points

2025-07-09T15:23:42.91+00:00

I tried installing via the Azure CLI but apparently it can now only be installed via the portal?
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-09T15:32:26.12+00:00

Hello Bryan,

I have reached out to you in a private message

Thankyou
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-15T06:02:24.7366667+00:00

Hello Bryan,

I have reached out to you in a private message

Thankyou

Answer 1

Hello @Bryan Buck,

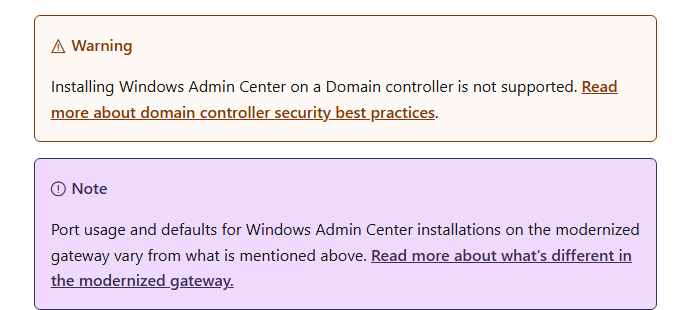

As discussed, Installing Windows Admin Center on a Domain controller is not supported.
User's image Reference Link:

https://learn.microsoft.com/en-us/windows-server/manage/windows-admin-center/plan/installation-options#installation-supported-operating-systems

Please let me know if you face any challenge here, I can help you to resolve this issue further

Provide your valuable Comments.

Please do not forget to "Accept the answer” and “upvote it” wherever the information provided helps you, this can be beneficial to other community members.it would be greatly appreciated and helpful to others.
