Unable to configure Azure Replication Appliance

Question

Unable to configure Azure Replication Appliance

Continental-re 0

When trying to configure the replication appliance, I experience a variant of errors, Kindly find attached images of the errors.

Ashok Gandhi Kotnana 10,430 Reputation points Microsoft External Staff Moderator

2025-06-13T12:15:52.4333333+00:00

Hi @Continental-re

Can you please share the screenshot?

Thankyou
Continental-re 0 Reputation points

2025-06-20T13:15:08+00:00

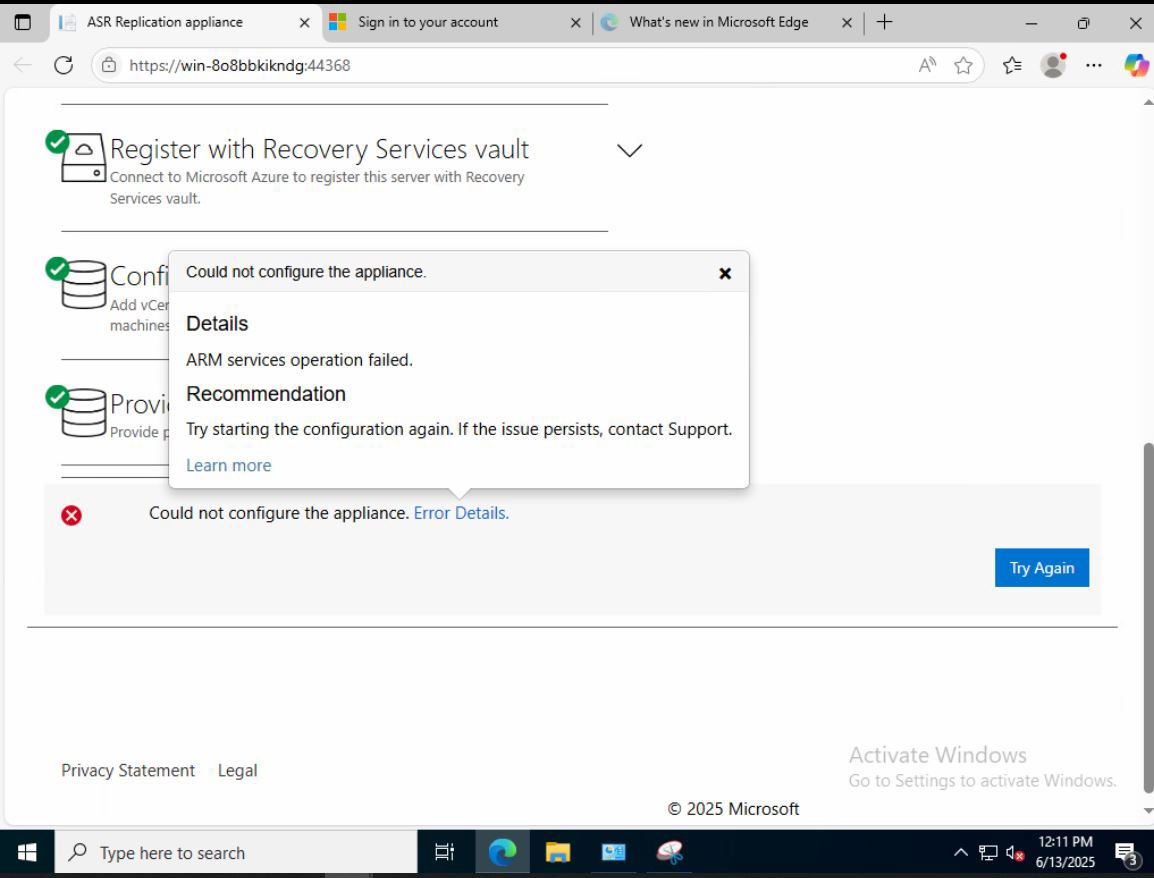

Here is the error screenshot
Continental-re 0 Reputation points

2025-06-20T13:18:16.2033333+00:00
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-06-23T10:32:39.9766667+00:00
Hello Continental-re,

What to check next for the ARM services operation failure:

Confirm Azure Permissions

Double-check the Azure user/service principal you’re using has Contributor or Owner role on the subscription or resource group where the Recovery Services vault exists.

If you’re using an Azure AD app (service principal), make sure it’s properly assigned the role.

Network Connectivity & Firewall

Verify the appliance can access ARM endpoints: management.azure.com over HTTPS (port 443).

If there’s a proxy or firewall, ensure it’s not blocking or inspecting this traffic.

Correct Azure Subscription and Tenant

Ensure you’re logged in to the correct Azure AD tenant and the subscription matches where the vault lives.

Sometimes login confusion between tenants/subscriptions causes ARM calls to fail.

Sync Appliance Time

Time mismatch can cause token validation errors.

Make sure the system time and time zone are accurate.

Restart Configuration

Sometimes a simple restart of the Configuration Server service and retrying the registration fixes transient ARM issues.

Services name: "Microsoft Azure Site Recovery Configuration Server"

Update ASR Components

Make sure the Azure Site Recovery Configuration Server and related components are updated to the latest version.

As recommendation suggests try starting the configuration again from start.
Continental-re 0 Reputation points

2025-06-24T09:47:41.9933333+00:00

Thank you Rahul,

The above steps have been followed and adhered to but the error still persist.

We need an urgent solution to this.
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-06-24T10:13:55.0433333+00:00

Hi Continental,

I have reached out to you in a private message

Thankyou
Continental-re 0 Reputation points

2025-06-24T11:08:18.9833333+00:00

Message Received and responded to

1 answer

Your answer

Ashok Gandhi Kotnana 10,430 Reputation points Microsoft External Staff Moderator

2025-06-13T12:15:52.4333333+00:00

Hi @Continental-re

Can you please share the screenshot?

Thankyou
Continental-re 0 Reputation points

2025-06-20T13:15:08+00:00

Here is the error screenshot
Continental-re 0 Reputation points

2025-06-20T13:18:16.2033333+00:00
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-06-23T10:32:39.9766667+00:00

Hello Continental-re,

What to check next for the ARM services operation failure:

Confirm Azure Permissions

Double-check the Azure user/service principal you’re using has Contributor or Owner role on the subscription or resource group where the Recovery Services vault exists.

If you’re using an Azure AD app (service principal), make sure it’s properly assigned the role.

Network Connectivity & Firewall

Verify the appliance can access ARM endpoints: management.azure.com over HTTPS (port 443).

If there’s a proxy or firewall, ensure it’s not blocking or inspecting this traffic.

Correct Azure Subscription and Tenant

Ensure you’re logged in to the correct Azure AD tenant and the subscription matches where the vault lives.

Sometimes login confusion between tenants/subscriptions causes ARM calls to fail.

Sync Appliance Time

Time mismatch can cause token validation errors.

Make sure the system time and time zone are accurate.

Restart Configuration

Sometimes a simple restart of the Configuration Server service and retrying the registration fixes transient ARM issues.

Services name: "Microsoft Azure Site Recovery Configuration Server"

Update ASR Components

Make sure the Azure Site Recovery Configuration Server and related components are updated to the latest version.

As recommendation suggests try starting the configuration again from start.
Continental-re 0 Reputation points

2025-06-24T09:47:41.9933333+00:00

Thank you Rahul,

The above steps have been followed and adhered to but the error still persist.

We need an urgent solution to this.
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-06-24T10:13:55.0433333+00:00

Hi Continental,

I have reached out to you in a private message

Thankyou
Continental-re 0 Reputation points

2025-06-24T11:08:18.9833333+00:00

Message Received and responded to

Answer 1

Continental-re hi,

thanks for posting this on q&a,

u might wanna check if u meet all the prerequisites first. sometimes the setup fails just cos the machine doesn't have enough resources or the right permissions.

if u're using a virtual machine, make sure its got at least 8gb ram and 4 cpu cores. also, the storage account u're using must be in the same region as the vault. small things like this can trip u up ))

another common hiccup is the connectivity. the appliance needs outbound access to specific urls and ports. if your network blocks any of these, boom, errors pop up.

check the logs in 'c:\programdata\asrsetuplogs'. they usually spill the beans on what went wrong. if u see something like 'failed to register appliance', it's often a certificate issue or expired tokens.

worth looking into your firewall settings too. sometimes antivirus software gets too excited and blocks the installation. temporarily disabling it might help (just remember to turn it back on after!).

and hey, if u're using a proxy, double check its config. the appliance might not be able to reach azure services if the proxy settings are off. this kinda thing bites everyone at some point )

last but not least, make sure u're running the latest version of the appliance software. microsoft rolls out updates pretty often, and the old versions can get cranky.

hope this helps,

rgds,

Alex

Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-11T08:55:43.9+00:00

Hello @Continental-re,

We haven't heard back from you checking to see if the above answer provided by @Alex helped. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
Rahul Jorrigala 3,745 Reputation points Microsoft External Staff Moderator

2025-07-14T10:28:52.06+00:00

Hello @Continental-re,

We haven't heard back from you checking to see if the above answer provided by @Alex helped. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
