Advanced flow for the ServiceNow Catalog Microsoft 365 Copilot connector

If your ServiceNow instance uses Advanced scripts in your Catalog Items or Catalog Category user criteria, you need to use the Advanced flow. It ensures accurate permissions handling when ingesting content into Microsoft Graph.

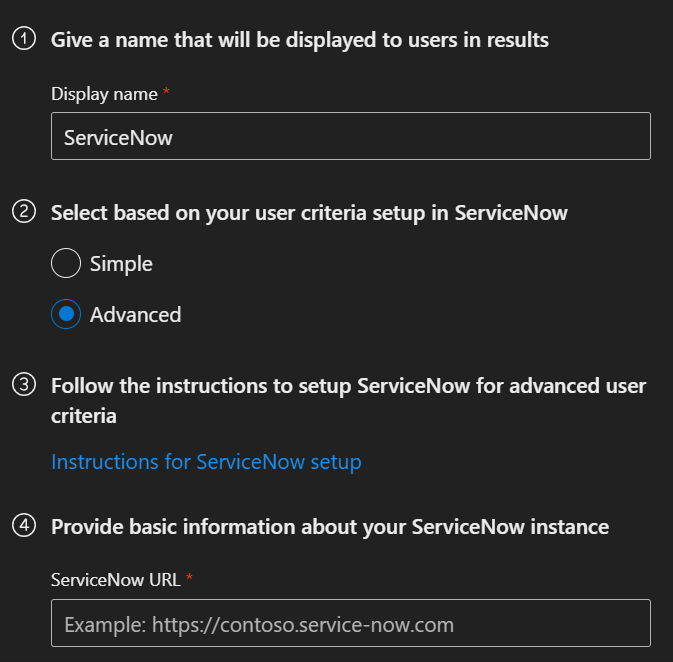

Step 1: Select advanced flow in setup

When setting up the ServiceNow Catalog Copilot connector, select the Advanced option under the field 'Select based on your user criteria setup in ServiceNow'. This is crucial for handling advanced user criteria correctly.

Step 2: Configure Scripted REST API in ServiceNow

To allow the connector to fetch advanced user criteria, you must create a Scripted REST API in your ServiceNow instance. Follow the following steps:

2.1: Elevate User Role

1. Elevate your role in ServiceNow to security_admin.

2.2: Create Access Control (ACL)

1. In ServiceNow, navigate to All > System Security > Access Control (ACL).
2. Click New to create a new ACL.
3. Set the following values:
   • Type: REST_Endpoint
   • Operation: Execute
   • Name: Microsoft Copilot
   • Role: admin (or the same role assigned to the crawling account)
4. Click Submit.

2.3: Create Scripted REST API

1. Navigate to All > System Web Services > Scripted Web Services > Scripted REST APIs.

2. Click New.

3. Enter the following:

   • Name: Microsoft Copilot
   • API ID: microsoft_copilot

4. Click Submit.

5. From the Scripted REST API list page, click on Microsoft Copilot - the REST API you just created.

6. Set Default ACLs to Microsoft Copilot (from step 2.2).

2.4: Add a Resource to the API

1. In the Resources tab, click New.

2. Fill in the details:

   • Name: GetAllUserCriteria

   • Active: True

   • HTTP method: GET

   • Relative Path: /user_criteria

   • Script: Paste the following code:

     (function execute (/*RESTAPIRequest*/ request, /*RESTAPIResponse*/ response) {
          var queryParams = request.queryParams;
          var user = new String(queryParams.user);
          return (new sn_uc.UserCriteriaLoader()).getAllUserCriteria(user);
       })(request, response);


3. Make sure both of the following are checked under Security:

   • Requires authentication
   • Requires ACL authorization

4. Ensure ACLs is set to Microsoft Copilot.

5. Select Update.

2.5: Verify Setup

1. Confirm that the Resource Path is /api/<API Namespace>/microsoft_copilot/user_criteria.

2. Select Update to save the configuration.

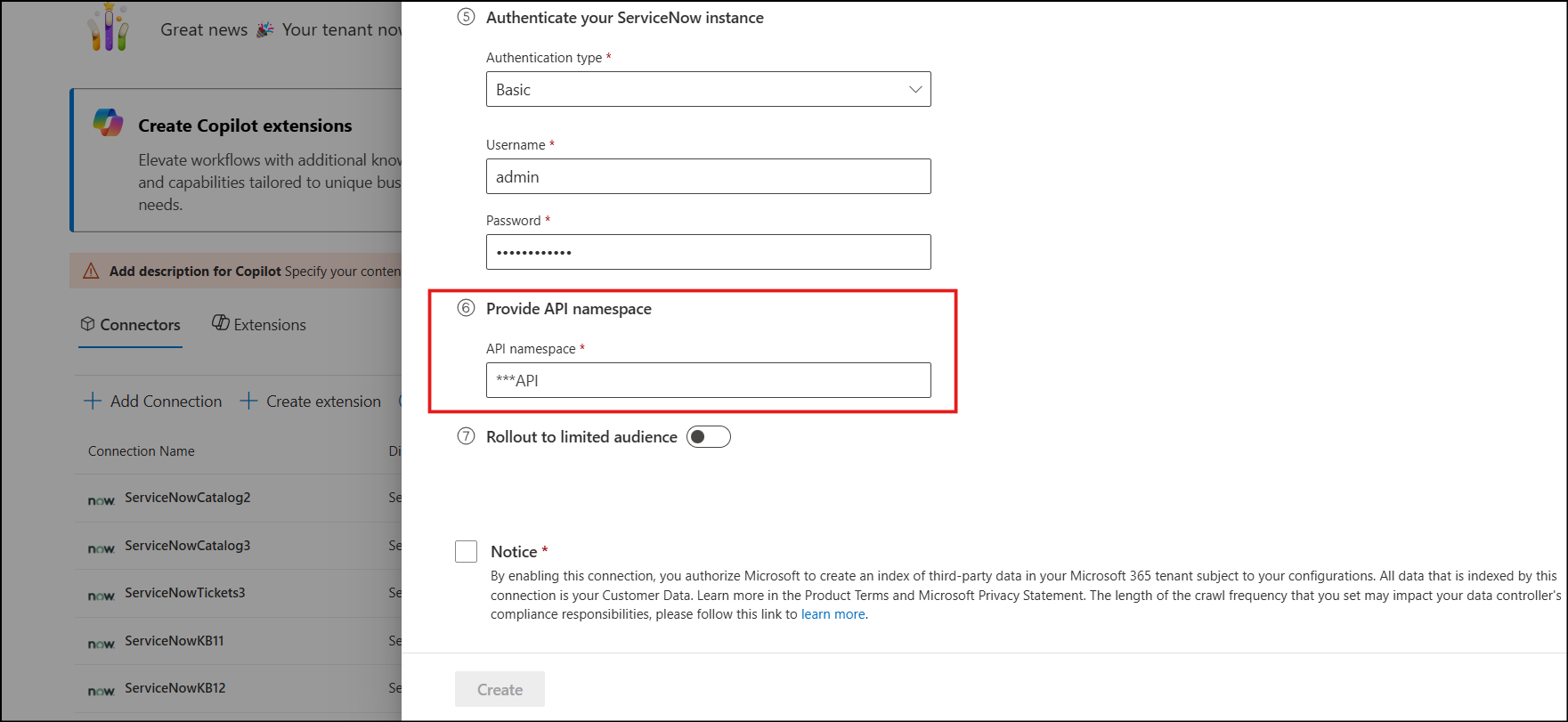

Step 3: Enter the API Namespace in the Copilot Connector Setup Experience

In the Copilot connector setup, enter the API Namespace you created in ServiceNow.
